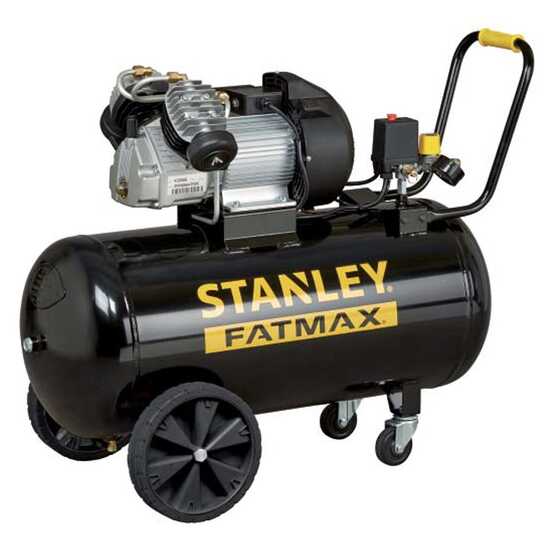

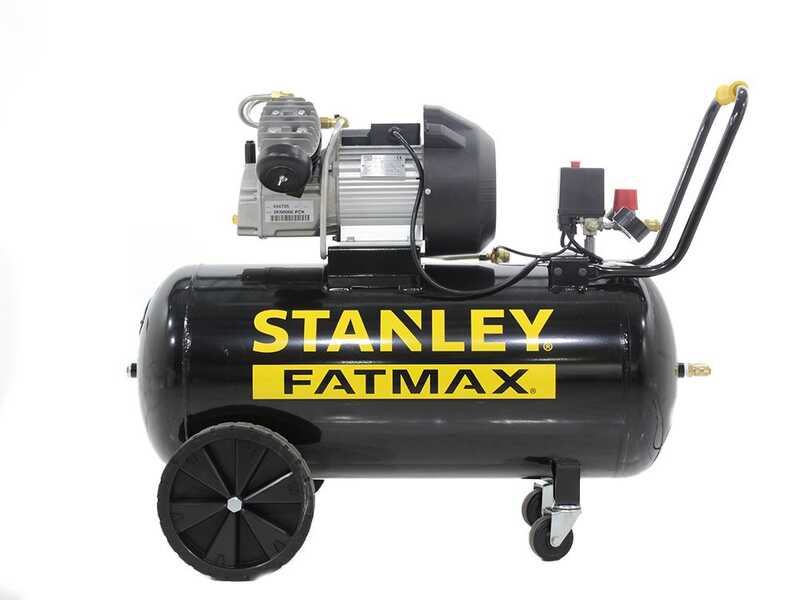

Stanley Fatmax DV2 400/10/100 - Wheeled Electric Air Compressor - 3 Hp Motor - 100 L

Stanley Fatmax DV2 400/10/100 Air Compressor
Main features:

DV2 400 (Air intake flow 356 L/min)

10 - 10 bar Maximum pressure

100 - Tank capacity in litres 100 L

Thanks to its powerful V-shaped cylinder head, the Stanley Fatmax DV2 400/10/100 air compressor is suitable for a variety of different applications. This model is regarded as the best choice among hobbyists and professionals looking for a heavy-duty and reliable air compressor.

Its compact size allows for an easy storage.

It mounts an electric motor with a power of 3 Hp. This air compressor features a compressed air suction capacity of 356 L/min and can reach a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 100 L. The air compressor weighs 60 Kg and can be easily transported thanks to its large wheels and the upper handle.

Suitable for a number of applications:

• Air blowing
• Inflation
• Air brushing
• Nailing - Stapling
• Spraying treatments
• Painting
• Professional painting
• Screw driving
• Washing operations
• Chiselling
• Polishing
• Grinding

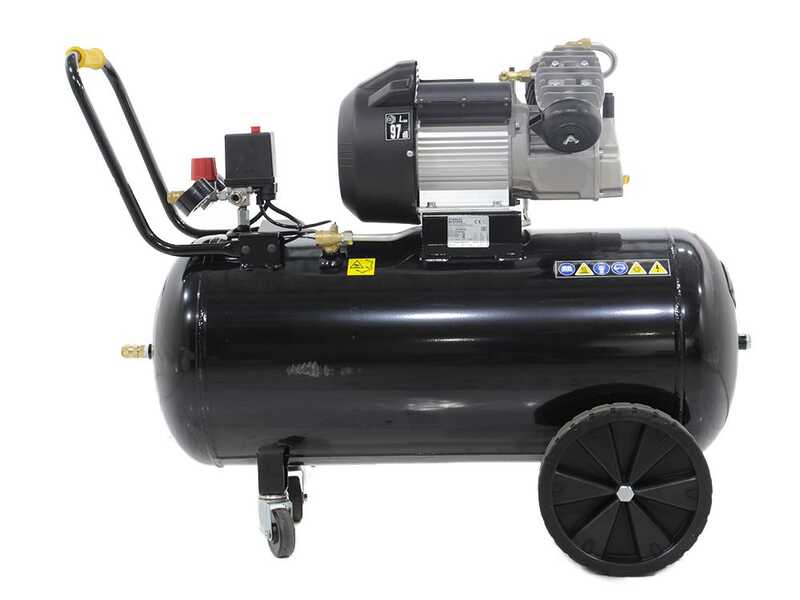

Despite being compact, the Stanley Fatmax DV2 400/10/100 air compressor offers high performance, thanks to the powerful twin-cylinder V-shaped cylinder head.

Air intake flow: 356 L/min.

Pumping unit type: coaxial twin-cylinder

Pressure: 10 bar

Electric motor power: 3 Hp

Tank: 100 L

Dimensions:
- Width: 1010 mm
- Height: 840 mm
- Depth (or thickness): 390 mm

Weight: 60 kg

Focus on the porthole for oil level control

The Stanley Fatmax DV2 400/10/100 air compressor features easy and user-friendly controls, which are divided into:

Power switch

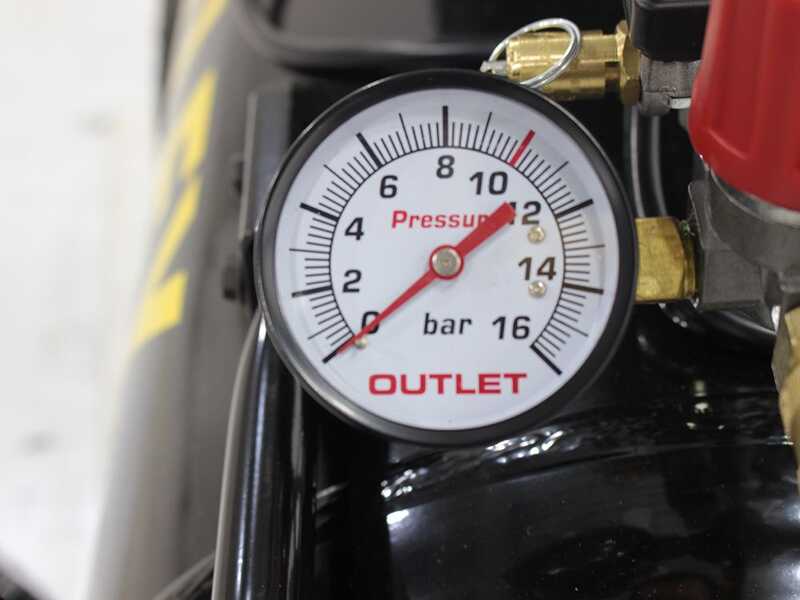

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Second female outlet fitting

Pressure adjusting knob

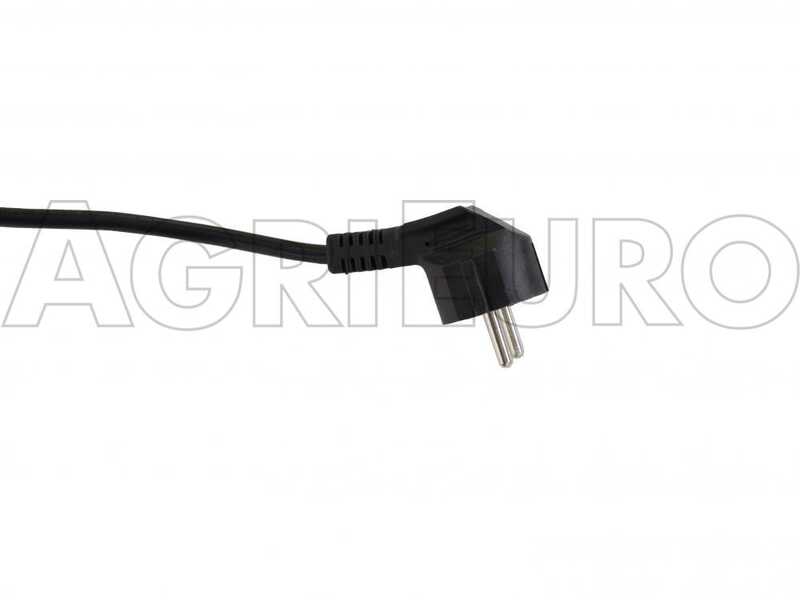

Schuko plug

Ergonomic lifting handle

Large sturdy plastic wheels

Front swivelling wheels

Condensate drain valve

Recommendations for use

To ensure maximum durability and efficiency of the machine, the following instructions must be strictly observed. Failure to do so constitutes improper use, with a serious risk of damage to the product (such damage is not covered by the warranty).

• Tank maintenance and condensate drainage: Moisture contained in the intake air accumulates as condensate at the bottom of the tank, due to the thermal processes generated during compression. Drain the condensate after each use by operating the lower drain valve, turning it carefully to avoid sudden discharges of compressed air and liquid. Failure to carry out this maintenance task may lead to internal corrosion of the tank. Furthermore, condensate accumulation reduces the effective air volume, causing abnormal motor restart cycles and the transfer of impurities to connected tools, with the resulting risk of premature damage to the entire system.
• Suitability of extension leads: Do not use unsuitable extension leads. Given the  high motor power, it is essential to ensure a constant power supply. Undersized cabling causes voltage drops that prevent the motor from reaching the correct speed, leading to abnormal overheating and permanent damage to electrical components. Use only cables with a minimum cross-section of 2.5 mm². This cross-section is necessary to handle the high current absorption, especially during start-up.

Unwind the extension lead completely before use. Never use the machine if the power cable is partially coiled or bunched up. Heat build-up due to induction can melt the cable and cause serious electrical damage to the motor or a fire hazard.

• Operating position:  The air compressor must only be installed in environments free from humidity, preferably in dry locations that are fully protected from weather exposure and potential water splashes. Adequate ventilation must be ensured by maintaining a clearance of at least 50 cm between the machine and any wall or obstacle, in order to allow for proper air circulation and effective heat dissipation. The installation area must also guarantee a high level of air cleanliness and be free from dust, fumes, chemical vapours, or flammable gases. Failure to comply with these requirements exposes the product to the following risks:

1. Critical overheating: insufficient ventilation or installation in confined spaces impairs the cooling of the motor and pump assembly, resulting in reduced service life.
2. Safety risks: the presence of volatile or flammable substances may compromise the structural integrity of the machine or the safety of the operator.

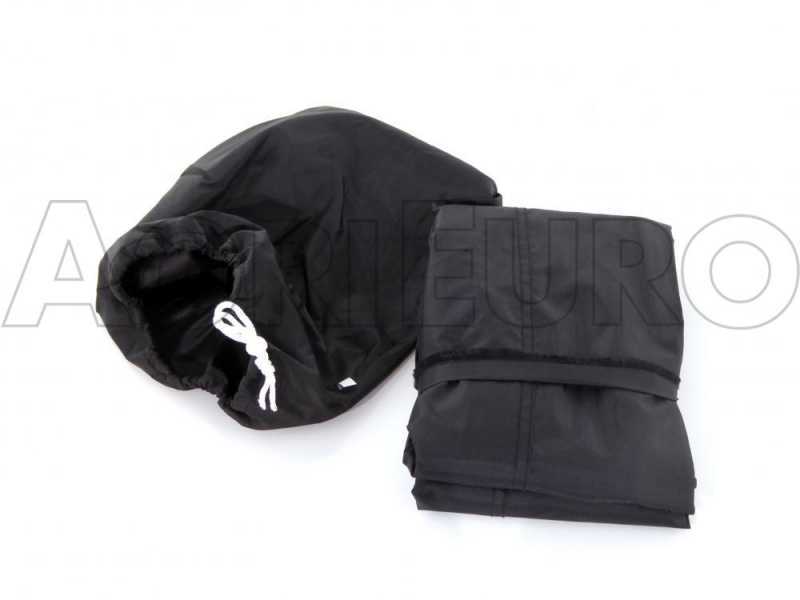

• Obstruction of cooling and ventilation systems:  During machine operation, the air compressor must not be covered with sheets, boxes or makeshift casings, as such barriers prevent the air flow required for cooling the internal components. Blocking the ventilation slots causes a rapid rise in operating temperature, with the consequent risk of irreversible damage to the motor and the seals of the pumping unit. If protective covers are used during periods of inactivity, these must be completely removed before any start-up attempt to ensure the full efficiency of the heat dissipation system, thus preventing critical overheating.
• Power supply and connections suitability: The air compressor must be connected exclusively to an electrical socket rated for the motor’s nominal power. Avoid using unsuitable sockets or connections located too far from the main electrical system. Failure to comply with these requirements exposes the machine to insufficient voltage conditions, seriously compromising the start-up phase, causing start-up difficulties, abnormal stresses and the sudden tripping of protective devices (circuit breakers or residual-current devices).
• Shutdown procedure and static pressure management: It is recommended not to leave the tank pressurised during periods of inactivity. After switching off (OFF position), the residual pressure must be released and the drain valve opened, leaving the tank empty in order to promote the evaporation of internal moisture. Maintaining constant pressure, in fact, promotes condensation build-up and accelerates the deterioration of pneumatic components, such as diaphragms and valves, drastically reducing the overall reliability of the system and its operational life.
• Checking the oil level: Before each use, check the oil level in the pumping unit. The level must fall within the range indicated by the oil level indicator or the dipstick, if fitted. Do not operate the air compressor if the oil level is too low, too high or if the oil is contaminated. An insufficient oil level can cause overheating, accelerated wear, seizure of the pumping unit and damage not covered by the warranty. An excessive oil level can cause leaks, oil leakage and oil carry-over into the compressed air circuit.

Operating position: Use the air compressor exclusively in a vertical position, on a flat and stable surface. Use on sloping surfaces may compromise the correct lubrication of the pumping unit.
