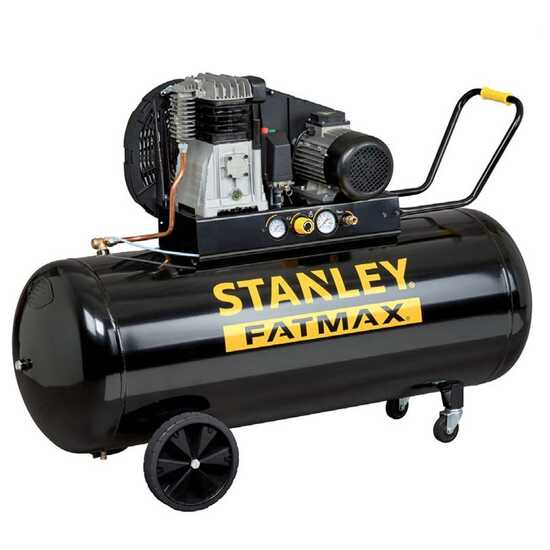

Name: Stanley Fatmax B 480/10/270T - Three-phase Belt-driven Electric Air Compressor - 4 Hp Motor - 270 L
Brand: Stanley
SKU: K501424
Price: 1026.24 EUR
Availability: InStock
Rating: 4.71 (7 reviews)

Description

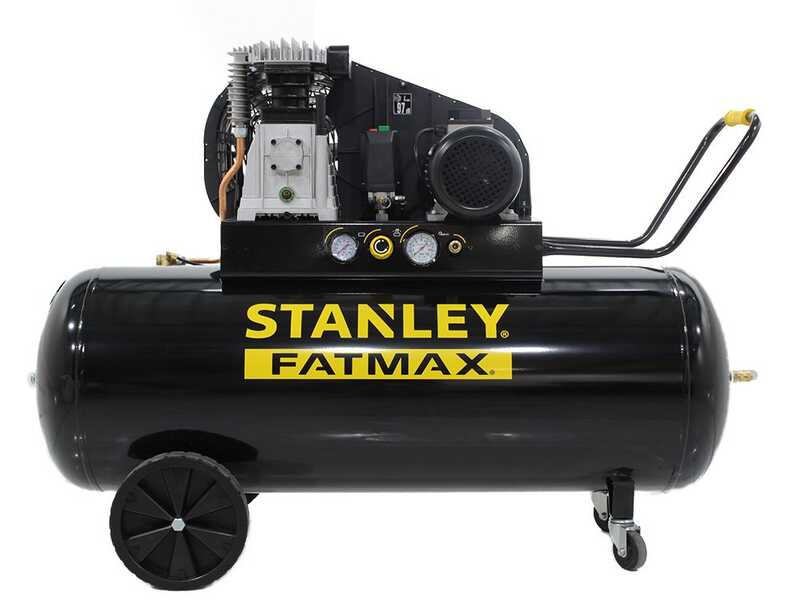

Stanley Fatmax B480-10-270 T Twin-cylinder Electric Air Compressor

Stanley Fatmax B 480/10/270 T Air Compressor
Main features:

B480 (Air intake flow 480 L/min)

10 - 10 bar Maximum pressure

270 - Tank capacity in litres 270 L

The Stanley Fatmax B 480/10/270 T air compressor is regarded as the best choice among demanding hobbyists and professionals looking for a reliable, durable and high-performing equipment.

Powered by a three-phase 4 Hp motor, this air compressor features a compressed air suction capacity of 400 L/min. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 270 L.

The air compressor weighs 131 Kg and can be easily transported thanks to its three wheels and the upper handle.

Suitable for a number of applications:

Air blowing
Inflation
Air brushing
Nailing - Stapling
Spraying treatments
Painting
Professional painting
Screw driving
Washing operations
Chiselling
Polishing
Grinding

Stanley Fatmax B 480/10/270T - Three-phase Belt-driven Electric Air Compressor - 4 Hp Motor - 270 L

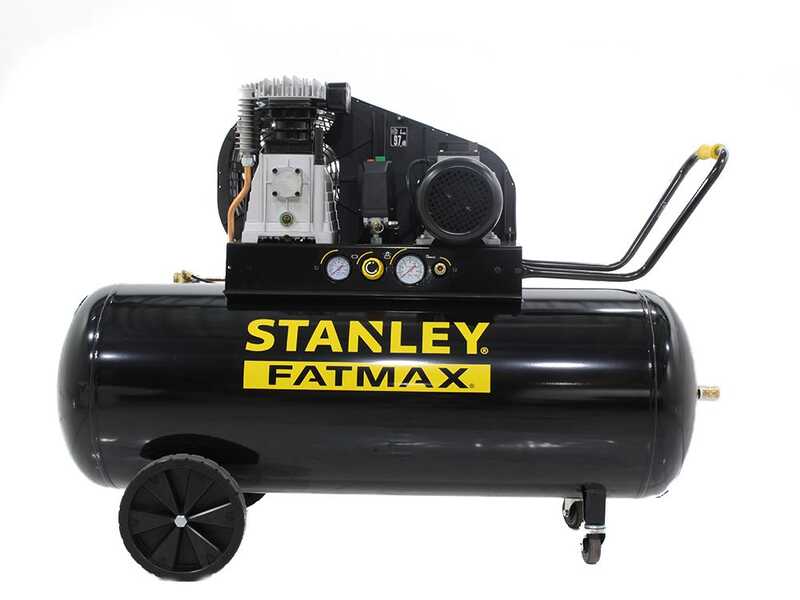

Technical features

Air intake flow: 480 L/min

Pumping unit type: belt-driven

Pressure: 10 bar

Electric motor power: 4 Hp three-phase

Tank: 270 L

Overall dimensions:
- Width: 1640 mm
- Height: 1150 mm
- Depth (or thickness): 550 mm

Weight: 131 kg

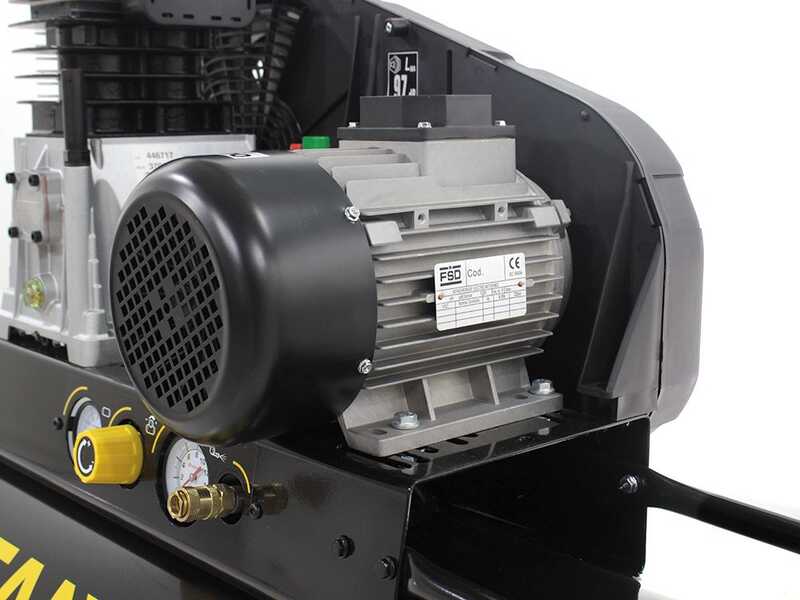

4 Hp three-phase electric induction motor

Power supply: 400 V three-phase

Power: 4 Hp
The induction motor is characterised by a very long service life and low maintenance requirements.

In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

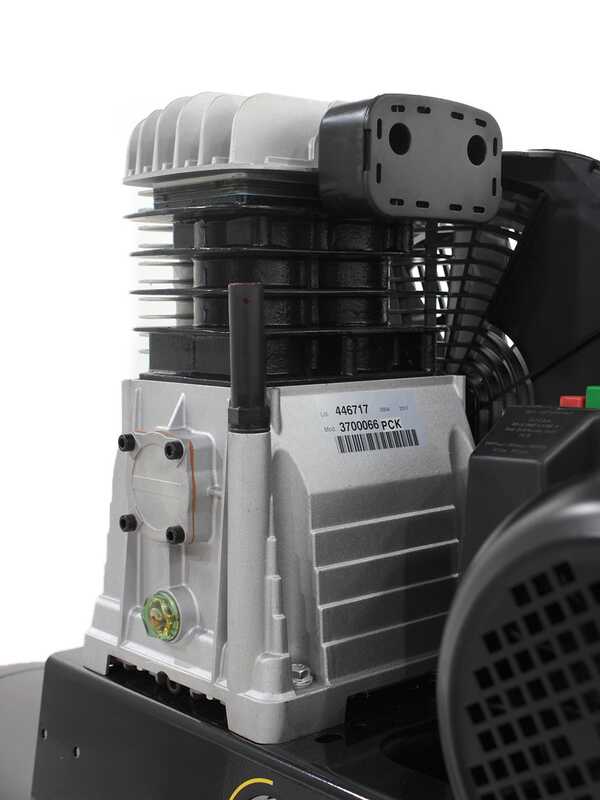

B3800B cylinder head

Air intake flow: 480 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
No. of revolutions: 1400 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Focus on the oil control dipstick and porthole

Focus on the side cooling manifold, it keeps the compressed air outlet temperature low.

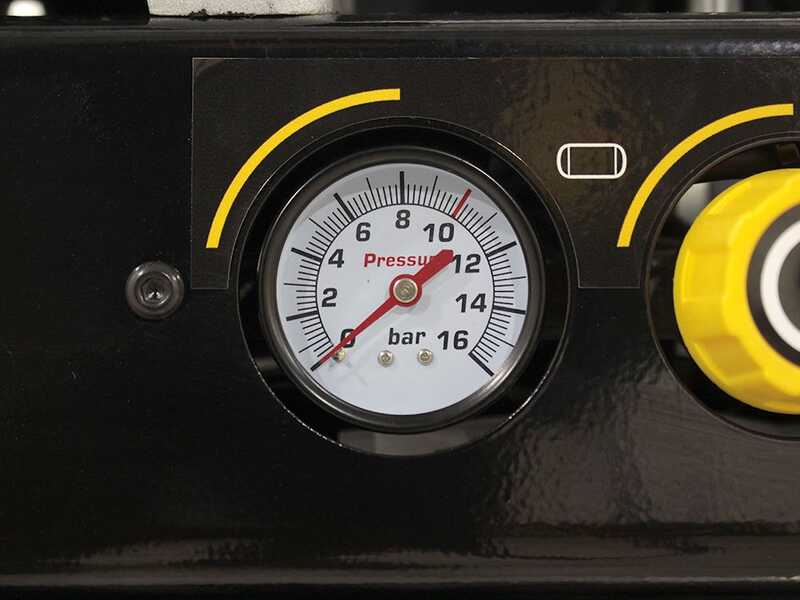

Controls

The Fatmax B 480/10/270 T air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

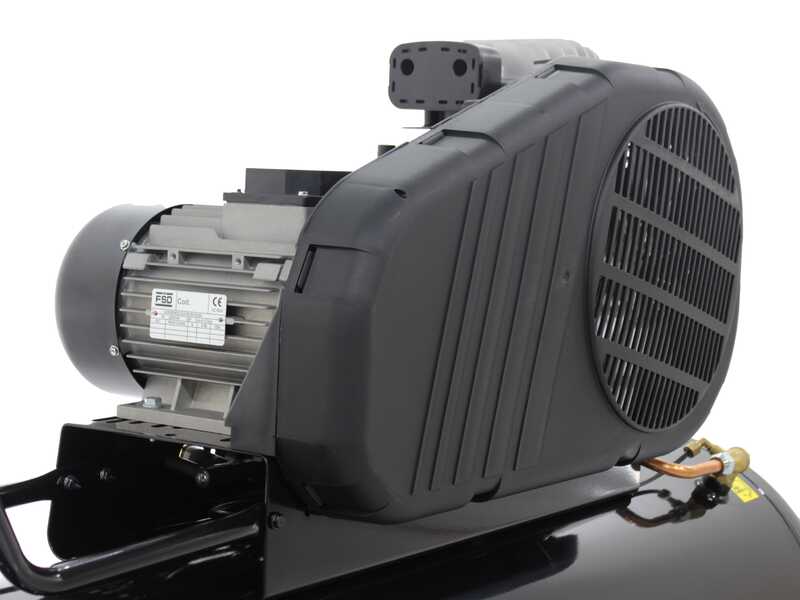

Belt drive

These Stanley air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.
