Stanley DST 240/8/50 - Silenced Wheeled Electric Air Compressor

Add a question
ID: K601579

EAN: 8016738771510

MPN: B2DC404STN707

Stanley DST 240/8/50 - Silenced Wheeled Electric Air Compressor
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
8 bar
Air intake flow
240 L/min
Cylinder head rpm
1400 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Motor type
Electric
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model:
DST 240/8/50
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
64 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric
Nominal power:
2 HP
Silenced:
Yes
Air compressors engine speed:
2850
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
ABAC
Model:
DST 240
Air intake flow:
240 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Cylinders material:
Cast iron
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1400 RPM
Equipment
No. of outlet couplings:
1
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
90x40x64 cm
Net weight:
35.4 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
75x33x66 cm
Gross weight (packaging included) :
39 Kg
Assembly time:
15 minutes
Prompt Delivery
26 items in stock
Free Shipping
Estimated delivery: 24/05/2024 - 28/05/2024
€ 355,51
VAT Included

You're viewing:
Customers also viewed:
Description

STANLEY DST 240/8/50 Electric Air Compressor - 50 L 2 Hp

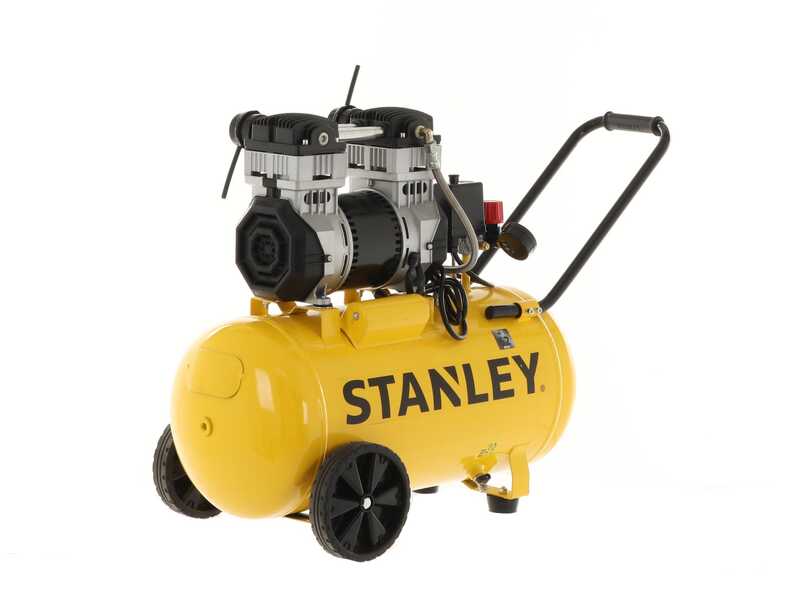

Stanley DST 240/8/50 Silenced Oilless Air Compressor
Main features:

DST = compressor model

8 = power bars

50 = motor power in Hp x 10

Powered by a 2 Hp induction electric motor, it has a compressed air suction capacity of 240 L/min. It is capable of reaching a maximum pressure of 8 bar.

The STANLEY DST 240/8/50 silenced air compressor is regarded as the best choice among hobbyists looking for a reliable, silent, lightweight and high-performing equipment.

Furthermore, this air compressor operates without oil, thus ensuring simple and limited maintenance without further waste.

The STANLEY DST 240/8/50 air compressor is an outstanding product with very low noise emissions. Thanks to its two filters located on the cylinder head, the noise is drastically lowered.

It comes with a large compressed air storage tank of 50 L. It weighs 35.4 Kg and can be easily transported thanks to its wheels and to the upper handle.

This air compressor belongs to the Stanley silenced line.
This line represents the "medium" range of the Stanley brand and is the most popular and best-selling. This line features all of Stanley's excellent quality, with outstandingly finished air compressors and an excellent value for money.

  • It is equipped with a super silent pumping unit with 2 Hp power.

  • Its big wheels ensure better stability and ease of transportation.

  • It features a practical handle and large wheels.

  • Large gauges are positioned on the equipment and ensure easy data readout.

  • Double fixed foot for greater stability during use.

Technical features

Air intake flow: 240 L/min

Pumping unit type: coaxial silenced

Pressure: 8 bar

Electric motor power: 2 Hp

Tank: 50 L

The noise emissions can be measured both in dB and Lwa. In detail:

Noise emissions: 63 dBA

Same value expressed in LwA: 84 dB

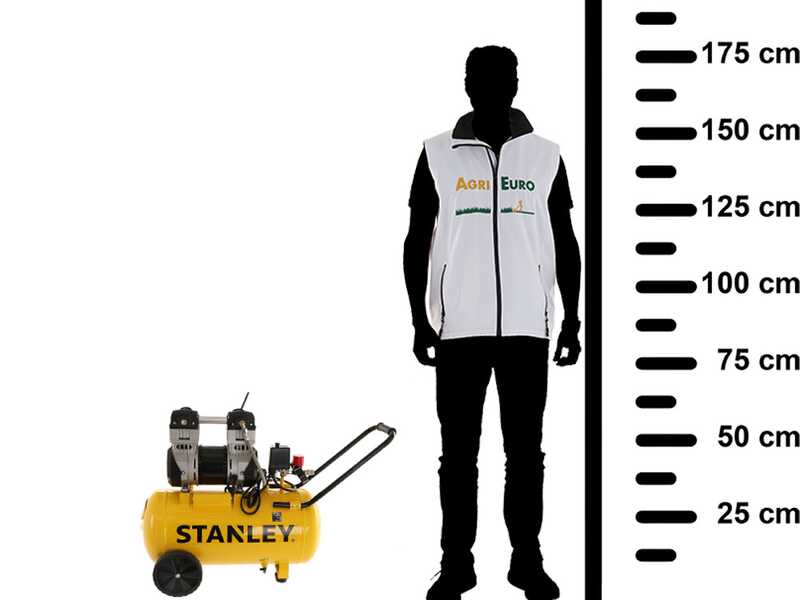

Overall dimensions:
- Width: 770 mm
- Height: 645 mm
- Depth (or thickness): 310 mm

Weight: 35.4 kg

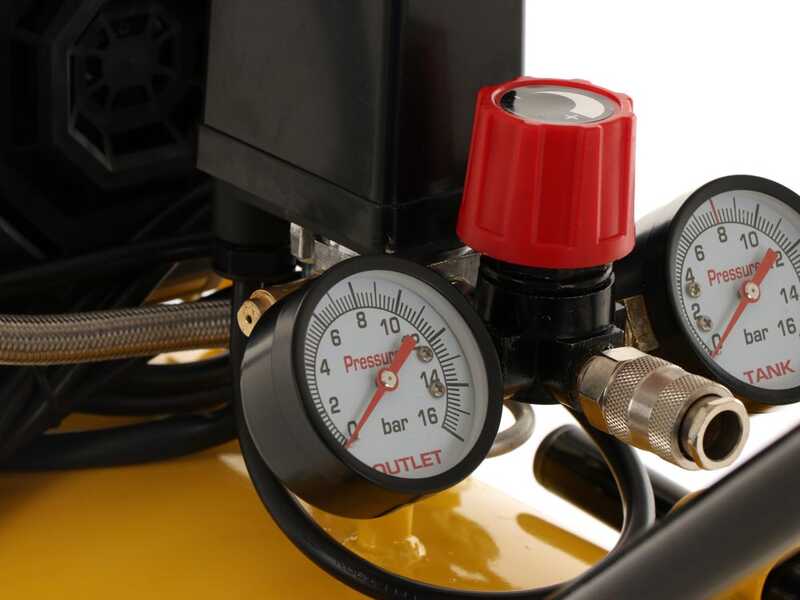

Controls

The Stanley DST 240/8/50 air compressor features easy and user-friendly controls, which are divided into:

Air compressor female outlet fitting

Tank air pressure gauge

Pressure adjusting knob

Output air pressure gauge

Power switch

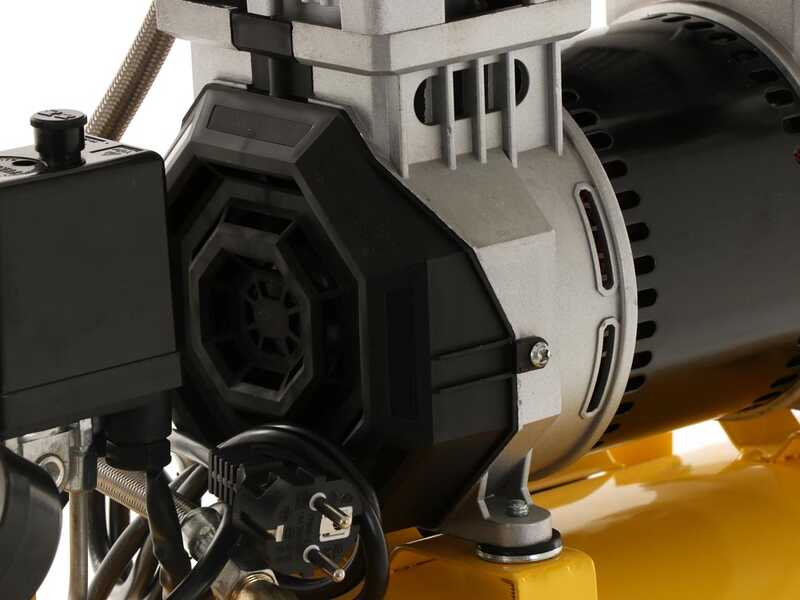

1.3 Hp single-phase induction electric motor

Power supply: 230 V

Power: 2 Hp - 1.5 kW

Advantages of the induction motor:
- Simplified wiring: the brush motors can be connected directly to DC (direct current) power supply and control can be as simple as a switch.
- Low costs

It is regarded as a top-quality motor in terms of reliability, low noise, durability, energy efficiency and maintenance.

Other features

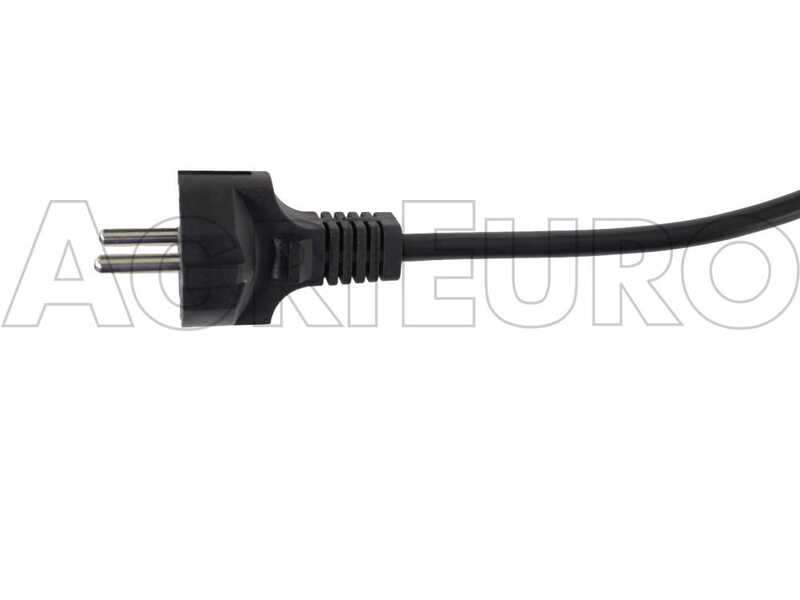

Schuko plug

Ergonomic lifting handle

Large sturdy plastic wheels

Anti-vibration rubber pad

Condensate drain valve

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
