HOME Workshop and Do-It-Yourself Electric Air Compressors Small Portable Air Compressors Portable Oilless Mini Air Compressors with Tank Stanley DN 200/8/6

Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L

Limited
Questions & Answers (4)
ID: K501290

EAN: 8016738703788

MPN: C6BB304STN039

Stanley
Catalog Stanley
7,0/10
After-sales assistance & Spare parts
29Pictures
1Customer pics
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
+1000 sold
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
6 L
Max. operating pressure
8 bar
Air intake flow
180 L/min
Cylinder head rpm
3400 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
DN 200/8/6
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
✔
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Tank capacity:
6 L
Air compressor tank:
6 L
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Power supply:
220 V electric
Pump data
Pump brand:
Stanley
Model:
OL195
Air intake flow:
180 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
3400 RPM
Equipment
Anti-vibrating system:
Yes
No. of outlet couplings:
1
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
31x35x37 cm
Net weight:
11.2 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
31x35x37 cm
Gross weight (packaging included) :
11.2 Kg
Assembly time:
Assembled
Prompt Delivery
97 items in stock
Free Shipping
Estimated delivery: 18/10/2024 - 22/10/2024
Free returns (up to 30 days after receipt) *
€ 173,60
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

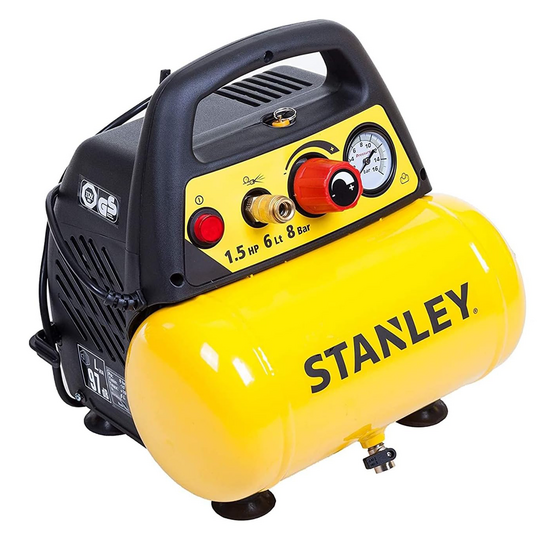

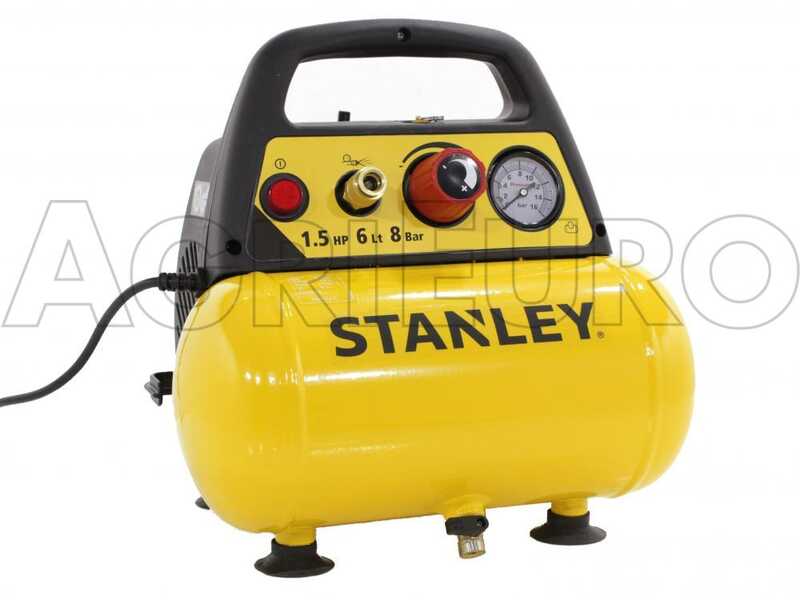

Stanley DN 200/8/6 Electric Air Compressor

Stanley DN 200/8/6 Air Compressor
Main features:

DN 200 (180 L/min Air intake flow)

8 - Maximum pressure 8 bar

6 - Capacity in L of the tank 6 L

The Stanley DN 200/8/6 is a compact medium-powered air compressor suitable for a variety of purposes, such as:

  • Air-blowing
  • Inflation
  • Airbrushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting

Powered by a 1.5 Hp electric motor, this air compressor features a compressed air suction capacity of 180 L/min. It is capable of reaching a maximum air pressure of 8 bar.

Equipped with a 6 L compressed air storage tank. It weighs 11.2 kg and it can be easily transported thanks to the ergonomic upper handle.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these air compressors, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L

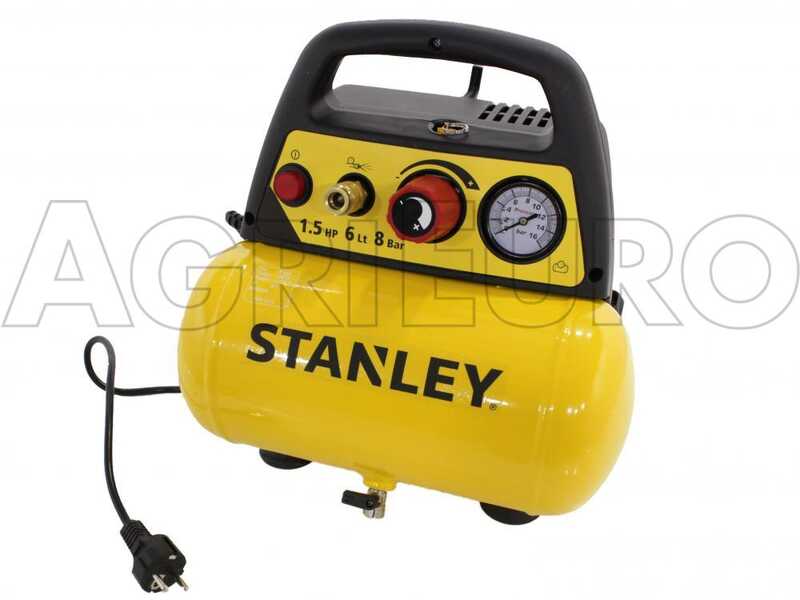

Technical features

Air intake flow: 180 L/min

Pump type: coaxial

Pressure: 8 bar

Electric motor power: 1.5 Hp

Tank: 6 L

Dimensions:
- Width: 315 mm
- Height: 375 mm
- Depth (or thickness): 356 mm

Weight: 11.2 Kg

Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L

Controls

The STANLEY DN 200/8/6 air compressor features easy and user-friendly controls, which are divided into:

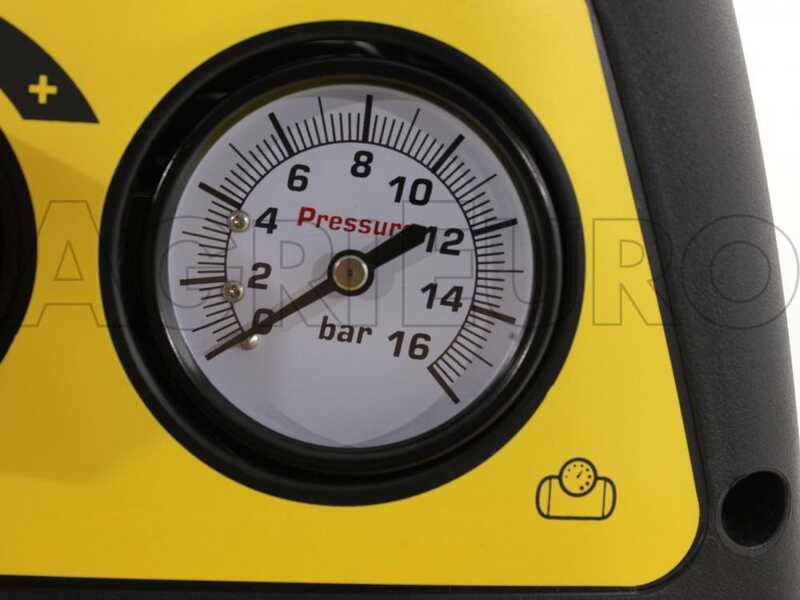

Output air pressure gauge

Power switch

Air compressor female outlet fitting

Pressure adjusting knob

Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L

Other features

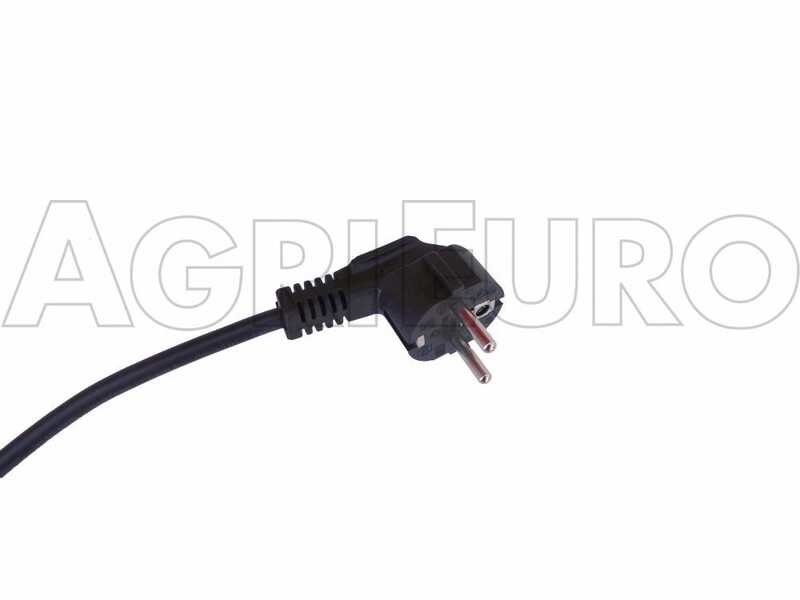

Schuko plug

Ergonomic lifting handle

Anti-vibration rubber pads

Condensate drain valve

Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L Stanley DN 200/8/6 - Compact Portable Electric Air Compressor - 1.5 Hp Motor - 6 L
