Stanley D200/10/24 - Portable Electric Air Compressor - 1.5 Hp Motor - 24 L

Questions & Answers (8)
ID: K501287

EAN: 80167387544940

MPN: 8117190STN598

7,0/10
After-sales assistance & Spare parts
Stanley D200/10/24 - Portable Electric Air Compressor - 1.5 Hp Motor - 24  L
+900 sold
Free gifts from AgriEuro
no. 8 compressor connectionsno. 8 compressor connections
Technical data
Air compressor tank
24 L
Max. operating pressure
10 bar
Air intake flow
180 L/min
Cylinder head rpm
3400 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model
D 200/10/24V
Air compressor type 2
Coaxial
Air compressor type
Vertical
Operating mode
Single-phase 230 V
Max. operating pressure
10 bar
Number of tanks
1
Air compressor tank
24 L
Noise level
97 LwA
Manufacturing country
China
Motor data
Motor type
Electric single-phase
Nominal power
1.5 HP
Silenced
No
Manufacturing country
Denmark
Pump data
Pump brand
Stanley
Model
OL195
Air intake flow
180 L/min
Pump type
Single-stage
Lubrication
Oil-less
Cooling manifold
No
Transmission data
Transmission type
Coaxial type direct
Cylinder head rpm
3400 RPM
Equipment
Anti-vibrating system
Yes
No. of outlet couplings
1
Rubber-coated soft grip
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
36x36x65 cm
Net weight
16 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
36x36x65 cm
Weight including packaging
16 Kg
Assembly time
Assembled
Prompt Delivery
34 items in stock
Free Shipping
Estimated delivery: 25/09/2025 - 29/09/2025
€ 210,69
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

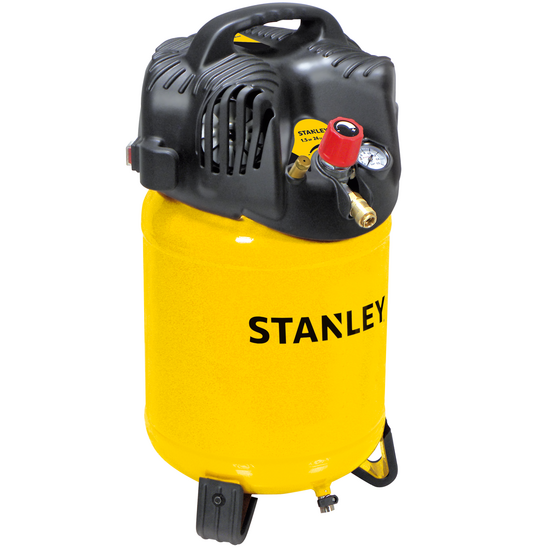

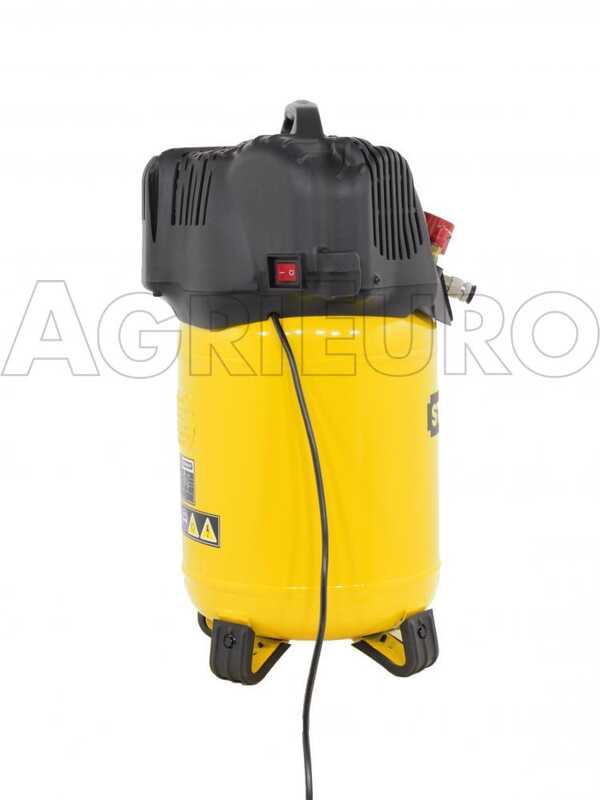

Stanley D200/10/24V Electric Air Compressor

Stanley D200/10/24V Air Compressor
Main features:

D 200 (Air intake flow 180 L/min)

10 - Maximum pressure 10 bar

24 - Tank capacity in L 24 L

V - Vertical tank

The Stanley D200/10/24V air compressor is suitable for a variety of purposes. It is the ideal tool for hobbyists to carry out household jobs.

Its compact size allows for an easy storage.

It mounts an electric motor with a power of 1.5 Hp. This air compressor has a compressed air suction capacity of 180 L/min and can reach a maximum pressure of 10 bar.

It features a large-sized compressed air storage tank of 24 L. The air compressor weighs only 16 Kg and can be easily transported thanks to the practical upper handle.

Suitable for a number of applications:

  • Air-blowing
  • Inflation
  • Airbrushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional painting
  • Screw driving

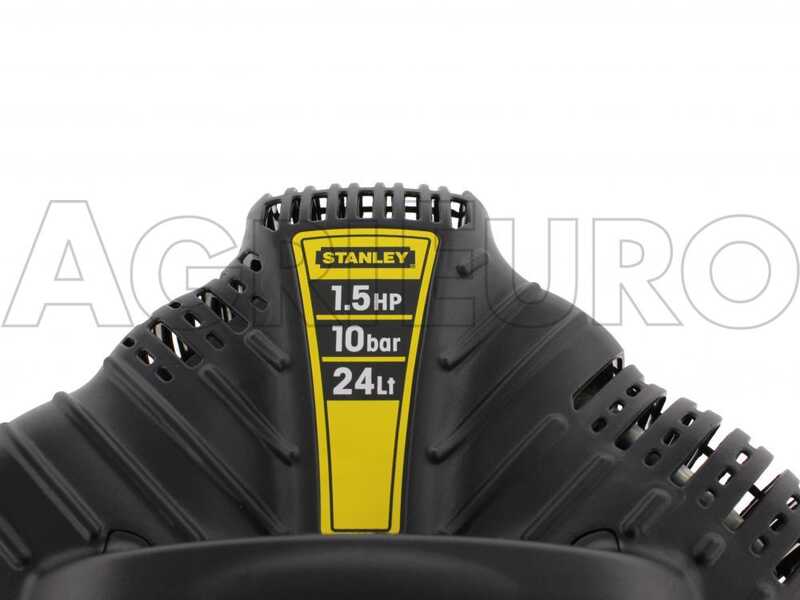

Technical features

Air intake flow: 180 L/min.

Pumping unit type: coaxial

Pressure: 10 bar

Electric motor power: 1.5 Hp

Tank: 24 L

Dimensions:
- Width: 323 mm
- Height: 650 mm
- Depth (or thickness): 323 mm

Weight: 16 kg

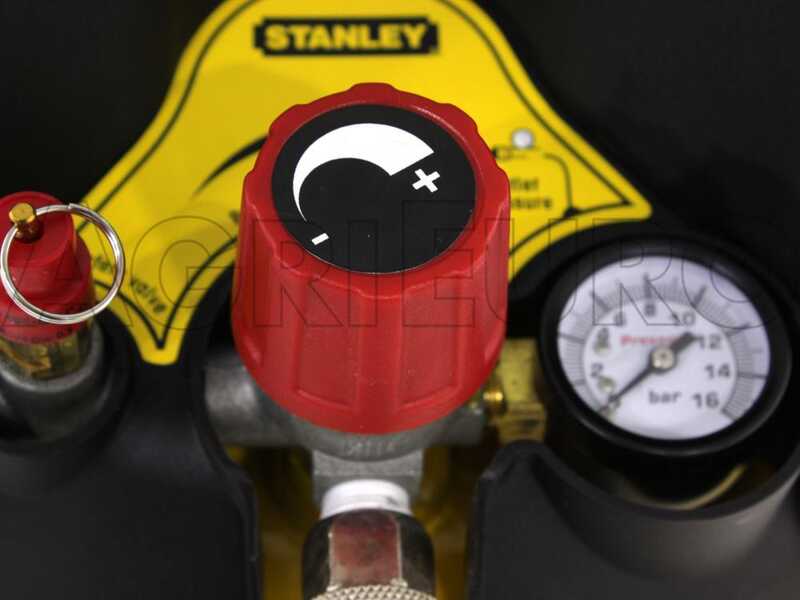

Controls

The Stanley D200/10/24V air compressor features easy and user-friendly controls, which are divided into:

Power switch

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Other features

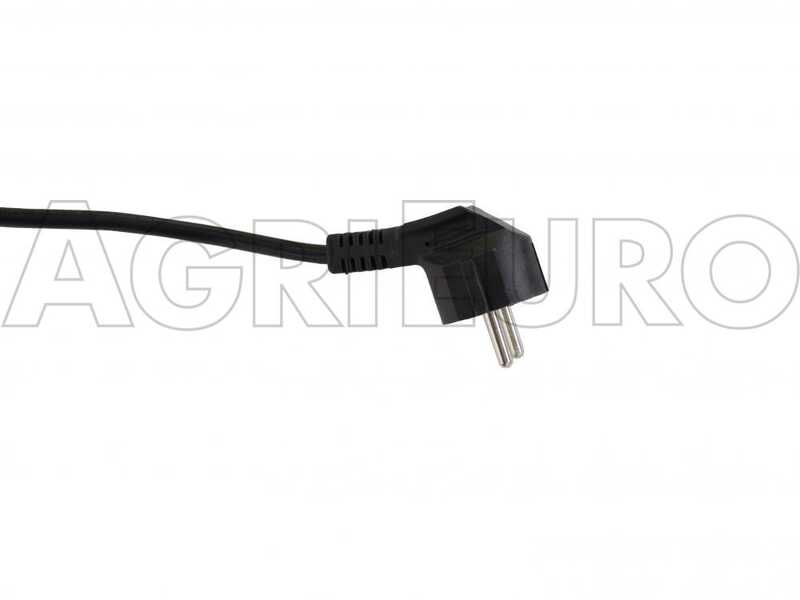

Schuko plug

Double hose reel.

Ergonomic lifting handle

Anti-vibration rubber pads


Condensate drain valve

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
