Seven Italy 300 - Tractor-Mounted Mist Blower for Spraying - 300L capacity - APS 51 Pump

Add a question
ID: 111825

EAN: 9999991101425

Seven Italy 300 - Tractor-Mounted Mist Blower for Spraying - 300L capacity - APS 51 Pump
Tank capacity
300 l
Fan diameter Ø
600 mm
Rear intake
No. of Speeds
1+2+N
No. Sprays
10 Nozzles
Pump brand
Comet
Pump Model
APS-51
Flow rate
50.7 L/min
Max. operating pressure
40 bar
Pressure adjuster
Three ways - Standard
Hand washing tank
Yes
Manufacturing country
Italy
Product Features
Model:
300
Type:
per irrorazione
Operating mode:
a trattore
Frame type:
Hot-dip galvanised steel
Fan diameter Ø:
600 mm
Flow rate:
50.7 L/min
Max. operating pressure:
40 bar
Rear intake:
Max. spraying height:
6 m
Max range:
6.5 m
Tank capacity:
300 l
Tank capacity:
300 L
Fixed 3-point hitch:
Yes
No. of Speeds:
1+2+N
Manufacturing country:
Italy
:
Pump data
Pump brand:
Comet
Pump Model:
APS-51
Pump type:
A tre membrane
Flow rate:
50.7
Operating pressure:
40
Transmission data
Gearbox:
In oil bath
No. of forward speeds:
2
Operating mode:
a leva lato ventola
Equipment
No. of blades (for each propeller):
10
No. Sprays:
10 Nozzles
Jets type:
Double with anti-drip
Pressure adjuster:
Three ways - Standard
Internal hydraulic shaker:
Yes
Hand washing tank:
Yes
Removable cartridge filter:
Yes
Free gifts/extra features
Instructions manual:
Yes

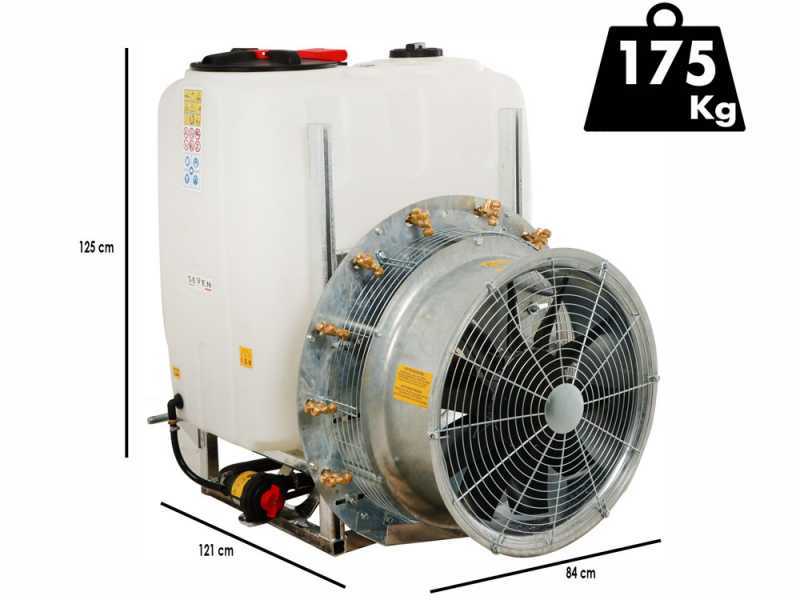

Dimensions and logistics
Product dimensions in cm (L x W x H):
110x80x145 cm
Net weight:
175 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
121x80x145
Gross weight (packaging included) :
190 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
€ 3.484,65
VAT Included
You're viewing:
Customers also viewed:
Description

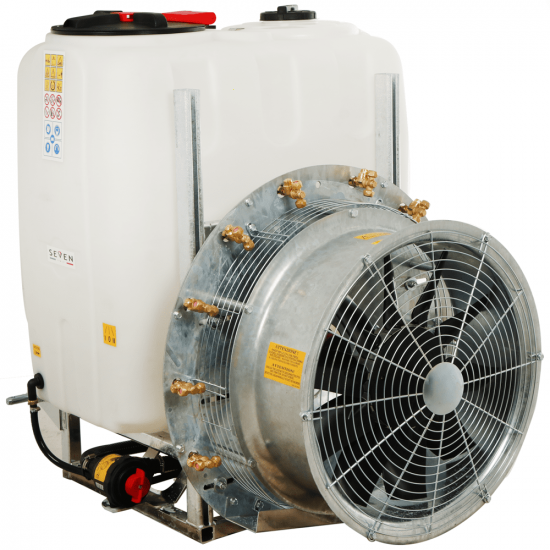

Seven Italy 300 Mist Blower

The new Seven Italy agricultural tractor-mounted mist blower is a device used for spraying plant protection products and other chemicals on the plants. The sprayer is connected to the tractor through a three-point hitch, which makes it easy to transport and use.

The operation of the sprayer is quite simple: the product is mixed with water inside the sprayer's tank, and is then sprayed onto the plants through the large 600 mm fan that generates a strong circular air flow that pushes the droplets already emitted and pulverised by the jets. The nozzles are designed to create a fine spray that settles evenly on the surface of the plants.

One of the advantages of the agricultural tractor sprayer is its versatility. It can be used for spraying a wide range of chemicals, such as fungicides, insecticides and herbicides. In addition, the sprayer can cover large areas quickly and efficiently, making it an ideal option for farmers cultivating large fields through its 300 L tank.

Frame made of Swedish steel with hot-dip galvanisation treatment, which makes it very resistant to rust attack over time.

However, it is important to use the mist blower responsibly, avoiding excess chemicals and respecting local safety rules and regulations.

Thanks to its versatility and ability to cover large areas quickly and efficiently, it has become a popular choice among farmers around the world.

CAUTION: It is strongly recommended that you carefully check the lifting capacity of your tractor, taking into account the total weight of the machine when fully loaded.

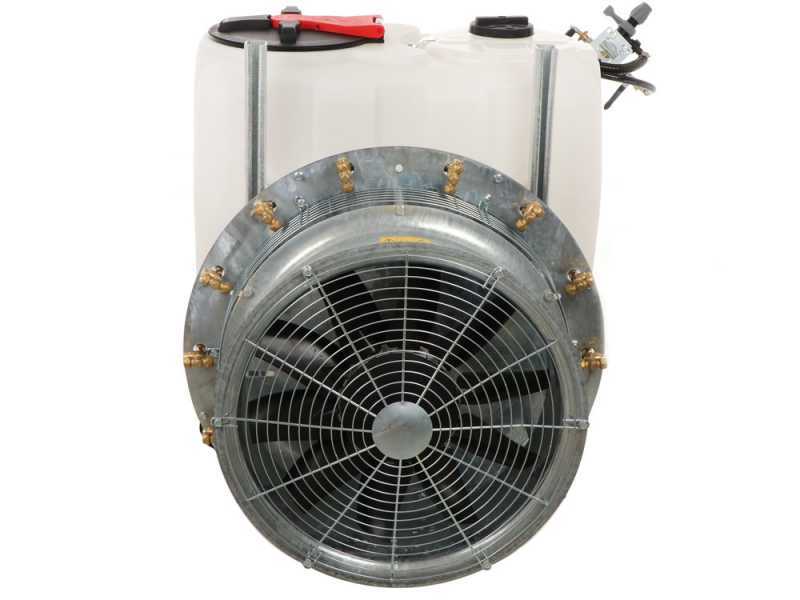

600mm Fan

Swedish steel fan unit with hot-dip galvanisation treatment, equipped with oil-bath gearbox.

600 mm diameter rear suction axial fan (10 blades).

The fan is the essential element that determines the power of the sprayer, hence it determines the ability to push the atomised product in width and height. The nylon fans guarantee excellent weather resistance.

Focus on the geometric rotation system of the propeller blades.

Thanks to the fan's features, the product can be used in the following fields:

  • Citrus groves
  • Orchards
  • Vineyards
  • Greenhouse crops
  • Olive grove
  • Tall trees
  • Berries, blueberries, avocados
  • Banana groves

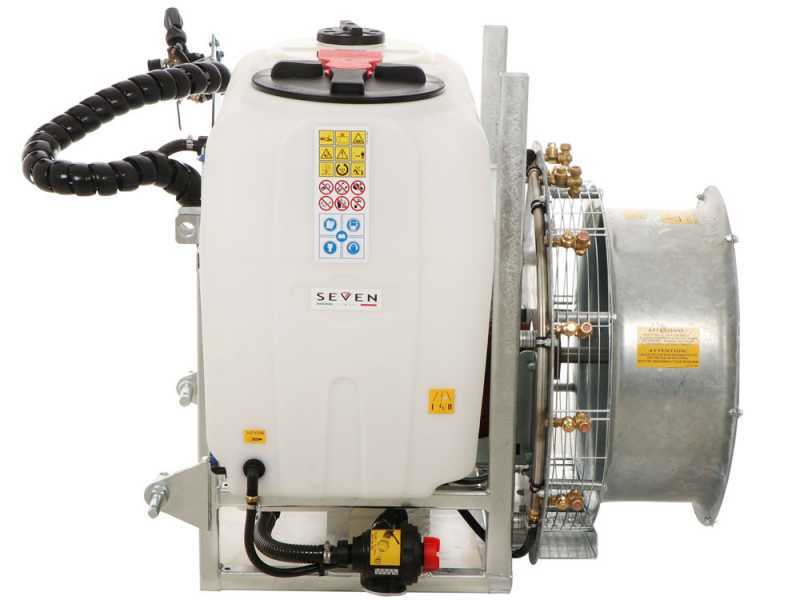

Gear-multiplier

The fan is driven by a gear-multiplier that provides two speeds to the fan unit, through a lever.


Made in Italy, with cast iron housing, internal steel gears in an oil bath, ensuring excellent reliability over time.

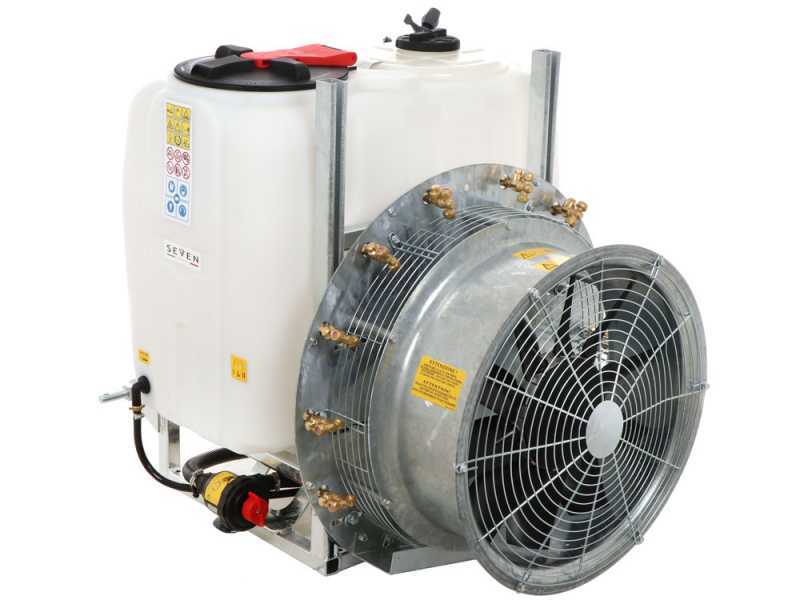

No. 10 double brass spray nozzles with anti-drop (5 on the right, 5 on the left).

Stainless steel spray rods divided into two sectors, a left one with 5 jets and a right one with the other 5 jets.

Double brass spray nozzles with anti-drop and quick-closing system.

Ceramic nozzles 1.0 / 1.2

Provided with three steps that coincide with the positions:

  • Nozzle with larger hole (higher liquid delivery)
  • Central position = closed jet
  • Nozzle with smaller hole (less liquid delivery)

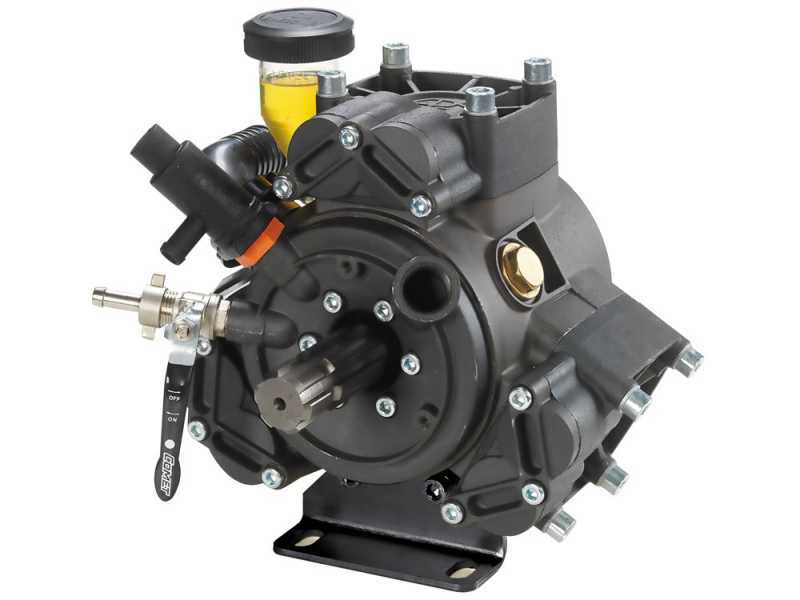

Comet APS 51 pump

The Comet APS 51 pump is used for spraying treatments in medium and large crops. Installation on tractor-mounted and wheeled sprayers and atomisers. Made of high-quality materials that guarantee high resistance to corrosion and high pressure.

Interior manifolds. The suction-discharge valves are all easy to check, and they are all placed on the discharge side. The valve is equipped with stainless steel site and plate.

The parts directly touching the liquid are made of anodized aluminium, resistant to corrosion.

Performance

N. membrane / pistons: 3
Flow rate: 50.7L/min
Pressure: 40.0 bar
Power: 5,2 CV
RPM: 550
Weight: 16.4 Kg

It allows operating:

  • up to 5 to manual lever lance (or knob) simultaneously
  • 2 MITRA lances simultaneously
  • 2 lateral spray booms with 4 butterfly nozzles each

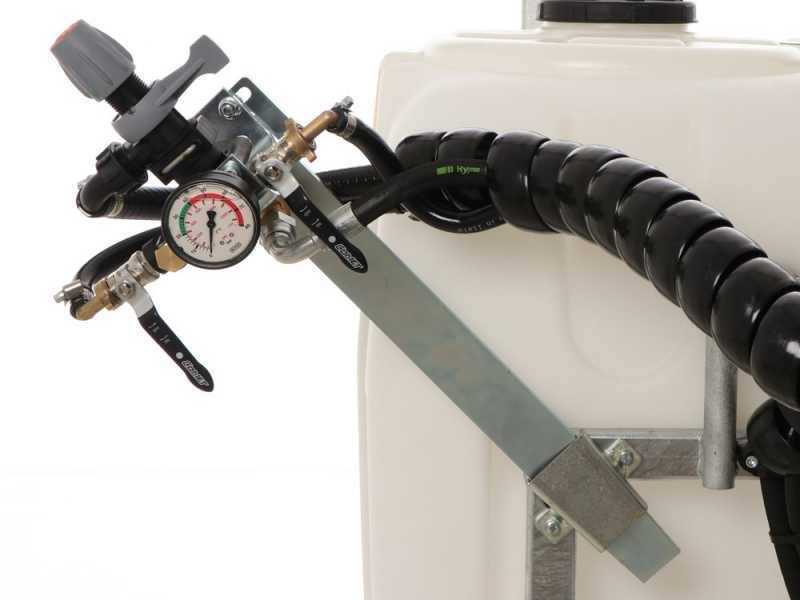

Comet Polaris 2 Regulation Unit

Comet Polaris 2 control unit is a three-way control system designed for use together with agricultural and industrial pumps manufactured by the Italian company Comet S.p.A.

Pressure adjustment knob.

Pressure gauge.

The two side taps supply respectively the right-hand sector of the fan and the left-hand sector.

This means that the two sectors can also be switched on separately, i.e. only the nozzles on the right-hand side or only on the left-hand side (e.g. when you are on the edge of your plot).

Hose cover membrane

Maximum pressure: 40 bar

Max. flow rate: 50L/min

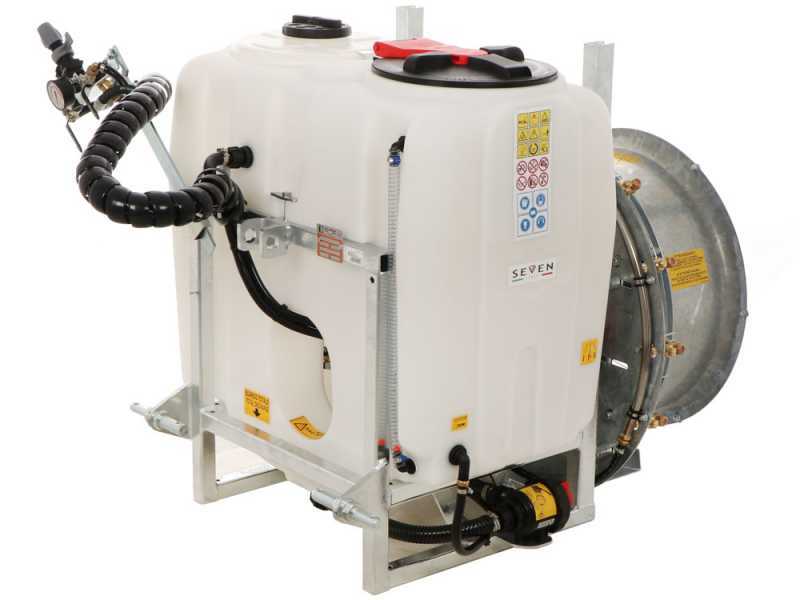

Frame made of hot-dip galvanised steel

Reinforced Swedish steel frame with hot-dip galvanisation treatment, complete with three-point hitch for tractor mounting.

The three-position attachment points to the lift are complete with pins. 1° and 2° category.

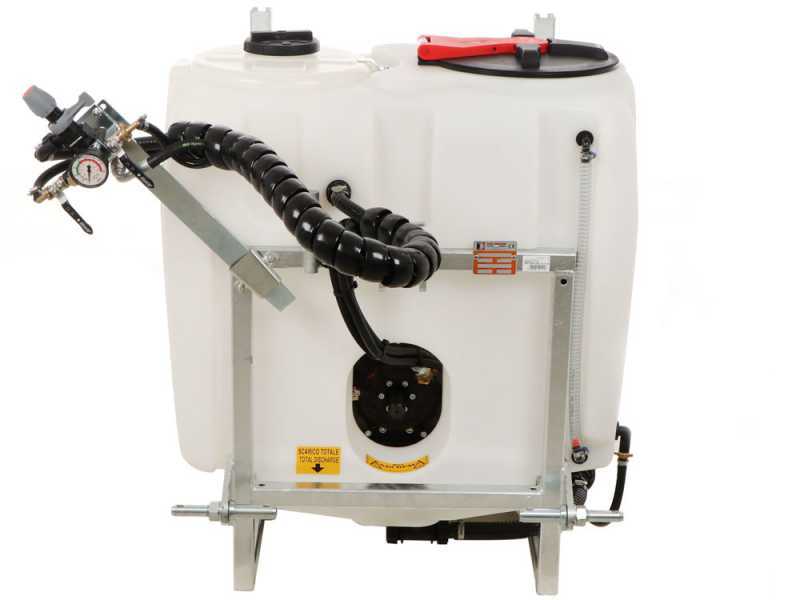

General Features

300L polyethylene tank with total emptying

Additional tank for Operator’s handwashing.

External hose with graduated scale for a quick checking of the liquid level in the tank.

Hydraulic agitator, to constantly mix the solution inside the tank, equipped with a high-pressure jet that sprays at the centre of the tank.

External suction filter with self-filling system

Internal filter that cleans the liquid from any possible residue or dirt during the tank filling phase.

Discharge plug for complete emptying

Focus on the PTO

Free items & Standard equipment

Standard equipment

The machine is shipped on pallet in its original packaging.

Instruction manuals for both machine and Comet pump included.
