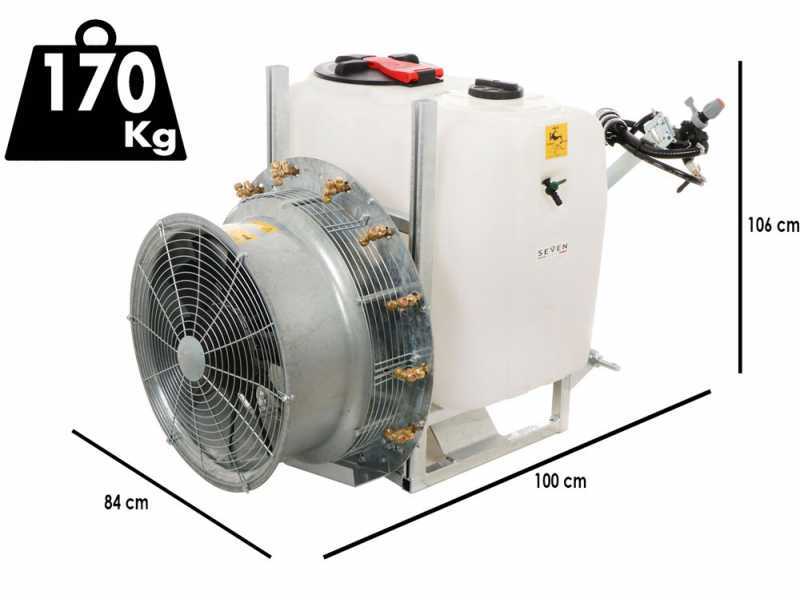

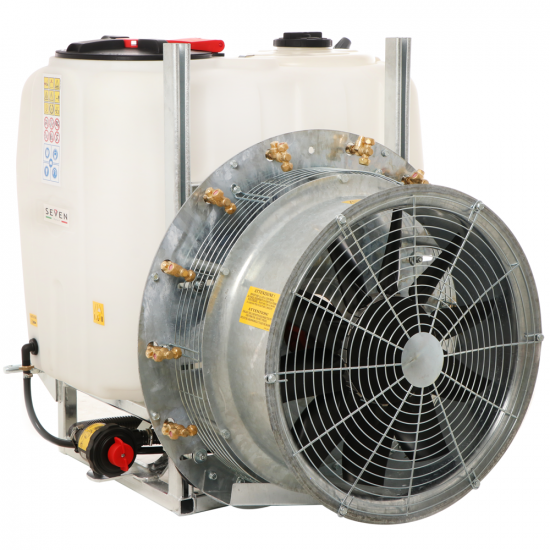

Seven Italy 200 - Tractor-Mounted Mist Blower for Spraying - 200L Capacity - APS 51 Pump

The new Seven Italy agricultural tractor-mounted mist blower is a device used for spraying plant protection products and other chemicals on the plants. The sprayer is connected to the tractor through a three-point hitch, which makes it easy to transport and use.

The operation of the mist blower is quite simple: the product is mixed with water inside the sprayer's tank, and is then sprayed onto the plants through the large 600 mm fan that generates a strong circular air flow that pushes the droplets already emitted and pulverised by the jets. The nozzles are designed to create a fine spray that settles evenly on the surface of the plants.

One of the advantages of the agricultural tractor mist blower is its versatility. It can be used for spraying a wide range of chemicals, such as fungicides, insecticides and herbicides. In addition, the sprayer can cover large areas quickly and efficiently, making it an ideal option for farmers cultivating large fields through its 200 L tank.

Frame made of Swedish steel with hot-dip galvanisation treatment, which makes it very resistant to rust attack over time.

However, it is important to use the atomiser responsibly, avoiding excess chemicals and respecting local safety rules and regulations.

Thanks to its versatility and ability to cover large areas quickly and efficiently, it has become a popular choice among farmers around the world.

CAUTION: It is strongly recommended that you carefully check the lifting capacity of your tractor, taking into account the total weight of the machine when fully loaded.

Swedish steel fan unit with hot-dip galvanisation treatment, equipped with oil-bath gearbox.

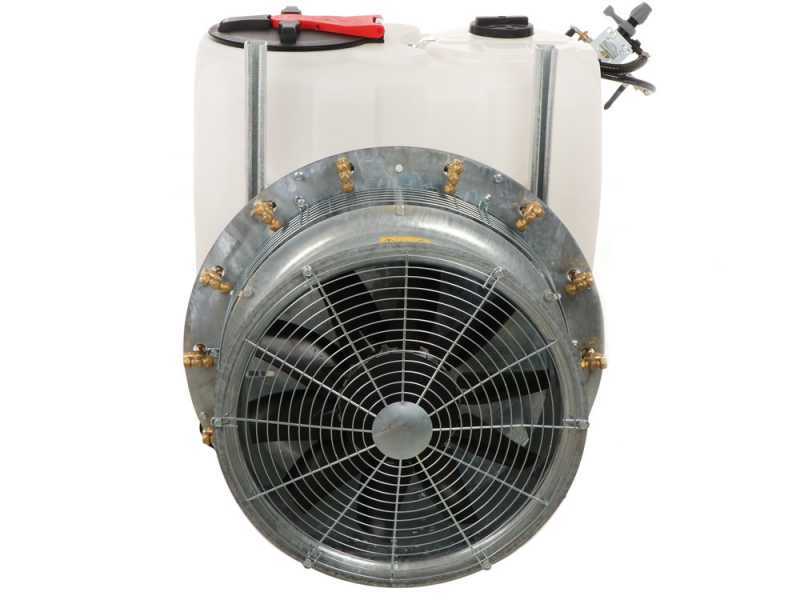

600 mm diameter rear suction axial fan (10 blades).

The fan is the essential element that determines the power of the mist blower, hence it determines the ability to push the atomised product in width and height. The nylon fans guarantee excellent weather resistance.

Focus on the geometric rotation system of the propeller blades.

Thanks to the fan's features, the product can be used in the following fields:

• Citrus groves
• Orchards
• Vineyards
• Greenhouse crops
• Olive grove
• Tall trees
• Berries, blueberries, avocados
• Banana groves

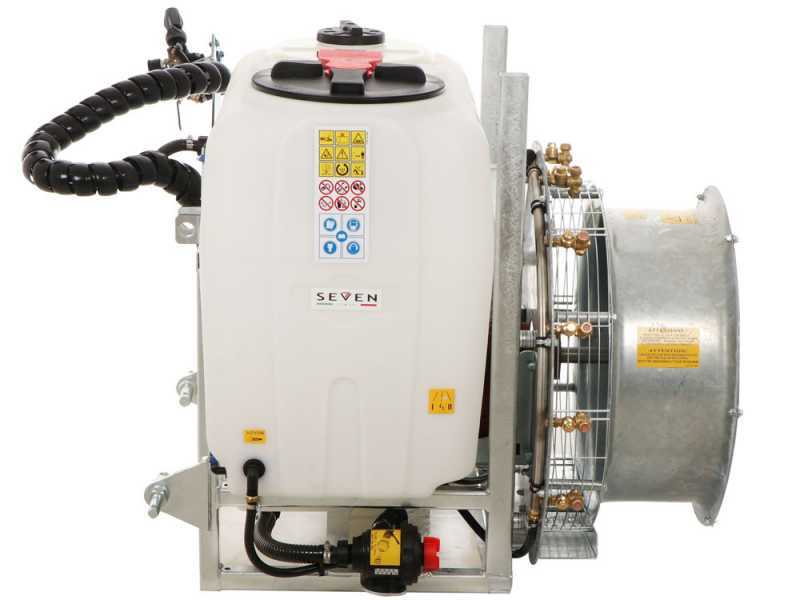

The fan is driven by a gear-multiplier that provides two speeds to the fan unit, through a lever.

Made in Italy, with cast iron housing, internal steel gears in an oil bath, ensuring excellent reliability over time.

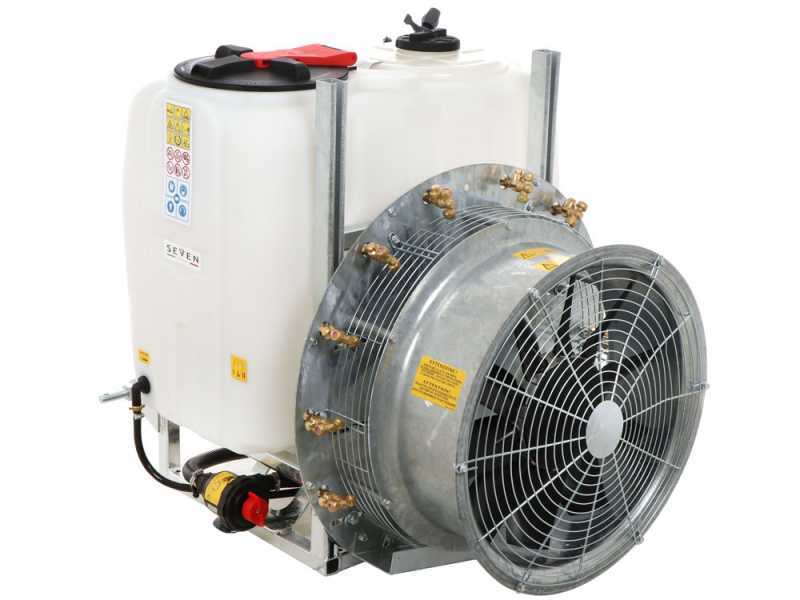

Stainless steel spray rods divided into two sectors, a left one with 5 jets and a right one with the other 5 jets.

Double brass spray nozzles with anti-drop and quick-closing system.

Ceramic nozzles 1.0 / 1.2

Provided with three steps that coincide with the positions:

• Nozzle with larger hole (higher liquid delivery)
• Central position = closed jet
• Nozzle with smaller hole (less liquid delivery)

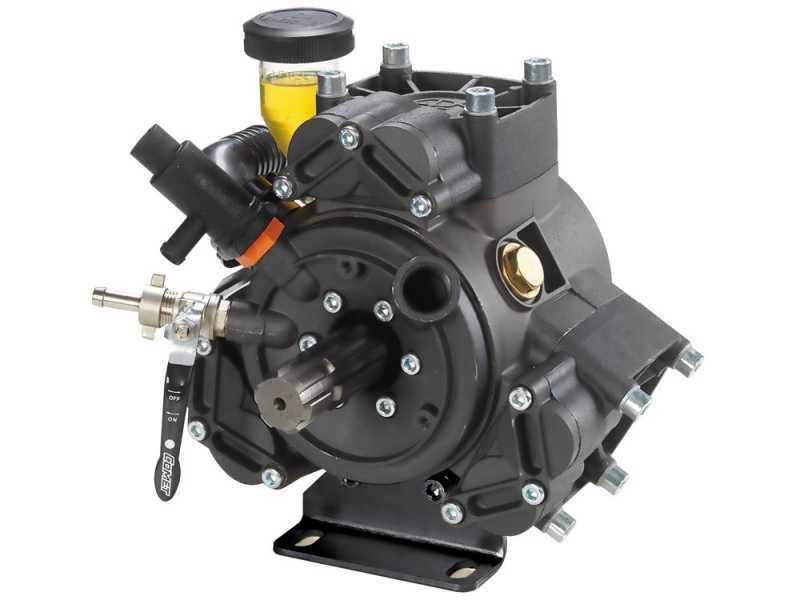

The Comet APS 51 pump is used for spraying treatments in medium and large crops. Installation on tractor-mounted and wheeled sprayers and atomisers. Made of high-quality materials that guarantee high resistance to corrosion and high pressure.

Interior manifolds. The suction-discharge valves are all easy to check, and they are all placed on the discharge side. The valve is equipped with stainless steel site and plate.

The parts directly touching the liquid are made of anodized aluminium, resistant to corrosion.

Performance

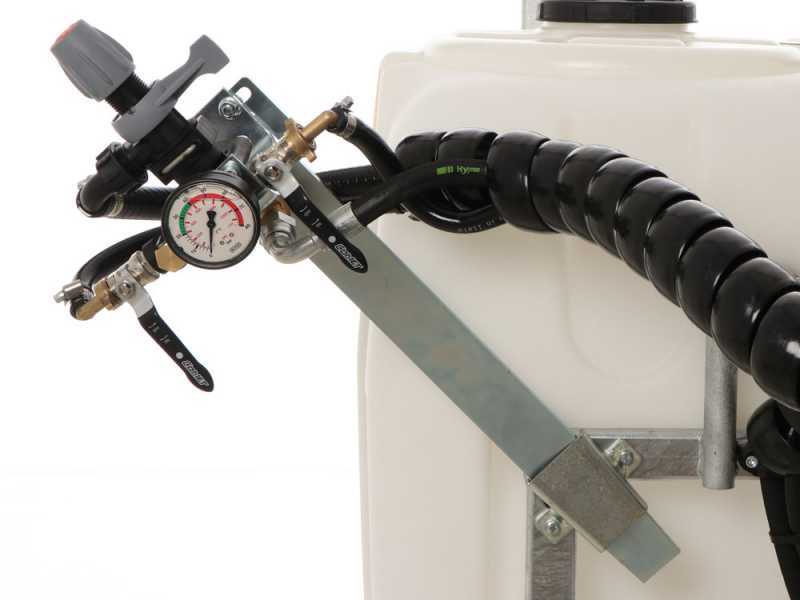

Comet Polaris 2 control unit is a three-way control system designed for use together with agricultural and industrial pumps manufactured by the Italian company Comet S.p.A.

Pressure adjustment knob.

Pressure gauge.

The two side taps supply respectively the right-hand sector of the fan and the left-hand sector.

This means that the two sectors can also be switched on separately, i.e. only the nozzles on the right-hand side or only on the left-hand side (e.g. when you are on the edge of your plot).

Hose cover membrane

Maximum pressure: 40 bar

Max. flow rate: 50L/min

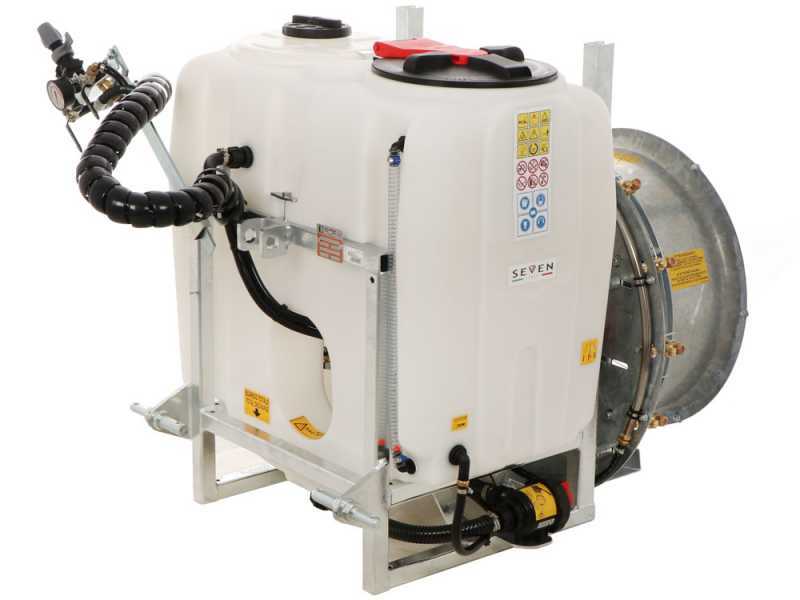

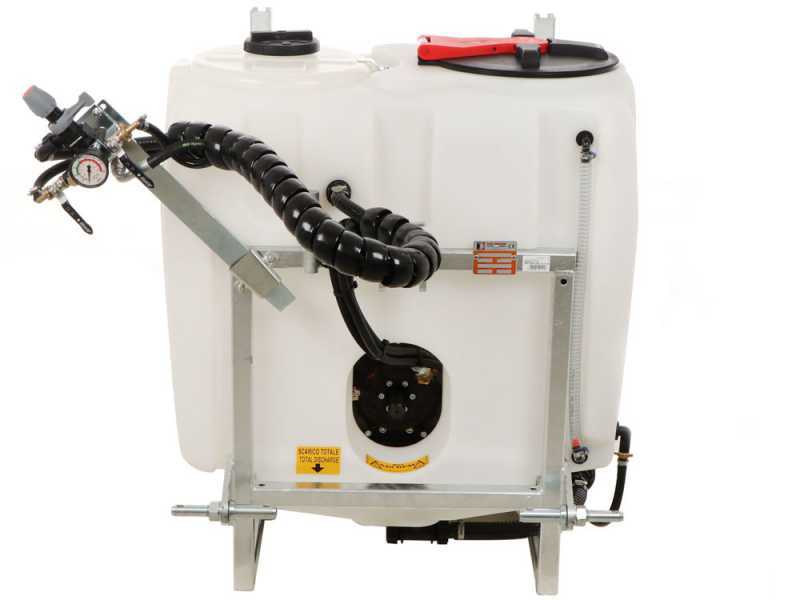

Reinforced Swedish steel frame with hot-dip galvanisation treatment, complete with three-point hitch for tractor mounting.

The three-position attachment points to the lift are complete with pins. 1° and 2° category.

200L polyethylene tank with total emptying

Additional tank for Operator’s handwashing.

External hose with graduated scale for a quick checking of the liquid level in the tank.

Hydraulic agitator, to constantly mix the solution inside the tank, equipped with a high-pressure jet that sprays at the centre of the tank.

External suction filter with self-filling system

Internal filter that cleans the liquid from any possible residue or dirt during the tank filling phase.

Discharge plug for complete emptying

Focus on the PTO
