Ribimex PRPVC801MC3 - Submersible well pump - 800 W - Clear water

Questions & Answers (1)
ID: 113586

EAN: 3700194401870

MPN: PRPVC801MC3

7,9/10
After-sales assistance & Spare parts

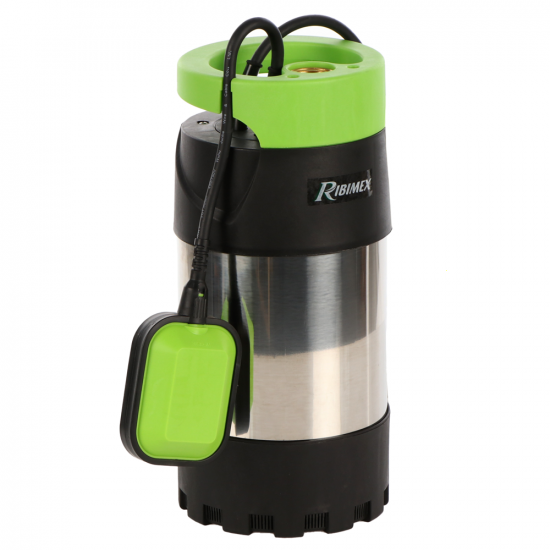

Ribimex PRPVC801MC3 - Submersible well pump - 800 W - Clear water
Absorbed power
800 W
Max. flow rate per hour
5500 L/h
Submersible pump
Yes
Max immersion depth
7 m
Max. head lift
30 m
Use
For clear water
Stainless steel coating
Yes
Product Features
Model:
PRPVC801MC3
Use:
For clear water
Power supply:
Single-phase electric
Absorbed power:
800 W
Stainless steel coating:
Yes
Submersible pump:
Yes
Float Switch::
External float switch
Manufacturing country:
China
Pump data
Max immersion depth:
7 m
Max. flow rate per hour:
5500 L/h
Max. head lift:
30 m
Hose fitting diameter:
25 mm
Multilevel pump impeller :
Yes
Equipment
Built-in power cable:
10 m
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

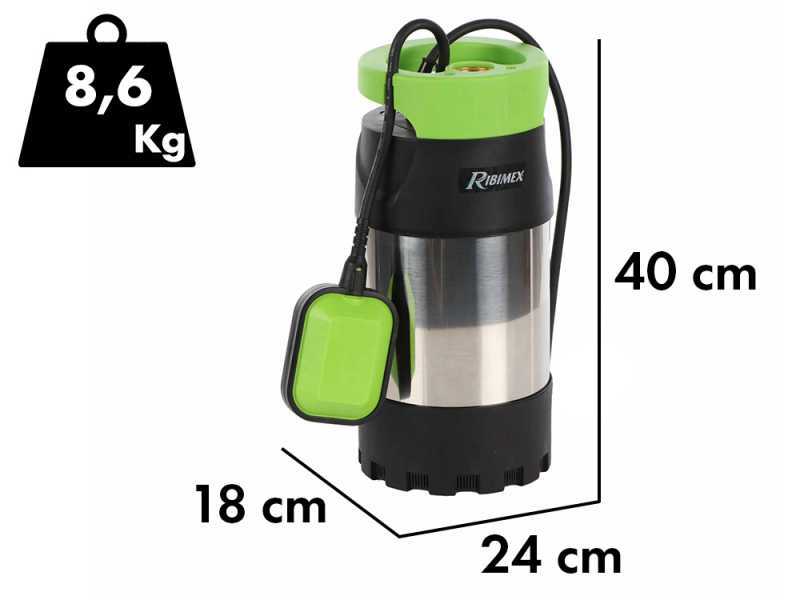

Product dimensions in cm (L x W x H):
18x24x40,5 cm
Net weight:
8.6 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
40,5x24x18 cm
Weight including packaging:
8.9 Kg
Assembly time:
Assembled
Prompt Delivery
14 items in stock
Free Shipping
Estimated delivery: 24/06/2025 - 26/06/2025
€ 166,39
Vat included

You're viewing:
Customers also viewed:
Description

Ribimex PRPVC801MC3 submersible well pump

The Ribimex PRPVC801MC3 3-turbine depth pump offers high performance thanks to its 800 W power and maximum flow rate of 5,500 l/h. This combination of power and flow makes it suitable for a wide range of applications, ensuring efficient clear water handling.

The stainless steel pump body ensures superior corrosion and rust resistance, ensuring exceptional durability even in challenging environments. This distinctive feature makes it a reliable choice for long-term use.

With a maximum immersion depth of 7 m and a head of 30 m, this pump offers flexibility and reliability even in the most demanding working situations. Its ability to operate at these depths makes it suitable for the widest applications.

Thanks to its compact design with a diameter of only 16 cm and its 10 m long electrical cable, this pump is easy to install even in the most confined spaces. Its versatile installation makes it ideal for a variety of configurations and applications.

The pump is capable of handling suspended particles up to 0.5 mm, ensuring efficient operation even with small impurities in the water. This filtration capacity makes it suitable for use in a variety of settings, ensuring reliable water handling.

Technical Features

The Ribimex PRPVC801MC3 3-turbine pump is designed for use with clear water.

The pump body is made of stainless steel.

Float switch:

The height-adjustable float switch offers the possibility of automatic operation once the water has reached a height of 50 cm, then stopping when the water level drops to 5 cm.

Manual operation is also possible by changing the length of the cable between the pump and the float, via the quick coupling on top of the pump.

Technical specifications:

  • Max. power absorbed: 800 W
  • Max. flow rate: 5500 l/h
  • Maximum hydraulic head: 30 m
  • Max. immersion depth: 7 m
  • Max suction dirt size: 0.5 mm
  • Min. Water level for suction: 7 mm
  • Maximum pressure: 3 bar
  • Threading: 1"
  • Pump diameter: 16 cm
  • Weight: 8.0 kg
  • Power supply: 230 V - 50 Hz
  • Power cable: HO7RN-F 3G 1 mm2
  • Power cable length: 10 m
  • Max. liquid temperature: 35°C
  • Protection class: IPX8
Free items & Standard equipment

Standard Equipment

The product is shipped in its original packaging, along with the instructions manual.
