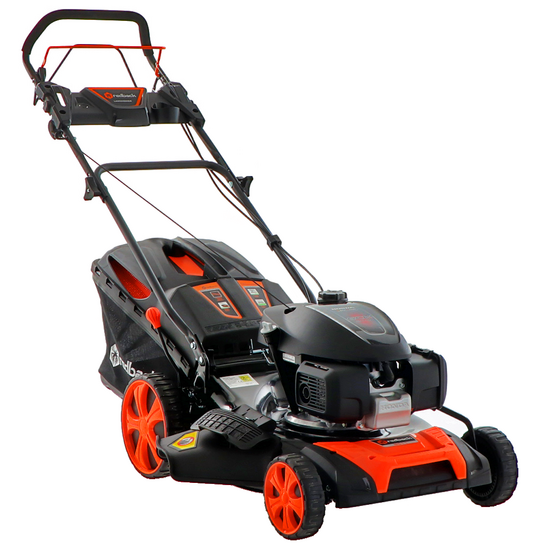

Redback S511VHY Self-propelled Lawn Mower - 4 in 1 - Honda GCVx200 Engine

The Redback S511 VHY self-propelled lawn mower is a gardening equipment designed to cut the grass in large areas, ideal for green care! Compact, lightweight and sturdy tool. Manoeuvrability and versatility are the strongest points of this cutting tool and you can switch from a cutting system to another without needing any tool.

A petrol lawn mower that meets the needs even of the most demanding hobbyists. It is equipped with 4 cutting systems:

• Grass collection system: 60 L grass collector
• Mulching cutting system
• Side discharge
• Rear discharge

It is equipped with a powerful and reliable 210 cc Honda GCVx200 engine featuring 6.5 Hp, designed to be long lasting and to efficiently power the lawn mower.

Thanks to the universal blade mounted on the lawn mower, it is possible to collect grass in the reinforced 60 L grass collector, perform mulching cutting or discharge grass clippings from the side or rear part of the machine; the cutting system can be changed manually without the need of any extra tool.

The cutting height adjustment is centralised and adjustable in 7 different positions, from 25 mm to 75 mm, simply move the lever on the wheels and select the desired position.
It is equipped with a foldable and adjustable metal handlebar which reduces the overall dimensions facilitating the transport and the storage.

The 52 cm steel cutting deck and the high rear wheels make the work easier, faster and more efficient. The rear-wheel traction makes the mowing operation even more efficient on every lawn.

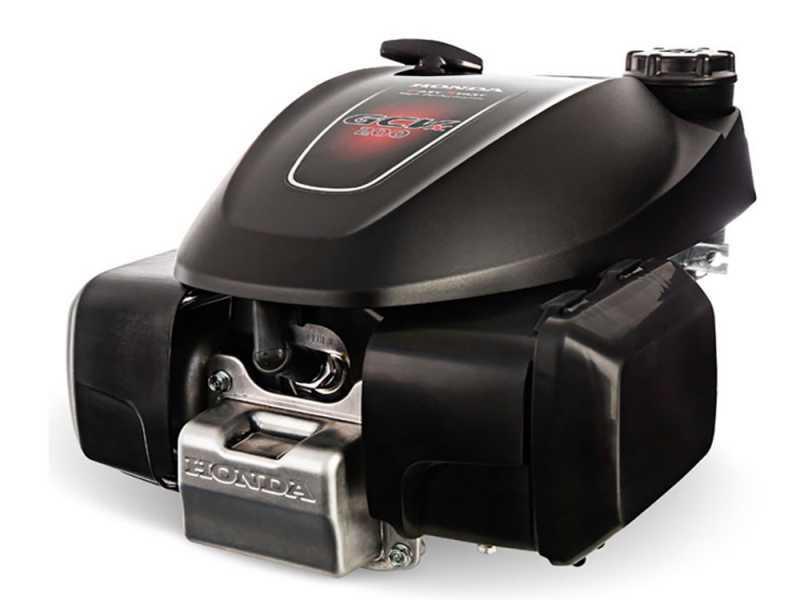

The Honda GCVx200 engine guarantees high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 201 cc.

Fuel tank capacity: 0.91 L

Engine oil tank capacity: 0.4 L

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.6 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Focus on air filter

Focus on the spark plug

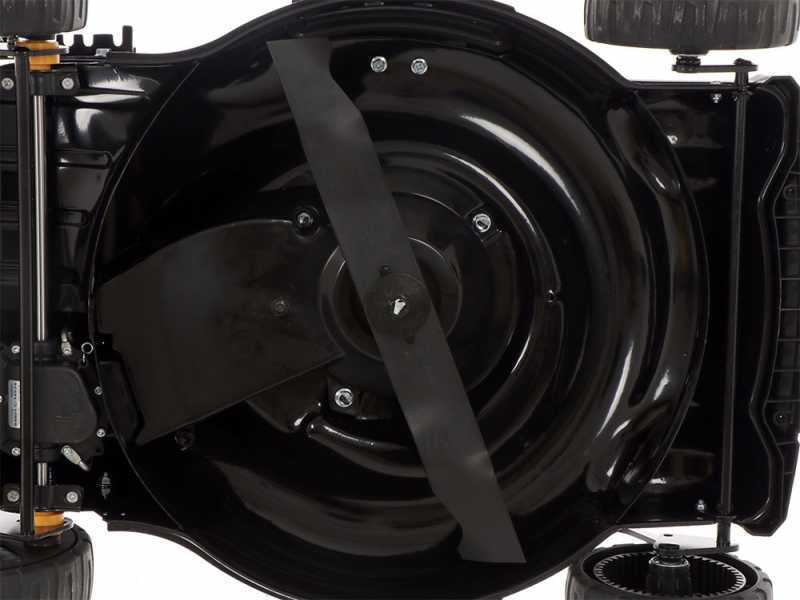

Real blade cutting width: 50 cm

Universal hardened steel blade suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for: mulching, rear discharge, side discharge and grass collection.

The steel housing gives to this machine a high sturdiness, combined with an excellent lightness. Overall weight: 35 Kg.

Cutting deck washing joint

Rear-wheel drive (Self-propelled).Equipped with a sturdy gear transmission which allows the Operator to mow the lawn without any effort, optimising the traction of the machine and the feed efficiency.

The high-wheel system guarantees an incredible manoeuvrability. The wheels are mounted on sturdy ball bearings which make them greatly long-lasting.

Rubber wheels for a perfect grip to the ground.

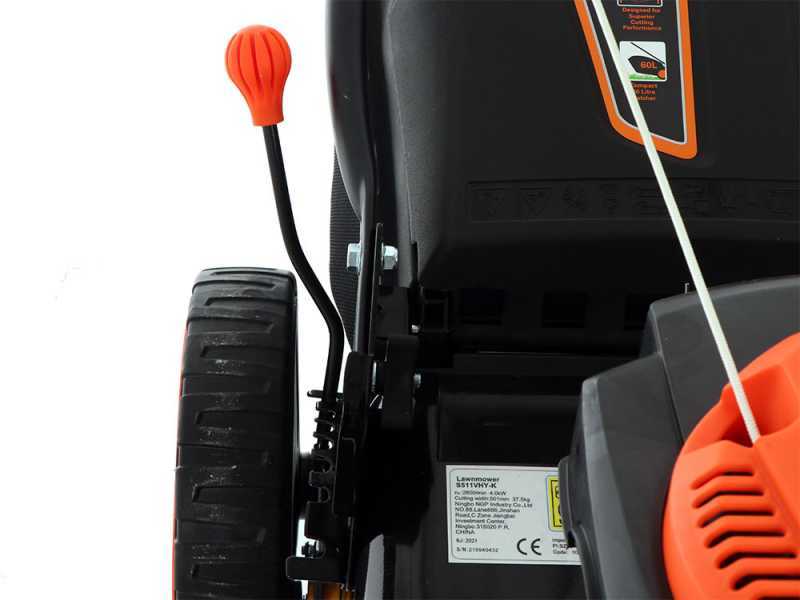

This lawn mower is equipped with 7 cutting height adjustments, from 25 mm to 75 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.

Focus on the machine set in the 7 height position

Focus on the machine set in the 1 height position

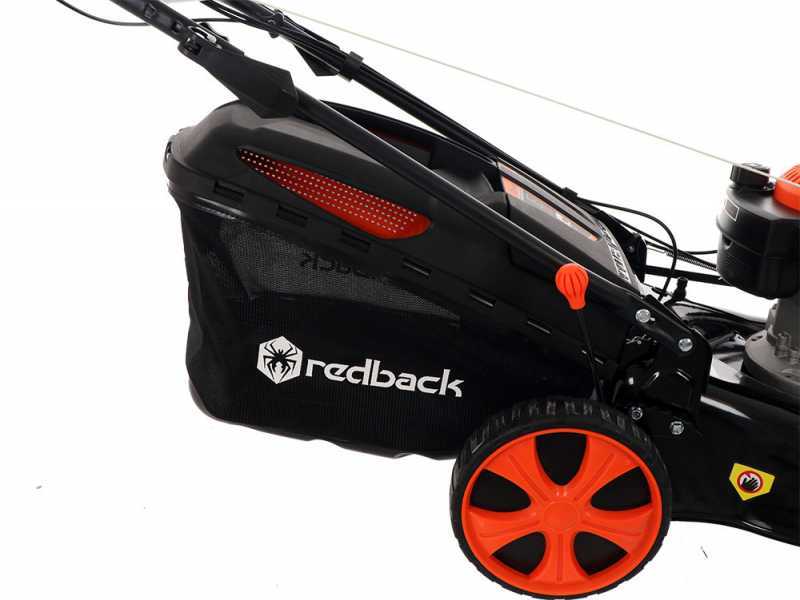

GRASS COLLECTION SYSTEM
It is equipped with a large 60 L hybrid grass collector easy to remove and empty.

It is made of reinforced double layer plastic in its upper part, which makes it sturdy and resistant.

The lower part is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Convenient handle on the upper side of the grass collector in order to facilitate the collector removal.

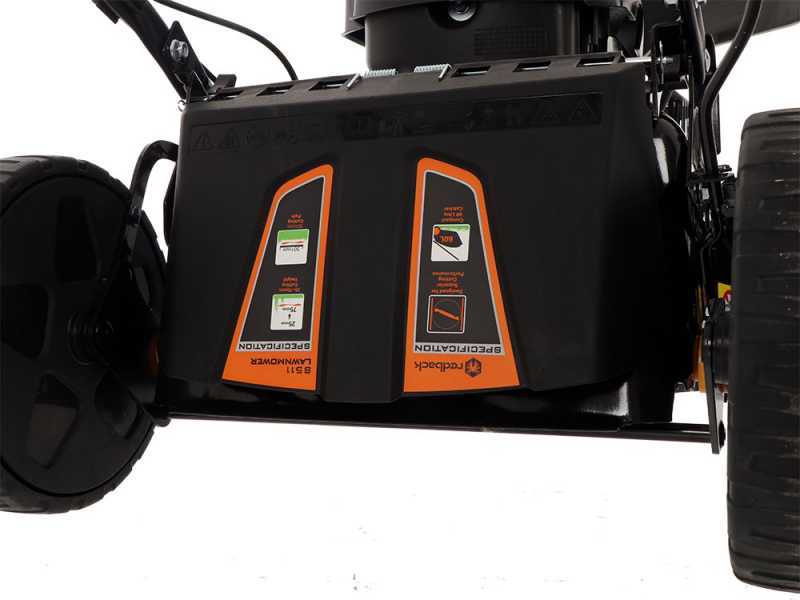

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

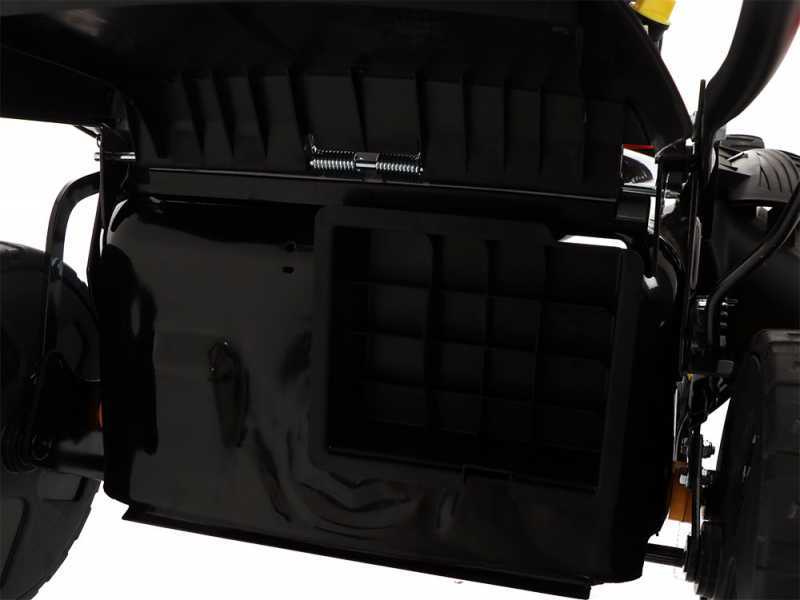

MULCHING CUTTING SYSTEM
This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug, and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

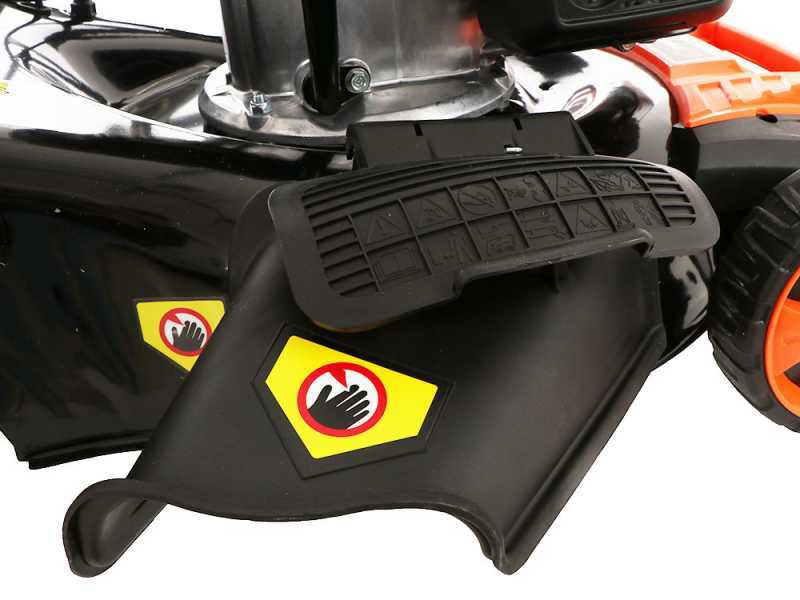

SIDE DISCHARGE SYSTEM
This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

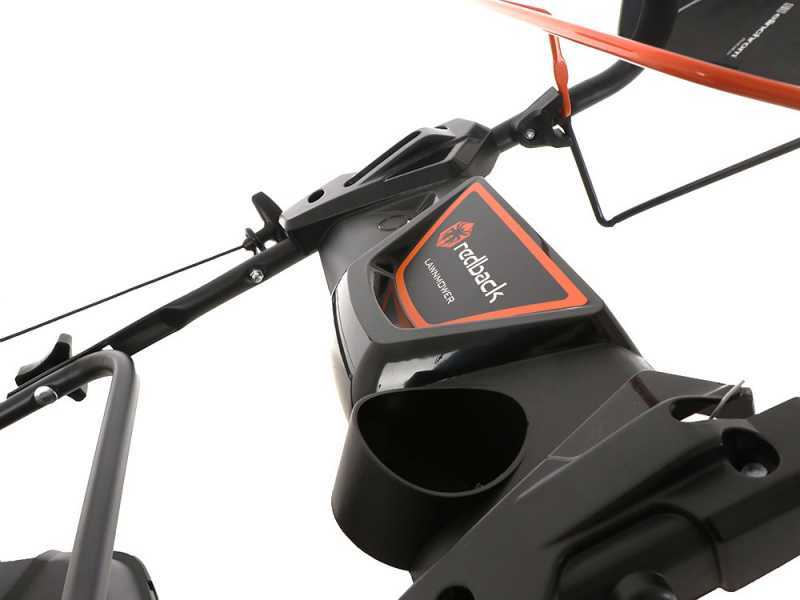

Easy and intuitive controls placed on the handlebar. Rubber-coated handle for optimal working comfortBlade engagement lever (black lever)

Self-propelled engagement lever (orange lever)

The handlebar is also equipped with a convenient glove box/can holder.

Height adjustable handlebar
