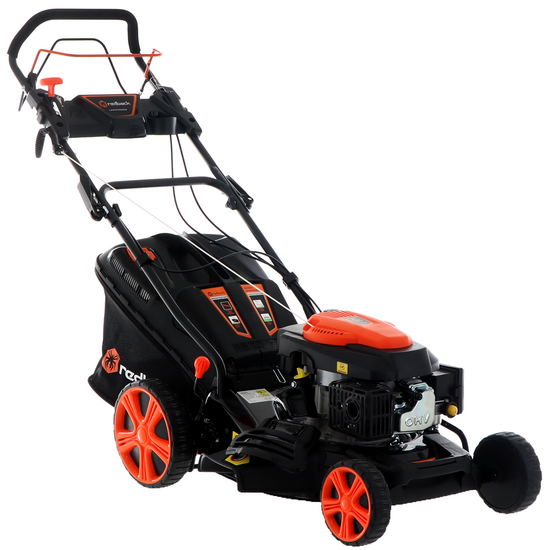

Redback S463VHY-T6 Self-propelled Lawn Mower - 4 in 1 - 45 cm Cutting Width

The Redback S463VHY-T6 self-propelled lawn mower is suitable even for the most demanding hobbyists.

It is equipped with 4 cutting systems:

• Grass collection system: 50 L grass collector
• Mulching cutting system
• Side discharge
• Rear discharge

Provided with self-propelling system, this cutting tools proves to be lightweight and manoeuvrable, thus it can be used by everyone.

Thanks to its 457 mm steel blade and high rear wheels, it can operate on almost any lawn quickly and effortlessly.

The centralised cutting height adjustment allows you to quickly and easily adjust the mower in 7 cutting positions.

HIGH VERSATILITY. Possibility to collect the grass in the reinforced grass collector or select the mulching or rear discharge cutting system in order to drop the grass clippings directly from the back or the side of the lawn mower. The grass cutting system can be quickly changed without the need of any extra assembly tool.

254 mm high rear wheels mounted on ball bearings.

The lawn mower is powered by the new OHV (overhead valve) T6 engine with 146 cc cubic capacity. Powerful and reliable.

The handle can be folded and adjusted according to the Operator’s height or to facilitate storage, thus reducing the size of the machine.

The T6 is an air cooled 4-stroke petrol engine with aluminium cylinder,

146 cc and a real power of 5 Hp.

It is provided with a grass collector, which ensures a good working autonomy thanks to the low power consumption.

The engine is easy to start thanks to its primer ignition and the handy recoil starter.

Technical features:

WARNING:
The engine is provided without oil. Check the oil level before the first starting.

Real blade cutting width: 45.7 cm

Universal hardened steel blade, which is suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for:

• Mulching
• Rear discharge
• Side discharge
• Grass collection

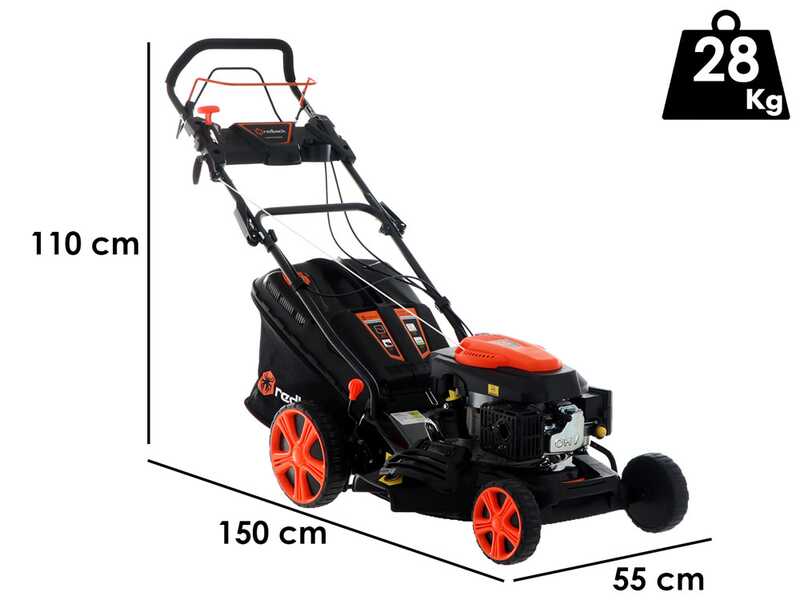

  The steel housing gives this machine a high sturdiness combined with a great lightness. Overall weight: 28 kg.

Cutting deck washing joint

Rear-wheel drive (Self-propelled).Equipped with a sturdy gear transmission which allows the Operator to mow the lawn without any effort, optimising the traction of the machine and the feed efficiency.

The high-wheel system guarantees an incredible manoeuvrability. The wheels are mounted on sturdy ball bearings which make them greatly long-lasting.

Rear wheels diameter: 254 mm

Front wheels diameter: 177mm

This lawn mower is equipped with 7 cutting height adjustments, from 25 mm to 75 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.

GRASS COLLECTION SYSTEM
It is equipped with a large 60 L hybrid grass collector easy to remove and empty.

It is made of reinforced double layer plastic in its upper part, which makes it sturdy and resistant.

The lower part is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Convenient handle on the upper side of the grass collector in order to facilitate the collector removal.

REAR DISCHARGE SYSTEM

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge system will operate automatically.

MULCHING CUTTING SYSTEM
This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug, and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

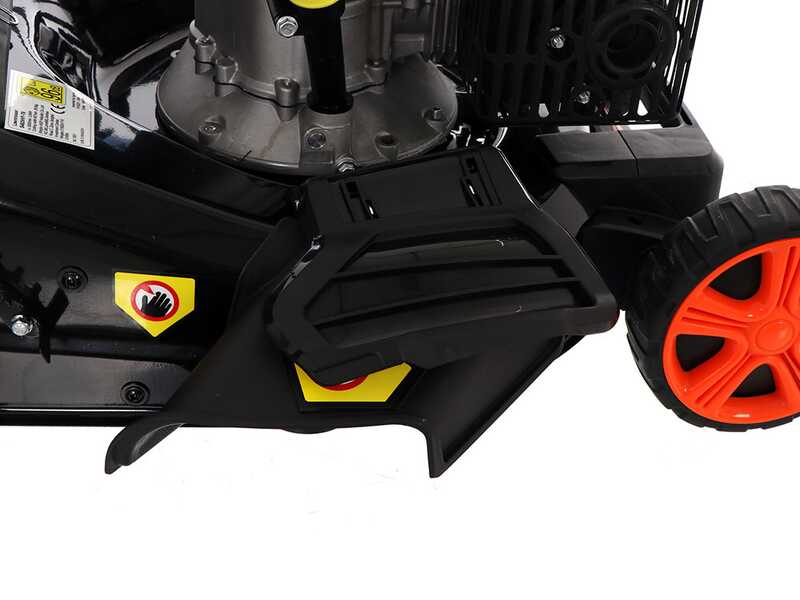

SIDE DISCHARGE SYSTEM
This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

Easy and intuitive controls placed on the handlebar.

Rubber-coated handle for optimal working comfort

Blade engagement lever

Self-propelled engagement lever

Height adjustable handlebar
