Reber 9504 N INOX N.32 meat grinder - 1200W heavy-duty induction electric motor - Standard Gear Motor

Questions & Answers (4)
ID: K502274

EAN: 8013152960315

MPN: 9504N

Reber 9504 N INOX N.32 meat grinder - 1200W heavy-duty induction electric motor - Standard Gear Motor
+100 sold
FREE
Universal cover for storageUniversal cover for storage
Motor type
Induction
Speed reverser
Yes
Operating mode
Single-phase 230 V
Rated power
1.5 Hp
Certifications
CE domestic
Multi tool
5 in 1
Attachment dimensions
No.32
Accessory material
Cast iron - short
Hourly output
160 Kg/h
Transmission type
Gears
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model:
9504N
Machine body material:
Cast iron
Certifications:
CE domestic
Power output:
1200 W
Operating mode:
Single-phase 230 V
Hourly output:
160 Kg/h
Multi tool:
5 in 1
Speed reverser:
Yes
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
1.5 Hp
Power supply:
220 V electric
Transmission data
Transmission type:
Gears
Gear unit type :
With gears
Gear material:
Nylon
Cutting data
Accessory material:
Cast iron - short
Attachment dimensions:
No.32
No.32 Accessory:
Funnel material:
Stainless steel
Blade material:
hardened steel
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
58x26x36cm
Net weight:
29 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
75x42x60 cm
Gross weight (packaging included) :
32 Kg
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 854,45
VAT Included

Available versions
You're viewing:
Customers also viewed:
Description

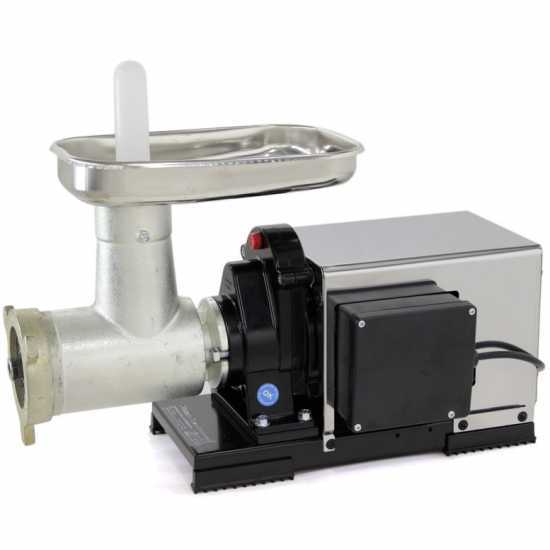

Reber N.32 - 1,5 HP table-top meat grinder

The Reber N.32 1,5HP (1200 W) meat grinder - meat mincer is a high-level performance multi-purpose kitchen appliance for domestic or professional use with a no-frills look, designed for meat processing and much more. You can rely on it to grind meat, make sausages, make tomato sauce, grate cheese and so on.

The Reber meat grinder is extremely handy and easy to use and it was designed to be operated on top of a table.

The motor is placed under a stainless steel cover. The steel cover protects the motor against external risk factors, makes the machine sturdy and much easier to clean compared to most meat grinders out there.

The machine worm screw and lock ring are made of food-grade tinned cast iron. The large hopper is made of stainless steel. The pestle is made from food-grade plastic.

The die plate has 10 mm holes and is made of hardened steel. The self-sharpening knife is made of hardened steel as well.

This meat mincer is fitted with a 1200 W continuous-service induction electric motor. Power supply: 230V. Designed for demanding hobby users or professional applications.

Hourly output: 100~160 Kg/h

The Reber meat grinder is a multi-tool machine. By ordering the optional separate KITS, you can use it as a:

  • Tomato press
  • Pasta maker
  • Cheese grater
  • Dough mixer

Motor and transmission - Machine body

This sauce maker is fitted with a 1200 W continuous-service, induction electric motor. Power supply: 230V.

  • The motor features both a forward and a reverse gear to unblock the meat grinder accessory without taking it off.
  • stainless steel motor cover
  • IPX5 protection grade
  • Oil-bath axial gear reducer
  • Steel and 6.6 nylon transmission pin

The motor transfers motion through a heavy-duty steel and 6.6 nylon pin.

Focus on the heavy-duty, metal transmission pin housing.

The machine body steel shell makes cleaning operations very easy and prevents the sauce maker from getting damaged.

The oil-bath transmission system doesn't require adding or replacing oil as it contains Long-Life lubricant. This type of transmssion oil is safe for accidental food contact.

All of the machine components are high quality and they are manufactured in Italy.

WARNING: New gear reducer model: new transmission lubricant that does not require release valves. Thus removing or replacing the red cap before starting the machine is NOT necessary.

WARNING: this product is made entirely with food-safe materials, however its internal components do not undergo cleaning before it gets distributed. When you start using it, we recommend crushing 2 kg of tomatoes and throwing them out afterwards to ensure the inside of the machine is perfectly clean and remove any debris deriving from the manufacturing process (tiny plastic fragments, metal or tin).

Meat grinder

The Reber N.32 meat grinder machine body, worm screw and lock ring are made of food-grade tinned cast iron. Other components, such as the pestle, are made of food-safe plastic.

The grinder die plate has 10 mm holes and is made of hardened steel, just like the self-sharpening knife.

Large stainless steel hopper: 20x30 cm approx.

The machine is very user-friendly and easy to operate.

You can choose whatever size you need for your minced meats, thanks to our large selection of mincer plates (to be ordered separately).

This multi-purpose meat mincer is very easy to disassemble so you can clean each component properly. Its IPX5 protection grade allows cleaning the machine thoroughly with no risks for electronic components.

The worm screw ball bearings reduce friction and, thus, noise emissions.

Free items & Standard equipment

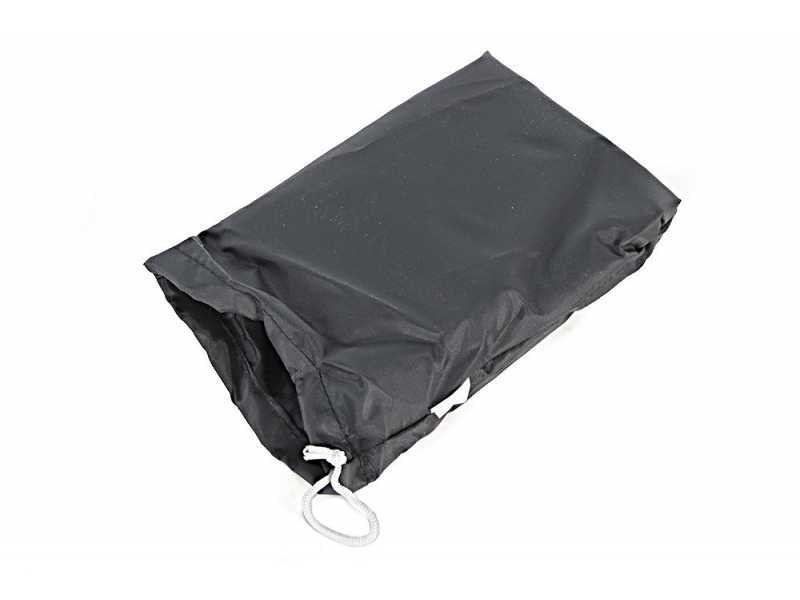

COMPLIMENTARY: Heavy-duty cover cloth for storage

Perfect for protecting your equipment when stored.


This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

It is suitable for small-sized machinery.

Easy to fold and store inside its packaging as it takes up very little space!

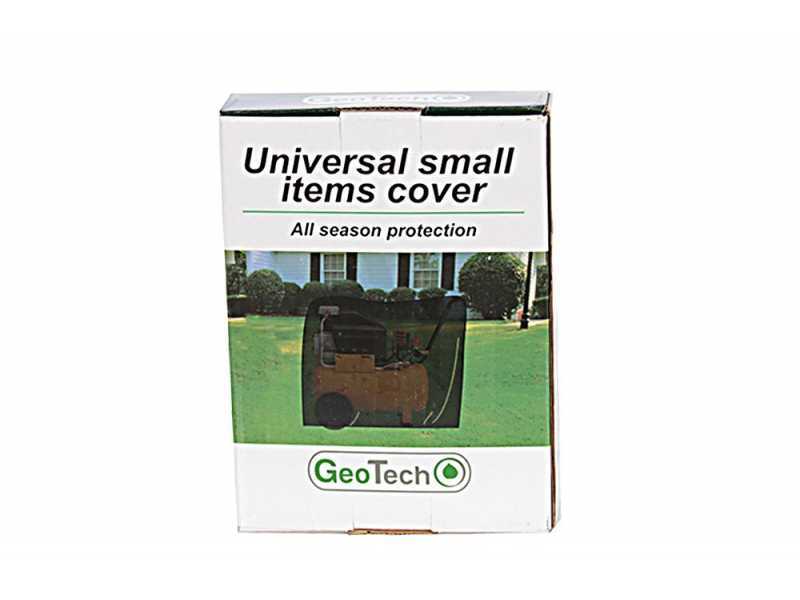

Heavy-duty cover for generator covering and storage

Fundamental to protect your generator when is not in use.

This cover is fast and easy to place: only few seconds to protect your machinery from dust and humidity.

It has been specifically designed to perfectly fit with your generator shape.

Easy to bend and put away thanks to its small overall size.

extra features

The machine will be shipped in its original packaging,

along with the:


Instructions manual
