Description

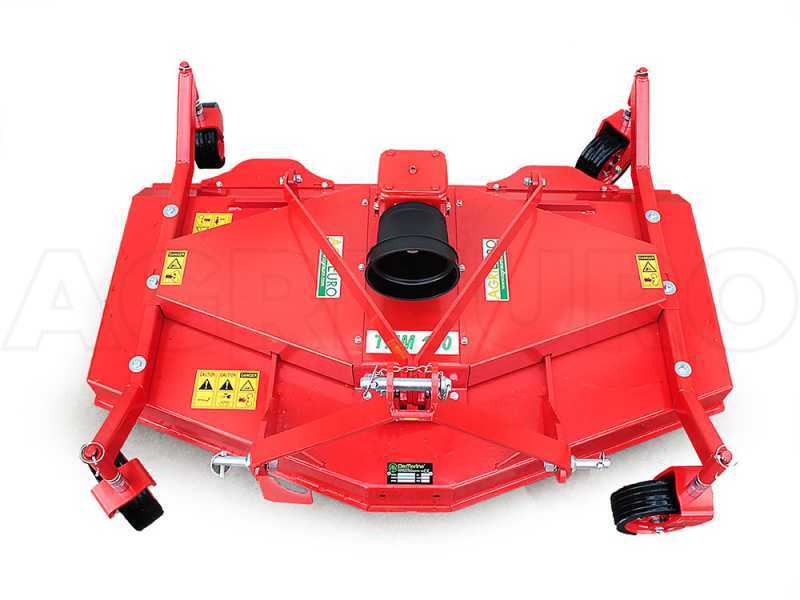

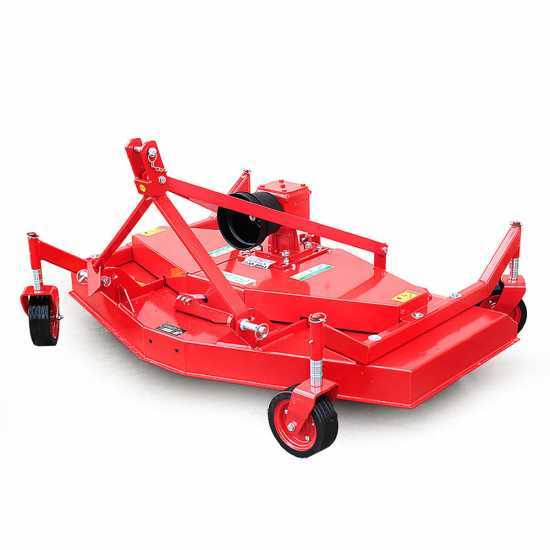

AgriEuro TMM 150 tractor mounted lawn mower

The TMM 150 lawn mower is a machine suitable fot the maintainance of lawns, golf courses, kick fields and public gardens even on big surfaces. It has a sturdy and elastic structure and thanks to the high rotation speed of the rotors it guarantees a precise and accurate grass cutting.

It has a working width of 150 cm, the cutting height is adjustable in several positions through the wheels that vary from 20 to 90 mm.

It is equipped with a side discharge with the possibility of assemble a mulching kit.

Suitable for tractors from 15 to 70 hp.

It is equipped with 3 rotors with 1 blade that ensures the long lasting in time always at high performances.

TECHNICAL DETAILS (in summary):

Real working width: 150 cm
Real working width of the machine: 160 cm
Weight: 205 kg
Suggested for tractors: from 15 to 70 HP
3 point linkage
Belt transmission with cast iron reducer
Rear discharge
Adjustable swiveling wheels

They do not work with left direction of rotation!

Warning: This machine DOES NOT provide oil in the transmission. Please add the oil to the due level before use.

AgriEuro TMM 150 flat tractor mounted lawn mower - 3 rotors with 1 blade.

The blades

The blades can cut grass and bushes in medium/difficult conditions, even in slopes, but without exceding.

It is mostly purchased to refinish the grass on public parks, golf courses or kick fields even with big surfaces.

Sturdy cast iron reducer with 2-belt transmission at 540/rpm.

Working width: 150 cm

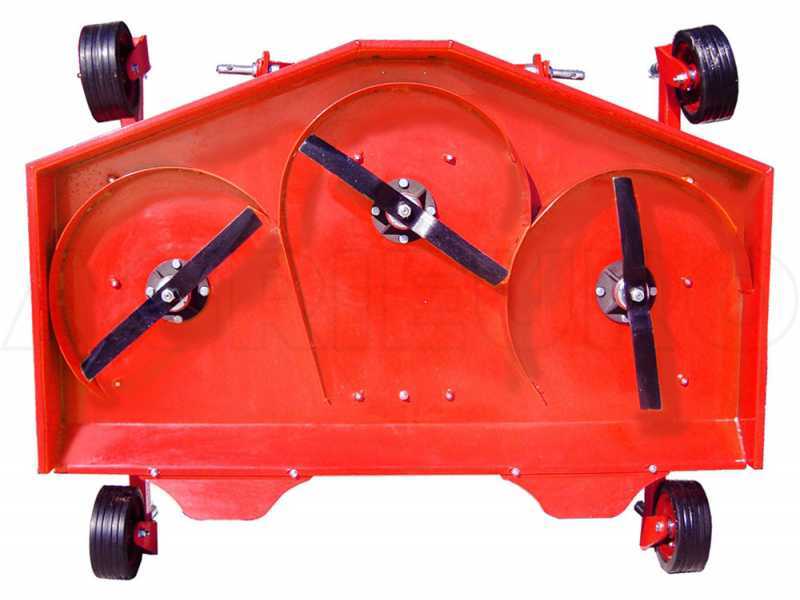

Focus on the blades.

Adjustable cutting height from 2 to 9 cm.

It is set up to assemble the mulching kit.

The system of rear discharge enables to cut the grass without the use of a grass collector by directly collecting it on the rear of the lawn mower.

Reducer and wheels

The trasmission of the this model, covered by a sturdy steel deck, has 2 belts and cast iron reducer at 540 g/min.

Focus on the reducer with cardan shaft protection.

It is possible to adjust the height of the swiveling wheels in order to obtain a cut from 2 to 9 cm. This operation takes just few minutes; just remouve the wheel, the zinc-coated spacers and replace the wheel.

Example of minimum regulation.

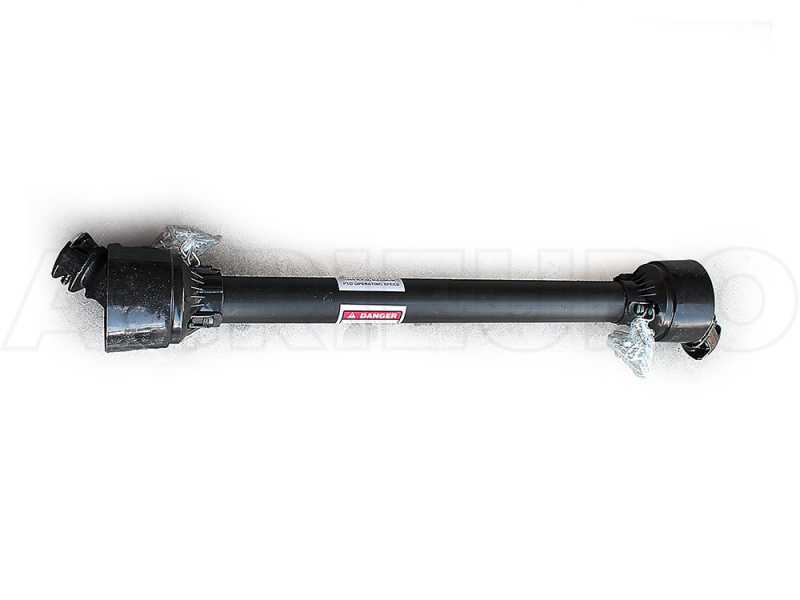

Focus on the cardan shaft.

Thanks to the centralized lubrication it is possible to reduce to minimum the side effects of wear and, sometimes, dissipate part of the heat produced by the friction thanks to the help of the lubricant. It is so possible to reduce the costs of reparation, the spare parts and lubrications.

3 point linkage and discharge

The linkage is universal and adjustable for all tractors on the market.

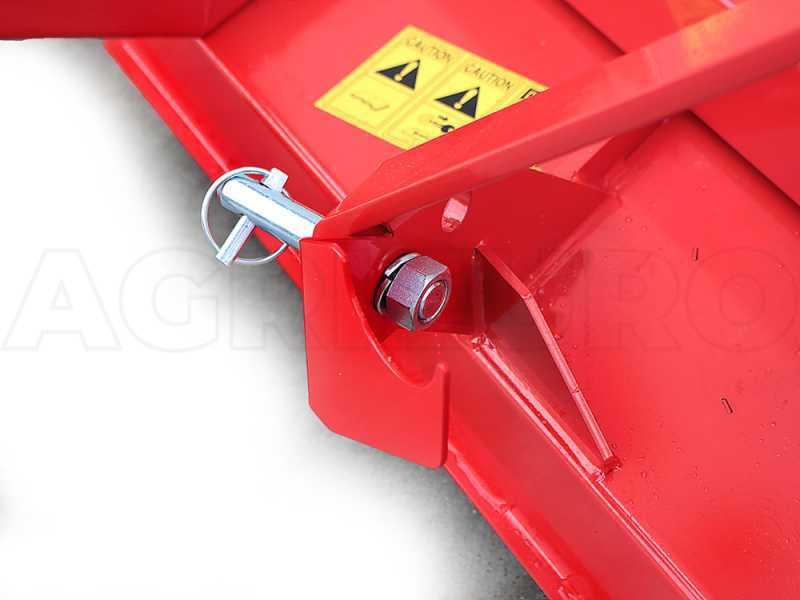

Focus on the sturdy 3 point linkage..

Focus on the cardan shaft support.

Rear discharge system:

It enables to cut the grass witout the help of a grass collector by directly collecting it on the rear of the lawn mower.

[x=347028]Focus on the protection against stones of the rear discharge.

Thanks to this discharge, the grass that has been cut is released on the just tilled soil and it decomposes; it is then tranformed into a nutritional substance for the lawn so guaranteeing a perfect balanced biological cycle.

Free items & Standard equipment

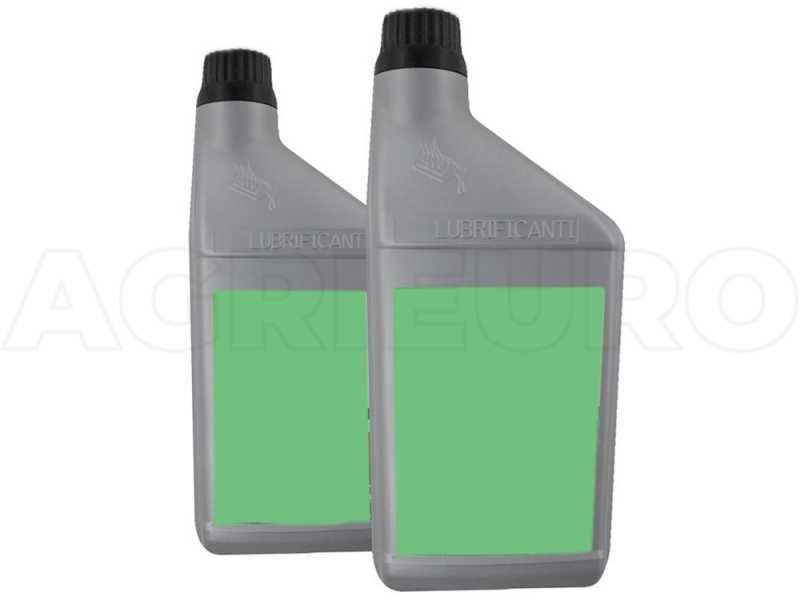

COMPLIMENTARY: 80w90 Oil for Transmission

2 1 L bottles of 80W90 transmission oil.

Suitable for the majority of machines on the market.

Free gifts & Standard equipment

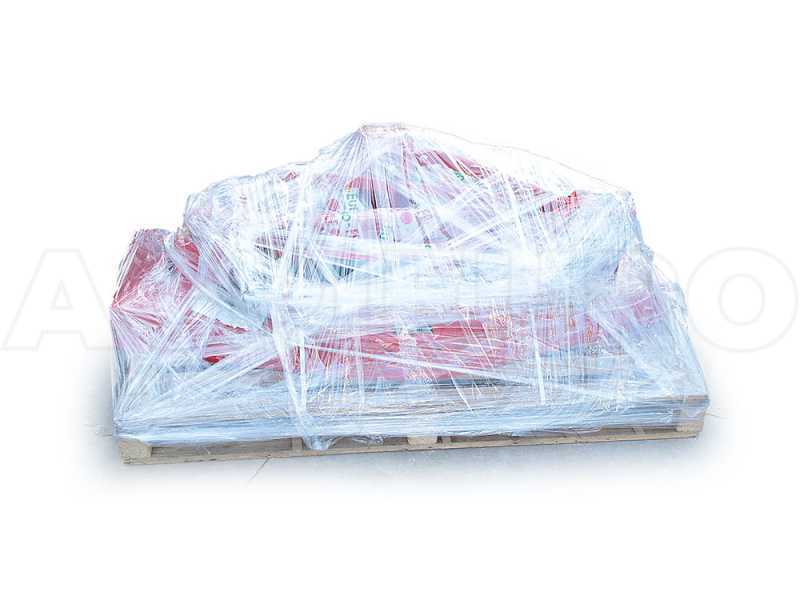

The product is shipped on pallet. It is necessary to assemble the three point linkage and the wheels.

Cardan shaft and istructions manual included in the packaging.

Focus on the security shear bolt of the cardan shaft apt at preserving the integrity of the transmission and reducing the risks of accident to the user.
