Premium Line TMM 120 - tractor mower - 3 rotors with 1 blade - anti-clockwise power take-off (left-hand rotation)

Questions & Answers (4)
ID: K607632

EAN: 8000001143838

MPN: TMM 120 SX

Premium Line TMM 120 - tractor mower - 3 rotors with 1 blade - anti-clockwise power take-off (left-hand rotation)
+30 sold
FREE
2 Bottles of 1L transmission oil2 Bottles of 1L transmission oil
Tractor power
From 15 to 70 HP
Cutting width
120 cm
Sturdiness/Series
Medium
Rear discharge
Mulching cutting system
Optional
Standard cutting tools
Knives
Cardan shaft
Standard
Cast iron gearbox
Yes
Cutting adjustment
On each wheel
Central lubrication.
Triple blade
Manufacturing country
Italy
Product Features
Model:
TMM 120
Tractor power:
From 15 to 70 HP
Sturdiness/Series:
Medium
Shift:
Fixed hitch
Housing width:
130 cm
Side discharge cutting system:
No
Mulching cutting system:
Optional
Cut with rear discharge:
Standard equipment
Cardan shaft rotation:
Manufacturing country:
Italy
Transmission data
Cast iron gearbox:
Yes
No. of revolutions per minute:
540 RPM
Central lubrication.:
Cutting data
Cutting width:
120 cm
No. of blades:
3
Triple blade:
Standard cutting tools:
Knives
Blade type:
Cutting blades + mulching
Cutting adjustment :
On each wheel
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Equipment
Wheel Type:
ABS pattern
Free gifts/extra features
Cardan shaft:
Standard
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
130x117x85
Net weight:
140 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
130x117x85
Gross weight (packaging included) :
180 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
10 - 12 days from purchase
Free Shipping
€ 1.826,99
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

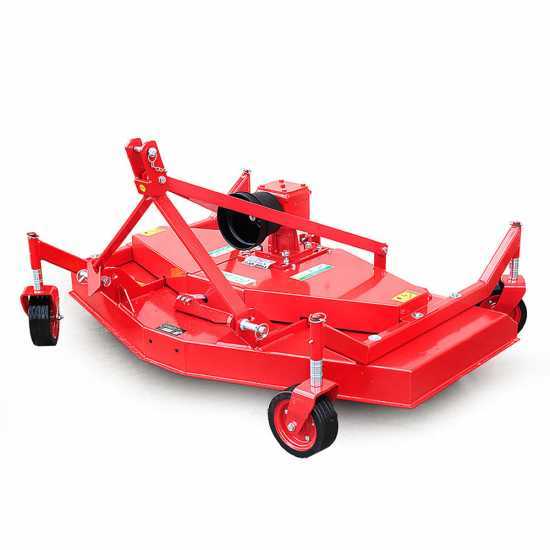

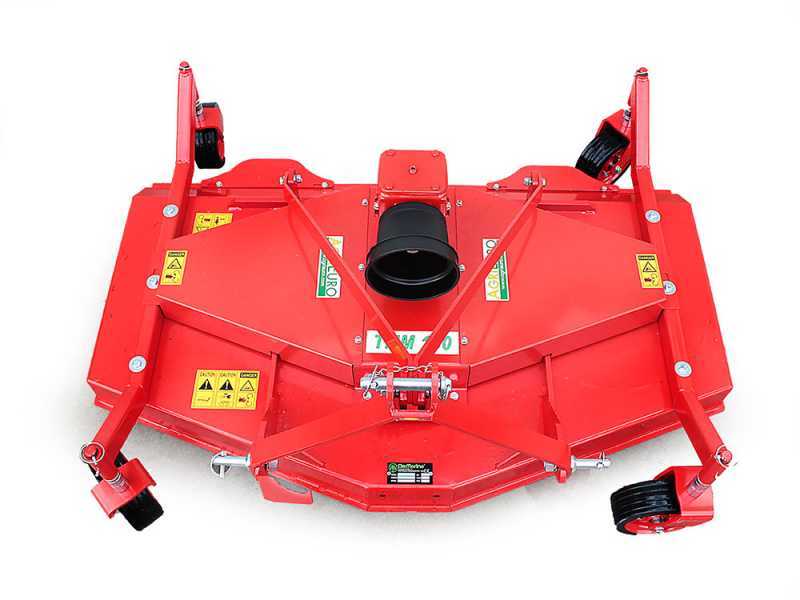

AgriEuro TMM 120 tractor mounted lawn mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The TMM 120 lawn mower is a machine suitable fot the maintainance of lawns, golf courses, kick fields and public gardens also of big surfaces. It has a sturdy and elastic structure and thanks to the high rotation speed of the rotors it guarantees a precise and accurate grass cutting.

It has a working width of 120 cm, the cutting height is adjustable in several positions through the wheels that vary from 20 to 90 mm.

It is equipped with a side discharge with the possibility of assemble a mulching kit.

Suitable for tractors from 15 to 70 hp.

It is equipped with 3 rotors with 1 blade that ensures the long lasting in time always at high performances.

TECHNICAL DETAILS (in summary):

  • Real working width: 120 cm
  • Real working width of the machine: 130 cm
  • Weight: 175 kg
  • Suggested for tractors: from 15 to 70 HP
  • 3 point linkage
  • Belt transmission with cast iron reducer
  • Rear discharge
  • Adjustable swiveling wheels

They do not work with left direction of rotation!


This machine DOES NOT provide oil in the transmission. Please add the oil to the due level before use.

The blades

The blades can cut grass and bushes in medium/difficult conditions, even in slopes, but without exceding.


It is mostly purchased to refinish the grass on public parks, golf courses or kick fields even with big surfaces.

Sturdy cast iron reducer with 2-belt transmission at 540/rpm.

Working width: 120 cm

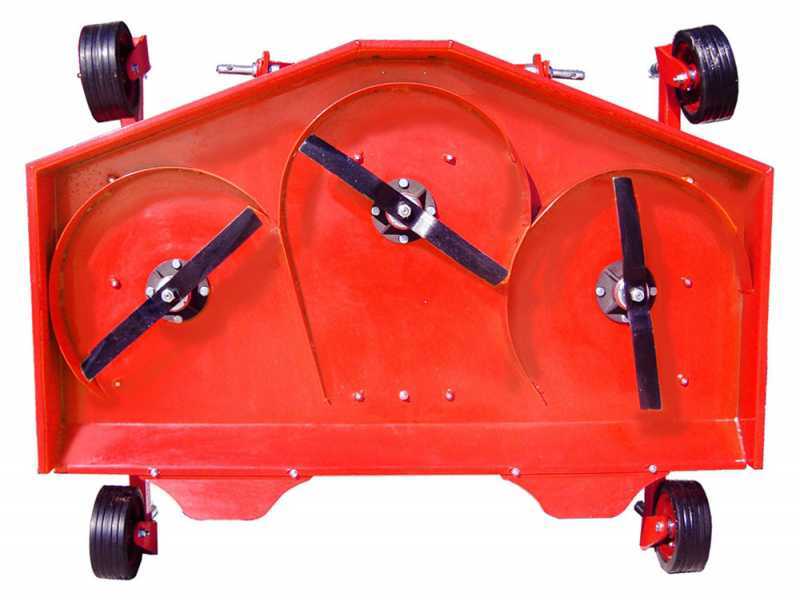

Focus on the blades.

Adjustable cutting height from 2 to 9 cm.

It is set up to assemble the mulching kit.

The system of rear discharge enables to cut the grass without the use of a grass collectore by directly collecting it on the rear of the lawn mower.

Reducer and wheels

The trasmission of the this model, covered by a sturdy steel deck, has 2 belts and cast iron reducer at 540 g/min.

Focus on the reducer with cardan shaft protection.

It is possible to adjust the height of the swiveling wheels in order to obtain a cut from 2 to 9 cm. This operation takes just few minutes; just remouve the wheel, the zinc-coated spacers and replace the wheel.

Example of minimum regulation.

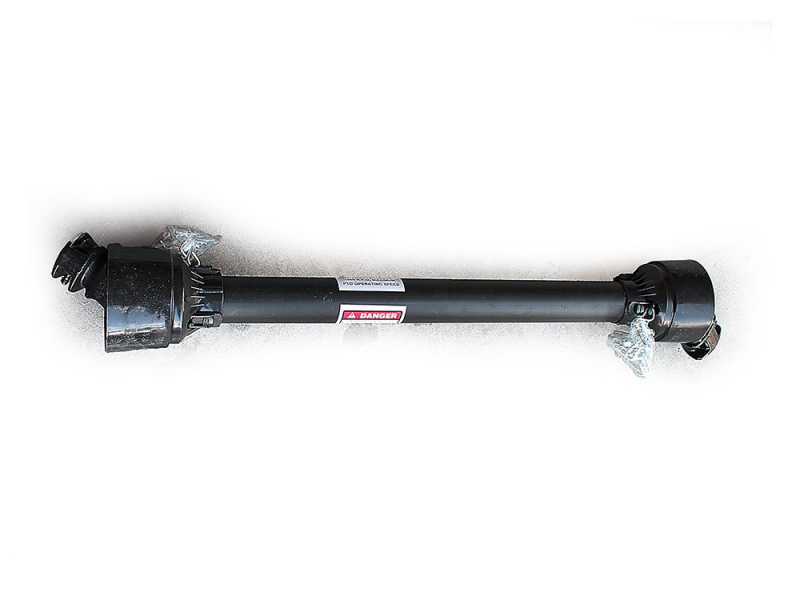

Focus on the cardan shaft.

Thanks to the centralized lubrication it is possible to reduce to minimum the side effects of wear and, sometimes, dissipate part of the heat produced by the friction thanks to the help of the lubricant. So it is possible to reduce the costs of reparation, the spare parts and lubrications.

3 point linkage and discharge

The linkage is universal and adjustable for all tractors on the market.

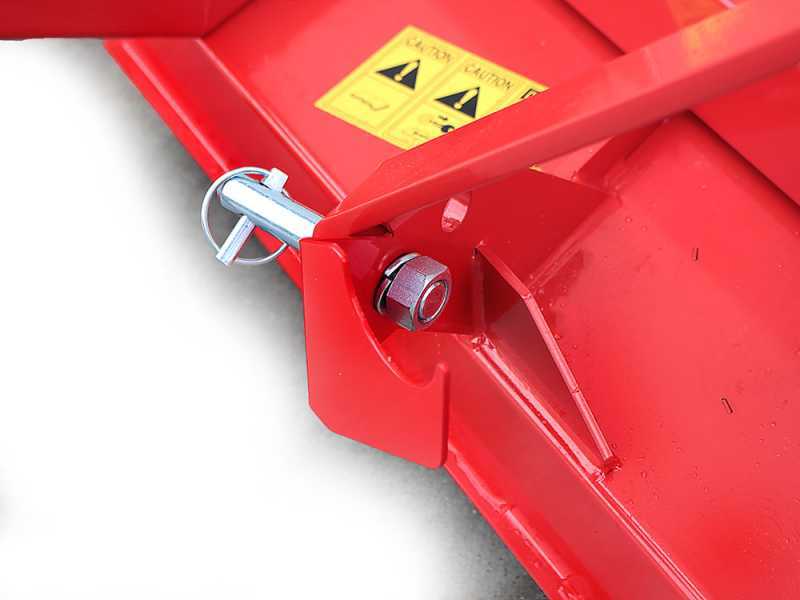

Focus on the steady 3 point linkage..


Focus on the cardan shaft support.

Rear discharge system:

It enables to cut the grass without the help of a grass collector by directly collecting it on the rear of the lawn mower.

[x=347091]Focus on the protection against stones of the rear discharge.

Thanks to this discharge, the grass that has been cut is released on the just tilled soil and it decomposes; it is then tranformed into a nutritional substance for the lawn so guaranteeing a perfect balanced biological cycle.

Free items & Standard equipment

COMPLIMENTARY: 80w90 Oil for Transmission

2 1 L bottles of 80W90 transmission oil.

Suitable for the majority of machines on the market.

Free gifts & Standard equipment

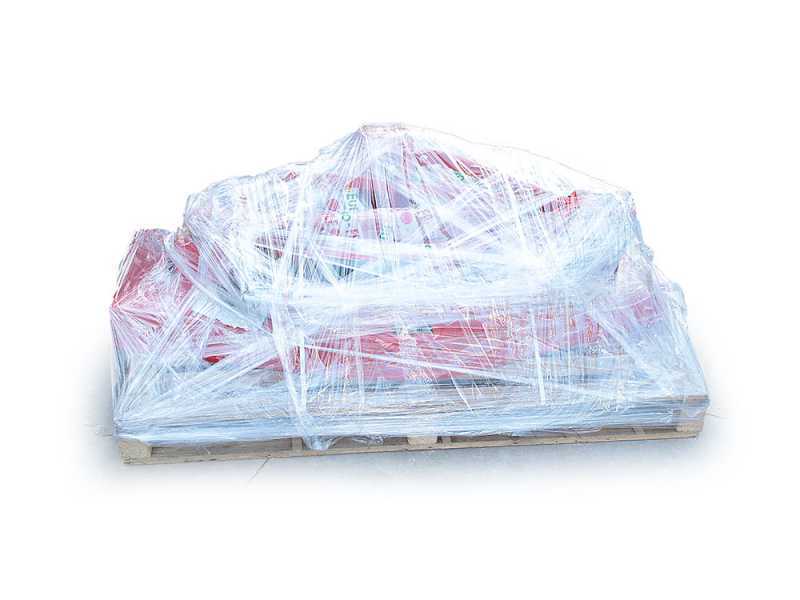

The product is shipped on pallet. It is necessary to assemble the three point linkage and the wheels.

Cardan shaft and istructions manual included in the packaging.

Focus on the security shear bolt of the cardan shaft apt at preserving the integrity of the transmission and reducing the risks of accident to the user.
