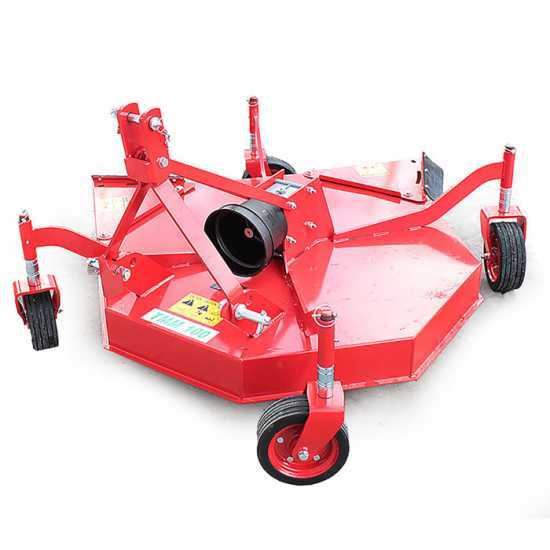

Premium Line TMM 100 - tractor mower - mulching cut - anti-clockwise power take-off (left-hand rotation)

Questions & Answers (7)
ID: K607631

EAN: 8000000008671

MPN: TMM 100 SX

Premium Line TMM 100 - tractor mower - mulching cut - anti-clockwise power take-off (left-hand rotation)
+50 sold
FREE
2 Bottles of 1L transmission oil2 Bottles of 1L transmission oil
Tractor power
From 12 to 25 HP
Cutting width
100 cm
Sturdiness/Series
Light
Side discharge
Rear discharge
Mulching cutting system
Standard equipment
Standard cutting tools
Knives
Cardan shaft
Standard
Cutting adjustment
On each wheel
Single blade
Manufacturing country
Italy
Product Features
Model:
TMM 100
Tractor power:
From 12 to 25 HP
Sturdiness/Series:
Light
Shift:
Fixed hitch
Housing width:
120 cm
Side discharge cutting system:
Standard equipment
Mulching cutting system:
Standard equipment
Cut with rear discharge:
Standard equipment
Cardan shaft rotation:
Manufacturing country:
Italy
Transmission data
Cast iron gearbox:
No
No. of revolutions per minute:
540 RPM
Cutting data
Cutting width:
100 cm
No. of blades:
1
Single blade:
Standard cutting tools:
Knives
Blade type:
Cutting blades + mulching
Cutting adjustment :
On each wheel
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Equipment
Wheel Type:
ABS pattern
Free gifts/extra features
Cardan shaft:
Standard
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
120x120x78
Net weight:
90 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
130x130x90
Gross weight (packaging included) :
120 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
10 - 12 days from purchase
Free Shipping
€ 1.288,59
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

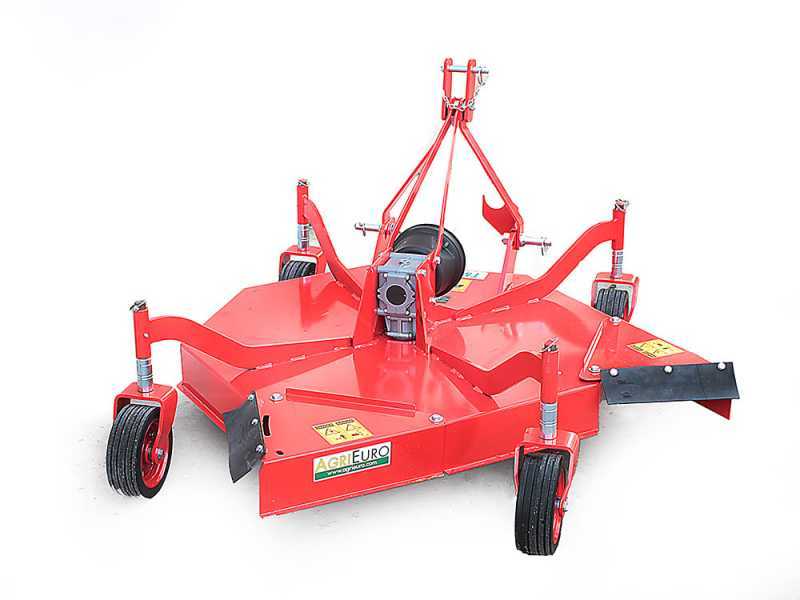

AgiEuro TMM 100 tractor mounted lawn mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The TMM 100 lawn mower is a machine created for the maintainance of lawns, kick fields, golf courses and public gardens. It has a light and elastic structure. Thanks to the high rotation speed of the rotors, the cut of the grass proves out to be precise and accurate.

It has a cutting width of 100 cm that can be adjusted in height through the wheels in several positions that vary from 20 to 90 mm.


3 cutting systems in 1 machine; rear discharge, side discharge, mulching cutting.


Suitable for tractos of 12 - 25 hp.


It is equipped with a rotor with 2 blades; thanks to this feature the blades ensure a long lasting in time and always high performances.

TECHNICAL DETAILS (in summary):

  • Real working width: 100 cm
  • Real width occupied: 120 cm
  • Weight: 114 kg
  • Suggested for tractors: from 12 to 25 HP
  • 3 point linkage
  • direct drive with aluminium reduction gearbox
  • side and rear discharge
  • adjustable swiveling wheel

STANDARD EQUIPMENT (in summary):

  • Manual side shift (11 cm)
  • Hammer flails
  • Lay rear roller
  • Cardan shaft

They do not work with left direction of rotation!


Warning: this machine DOES NOT provide oil in the drive. Thus, add the oil up to the due level and please carefully read the instructions manual.

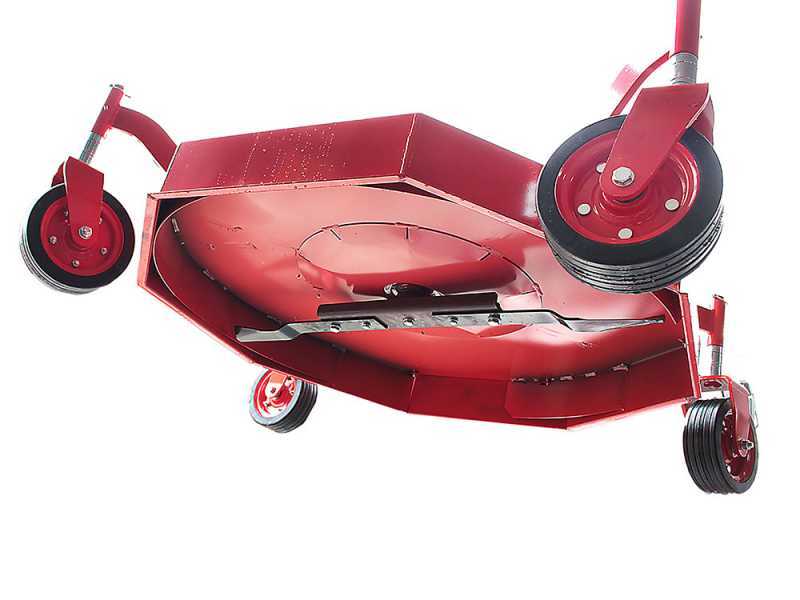

The blades

The blades can cut grass and bushes in medium/difficult conditions, even in slopes, but without exceding.


It is mostly purchased to refinish the grass on public parks, golf courses or kick fields.


Sturdy aluminium reducer with direct drive at 540/rpm


Working width: 100 cm


Focus on the blades.


Adjustable cutting height from 2 to 9 cm.


It is a 3 in 1 machine: mulching system with side and rear discharge.


SIDE AND REAR DISCHARGE SYSTEM:
enables to cut the grass without the use of a grass collector. It is directly collected on the rear or side of the lawn mower.


Mulching cut system.

WHAT IS THE MULCHING CUTTING: a cutting system that minces the grass and releases it right after on the lawn. It is so pulverised that appearantly seems that it has been just picked up. The problem of the disposal is so avoided (time of cutting is radically reduced) and moreover, through its decomposition it will then be transformed into the nutritional substance for the lawn itself and in water (grass is composed of 80% of water) so ensuring a perfect biological balanced biological cycle. However, it is useful to remember that, in order to guarantee the full efficiency of the system, lawn has to be irrigated before and grass should be cut at least once a week.

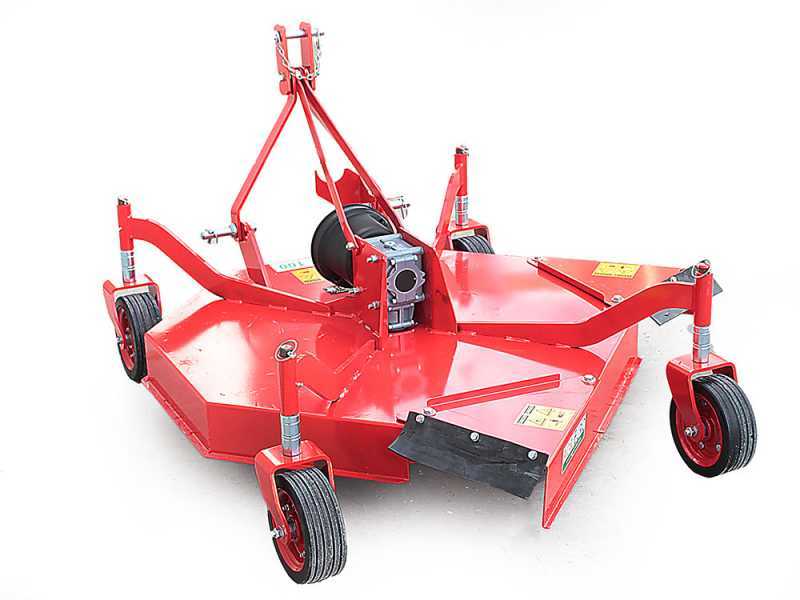

Reducer and wheels

The transmission of this machine is direct at 540 g/min with free-wheel aluminium reducer.

Focus on the reducer with cardan shaft protection.

It is possible to regulate the height of the swiveling wheels to obtain a cutting from 2 to 9 cm. This operation takes just few minutes; just remove the wheel, the zinc-coated spacers and replace the wheel.

Example of minimum regulation.

Focus on the cardan shaft.

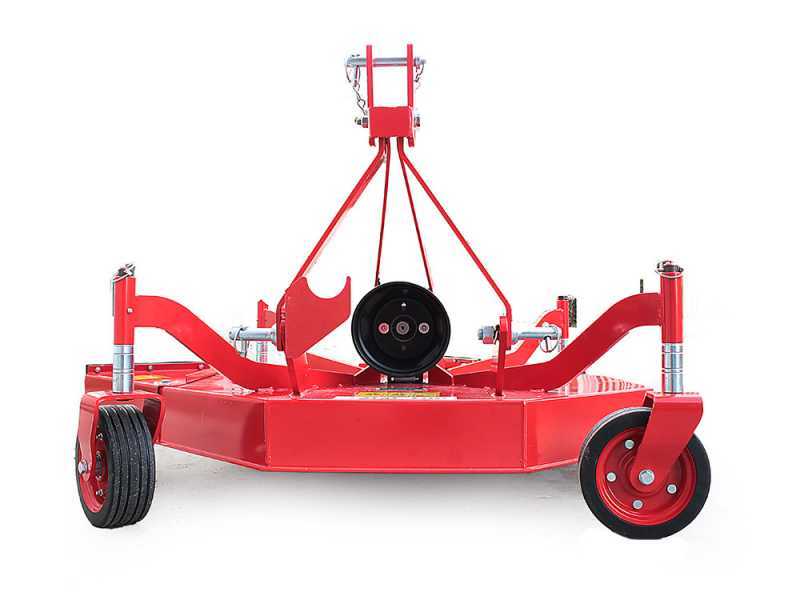

Three point linkage and discharges

The linkage is universal and adjustable for all tractors on the market.


Focus on the sturdy 3 point linkage..


Focus on the cardan shaft support.

Rear and side discharge system:
it enables to cut the grass without the help of a grass collector by directly collecting it on the rear and side ot the lawn mower; just unscrew the 2 bolts that fix the discharges to the machine and choose the angle of opening.

[x=346095]Rear discharge open.


Side discharge open.


Focus on the bolt that fixes the discharge and the angle.

Free items & Standard equipment

COMPLIMENTARY: 80w90 Oil for Transmission

2 1 L bottles of 80W90 transmission oil.

Suitable for the majority of machines on the market.

Free gifts & Standard equipment

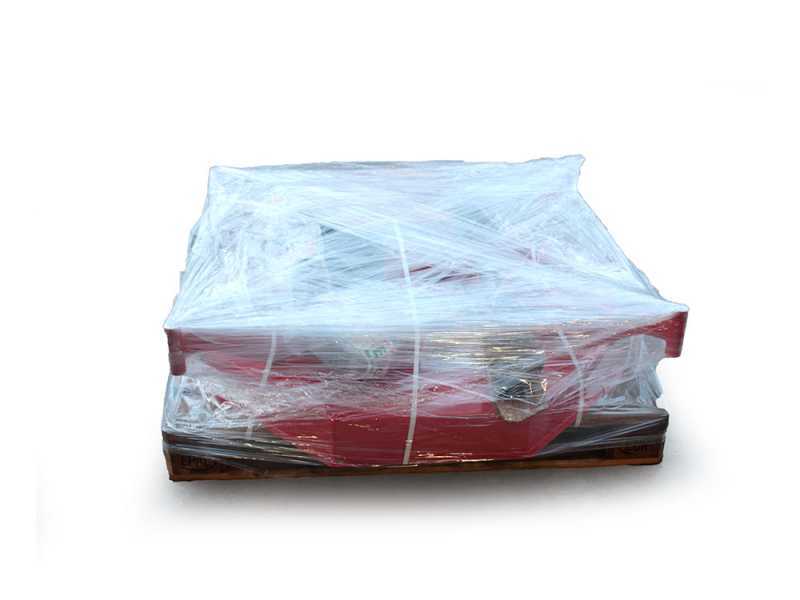

The product is shipped on pallet. It is necessary to assemble the three point linkage and the wheels.

Cardan shaft and istructions manual included in the packaging.
