Pramac GS Basic 22S4 - 1150x525 Hand Pallet Truck - Hand Transpallet

Add a question
ID: 100451

EAN: 8018539056605

MPN: 100451

7,9/10
After-sales assistance & Spare parts
Pramac GS Basic 22S4 -  1150x525 Hand Pallet Truck - Hand Transpallet
+900 sold
Maximum load
2200 kg
Roller
Twin-roller
Manufacturing country
Italy
Product Features
Model:
GS BASIC 22S4 1150x525
Maximum load:
2200 kg
Roller:
Twin-roller
Manufacturing country:
Italy
Dimensions and logistics
Product dimensions in cm (L x W x H):
155x52x116 cm
Net weight:
61 Kg
Packaging:
On pallet
Assembly time:
5 minutes
Prompt Delivery
41 items in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
€ 532,18
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

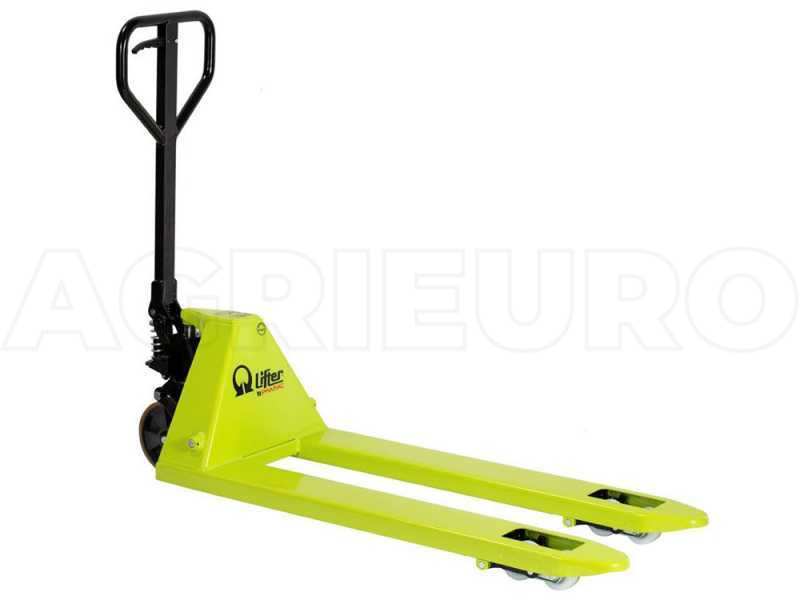

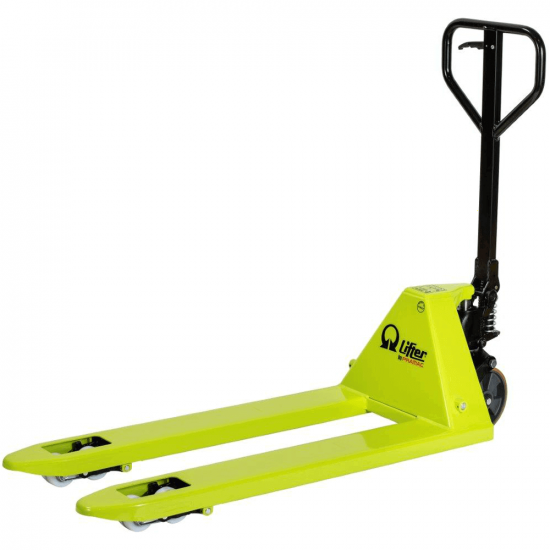

Pramac GS BASIC 22S4 1150x525 Pallet truck

Pramac GS BASIC 22S4 1150x525 hand pallet truck allows allows safe and easy handling of goods on pallets.


They can lift and move up to 2200 kg and thanks to their steel frame they are long-lasting and highly sturdy. Versatile without compromising manoeuvrability: the new drawbar design ensures an easy manoeuvrability in narrow areas and ergonomics during the handling of loads.

The hydraulic unit is the main component of the hand pallet truck. The GS pump is designed and built in Italy with extreme care and attention to detail. This provides pump maximum performance and features thanks to:

  • COMPACT DESIGN: cast iron pump body with integrated oil tank, which protects all the hydraulic components from accidental damage. Furthermore, the pump body is used in CNC machining centres.
  • CHROMED PISTON AND SEAL GASKET: to avoid oxidation and prevent oil leaks during use.
  • MAXIMUM PRESSURE VALVE: safety device that protects the pallet truck from overloads

Easy-to-install drawbar thanks to the pin and spring pin supplied. Sturdy connection to the hydraulic unit via two welded joints that provide the machine with high strength for carrying out the most difficult operations.

Equipped with ergonomic drawbar with four curves and fork controls in a single lever. Designed with large grips on the side for a greater comfort during the use and avoid excessive fatigue while pushing loads.

LIFTER pallet truck series are equipped with advanced features: stronger, easier to use with superior ergonomics and a wide range of customisations available.

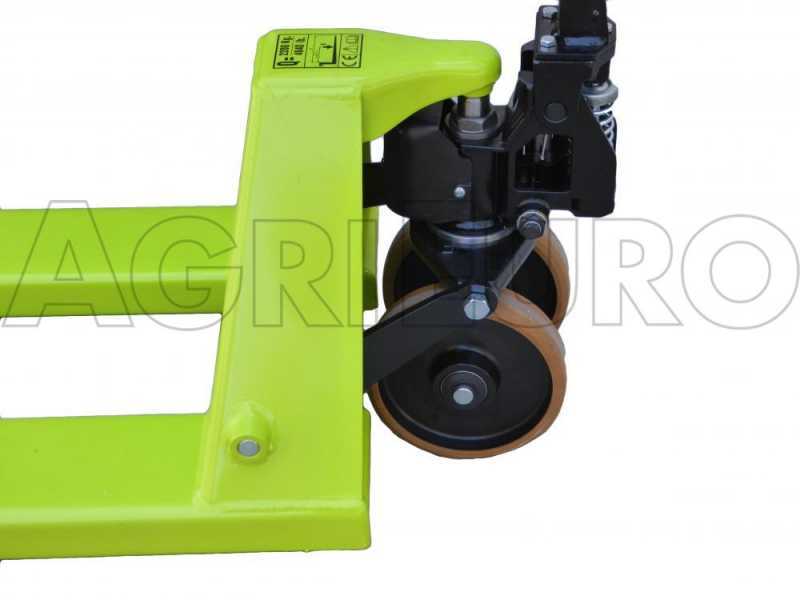

Technical features

The pallet truck Lifter forks by Pramac measure:

Fork length: 1150 mm

Fork width 525 mm

Each fork is equipped with one single Nylon wheel.

The drawbar wheel is made of POLY.I. Nylon. This ensures the product a long-lasting life.

The convenient drawbar is equipped with a locking lever to lift the load.

The maximum load lifting height is 115 mm

The special polyester powder coating ensures incomparable resistance to wear and weathering.

Free items & Standard equipment

Free items included

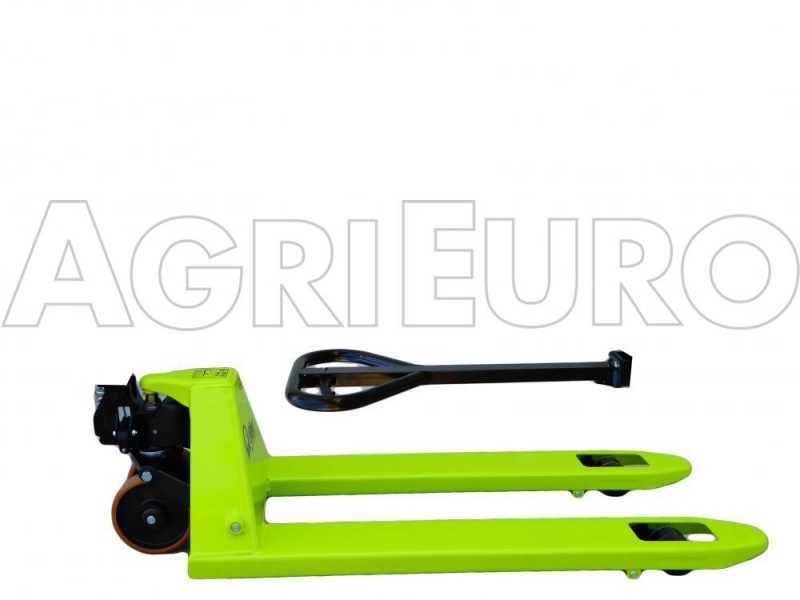

The pallet truck is shipped on a pallet, complete with drawbar and bolts for assembly.
