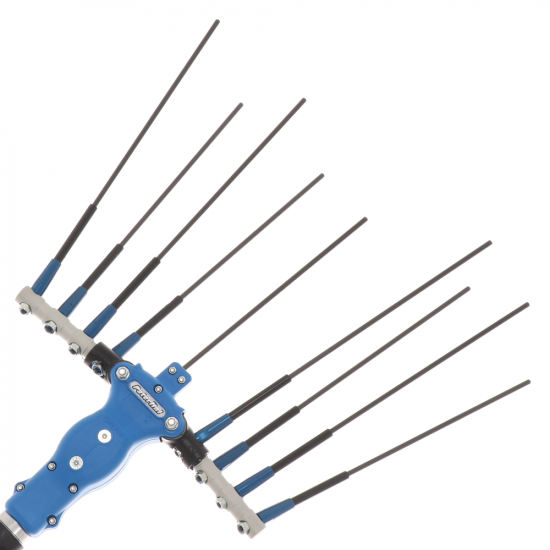

Paterlini OLIVELOX BA 3 Electric Olive Harvester - 12 V - from 2 to 3 Metres

Questions & Answers (1)
ID: K605698

EAN: 8054141960107

MPN: 9314stalea

7,8/10
After-sales assistance & Spare parts
Paterlini OLIVELOX BA 3 Electric Olive Harvester - 12 V - from 2 to 3 Metres
Free gifts from AgriEuro
Touring 18 Telwin battery-chargerTouring 18 Telwin battery-charger
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
AgriEuro BandanaAgriEuro Bandana
Available versions
Technical data
Head material
Aluminium
Motion
Double side
Speed (bpm)
1200 bpm
Pole material
Aluminium
Telescopic pole
Max. length
315 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
80 W
Motor position
At the bottom of extension pole
Motor type
Battery-powered
Battery type
Car type
Carbon prongs
Manufacturing country
Italy
Product Features
Model
OLIVELOX BA 3
Use
For olive harvester only
Power supply
Lead-acid battery 12 V
Head material
Aluminium
Type
12 V battery-powered
Operating mode
12 V battery-powered
Motor position
At the bottom of extension pole
Motion
Double side
Speed (bpm)
1200 bpm
No. of prongs
4+4
Prongs material
Carbon
Carbon prongs
Min. length
225 cm
Max. length
315 cm
Pole material
Aluminium
Pole type
Telescopic
Manufacturing country
Italy
Motor data
Motor brand
Paterlini
Motor position
At the bottom of extension pole
Motor type
Battery-powered
Motor type
Brush
Battery type
Car type
Nominal power (W)
80 W
Power supply
12 V battery-powered
Fuse
Yes
Voltage
12 V
Recommended battery
80 Ah
Manufacturing country
Italy
Equipment
Extension pole
225-315 cm
Telescopic pole
Extension power cable
15 m
Free gifts/extra features
Ear muffs
yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
340x50x16 cm
Net weight
2.7 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
197x35x12 cm
Weight including packaging
8.3 Kg
Assembly time
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 24/09/2025 - 26/09/2025
€ 632,79
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Paterlini OLIVELOX BA 3 Battery-powered Electric Olive Harvester

Paterlini OLIVELOX BA 3 olive shaker is a high performance and powerful machine that ensures a large collection capacity.

Paterlini OLIVELOX BA 3 olive shaker is suitable for all harvesting needs, resulting in a versatile and effective olive harvester in any situation.

The transmission consist of a reduction unit placed inside the operating handle which through an internal telescopic transmission system

leads to a 90° angle gearbox which, by means of connecting rods, transforms the movement from rotary to alternating and allows the rakes to move.

The arrangement of the motor and gearbox inside the handle, that is, in the lower part of the tool, allows perfect balancing of the machine.

It features 4+4 carbon fiber prongs, easily replaceable.

This version is very simple and convenient to use and weighs only 2.7 kg thanks to the telescopic aluminium pole.

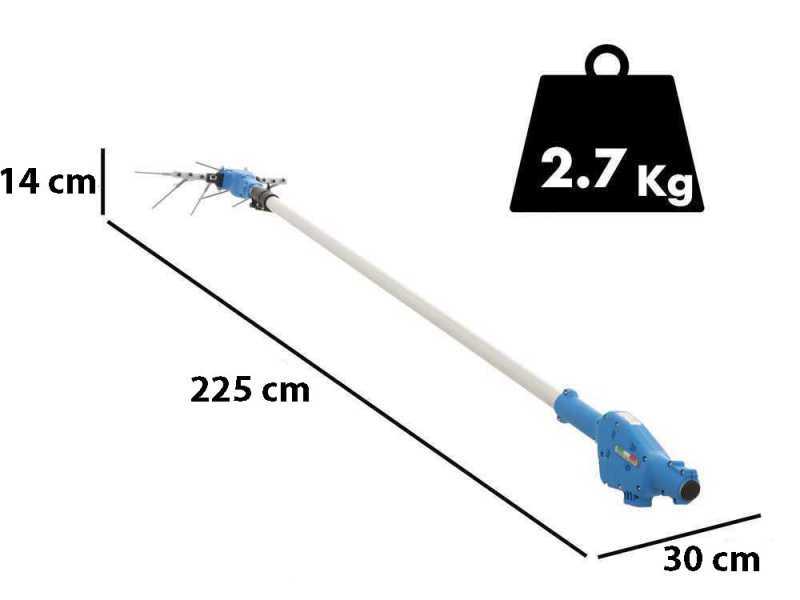

The total length of the olive harvester is 225-315 cm

Paterlini OLIVELOX BA 3 olive harvester is shipped with its power cable.

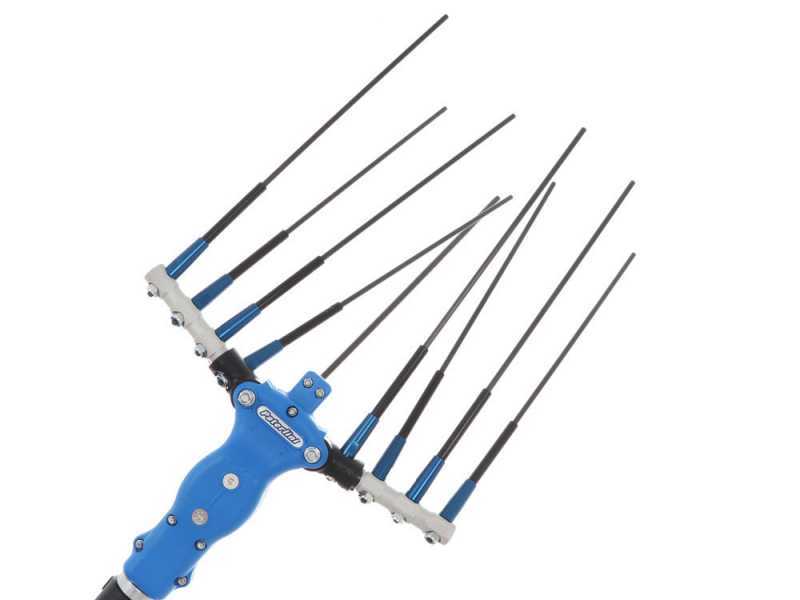

Head and Prong Motion

Paterlini olive harvester mounts 4+4 carbon harvesting prongs on the head.

The arms therefore carry a total of 8 carbon fiber rods with easy replacement, the entire propulsion and transmission unit is hermetically sealed, without any possibility of penetration of external agents inside. This ensures continuity of operation and an almost non-existent maintenance.

The harvesting head consists of two high-strength aluminium supports where the co-moulded carbon prongs are fixed in order to extend their life by reducing the efforts.

Technical data about the head:

  • Shakes per minute: 1200
  • Voltage: 12 V
  • Watts: 80 W

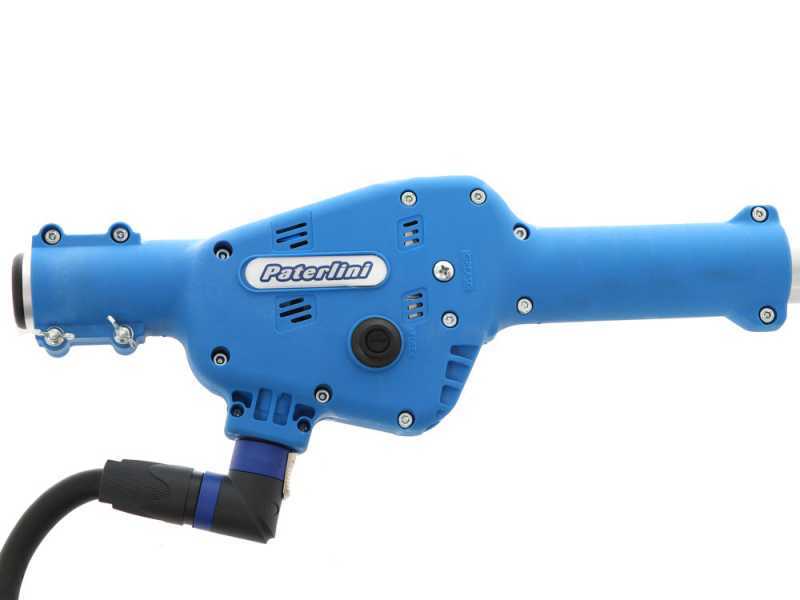

Electric motor

OLIVELOX BA 3 boasts a closed-box transmission with lubricated special steel gears mounted on bearings and a sturdy ergal frame that ensures perfect transmission and durability.

The machine is powered by battery, to which the supplied cable with adapter can be attached.

For easier power supply, a 15 meter cable is provided, equipped with fuse, pliers and connectors.

The connector to attach to the olive harvester has a clip that ensures a stable connection with the harvester and prevents detachment or wearing.

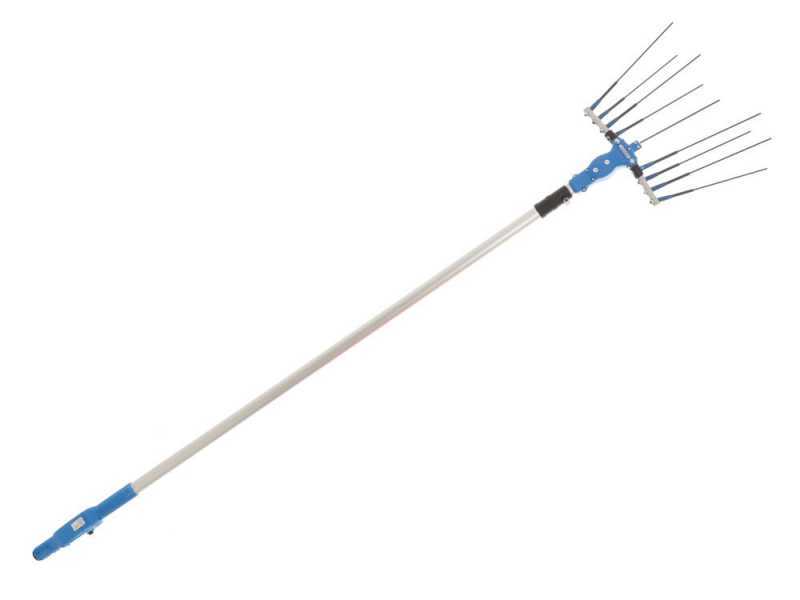

Other features

Focus on the power switch of the motor.

Focus on the professional power supply socket.

Its main advantages include:

  • Head elements 4+4 flexible carbon fiber rods that are easy and quick to replace.
  • Power supply: electric
  • Ergonomic handle with switch and cable.

The pole is adjustable in any position between the length of 200 and 300 cm (overall length of the olive harvester)

Thanks to the quick coupling, it will be possible to quickly extend the harvester pole to reach the desired length.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

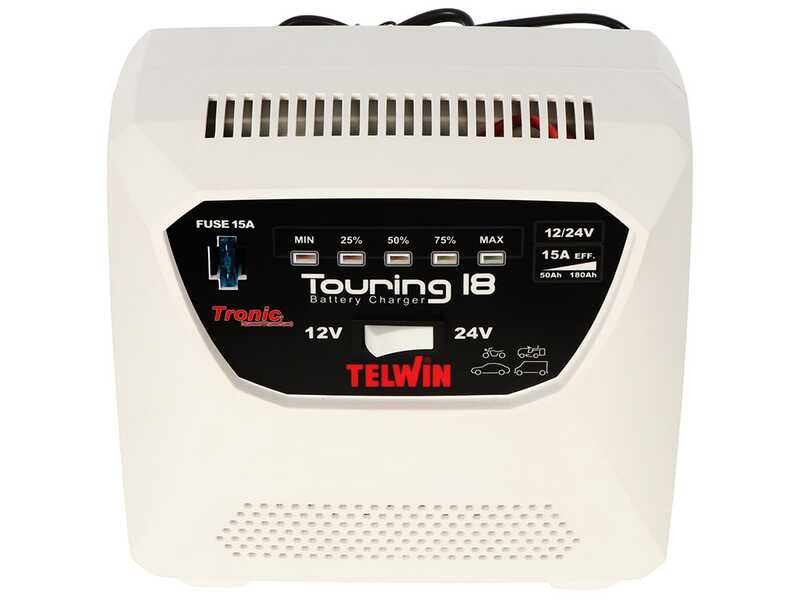

COMPLIMENTARY: Battery Charger Telwin Touring 18

The Telwin Touring 18 is a portable and lightweight battery charger, reliable and convenient. It is perfect for charging batteries from 12 to 24 V.

Lightweight, portable and very powerful at the same time. Small and powerful charger, the best you can find on the market to charge cars, motorcycles, campers batteries etc.

Battery charger with electronic control of charging phases, interruption and automatic reset (TRONIC ). Extremely reduced dimensions: 12x19,5x19 cm.

Battery charger ideal for charging WET, GEL, Pb-Ca, AGM, MF, EFB batteries with 12/24 Volt voltage. Suitable for charging batteries with a capacity of 60 to 180Ah (12V) and of 50 to 115Ah (24V).

Main features:

  • Power supply: single-phase
  • Protected against overloads and polarity reversals.
  • Automatic battery voltage recognition
  • Visual check of the battery charging phases thanks to the LED signalling

Suitable for:

  • Cars
  • Riding-on Mowers
  • Motorcycles
  • Campers etc.

Battery charger equipped with power cable and plug, with positive pole clamp (red), negative pole clamp (black).

Easy to use but also to transport thanks to its reduced weight of 3.5 Kg

The high quality of the product equipment is guaranteed by its TELWIN brand: historic Italian leading company for the production of this type of machineries.

Free Items Included

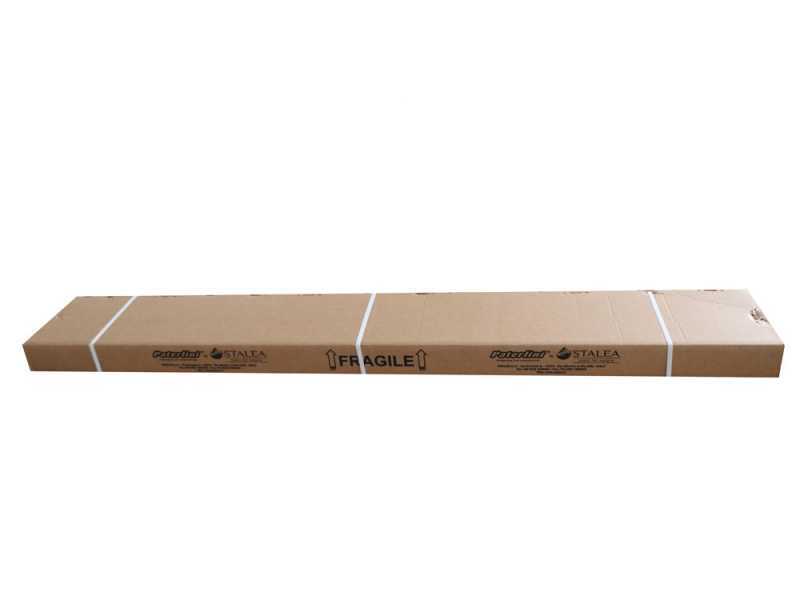

The olive harvester is shipped in its original packaging.

jumper cable

instruction manual
