Palumbo Pavi SM 22 INOX heavy-duty meat grinder - meat mincer, 600 W - 230 V motor

Multi purpose
2 in 1
Hourly output
100 kg/h
Effective power
1 HP
Transmission type
gear transmission
Meat mincer accessory
aluminium
Machine body material
Aluminium
Hopper material
stainless steel
Manufacturing Country
Italy
FREE:
FREE:
€ 264,92
VAT Included
Prompt Delivery
13 items in stock
|
Free Shipping
You should receive it by 05/11/2020
ID: 3756
EAN: 8023686000449
MPN: 124

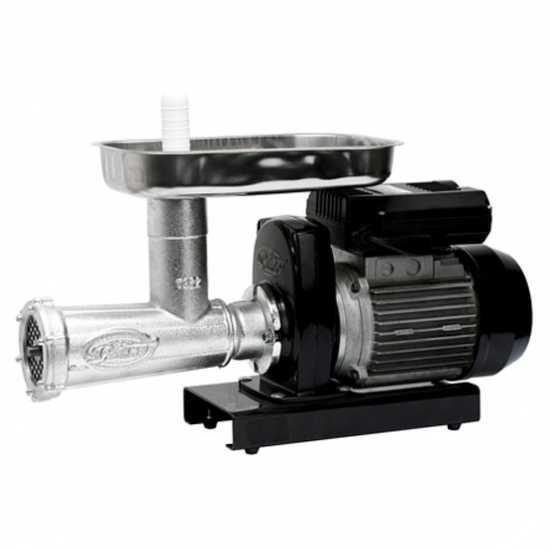

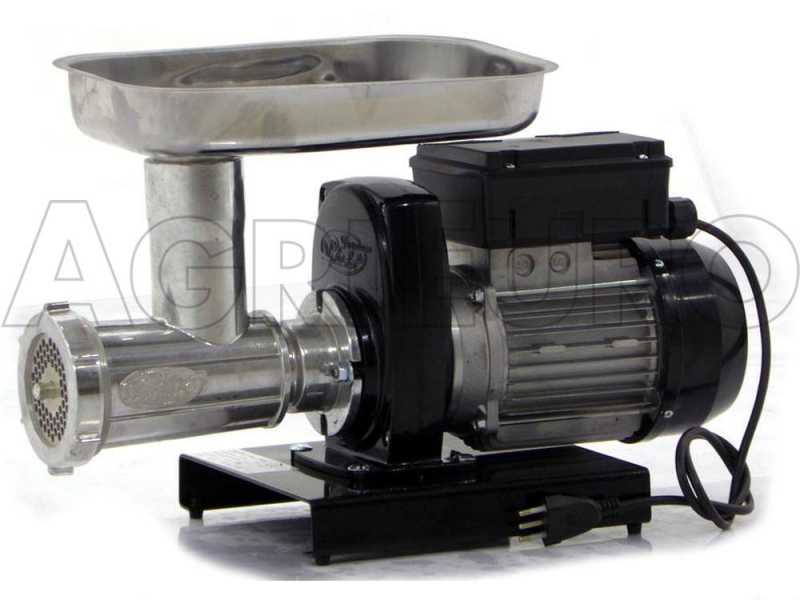

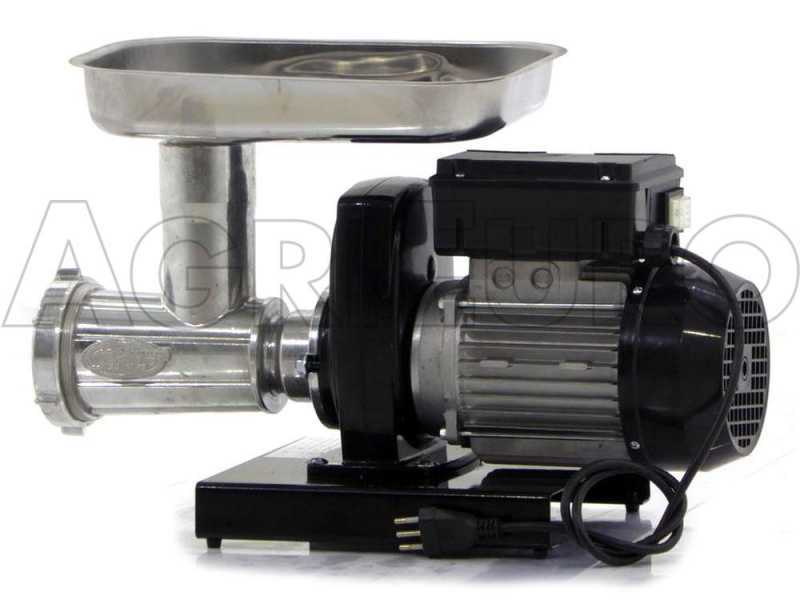

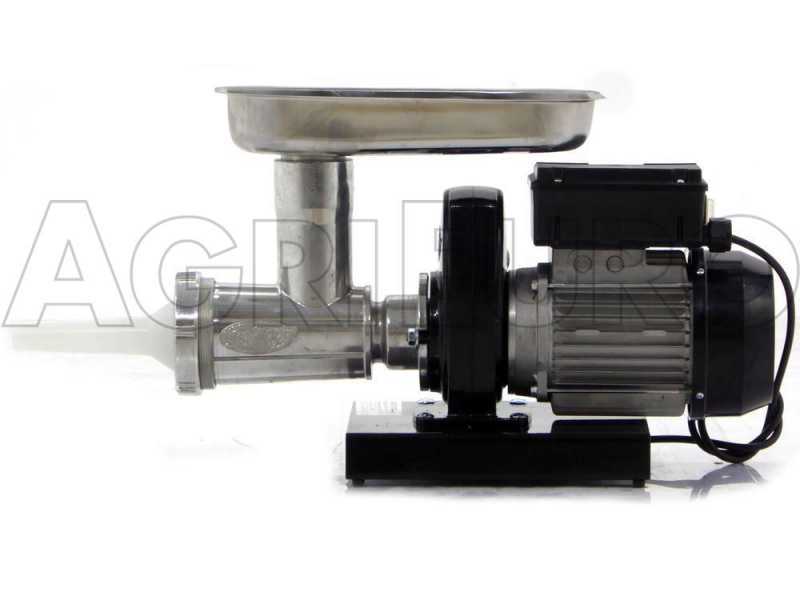

SM 22 INOX 1 Hp Heavy-duty tabletop meat grinder

The heavy-duty Palumbo Pavi SM 22 INOX meat grinder is equipped with a 1 Hp (600 W) motor and it has the ability to process any type of meat.

This model was designed to be operated on top of a table.
Size: 52x22x32 cm.
Weight: 20 Kg.
Hopper opening diameter: 75 mm.

This machine comes with a self-sharpening knife and grinder die plate. Both the knife and the grinder plate are made of AISI 430 stainless steel.

Featuring a single-phase asynchronous electric motor. Power supply: 230V. The SM 12 INOX 1 Hp professional meat mincer features a watertight switch and it is compliant with the Machinery Directive 89/392. Suitable for professionals and particularly demanding hobbyists.

The grinding unit can be fully detached from the machine body for thorough cleaning operations to ensure hygiene. Washable parts are dishwasher-safe.

The machine comes with a set of two stuffing tubes that can be mounted immediately after the grinding plate to make sausages or salami. The machine body, the lock ring and the protective casing are made of food-grade polished die-cast aluminium.

The lock ring on the machine body and the screw conveyor are made of tinned cast iron. The transmission unit features a steel gear motor (speed reducer). The hopper is made of stainless steel and the pestle is made of HD polyethylene.

By ordering the separate tomato press attachment, you can use this machine as a sauce maker.

This meat mincer is entirely made in Italy, which translates to high-quality materials and components.

Motor and transmission

This machine is euipped with a single-phase asynchronous electric motor. Power supply: 230 V. Maximum developed power: 1 Hp. The motor is mounted on a small metal frame with vibration-damping rubber mounts.

The drive shaft is made of F37 steel and it is not connected directly to the worm screw. In fact, there is a transmission component between the two, which also has the purpose of reducing motor revolutions, thus optimising the machine performances.

This steel gear motor is extremely sturdy and robust.

The motor features a watertight switch.

All of the machine components are made in Italy.

Machine body and components

This meat mincer is called SM 12 INOX because all of its main components are made of AISI 304 stainless steel. The machine body, the lock ring and the gearmotor protective casing are made by moulding UNI 50 die-cast aluminium.

Stainless steel hopper. Hopper size: 18x30 cm

The worm screw is made of tinned cast iron

The self-sharpening knife and the grinding plate are made of stainless steel.

Stuffing tubes diameter: 1,5 cm and 2 cm.

The pestle is made of food-grade HD polyethylene.

Product Features
Model:
SM 22 1 Hp art.124
Machine body material:
Aluminium
Power output:
600 W
Hourly output:
100 kg/h
Die plate material:
stainless steel
Multi purpose:
2 in 1
Manufacturing Country:
Italy
Motor data
Motor type:
induction motor
Motor type:
Electric
Effective power:
1 HP
Power supply:
220V power supply
Motor protection:
IP 54
Manufacturing Country:
Italy
Transmission data
Transmission type:
gear transmission
Speed reduction:
gears
Gear material:
High-strength steel
Belt protection shield:
yes - die-cast aluminium
Cutting data
Meat mincer accessory:
aluminium
Hopper material:
stainless steel
:
N. 22
Knife material:
stainless steel
Dimensions and logistics
Product dimensions cm (LxWxH):
22x52x32 cm
Net weight:
20 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
28x55x28 cm
Gross weight (packaging incuded) :
21 Kg
Assembly time:
5 minutes

Gifts and extra features

The meat grinder will be supplied in its original packaging.

1 pestle included in the package

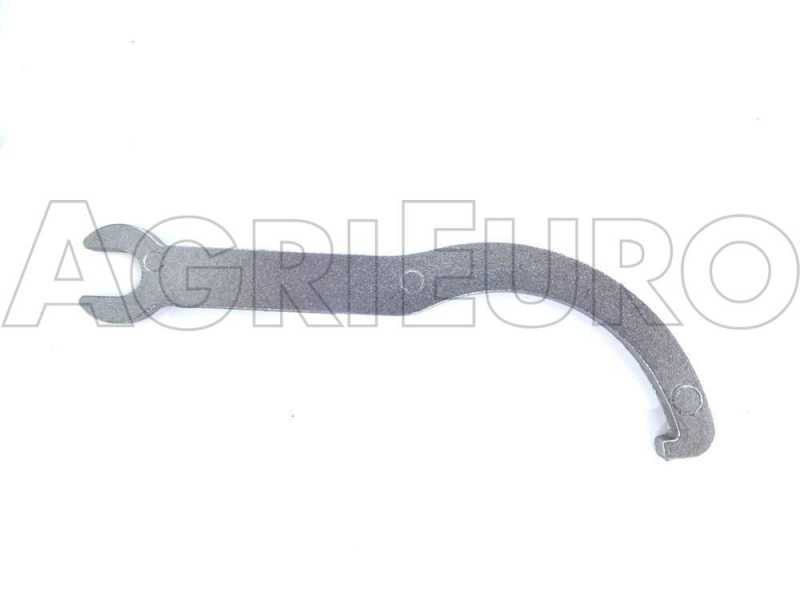

The machine comes with a special wrench to secure the lock ring.

2 stuffing tubes included as standard equipment
