Name: Master XL 9 SR - Direct Heating Diesel-fuelled Hot Air Generator
Brand: Master
SKU: K601490
Price: 2509.73 EUR
Availability: OutOfStock

Description

Master XL 9 SR Infrared

Master XL 9 SR direct diesel-fired infrared hot air generator

Infrared hot air generator with direct combustion system.

Compact and light-weight, the Master XL 9 SR is easily transportable, ideal for heating outdoors and in well-ventilated areas.

Professional heater suitable for ensuring temporary or emergency heating of construction sites:

Heating of concrete
Pipe thawing
Machinery thawing

The hot air generators are equipped with safety devices for preventing the risk of overheating, an electronic flame control with photocell and anti-tilting sensors.

Infrared hot air generator with diesel gear pump

Master guarantees a 3-year warranty!

Adequate room ventilation is required to prevent oxygen starvation.

ZERO risk of burns while moving.

Ultra-resistant and safe ceramic fiber combustion chamber.

Hot air generators are ideal for heating large spaces that are difficult to heat with traditional systems such as workshops, building sites, greenhouses, garages, livestock farms more.

Heating small and medium-sized rooms, open and windy spaces, workshops, warehouses, renovation and construction sites, tents and open and semi-open spaces.

Master XL 9 SR - Direct Heating Diesel-fuelled Hot Air Generator

Main features

Radiant heating
No air displacement
Highly silent
Electronic flame control with photocell
Post-ventilation system
Fuel quantity indicator
Sturdy and durable structure
Pump filter, suction filter and inlet filter
Thermal motor protection
Possibility of operation with room thermostat
Ceramic fiber combustion chamber
Tank with level indicator
Made of sturdy and durable materials
Possibility of adjusting the heat direction (tiltable)
Easy to transport
Steel structure with wall cold to the touch

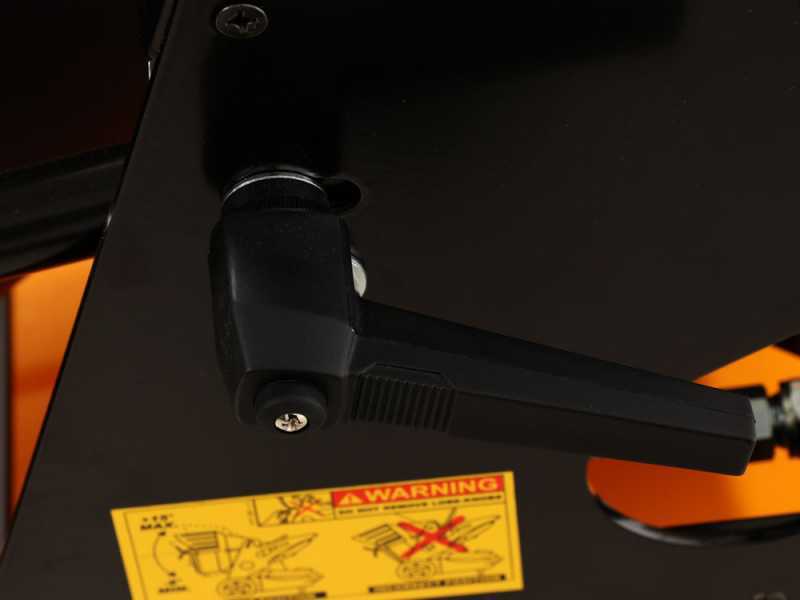

Focus on the controls

The types of fuels that can be used include:

Diesel
Transport diesel
Agricultural diesel
Heating oil
Kerosene

How to select the ideal hot air generator according to your needs

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [ΔT ] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

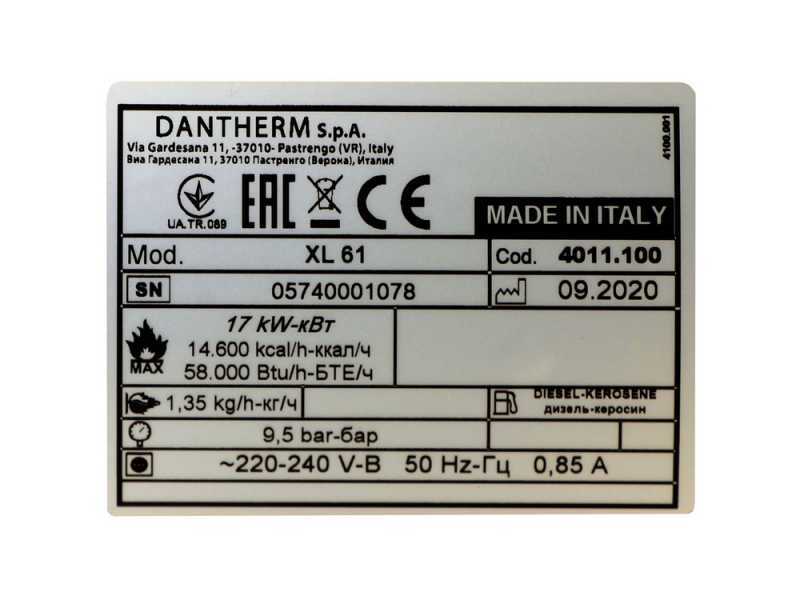

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

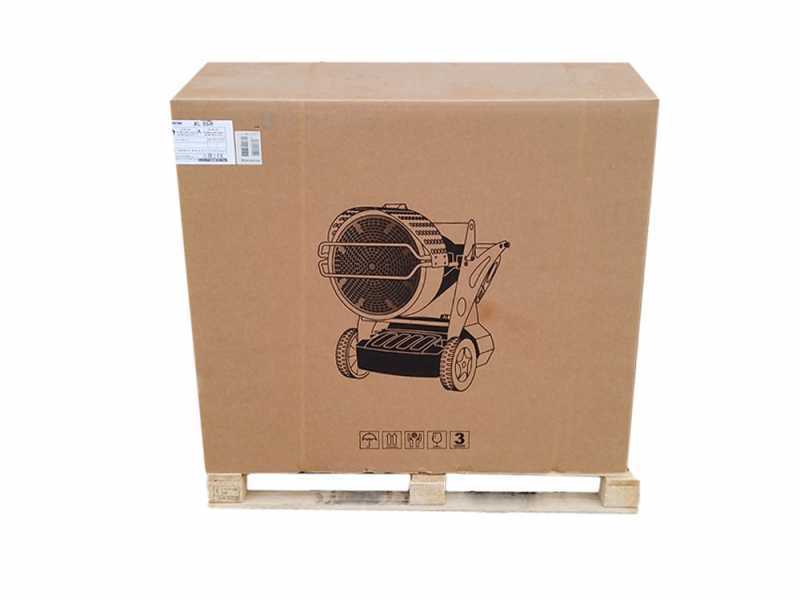

Free items & Standard equipment

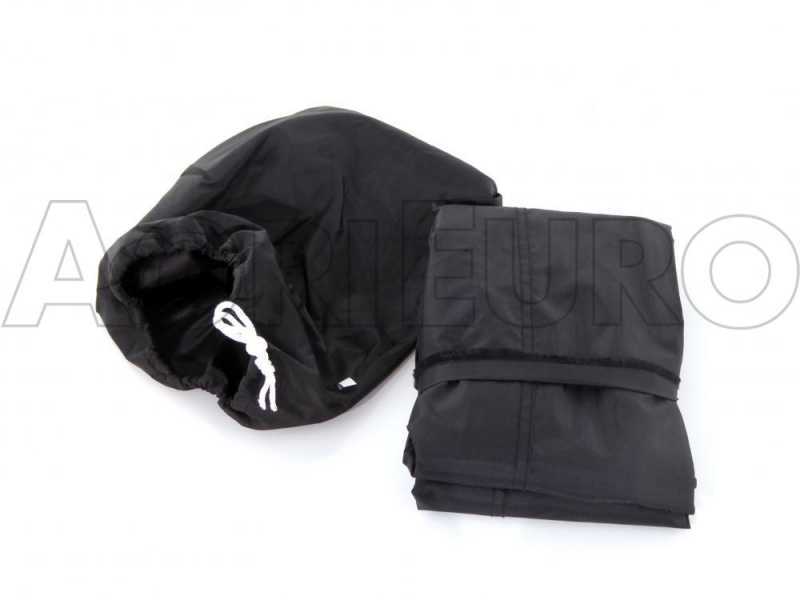

COMPLIMENTARY: Professional protection and storage cover XL

Ideal to protect your product when not in use.

This protection cover is fast and easy to apply; in just a few seconds your machine is protected from dust and humidity.

Easy to fold and store in its box, it takes up minimal space.
