MASTER TR 3 Electric Wall-mounted Hot Air Generator with Fan

Questions & Answers (1)
ID: K601455

EAN: 8053670894914

MPN: 4.025.065

MASTER TR 3 Electric Wall-mounted Hot Air Generator with Fan
FREE
Tarpaulin cover and storageTarpaulin cover and storage
Power supply
Single-phase electric
Max. heat output
3.3 kW
Body material
Enamelled steel
Thermostat
Yes
Manufacturing country
Italy
Product Features
Model:
TR 3
Power supply:
Single-phase electric
Body material:
Enamelled steel
Type:
Ventilated
Handheld:
Operating mode:
Electric 230 V
Start:
electric
Max. heat output:
3.3 kW
Absorption:
13.5 A
Thermostat:
Yes
Recommended for ventilated areas:
Yes
Recommended for indoor areas:
Yes
Manufacturing country:
Italy
Equipment
Thermal-protected motor:
Yes
Over-heating thermostat:
Yes
Built-in room thermostat :
Yes
Adjustable heat:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

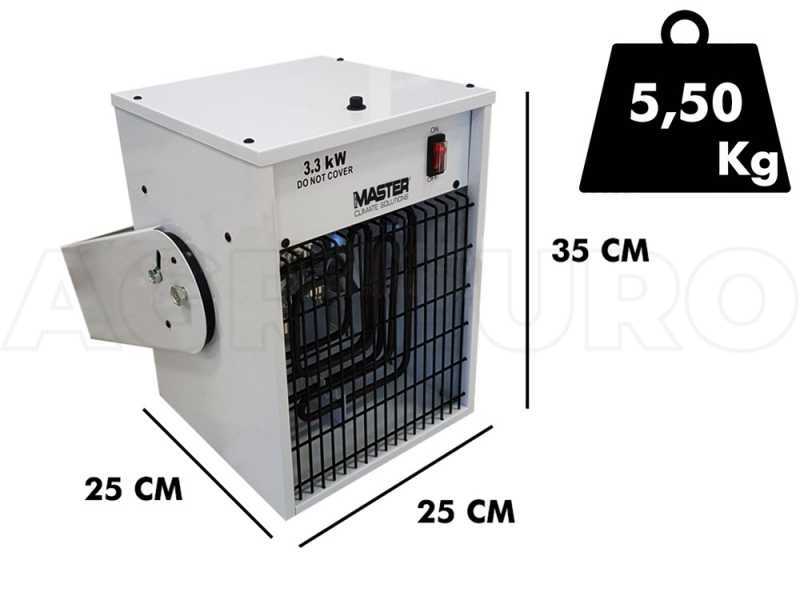

Product dimensions in cm (L x W x H):
25x25x35 cm
Net weight:
5.6 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
39x32x43 cm
Gross weight (packaging included) :
8.6 Kg
Assembly time:
5 minutes
Assembly time:
Brevi
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 23/05/2024 - 27/05/2024
€ 310,54
VAT Included
You're viewing:
Customers also viewed:
Description

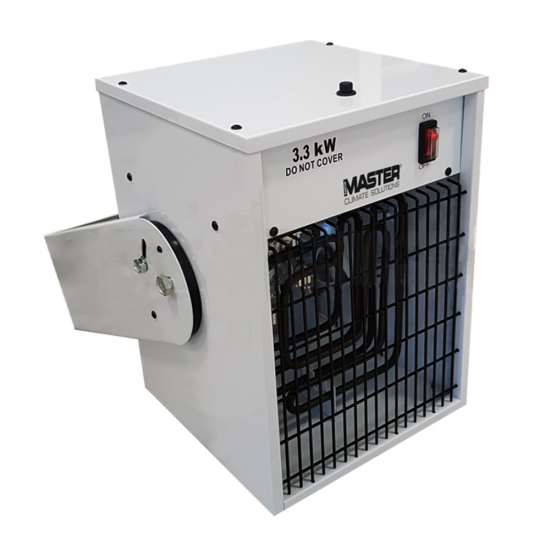

MASTER TR 3 Wall-mounted electric hot air generator with fan

Master TR 3 electric hot air generator with fan

The brand new TR Master 3 hot air generator is a portable wall-mounted heater which can be used in shops, halls, showrooms, meeting rooms,bungalows, offices, workshops, garages, reception rooms, tensile structures and cellars.

No oxygen consumption, no smokes, smells, humidity emissions and high silence.

Master guarantees a 3-year warranty!

Since they have no open flame or emissions, these heaters can be used even when the use of fuels such as gas or oil is prohibited and in closed rooms with poor ventilation.

With its new IP24 protection, TR 3 can be mounted on the wall, thanks to the mounting bracket included in the package, and it allows you to orient the heater up to 45°.

Equipped with remote control to adjust heat, power and working times.

Provided with PTC (Positive Temperature Coefficient) resistors which, unlike traditional resistors, increase their resistance as the temperature rises.

These electric exhalation heaters are efficient devices for many applications. They quickly provide clean and safe heat. They are excellent for temporary or emergency heating due to their mobility and ease of use. For the construction of the electric heaters, Master uses only the highest quality components, ensuring maximum reliability and efficiency of the devices.

Main features

New Master TR 3 main features:

  • Wall assembly.
  • Heat control.
  • The remote digital chronothermostat allows you to set the temperature and working time and choose between full power, medium power or ventilation only.
  • No oxygen consumption.
  • Built-in overheating thermostat.
  • Highly silent.
  • No smokes, no smells, no humidity.
  • Remote control.
  • Easy to install.
  • The remote control box is pre-wired and contains the thermostat, setting and wall bracket.
  • The included wall bracket allows orient the TR at 45°.
  • It guarantees quick heating for shops, halls, showrooms, meeting rooms, bungalows, offices, workshops, garages, reception rooms, tensile structures, cellars.

The operating principle of these portable hot air generators is based on the Joule effect of the current flowing through the heating elements, which heat the air sent there by an axial fan. The heating function is also controlled by the room temperature detection thermostat and the overheating prevention thermostat.

Focus on the controls.

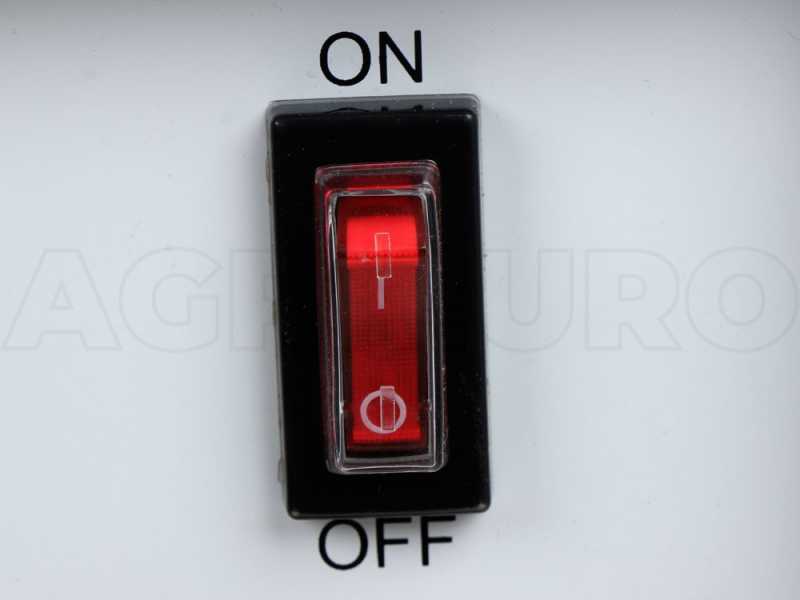

  • ON/OFF switch
  • Remote control for adjusting heat, power and working times.

Focus on the plug.

How to select the ideal hot air generator according to your needs

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT ] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

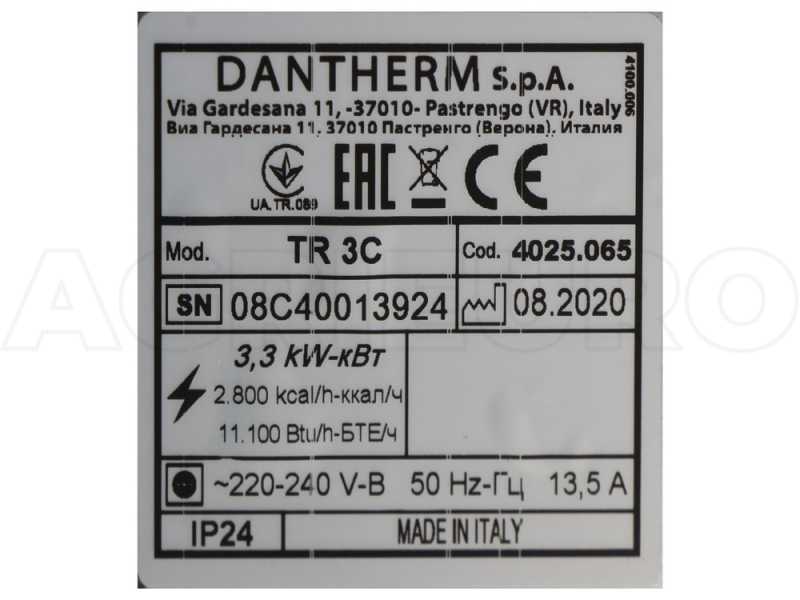

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

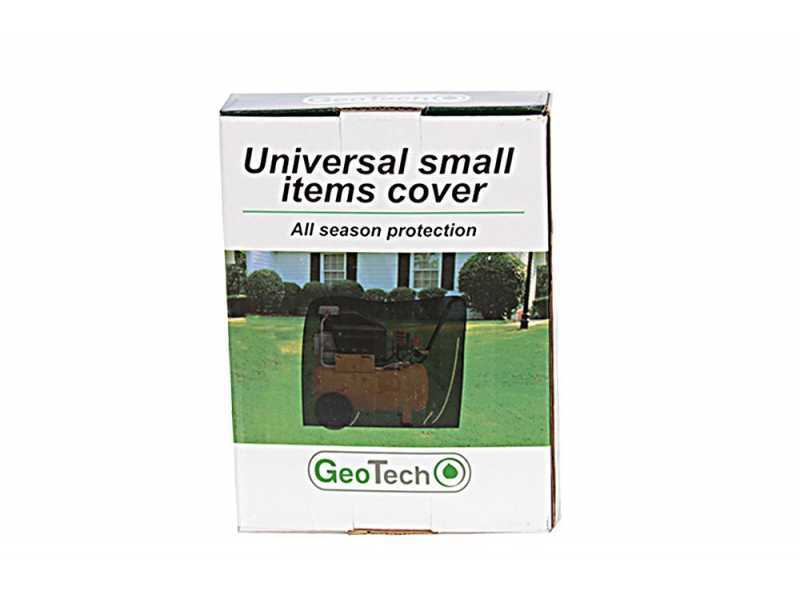

FREE ITEM: Cover and storage sheet

Essential for protecting your machine when not in use.

This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!

Free items included

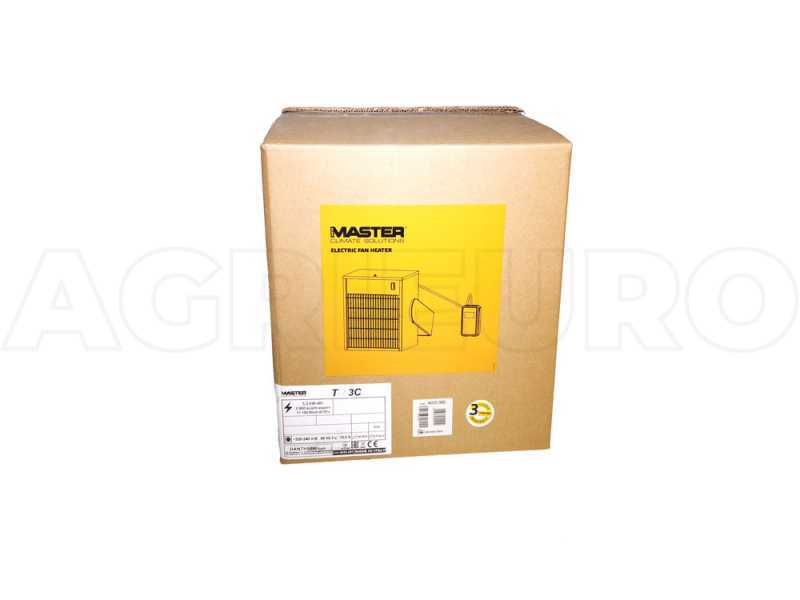

The hot air generator is shipped in its original packaging.

The packaging includes:

  • Operation and maintenance instructions
