Tarpaulin cover and storage

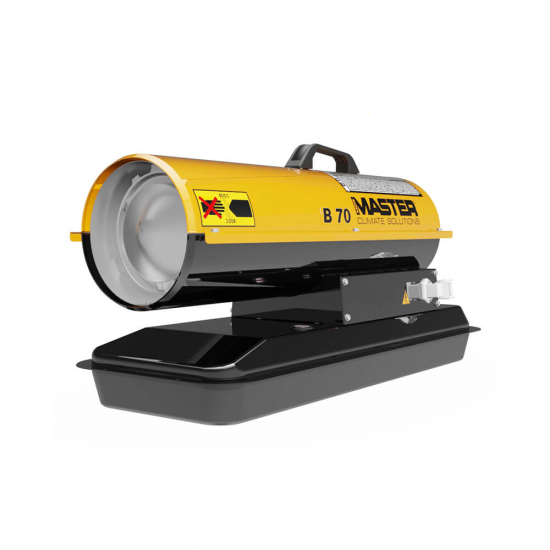

Master B 70 CED hot air diesel generator
Ideal for heating up large areas like workshops, construction sites, garages, greenhouses and farms that are difficult to warm by means of traditional heating systems.
The manufacturer has recently updated the visual appearance, so the machines could feature two different colour customisations: either a black band (in the main photo), or the classic yellow colour scheme
Made in Italy

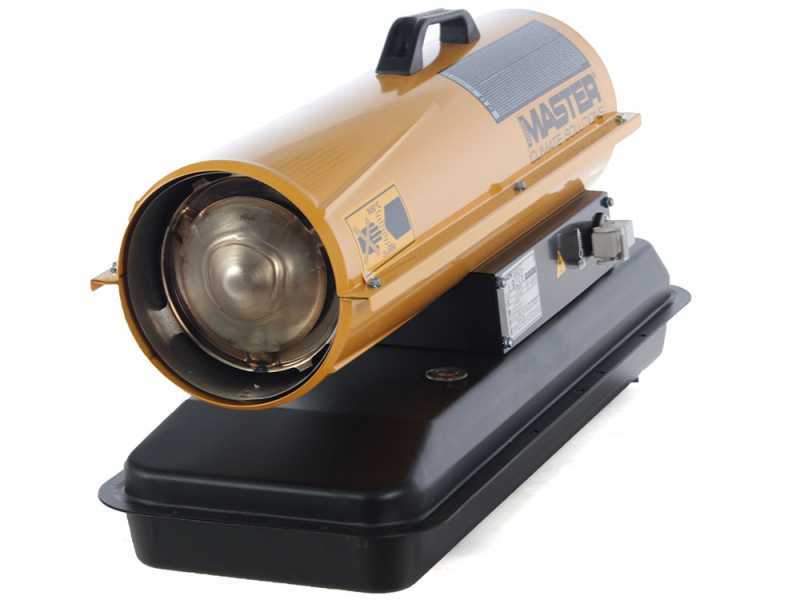

Focus on the control panel and tank cap.

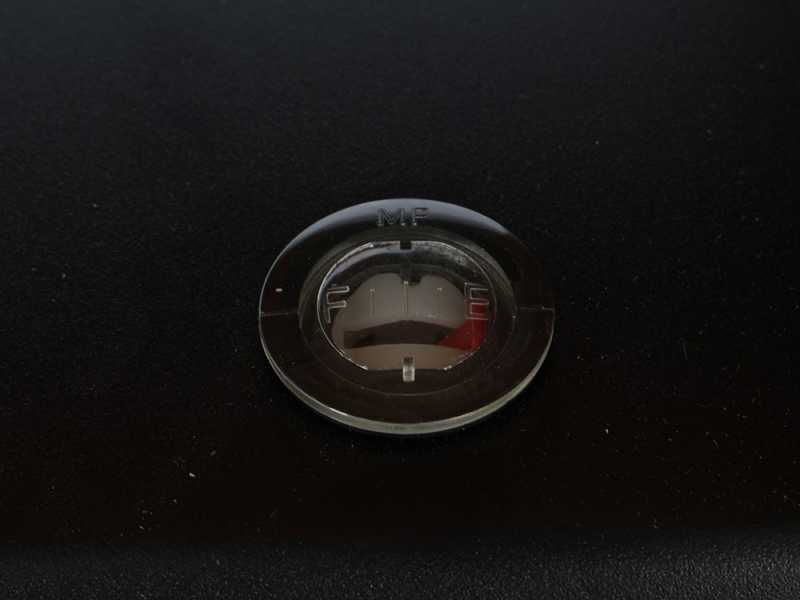

Focus on the fuel indicator
Transport handle
The types of fuels that can be used include:
Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up.
High thermal insulation: k = 1
Medium levels thermal insulation: k = 2
Low thermal insulation: k = 3
No thermal insulation: k = 4
Therefore, the heat requirements can be also calculated by using the following formula:
V x ΔT x K [kcal/h]
Example:
V = 4 mt width, 12 mt length, 3 mt height, room volume = 144 m³
ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC
K = 4 not-insulated room

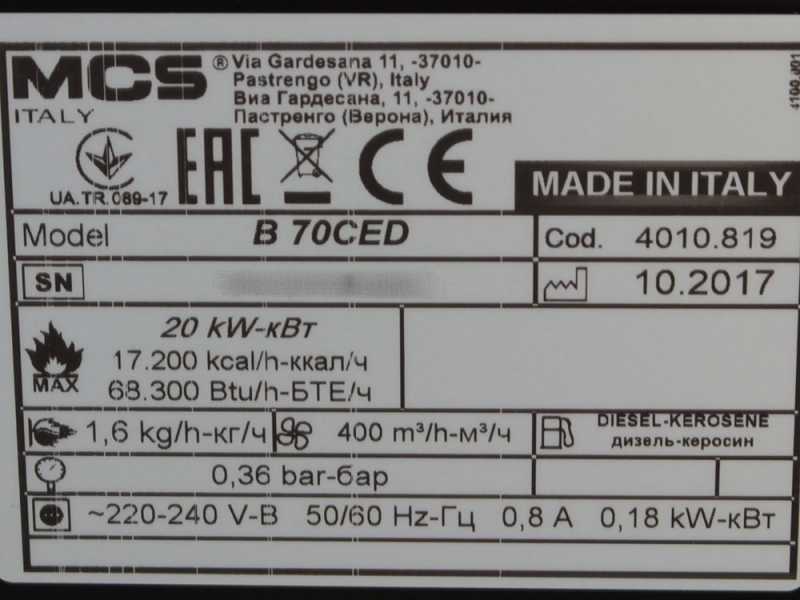

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal/h, which has to be compared with the data written on the machine label, which highlights this gas heater functionality being able to produce larger volumes of instant heat compared to that one needed.
Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW
Essential to protect your generator when is not in use.
This cover is fast and easy to place: in just a few seconds your machinery is protected from dust and humidity.
Specifically designed to perfectly fit small machines.
Easy to fold and store thanks to its small overall size!

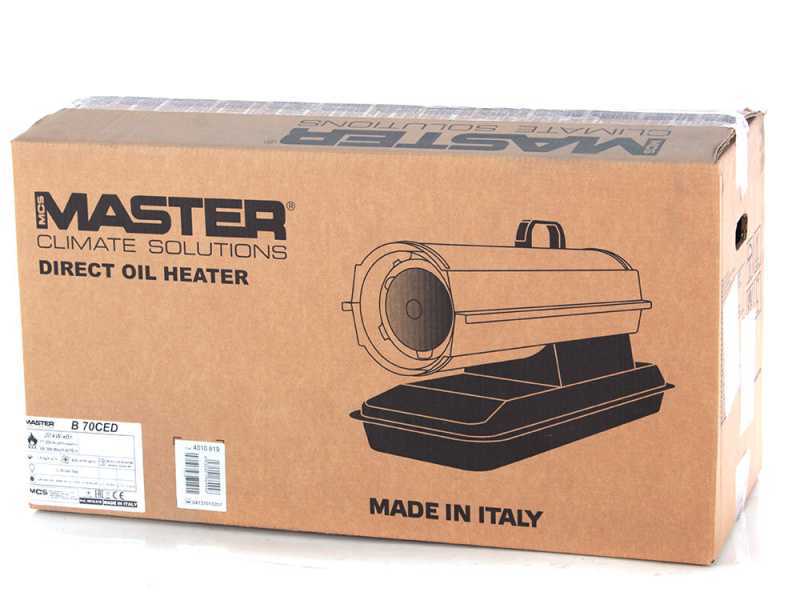

The hot air generator is shipped in its original packaging with operation and maintenance instructions manual.
