Name: Master mod. B 150 CED - Direct Diesel-fuelled Hot Air Generator
Brand: Master
SKU: K501597
Price: 906.98 EUR
Availability: InStock
Rating: 4.71 (7 reviews)

Description

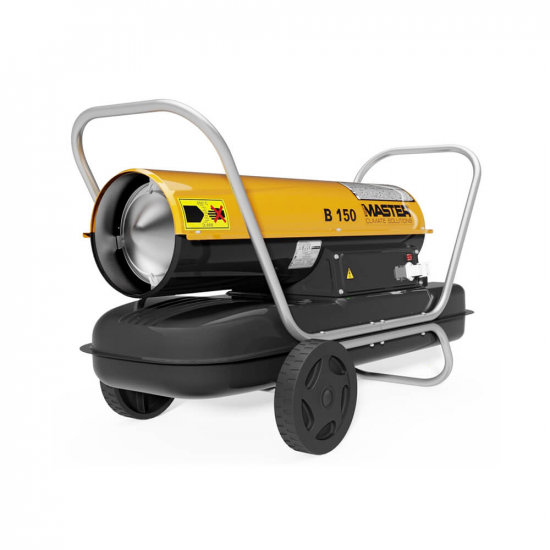

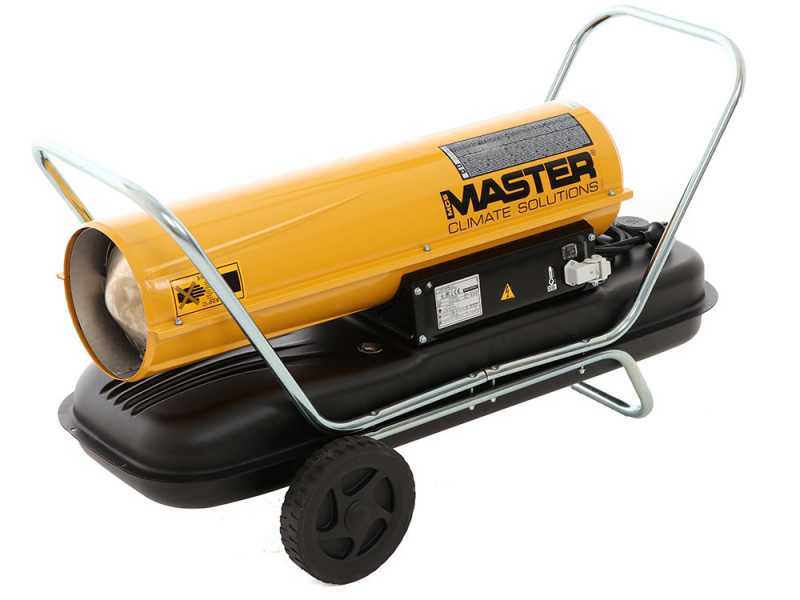

Master mod. B 150 CED Direct diesel-fired hot air generator

Master direct compressor diesel-fired hot air generator mod. B 150 CED.

Hot air generators are ideal for heating large spaces that are difficult to heat with traditional systems such as workshops, building sites, greenhouses, garages, livestock farms more.

This model is equipped with a trolley with handles and wheels as standard for easy transport.

The manufacturer has recently updated the visual appearance, so the machines could feature two different colour customisations: either a black band (in the main photo), or the classic yellow colour scheme.

Made in Italy

Master mod. B 150 CED - Direct Diesel-fuelled Hot Air Generator

Main features

Thermal motor protection
Flame detection
Electronic flame control
Possibility of operation with room thermostat
Stainless steel combustion chamber
Painted steel sheet external frame
Made of sturdy and durable materials
Cold external panel
Easy to transport
High air flow
Easy Maintenance

Standard supplied trolley with handles and wheels

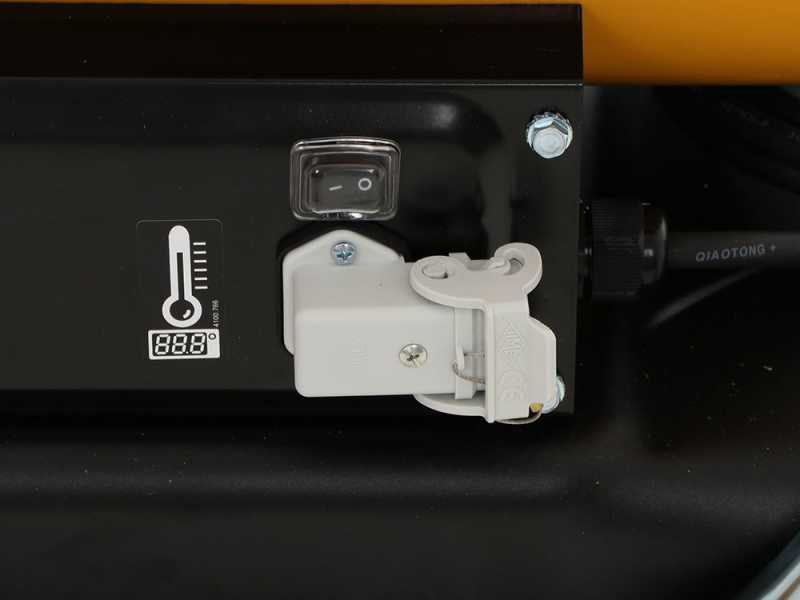

Focus on the power controls

The types of fuels that can be used include:

Diesel
Transport diesel
Agricultural diesel
Heating oil
Kerosene

How to select the ideal hot air generator according to your needs

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [ΔT ] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

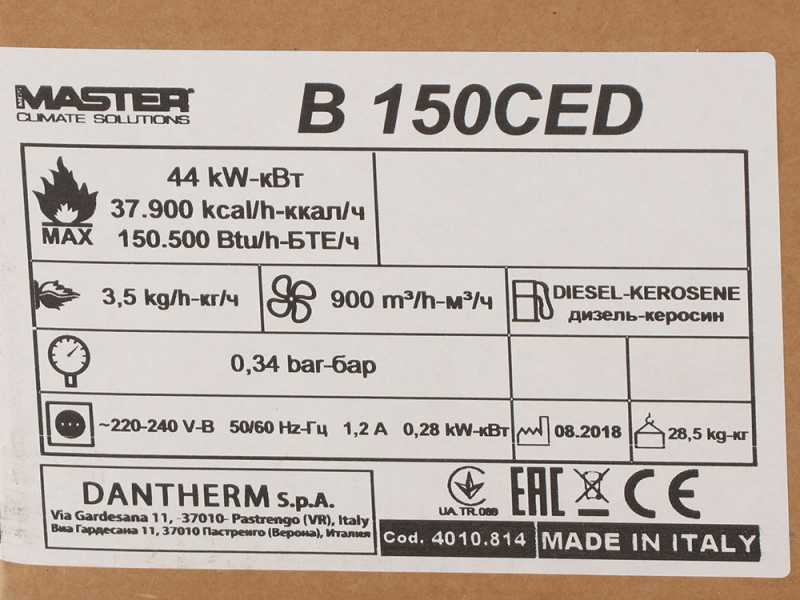

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

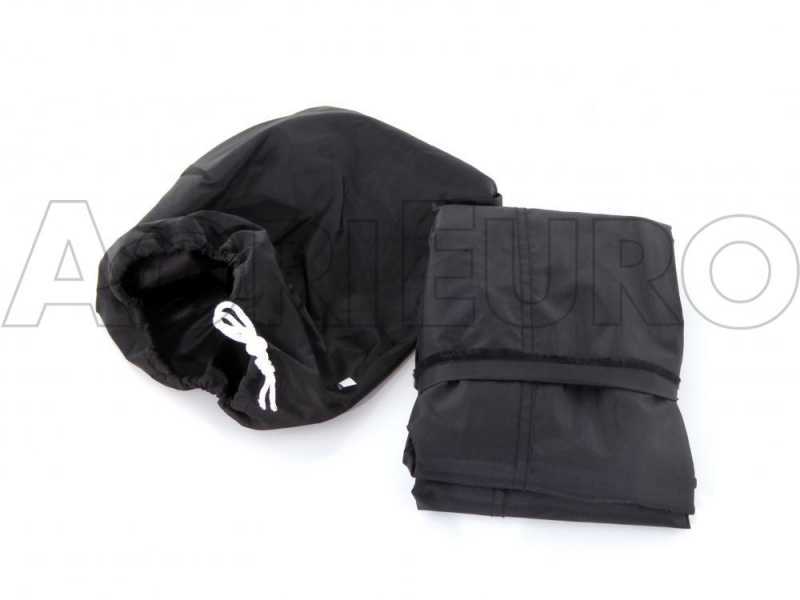

COMPLIMENTARY: Professional protection and storage cover XL

Ideal to protect your product when not in use.

This protection cover is fast and easy to apply; in just a few seconds your machine is protected from dust and humidity.

Easy to fold and store in its box, it takes up minimal space.

Free items included

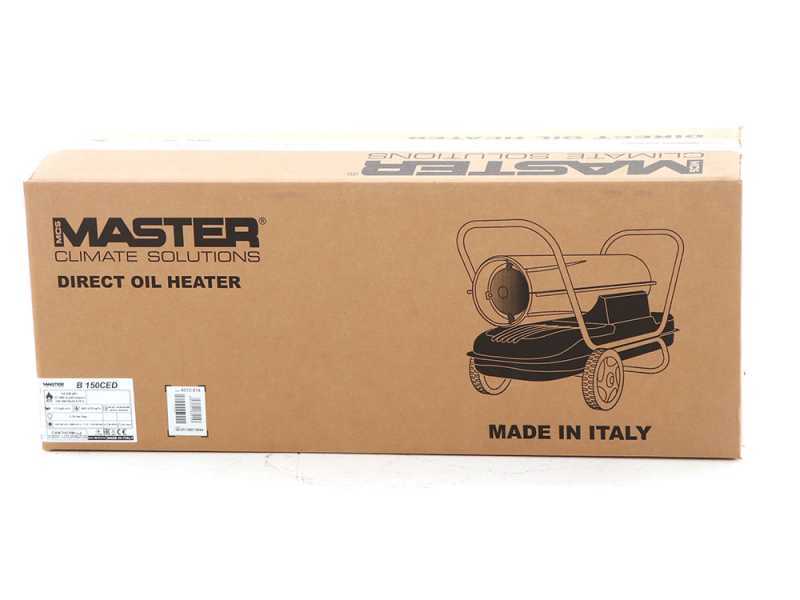

The hot air generator is shipped in its original packaging.

The packaging includes:

Operation and maintenance instructions
