Description

Master mod. BV 170 E

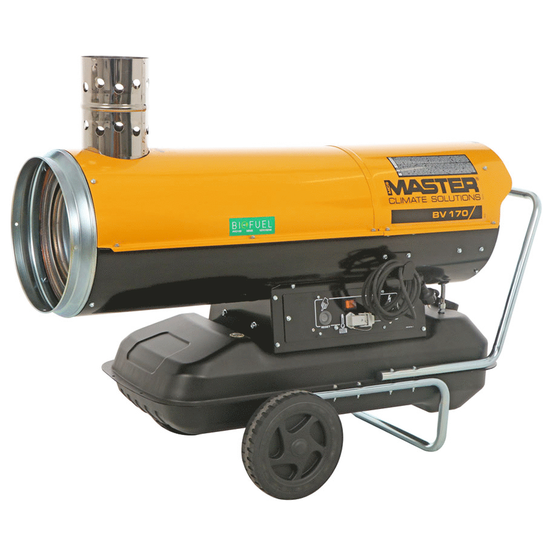

Indirect oil-fired hot air generator Master mod. BV 170 E

Hot air generators are ideal for heating large areas that are difficult to heat with traditional systems such as workshops, construction sites, greenhouses, garages and farms.

This model is equipped with the smoke exhaust chimney: the smokes come out separately from the hot air produced through the exhaust pipe. In addition, the air outlet has the possibility of ducting.

This product is designed for professional use

The manufacturer has recently updated the visual appearance, so the machines could feature two different colour customisations: either a black band (in the main photo), or the classic yellow colour scheme.

High-quality product made in Italy.

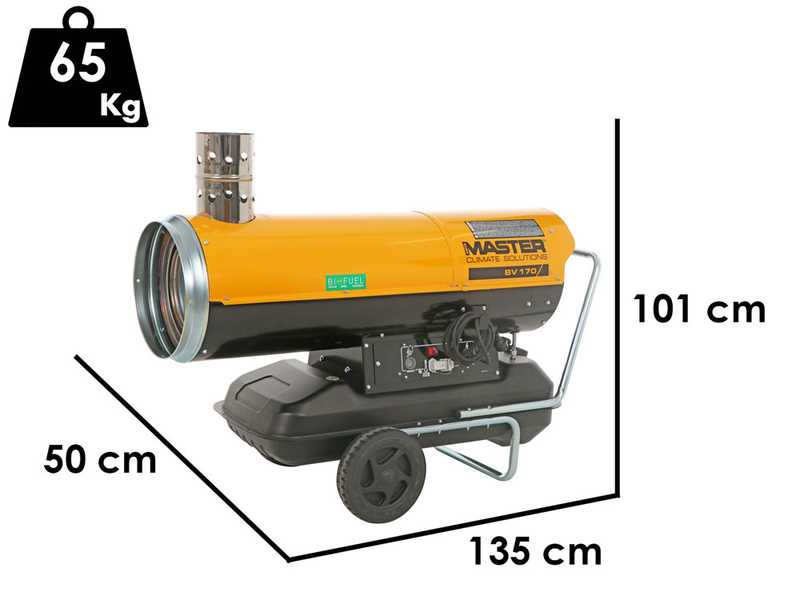

Master BV 170 E - Indirectly Heating Diesel-fuelled Hot Air Generator

Main features

Thermal motor protection
Flame detection
Electronic flame control
Overt-heating and post-ventilation thermostats
Possibility of operation with room thermostat
Stainless steel combustion chamber
Heat exchanger
Standard trolley
Tank with level indicator
Painted steel sheet external frame
Made of sturdy and durable materials
Outer wall cold to the touch
External diesel pump
Easy to transport
High air flow
Easy Maintenance

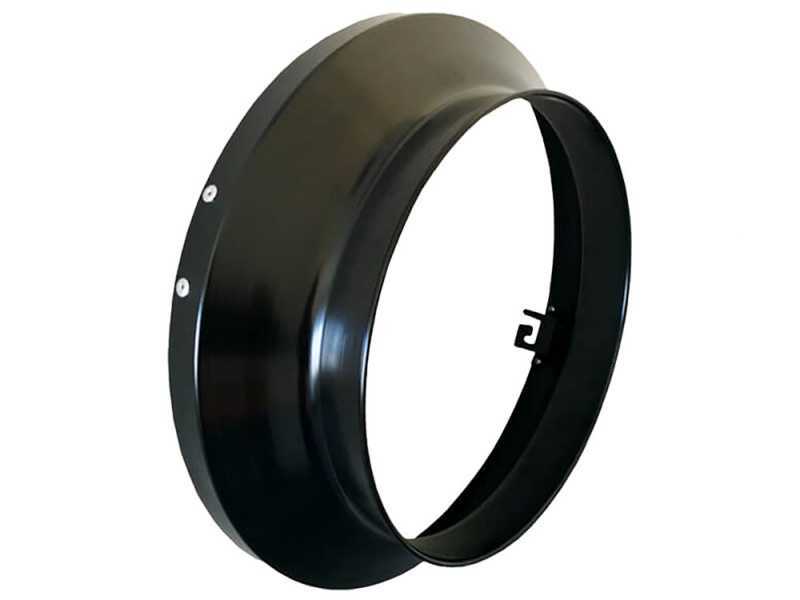

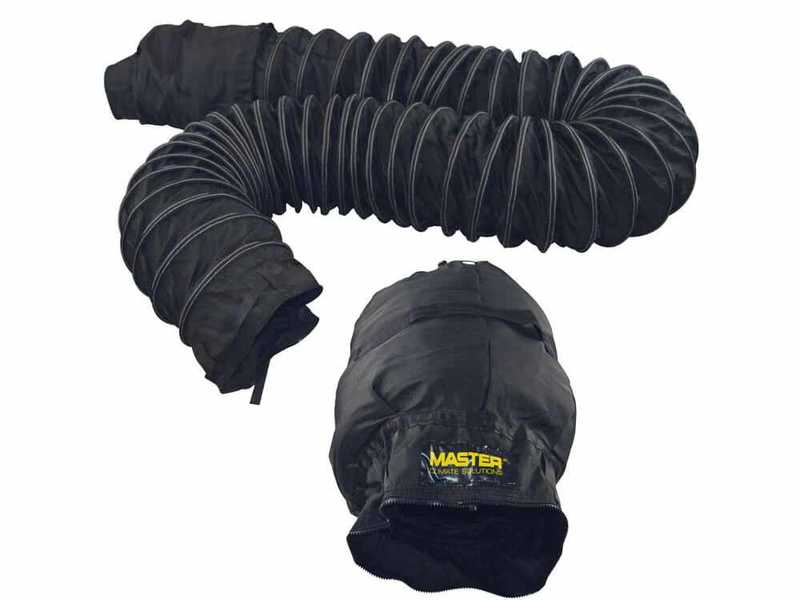

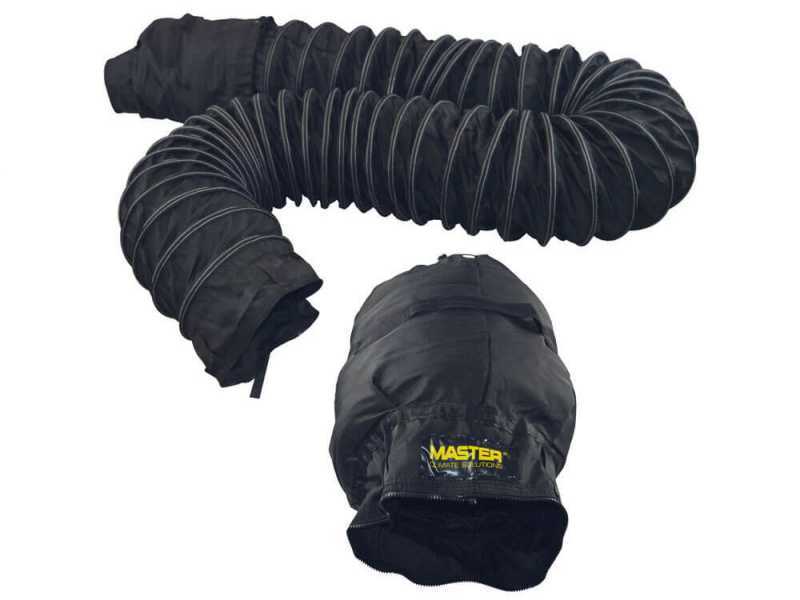

Channelling possibilities
Steel structure with wall cold to the touch

Trolley with handles and wheels as standard

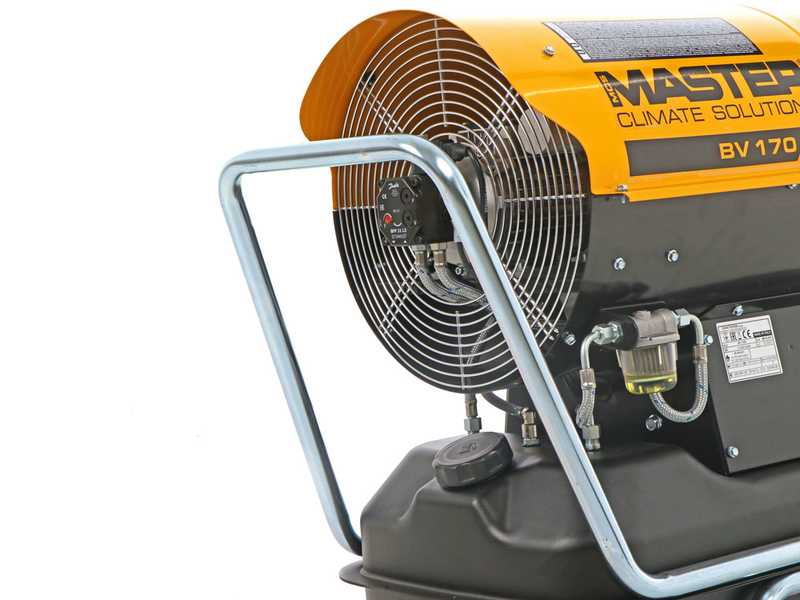

Detail of external diesel pump

Details of the control panel

The types of fuels that can be used include:

Diesel
Automotive diesel
Agricultural diesel
Heating oil
Kerosene

How to select the ideal hot air generator according to your needs

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [ΔT] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can also be calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

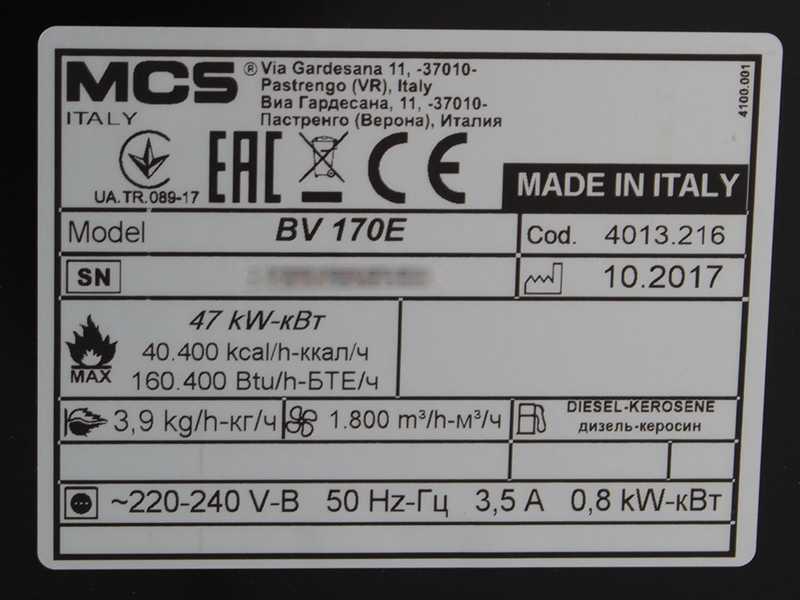

The formula above-mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to KW is simple, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

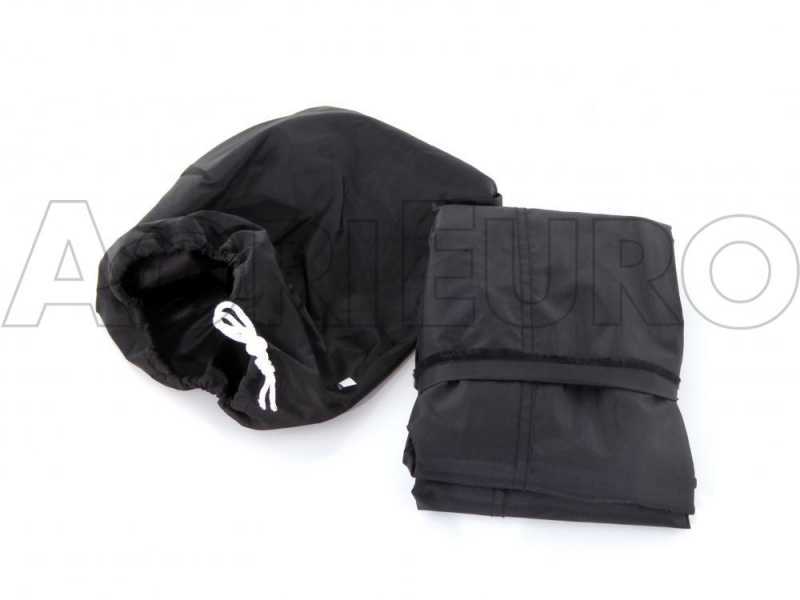

COMPLIMENTARY: Professional protection and storage cover XL

Ideal to protect your product when not in use.

This protection cover is fast and easy to apply; in just a few seconds your machine is protected from dust and humidity.

Easy to fold and store in its box, it takes up minimal space.
