Master BV 110 E - Indirectly Heating Diesel-fuelled Hot Air Generator

Questions & Answers (2)
ID: K501591

EAN: 8053670890459

MPN: 4013.217

8,0/10
After-sales assistance & Spare parts
Master BV 110 E - Indirectly Heating Diesel-fuelled Hot Air Generator
+70 sold
FREE
Flexible hoseFlexible hose
Channeler kitChanneler kit
Tarpaulin cover and storageTarpaulin cover and storage
Power supply
Diesel-powered
Max. heat output
33 kW
Body material
Enamelled steel
Starting mode
Electric
Post-ventilation thermostat
Yes
Standard trolley
Yes
Manufacturing country
Italy
Product Features
Model:
BV 110
Power supply:
Diesel-powered
Body material:
Enamelled steel
Type:
Indirect
Operating mode:
Electric 230 V
Start:
manual
Max. heat output:
33 kW
Nominal heat output:
33 kW
Power Btu/h:
11.300 approx.
Power Kcal/h:
28.400 approx.
Air flow:
1800 m3/h
Absorption:
3.5 A
Tank capacity:
65 L
Thermostat:
Optional
Fuel consumption:
2.71 kg/h
Starting mode:
Electric
Recommended for open spaces:
Yes
Recommended for ventilated areas:
Yes
Recommended for indoor areas:
Yes
Manufacturing country:
Italy
Equipment
Thermal-protected motor:
Yes
Over-heating thermostat:
Yes
Post-ventilation thermostat:
Yes
Electronic flame sensor with photocell:
Yes
Connection to flexible duct hose:
Yes
Stainless steel combustion chamber:
Yes
Tank level indicator:
yes
Standard trolley:
Yes
Free gifts/extra features
Fuel filter:
Yes
Instructions manual:
Yes

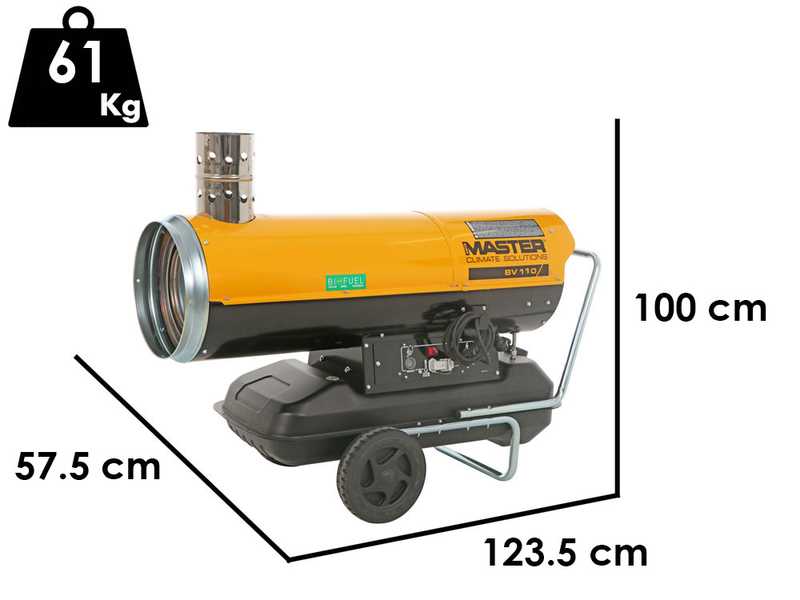

Dimensions and logistics
Net weight:
61 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
120x65x100
Gross weight (packaging included) :
77 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 22/10/2024 - 24/10/2024
€ 1.816,08
VAT Included
You're viewing:
Customers also viewed:
Description

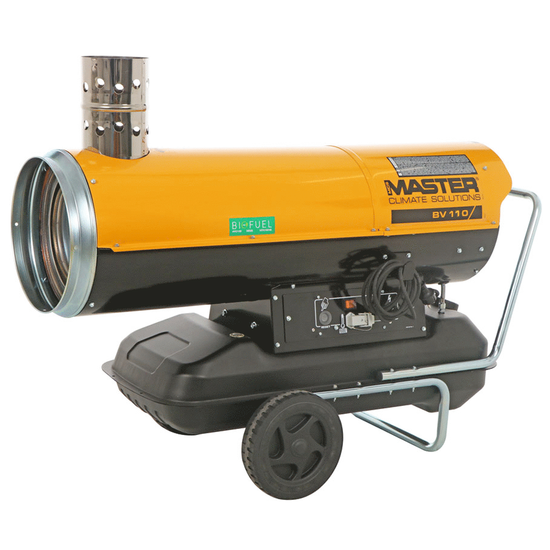

Master mod. BV 110 E

Master indirect diesel-fired hot air generator mod. BV 110 E.

Hot air generators are ideal for heating large spaces that are difficult to heat with traditional systems such as workshops, building sites, greenhouses, garages, livestock farms more.

This model is equipped with the smoke exhaust chimney: the smokes come out separately from the hot air produced through the exhaust pipe. Furthermore, the air outlet can channel the air flow.

This product is designed for professional use.

The manufacturer has recently updated the visual appearance, so the machines could feature two different colour customisations: either a black band (in the main photo), or the classic yellow colour scheme.

High-quality product made in Italy.

Main features

  • Thermal motor protection
  • Flame detection
  • Electronic flame control
  • Overt-heating and post-ventilation thermostats

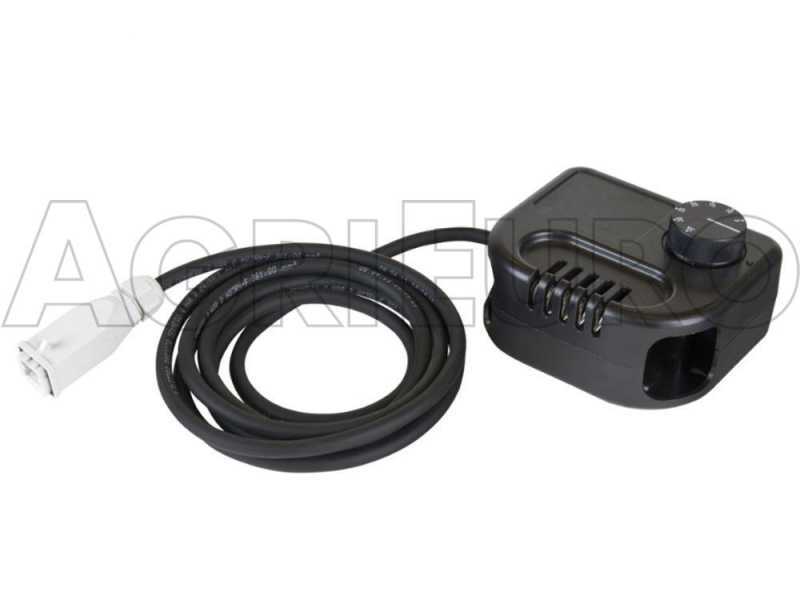

  • Possibility of operation with room thermostat
  • Stainless steel combustion chamber
  • Heat exchanger
  • Standard trolley
  • Tank with level indicator
  • Painted steel sheet external frame
  • Made of sturdy and durable materials
  • Cold external panel
  • External diesel pump
  • Easy to transport
  • High air flow
  • Easy Maintenance
  • Channeling option
  • Steel structure with wall cold to the touch

Standard supplied trolley with handles and wheels

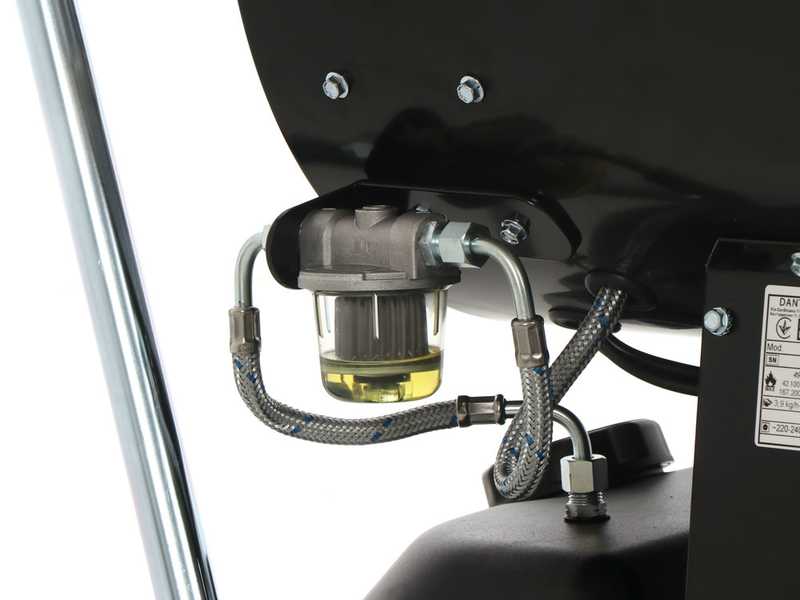

Focus on the external diesel pump

Focus on the controls panel

The types of fuels that can be used include:

  • Diesel
  • Transport diesel
  • Agricultural diesel
  • Heating oil
  • Kerosene

How to select the ideal hot air generator according to your needs

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT ] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

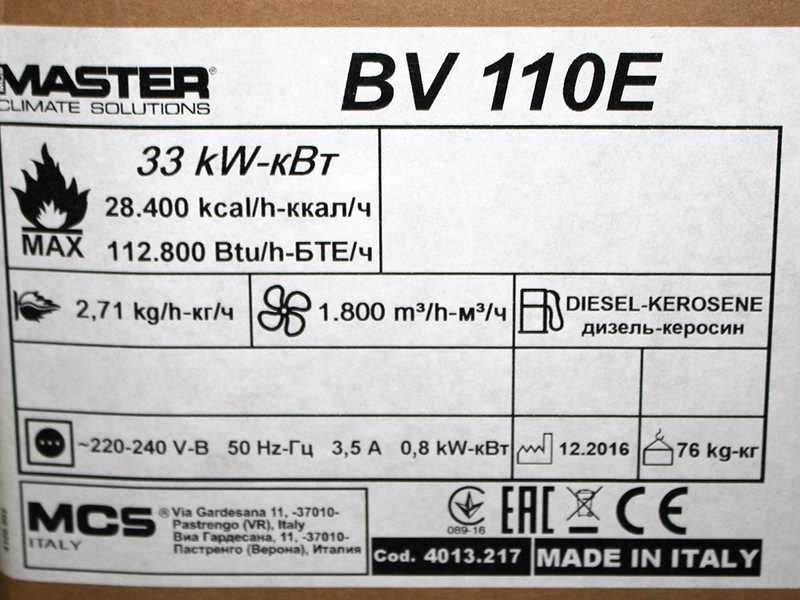

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

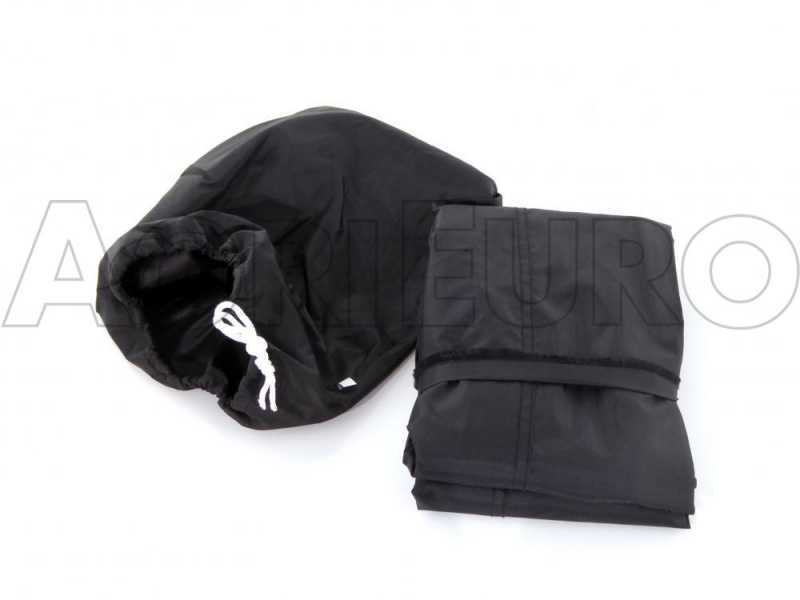

COMPLIMENTARY: Professional protection and storage cover XL

Ideal to protect your product when not in use.

This protection cover is fast and easy to apply; in just a few seconds your machine is protected from dust and humidity.

Easy to fold and store in its box, it takes up minimal space.

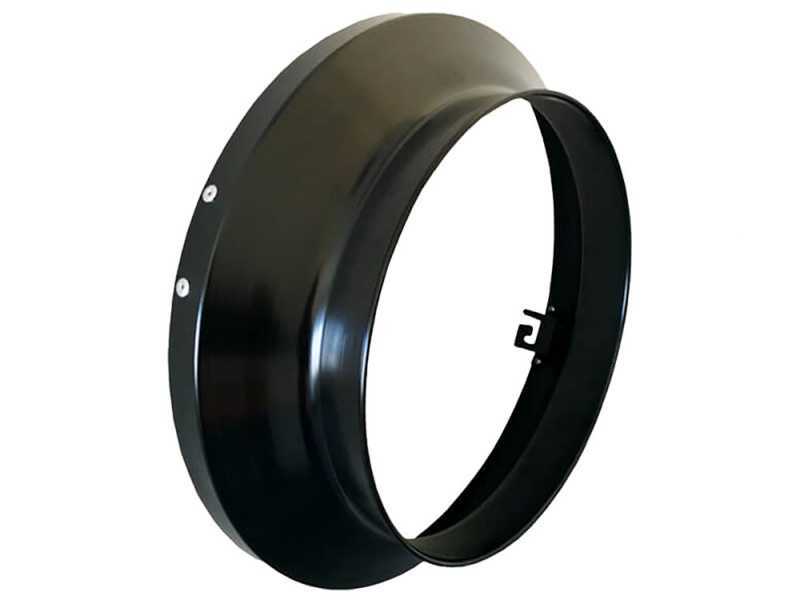

FOR FREE: Generator channelling kit

As a gift, you will receive the channelling kit for the Master D.407 BV110/170 hot air generator with a diameter of 340 mm.

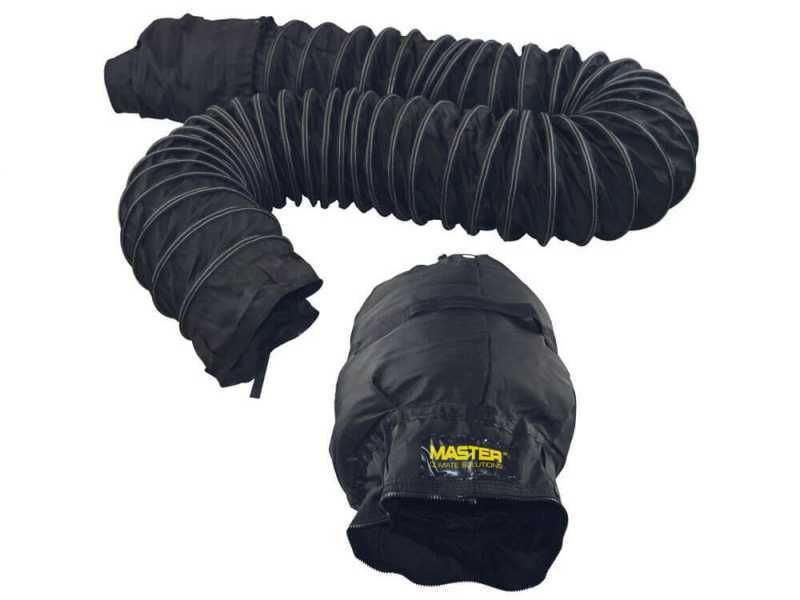

FOR FREE: Flexible hose

Complimentary hose for hot air generator Master BV110 - 170.

Hose length: 7.6 m

Hose diameter: 340 mm

Free items included

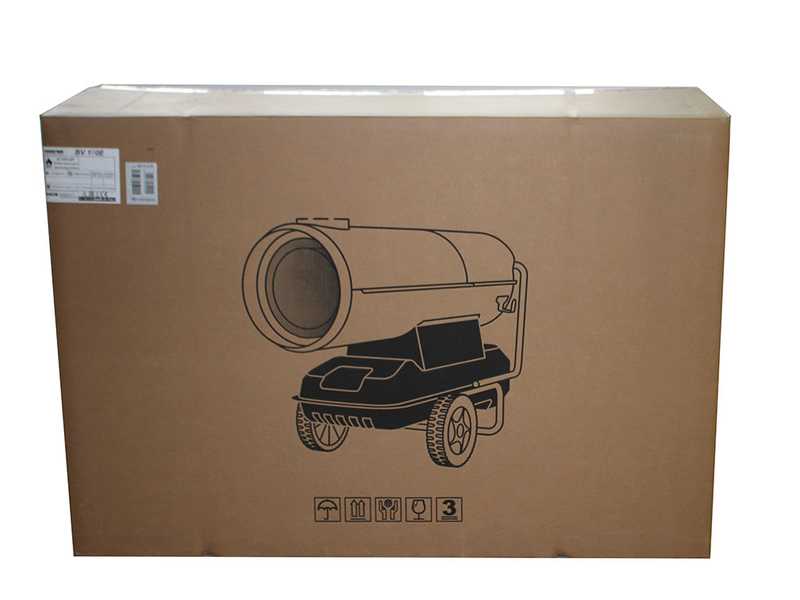

The hot air generator is shipped in its original packaging.

The packaging includes:

  • Operation and maintenance instructions
