Master B 3.3 EPB - Electric Hot Air Generator with Fan - Heater

Questions & Answers (2)
ID: K607661

EAN: 8053670892781

MPN: 4012.004

8,0/10
After-sales assistance & Spare parts
Master B 3.3 EPB - Electric Hot Air Generator with Fan - Heater
FREE
Tarpaulin cover and storageTarpaulin cover and storage
Power supply
Single-phase electric
Max. heat output
3.3 kW
Body material
Enamelled steel
Thermostat
Yes
Manufacturing country
Italy
Product Features
Model:
B 3.3 EPB
Power supply:
Single-phase electric
Body material:
Enamelled steel
Type:
Ventilated
Handheld:
Operating mode:
Electric 230 V
Start:
manual
Max. heat output:
3.3 kW
Air flow:
510 m3/h
Absorption:
14.5 A
Thermostat:
Yes
Recommended for indoor areas:
Yes
Manufacturing country:
Italy
Equipment
Thermal-protected motor:
Yes
Over-heating thermostat:
Yes
Built-in room thermostat :
Yes
Adjustable heat:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
5.1 Kg
Packaging:
Original packaging

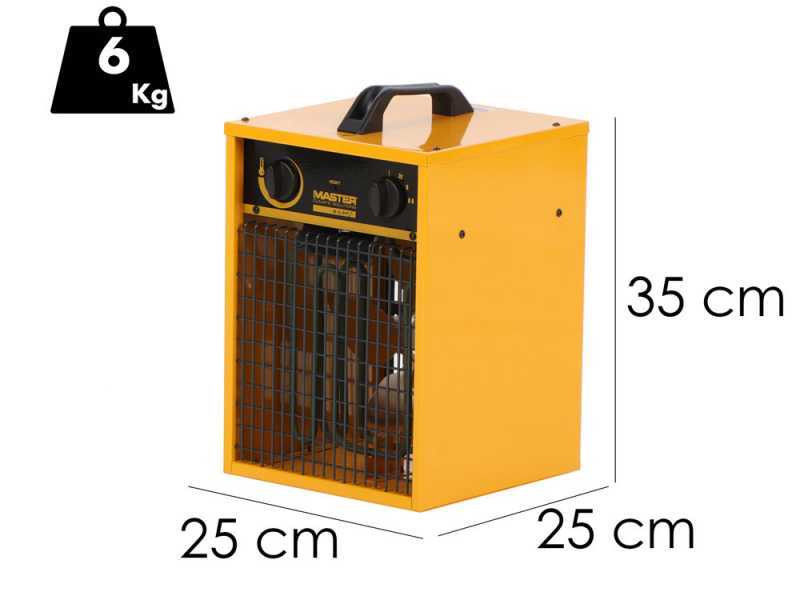

Original packaging/s dimensions in cm (L x W x H):
28x27x44 cm
Gross weight (packaging included) :
5.7 Kg
Assembly time:
Assembled
Available in 16 days
Free Shipping
Estimated delivery: 01/01/2025 - 06/01/2025
€ 187,03
VAT Included
You're viewing:
Customers also viewed:
Description

Master B 3.3 EPB single-phase heat generator

The Master B 3.3 EPB hot air generator, electrically driven and equipped with a fan, is an efficient heating solution for smaller spaces, whether industrial, commercial or residential.

Its main feature is the absence of emissions and open flames, making it ideal for use in areas where fuels such as gas and diesel are prohibited, or in environments with limited ventilation.

Thanks to its ability to quickly generate clean and safe heat, the Master B 3.3 EPB electric heater is perfect for temporary applications or emergency situations, while offering mobility and ease of use.

The construction quality, based on the exclusive use of high quality components, guarantees the reliability and efficiency of the device, which is entirely manufactured in Italy.

This heating unit stands out for its outstanding performance in a variety of contexts, ensuring a warm and comfortable environment where needed.

Main features

  • No oxygen consumption
  • No smokes, smells and condensation
  • Low noise 100% efficiency
  • Thermally-protected motor
  • Armoured heating elements
  • Over-temperature thermostat
  • Built-in thermostat
  • Adjustable heat level
  • Made of sturdy and long-lasting steel
  • Ventilation placed centrally to the heating elements

The operating principle of these portable hot air generators is based on the Joule effect of the current flowing through the heating elements, which heat the air by means of an axial fan. The heating function is also controlled by the room temperature detection thermostat and the overheating prevention thermostat.

These hot air generators are also characterized by their low noise level, transportability and the stainless steel heating elements.

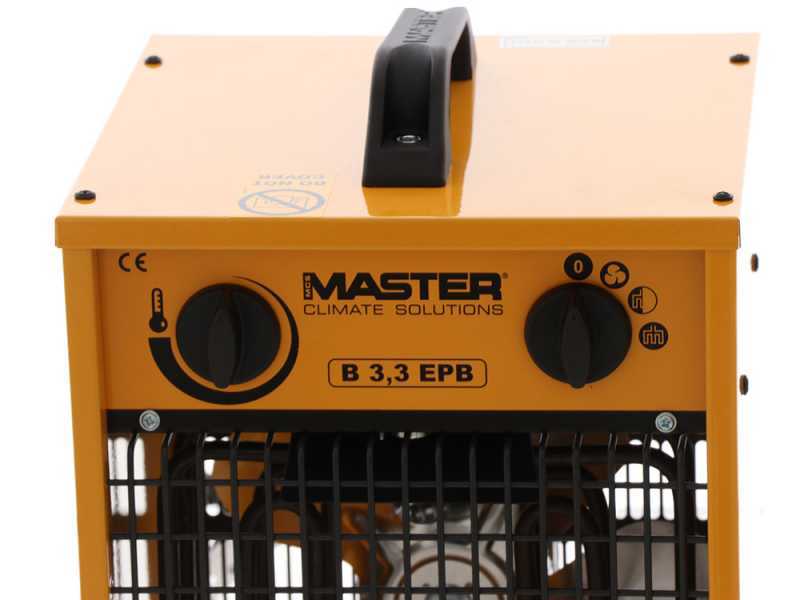

Detail of the instrumentation:

  • Thermostat adjusting knob
  • Selection knob for the 4 functions with which this hot air generator is equipped

Detail of the grip

Transporting handle

How to select the ideal hot air generator according to your needs

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can also be calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

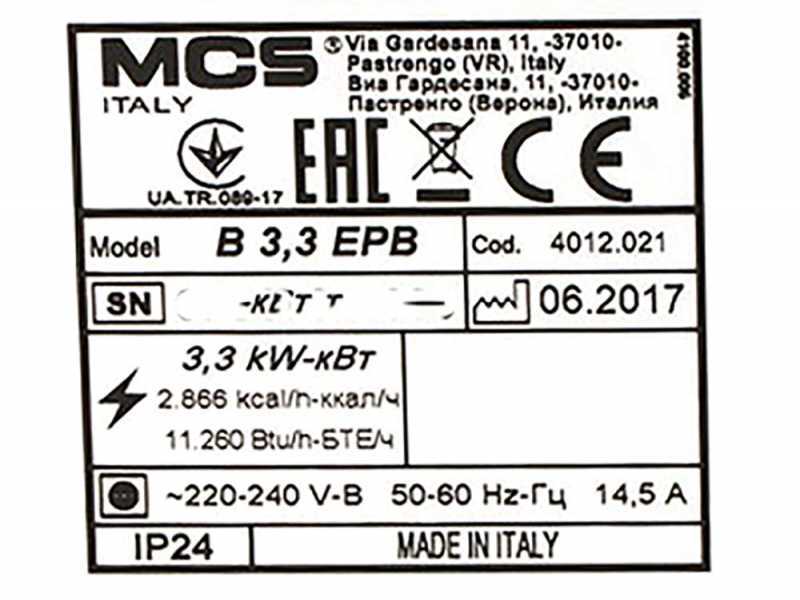

The formula above-mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to KW is simple, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

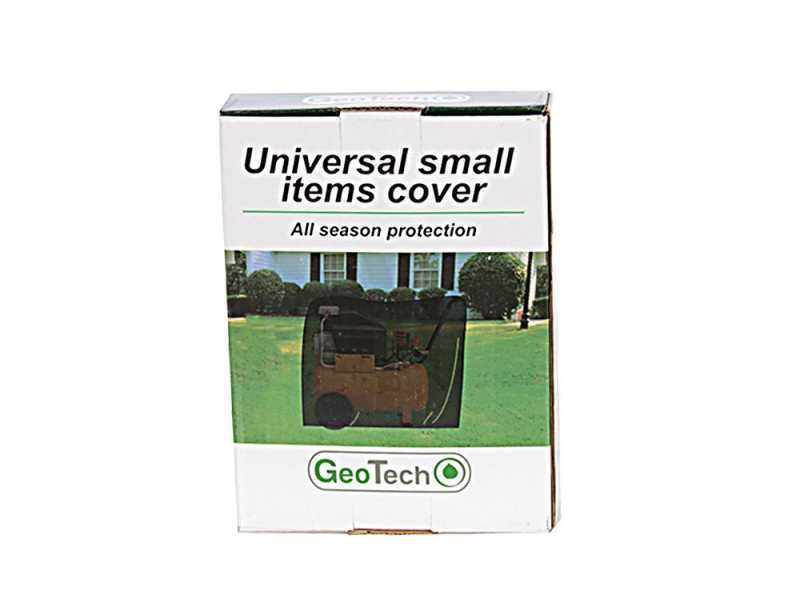

FREE ITEM: Cover and storage sheet

Essential for protecting your machine when not in use.

This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!

Free items included

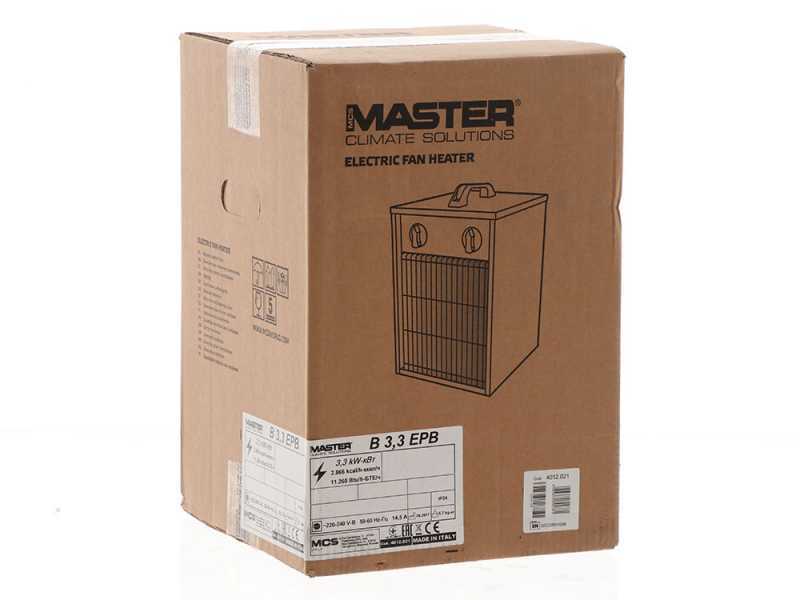

The hot air generator is shipped in its original packaging.

The packaging includes:

  • Maintenance and instructions manual
