Master B 180 Diesel Hot Air Generator - Direct combustion

Add a question
ID: K501633

EAN: 8053670890077

MPN: 4010.677

Master B 180 Diesel Hot Air Generator - Direct combustion
FREE
Tarpaulin cover and storageTarpaulin cover and storage
Power supply
Diesel-powered
Max. heat output
48 kW
Body material
Enamelled steel
Starting mode
Electric
Standard trolley
Yes
Manufacturing country
Italy
Product Features
Model:
B 180
Power supply:
Diesel-powered
Body material:
Enamelled steel
Type:
Direct
Operating mode:
Electric 230 V
Start:
manual
Max. heat output:
48 kW
Nominal heat output:
48 kW
Heat output kW:
48 KW
Power Btu/h:
160.000 approx.
Power Kcal/h:
40.000 approx.
Air flow:
1550 m3/h
Absorption:
1.5 A
Tank capacity:
36 L
Thermostat:
Optional
Fuel consumption:
3.8 kg/h
Starting mode:
Electric
Recommended for open spaces:
Yes
Recommended for ventilated areas:
Yes
Manufacturing country:
Italy
Equipment
Thermal-protected motor:
Yes
Over-heating thermostat:
Yes
Electronic flame sensor with photocell:
Yes
Stainless steel combustion chamber:
Yes
Tank level indicator:
yes
Standard trolley:
Yes
Free gifts/extra features
Fuel filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
30 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
120x40x53 cm
Gross weight (packaging included) :
34 Kg
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 19/04/2024 - 23/04/2024
€ 1.017,48
VAT Included

You're viewing:
Customers also viewed:
Description

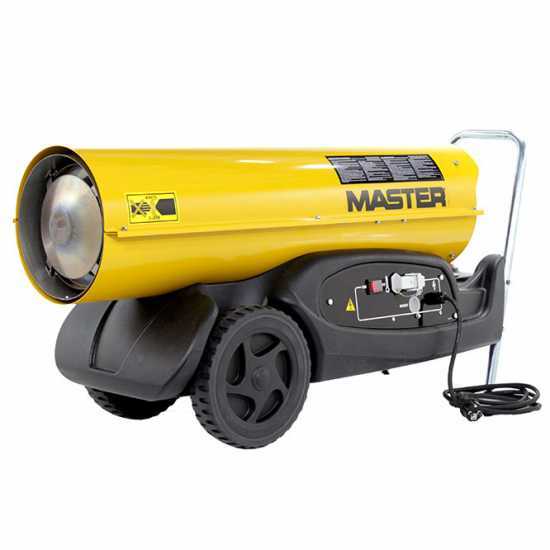

Master B 180 Hot Air Generator

The Master B 180 is a portable direct heat hot air generator powered by diesel engine with stainless steel combustion chamber.

This hot air generator is equipped with a flame control card with photocell and the possible connection to an optional room thermostat.

It is able to produce high volumes of instant heat thanks to the 48 kW thermal power and to the 1550 m3/h air flow.

We are focusing on a portable and versatile machine, which is known to be extremely easy and lightweight to transport thanks to the integrated trolley and to the comfortable handle it consists of. Thus, it just requires an easy and quick maintenance allowing to heat up different areas.

Focus on the motor with thermal protection and on the overheat thermostat.

Master B 180 Hot Air Generator is a made-in-Italy product.

How to select the ideal hot air generator

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up.

  • Dimensions of the area that has to be heated up[V].
  • The ideal temperature [ΔT] that has to be reached.
  • Room thermal insulation [K].

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

Example:

V = 4 mt width, 12 mt length, 3 mt height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal/h, which has to be compared with the data written on the machine label, which highlights this gad heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Technical features and additional details

Heat rating:
48 kW 165.000 Btu/h 41.200 Kcal/h

Air flow: 1500 m3/h

Fuel consumptions: 3.8 kg/h

Fuel tank capacity: 36 lt

Power: 220-240/50 V/Hz

Electric power requirements: 1.5 A

Thermostat: optional

Autonomy: 8 h

Electric power consumptions: 0.3 kW

Protection: IP41

Three oil filters: tank filter, suction filter, pump filter.

Focus on the internal fan.

Fuel tank with diesel level indicator.

Focus on the control panel and the possible connection to a room thermostat.

The types of fuels that can be used include:

  • Diesel
  • Transport diesel
  • Agricultural diesel
  • Heating oil
  • Kerosene

Free items & Standard equipment

COMPLIMENTARY: Professional protection and storage cover XL

Ideal to protect your product when not in use.

This protection cover is fast and easy to apply; in just a few seconds your machine is protected from dust and humidity.

Easy to fold and store in its box, it takes up minimal space.

Extra features

The hot air generator is sent to you in its original packaging.

Instructions and maintenance manual provided on standard equipment.

Focus on the additional diesel filter included in the price.
