Lisam Thor - Electric Battery-powered Olive Harvester - Telescopic Pole - 12V 56Ah Battery

Questions & Answers (1)
ID: K608915

EAN: n/a

MPN: n/a

7,9/10
After-sales assistance & Spare parts
Lisam Thor - Electric Battery-powered Olive Harvester - Telescopic Pole - 12V 56Ah Battery
FREE
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1300 bpm
Max. prongs opening
43 cm
Pole material
Carbon
Telescopic pole
Max. length
350 cm
Motor type
Induction
Voltage
12 V
Nominal power (W)
360 W
Motor speed levels
1
Motor type
Battery-powered
Battery type
Li-Ion +
No. of batteries
1
Battery Amperes
56 Ah
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Thor
Use:
For olive harvester only
Power supply:
Lithium battery
Head material:
ABS
Type:
Li-ion battery-powered
Motor position:
Up - on the head
Motion:
Double side
Speed (bpm):
1300 bpm
No. of prongs:
4+4
Prongs length:
30 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
43 cm
Lubrication type:
Grease-lubricated
Min. length:
250 cm
Max. length:
350 cm
Pole material:
Carbon
Carbon pole:
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor brand:
Lisam
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Induction
Battery type:
Li-Ion +
Motor speed levels:
1
Nominal power (W):
360 W
Power supply:
Lithium-ion battery-powered
Fuse:
Yes
Voltage:
12 V
Battery Amperes:
56 Ah
Recommended battery:
80 Ah
No. of batteries:
1
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole :
250 / 350 cm - telescopic
Telescopic pole:
Extension power cable:
20 m
Free gifts/extra features
Prongs/rods:
2
Instructions manual:
Yes

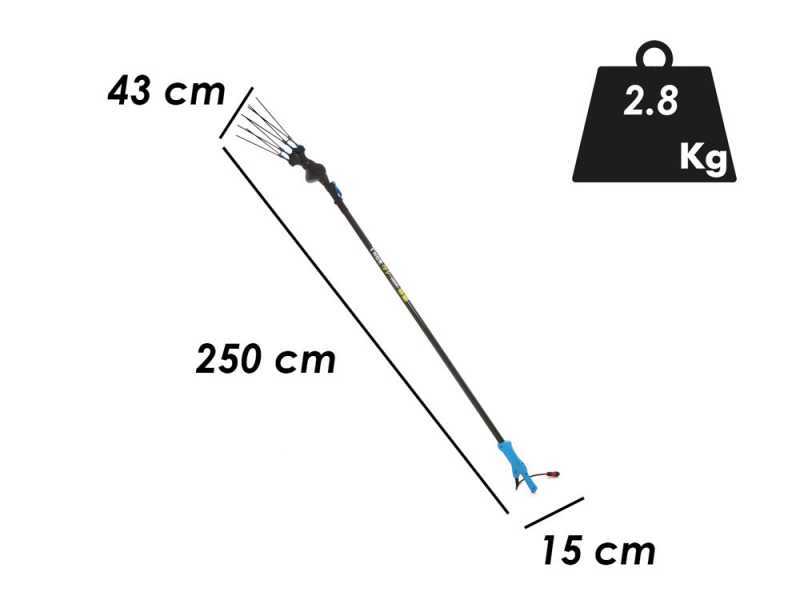

Dimensions and logistics
Product dimensions in cm (L x W x H):
250x43x15 cm
Net weight:
2.8 Kg
Original packaging/s dimensions in cm (L x W x H):
256x35x29 cm
Gross weight (packaging included) :
9.5 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
€ 1.866,07
Vat included
Extra light weightExtra light weight
You're viewing:
Customers also viewed:
Description

Lisam Thor Olive Shaker

Main Features

High penetration capacity in plant foliage: immediate function thanks to the minimal thickness and large distance of the prongs.

Unique open shape and non-perpendicular to the pole support compared to classic rectangular shaped harvesters.

  • Made in Italy electric motor
  • 250/350 cm telescopic aluminium pole

Technical specifications: SWING 8C SNACKE OLIVECO OLIWATT2 SWING 36 Volt THOR THOR 36 Volt
Supply voltage: 12Vdc 12Vdc 12Vdc 12Vdc 12Vdc 36Vdc 12Vdc 36Vdc
Average consumption at 12V: 9A 3.5A 3A 3A 8A 4A (at 36V) 8A 2.9A (at 36V)
Motor peak power: 325W 230W 280W 280W 325W 540W 360W 540W
12V Beat Frequency: 1300 1300 1100 1150 1300 1300 (at 36V) 1300 1300 (at 36V)
Recommended Battery: 75A/h 75A/h 75A/h 75A/h 75A/h 80A/h 75A/h 80A/h
IP Rating: 3–0 3–0 3–0 3–0 3–0 3–0 3–0 3–0

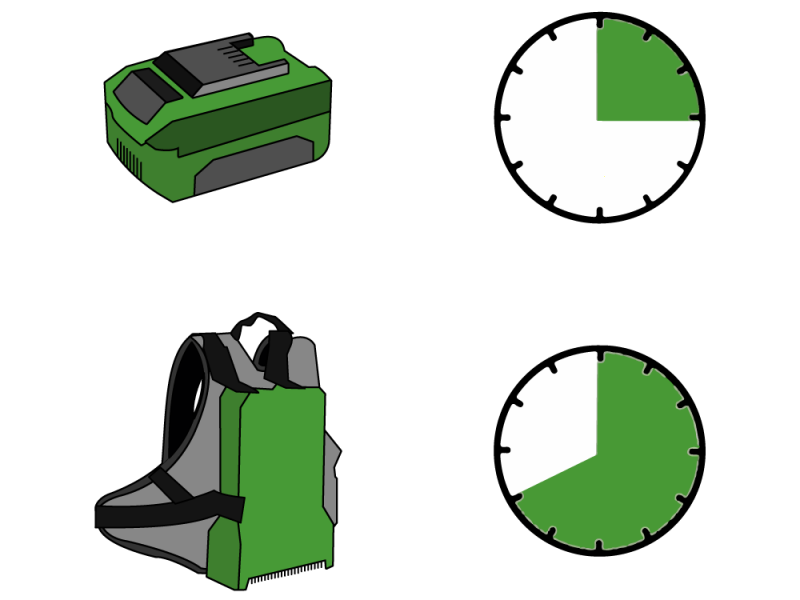

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

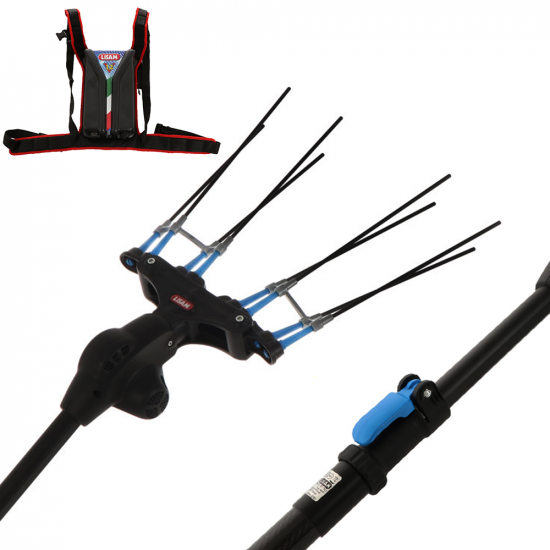

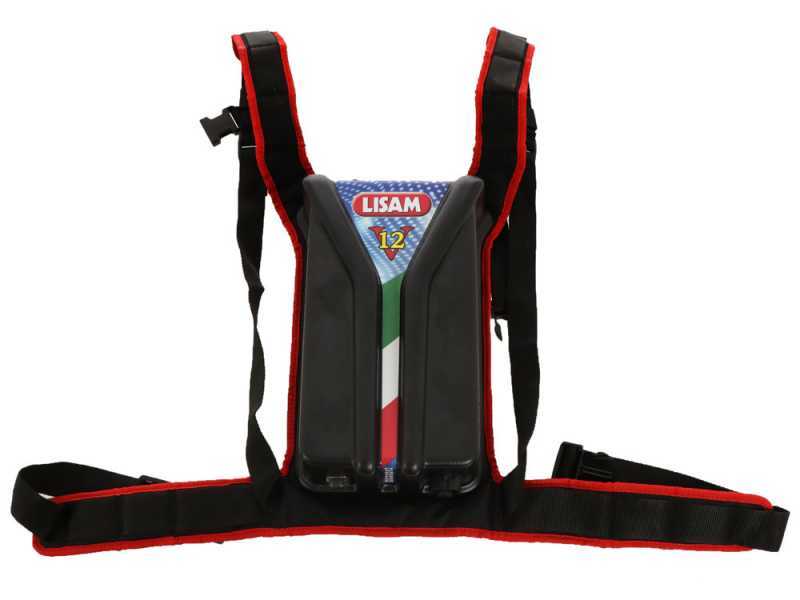

12V 56Ah Backpack Battery

The new, powerful lithium-ion battery is designed to be worn comfortably with a practical backpack included, which ensures even weight distribution. This innovative solution prevents user fatigue, facilitating the transport and use of the battery, even for extended periods.

The battery is supplied in a practical case containing a connection cable and a battery charger.

The battery weighs 3.9 Kg.

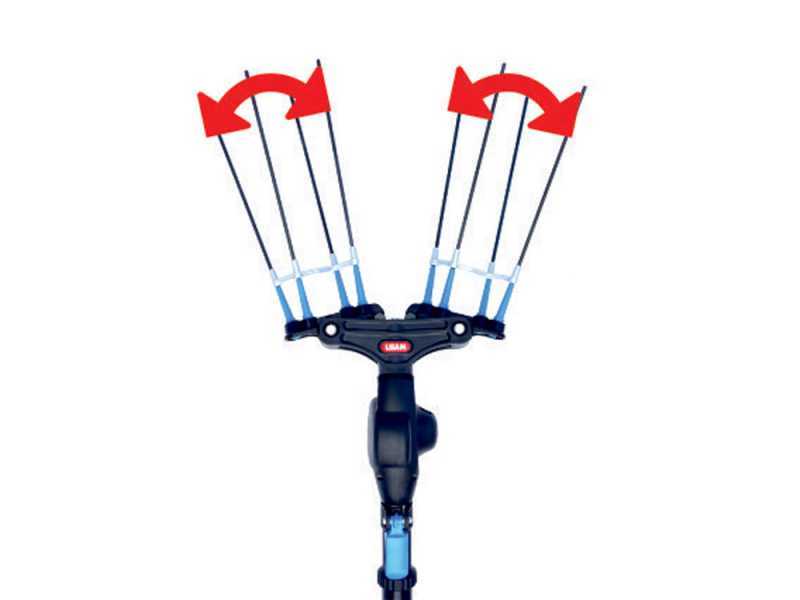

Head and Prong Motion Mechanics

The Lisam Thor olive harvester is fitted with 4+4 quick-change carbon harvesting prongs on the head.

The rakes therefore carry a total of 8 easily replaceable carbon fibre prongs, the entire propulsion and transmission unit is hermetically sealed, with no possibility of external agents penetrating inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are longer than 32 cm to reach deep into the plant.

Technical details of the head:

  • Working width: 43 cm
  • Hourly production: 80/120 kg/hour.
  • Shakes per minute: 1300.

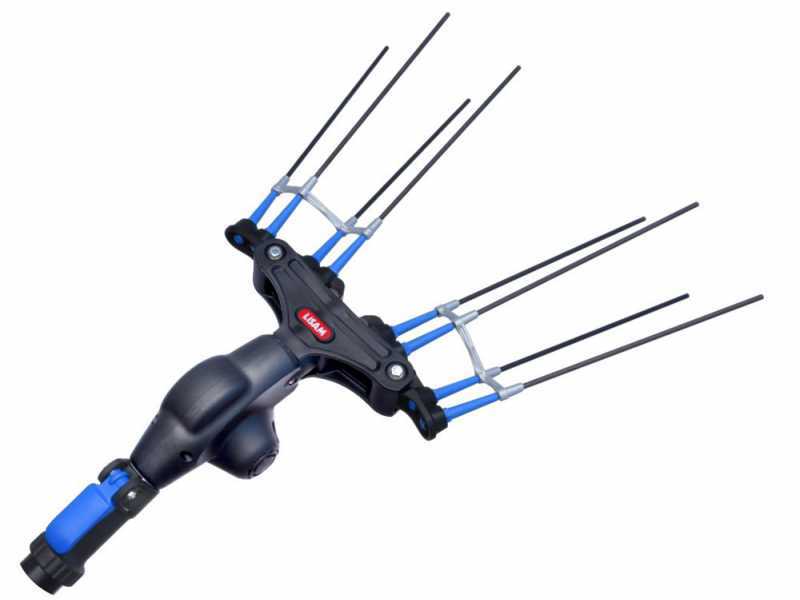

Harvester Body

The body, which houses the Made in Italy electric motor, is made of resin and nylon, ensuring strength and lightness.

There is a steel plate between the prong housing and the motor to ensure greater sturdiness. The 12 V motor ensures 1300 rpm and an absorption of 2.5 amp/h.

For power supply, the recommended battery is a 75 A/h.

Detail of the power switch.

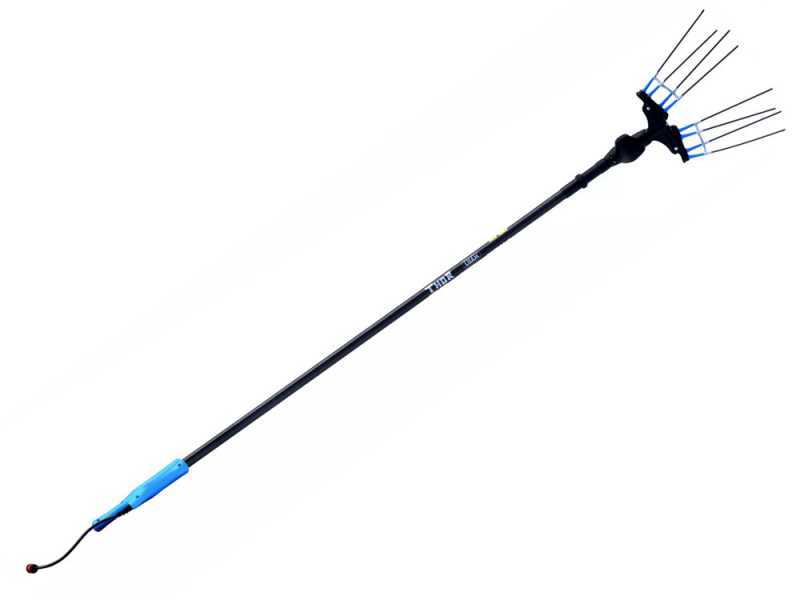

Pole

The aluminium extension pole has a telescopic length of 250 cm up to 350 cm. The extension can be performed using the quick-release hook and loop system.

At the bottom of the pole is the connector for attaching the harvester to the standard-supplied extension cable or backpack battery.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

The machine is shipped in its packaging along with:

  • Professional cable with terminals for battery connection
  • 2 spare prongs
  • 12V 56Ah backpack battery
  • Instruction manual
