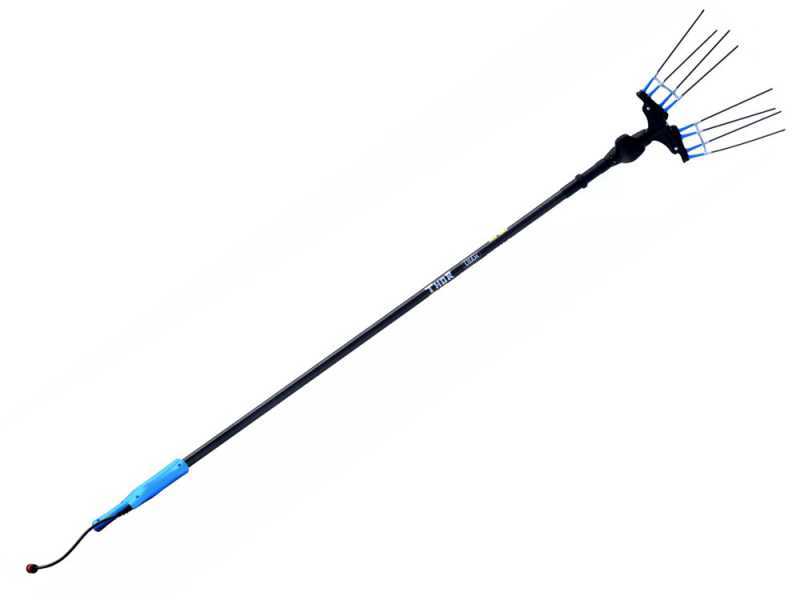

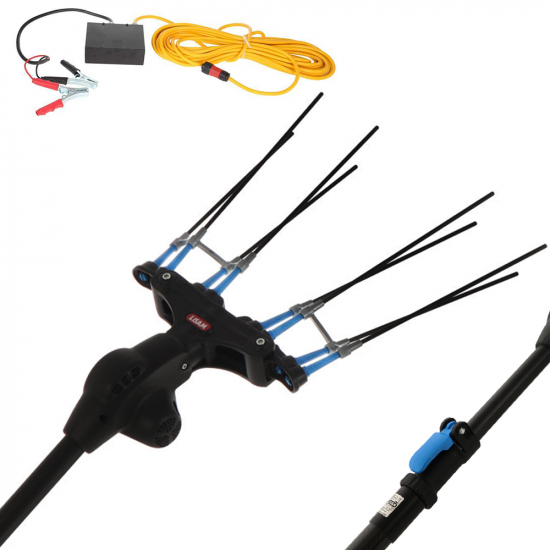

Name: Lisam Thor 36V - Electric Battery-powered Olive Harvester - With 8 Carbon Prongs - Telescopic Pole
Brand: Lisam
SKU: K607385
Price: 1070.18 EUR
Availability: InStock
Rating: 5 (1 reviews)

Description

Lisam Thor 36V Olive Shaker

The Lisam Thor 36V battery-powered olive harvester is a truly innovative product in the olive harvesting sector.

Lightweight and well-balanced, this tool stands out for its carbon elements, features that make it ideal for professional use.

With its prongs and pole made of carbon, it can work through even the thickest foliage, ensuring optimal harvesting.

Included with the product is a transformer that allows the operator to power the harvester with a classic 12V battery despite the motor having a voltage of 36V

Both the prongs and the pole are made of high-quality carbon, hence the Thor manages to penetrate the thickest branches for a professional harvest.

Moreover, despite being electrically powered, it has a purely mechanical operation, thus being of easy design and difficult to break.

The carbon prongs are interchangeable, the rake has an open shape with its prongs not quite perpendicular to the base of the motor. This outward tilted arrangement, even when fully closed, has numerous advantages... first and foremost, better penetration into the foliage.

This unit is available with a 20-metre overvoltage cable and an extremely lightweight telescopic rod, which extends from 250 cm to 350 cm in length.

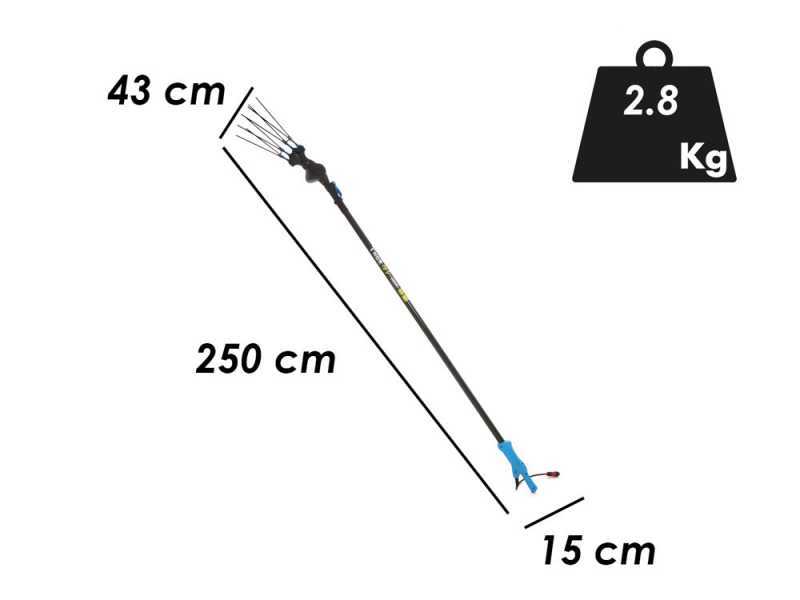

With a total weight of only 2800 g, the Lisam Thor is extremely easy to handle.

Lisam Thor 36V - Electric Battery-powered Olive Harvester - With 8 Carbon Prongs - Telescopic Pole

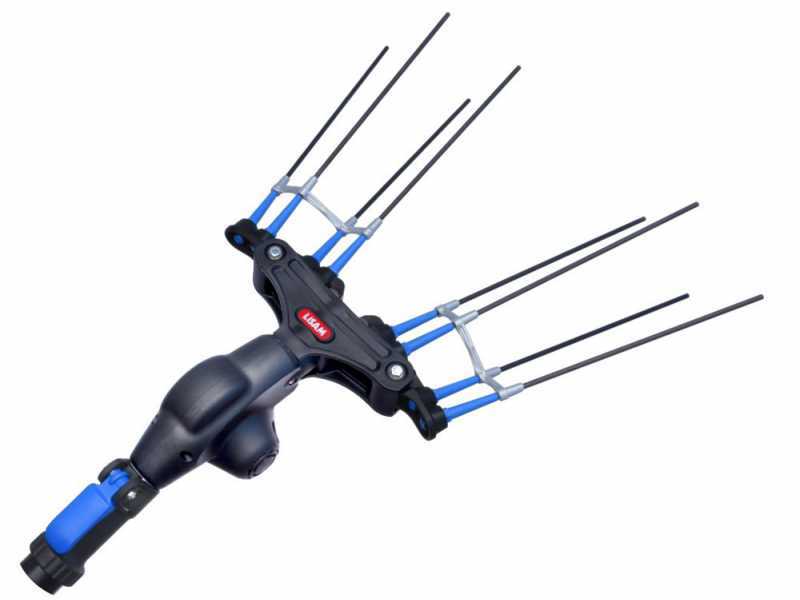

Main features

High penetration capacity in plant foliage: immediate function thanks to the minimal thickness and large distance of the prongs.

Unique open shape and non-perpendicular to the pole support compared to classic rectangular shaped harvesters.

Made in Italy electric motor
250/350 cm telescopic aluminium pole

Technical specifications:	SWING	8C	SNACKE	OLIVECO	OLIWATT2	SWING 36 Volt	THOR	THOR 36 Volt
Supply voltage:	12Vdc	12Vdc	12Vdc	12Vdc	12Vdc	36Vdc	12Vdc	36Vdc
Average consumption at 12V:	9A	3.5A	3A	3A	8A	4A (at 36V)	8A	2.9A (at 36V)
Motor peak power:	325W	230W	280W	280W	325W	540W	360W	540W
12V Beat Frequency:	1300	1300	1100	1150	1300	1300 (at 36V)	1300	1300 (at 36V)
Recommended Battery:	75A/h	75A/h	75A/h	75A/h	75A/h	80A/h	75A/h	80A/h
IP Rating:	3–0	3–0	3–0	3–0	3–0	3–0	3–0	3–0

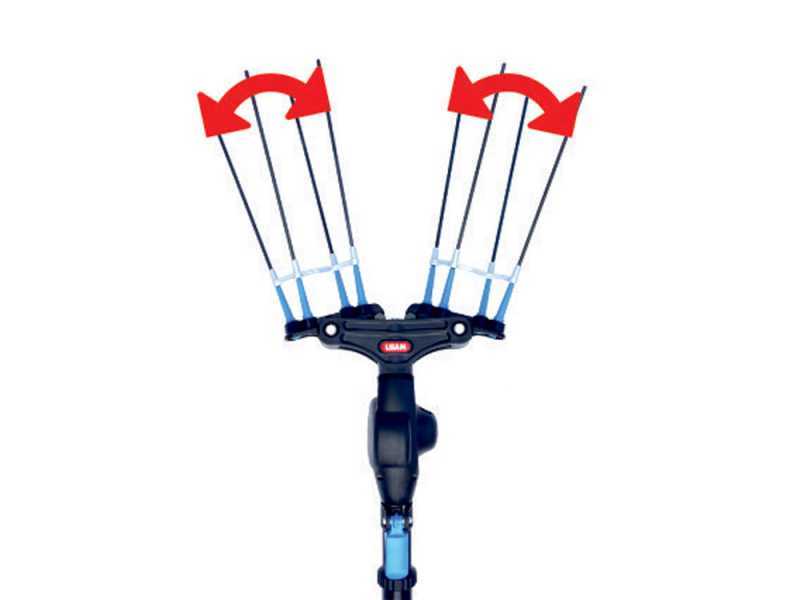

Head and Prong Motion Mechanics

The Lisam Thor olive harvester is fitted with 4+4 quick-change carbon harvesting prongs on the head.

The rakes therefore carry a total of 8 easily replaceable carbon fibre prongs, the entire propulsion and transmission unit is hermetically sealed, with no possibility of external agents penetrating inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are longer than 32 cm to reach deep into the plant.

Technical details of the head:

Working width: 43 cm
Hourly production: 80/120 kg/hour.
Shakes per minute: 1300.

Harvester Body

The body, which houses the Made in Italy electric motor, is made of resin and nylon, ensuring strength and lightness.

There is a steel plate between the prong housing and the motor to ensure greater sturdiness. The 12 V motor ensures 1300 rpm and an absorption of 2.5 amp/h.

For power supply, the recommended battery is a 75 A/h.

Detail of the power switch.

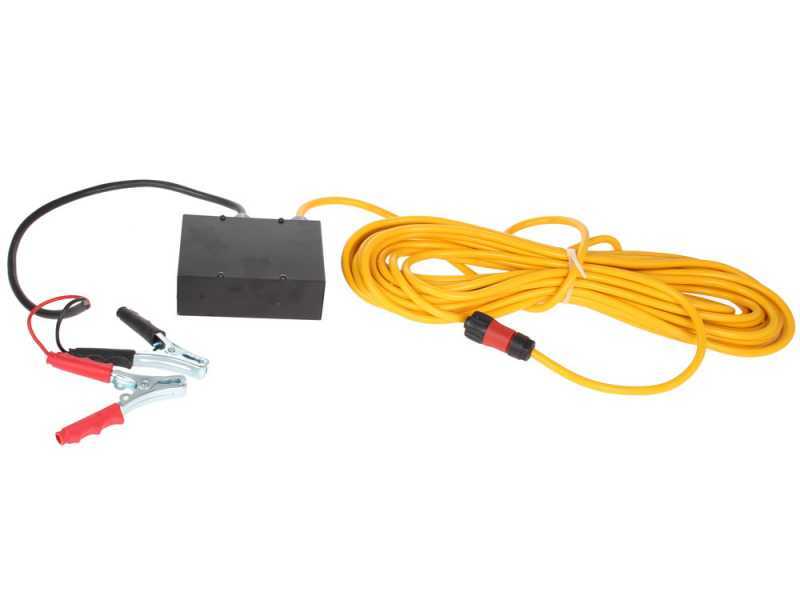

Thanks to the supplied transformer, the harvester can be powered by a 12V lead-acid battery.

Pole

The aluminium extension pole has a telescopic length of 250 cm up to 350 cm. The extension can be performed using the quick-release hook and loop system.

At the bottom of the pole is the connector for attaching the harvester to the standard-supplied extension cable.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.
