Name: Lisam Oliwatt 3 - Electric Battery-powered Olive Harvester - With Nylon Prongs - 235-330 cm - Telescopic Pole
Brand: Lisam
SKU: K608891
Price: 785.35 EUR
Availability: InStock
Rating: 4.67 (6 reviews)

Description

Lisam Oliwatt 3 Olive Shaker

The Lisam Oliwatt 3 is a high-performance tool, ideal for those seeking an effective olive harvester that guarantees excellent results.

Designed to adapt to different working conditions, the Lisam Oliwatt 3 ensures a harvest that safeguards both the health of the plant and the fruit.

This model operates electrically and is powered by a battery connected to a cutting-edge 12 -volt motor, improving its performance.

Designed for users who need a durable tool that can work even on challenging soil.

The device includes two sets of prongs: the first one, black, already fitted, is ideal for plants with denser foliage, thanks to the longer shape that allows it to reach deep into the plant without damaging the branches, while still ensuring a smooth exit. The other set, which is white-coloured, is more suitable for plants with less dense foliage or for harvesting harder olives, typical of an early crop.

The telescopic pole of this model allows the length to be adjusted as desired, with an extension ranging from a minimum of 195 cm to a maximum of 295 cm.

The product is supplied with a 15-metre cable.

With a total weight of only 2500 g, the Lisam Oliwatt 3 proves to be extremely easy to handle.

Lisam Oliwatt 3 - Electric Battery-powered Olive Harvester - With Nylon Prongs - 235-330 cm - Telescopic Pole

Main features

High penetration capacity in plant foliage: immediate function thanks to the minimal thickness and large distance of the prongs.

Unique fan shape to mimic the motion of the hands when harvesting olives.

Made in Italy electric motor
Telescopic aluminium pole 195/295 cm

Technical specifications:	SWING	8C	SNACKE	OLIVECO	OLIWATT2	SWING 36 Volt	THOR	THOR 36 Volt	OLIWATT 3
Supply voltage:	12Vdc	12Vdc	12Vdc	12Vdc	12Vdc	36Vdc	12Vdc	36Vdc	12Vdc
Average consumption at 12V:	9A	3.5A	3A	3A	8A	4A (at 36V)	8A	2.9A (at 36V)	8A
Motor peak power:	325W	230W	280W	280W	325W	540W	360W	540W	360
12V Beat Frequency:	1300	1300	1100	1150	1300	1300 (at 36V)	1300	1300 (at 36V)	1300
Recommended Battery:	75A/h	75A/h	75A/h	75A/h	75A/h	80A/h	75A/h	80A/h	75A/H
IP Rating:	3–0	3–0	3–0	3–0	3–0	3–0	3–0	3–0	3–0

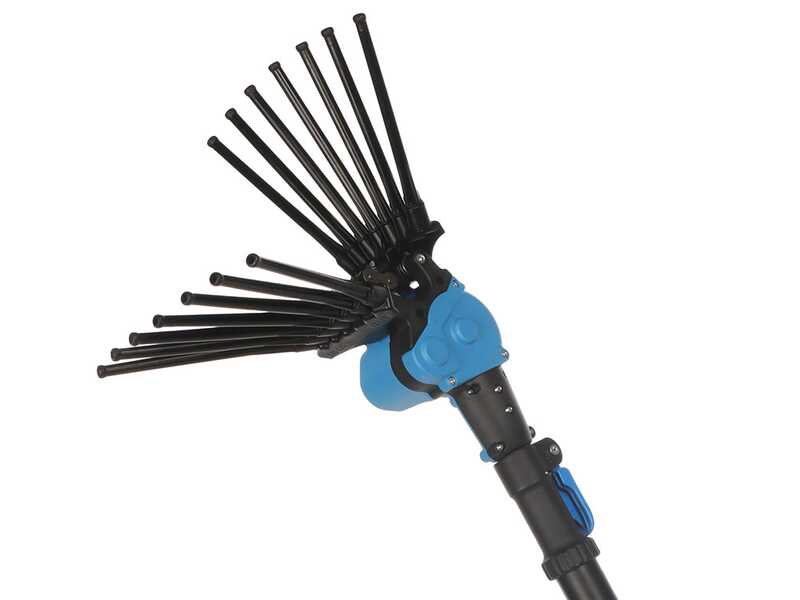

Head and Prong Motion Mechanics

The Lisam Oliwatt 3 olive harvester is fitted with 7+7- quick-change techno polymer harvesting prongs on the head.

The rakes can carry a total of 14 easily replaceable techno polymer prongs, the entire propulsion and transmission unit is hermetically sealed, with no possibility of external agents penetrating inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are more than 19 cm long to better penetrate deep into the plant.

An additional pair of prongs is also supplied, suitable mainly for less bushy plants and especially for harder branches and olives, perhaps due to premature cultivation.

Technical details of the head:

Working width: 43 cm
Hourly production: 80/120 kg/hour.
Shakes per minute: 1300.

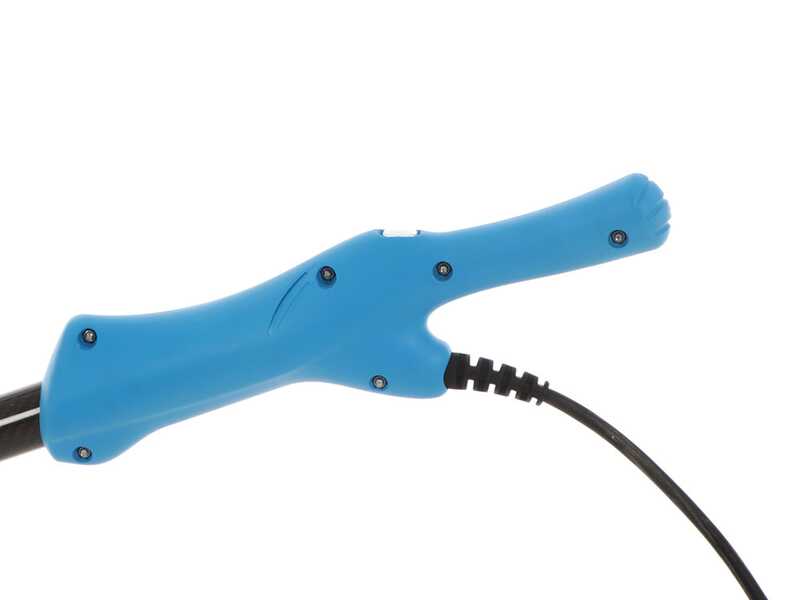

Harvester Body

The body is made of resin and nylon, ensuring strength and lightness.

There is a steel plate between the prong housing and the motor to ensure greater sturdiness. The 12 V motor ensures 1300 rpm and an absorption of 2.5 amp/h.

Detail of the power switch.

Detail of the connection cable.

Pole

The aluminium extension pole has a length range from 195 cm to a maximum length of 295 cm. The extension can be performed using the quick-release hook and loop system.

At the bottom of the pole is the connector for attaching the harvester to the power source (please check the standard equipment).

Free items & Standard equipment

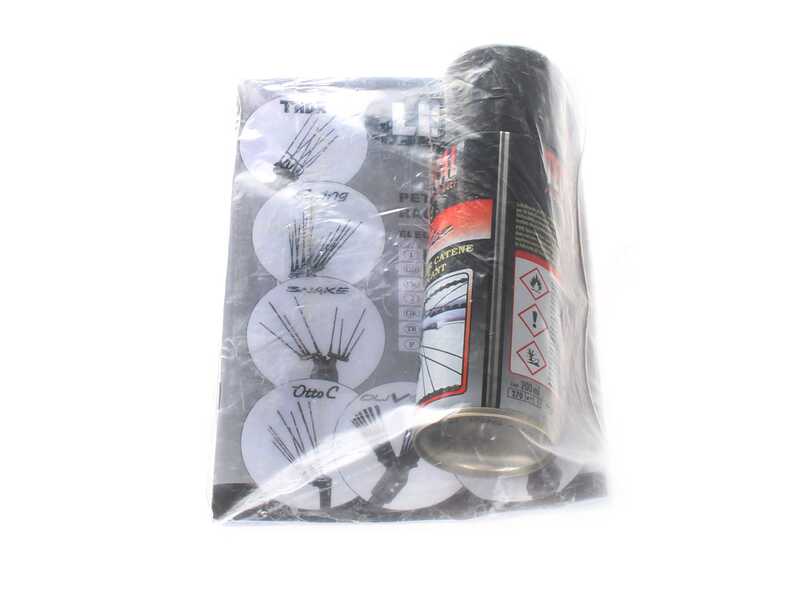

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

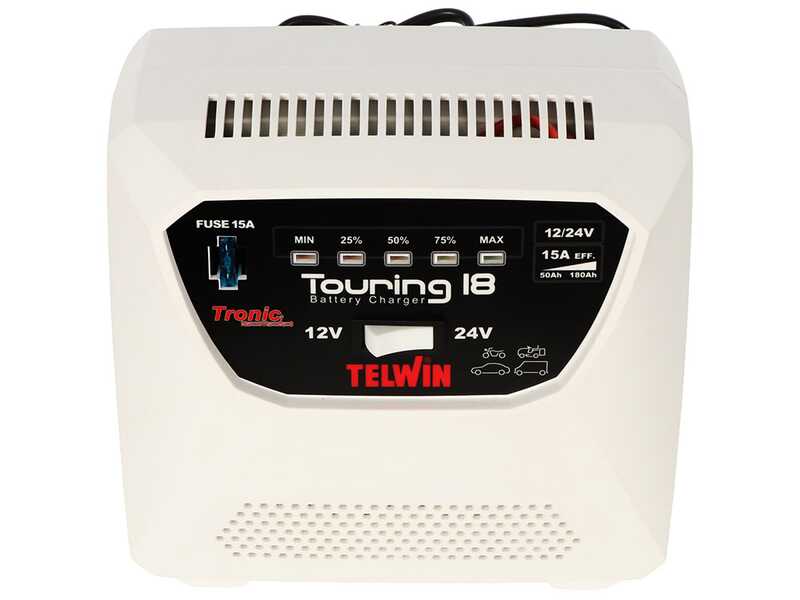

COMPLIMENTARY: Battery Charger Telwin Touring 18

The Telwin Touring 18 is a portable and lightweight battery charger, reliable and convenient. It is perfect for charging batteries from 12 to 24 V.

Lightweight, portable and very powerful at the same time. Small and powerful charger, the best you can find on the market to charge cars, motorcycles, campers batteries etc.

Battery charger with electronic control of charging phases, interruption and automatic reset (TRONIC ). Extremely reduced dimensions: 12x19,5x19 cm.

Battery charger ideal for charging WET, GEL, Pb-Ca, AGM, MF, EFB batteries with 12/24 Volt voltage. Suitable for charging batteries with a capacity of 60 to 180Ah (12V) and of 50 to 115Ah (24V).

Main features:

Power supply: single-phase
Protected against overloads and polarity reversals.
Automatic battery voltage recognition
Visual check of the battery charging phases thanks to the LED signalling

Suitable for:

Cars
Riding-on Mowers
Motorcycles
Campers etc.

Battery charger equipped with power cable and plug, with positive pole clamp (red), negative pole clamp (black).

Easy to use but also to transport thanks to its reduced weight of 3.5 Kg

The high quality of the product equipment is guaranteed by its TELWIN brand: historic Italian leading company for the production of this type of machineries.
