Lisam Oliwatt 2 Electric Battery-powered Olive Harvester - With Nylon prongs - Telescopic Pole

Add a question
ID: K605754

EAN: 9999991097391

MPN: 9075 lisam

7,9/10
After-sales assistance & Spare parts
Lisam Oliwatt 2 Electric Battery-powered Olive Harvester - With Nylon prongs - Telescopic Pole
FREE
Awelco Automatic20 Battery ChargerAwelco Automatic20 Battery Charger
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
AgriEuro BandanaAgriEuro Bandana
Head material
ABS
Motion
Vertical, double
Speed (bpm)
1300 bpm
Max. prongs opening
27 cm
Pole material
Aluminium
Telescopic pole
Max. length
350 cm
Motor type
Induction
Voltage
12 V
Nominal power (W)
325 W
Motor speed levels
1
Motor type
Battery-powered
Battery type
Car type
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
OLIWATT 2
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
12 V battery-powered
Motor position:
Up - on the head
Motion:
Vertical, double
Speed (bpm):
1300 bpm
No. of prongs:
7+7
Prongs length:
19 cm
Prongs material:
High-resistance technopolymers
ABS Prongs:
Max. prongs opening:
27 cm
Lubrication type:
Grease-lubricated
Min. length:
250 cm
Max. length:
350 cm
Pole material:
Aluminium
Pole type:
Fixed
Manufacturing country:
Italy
Motor data
Motor brand:
Lisam
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Induction
Battery type:
Car type
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
75 Ah
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole :
250 / 350 cm - telescopica
Telescopic pole:
Extension power cable:
15 m
Free gifts/extra features
Instructions manual:
Yes

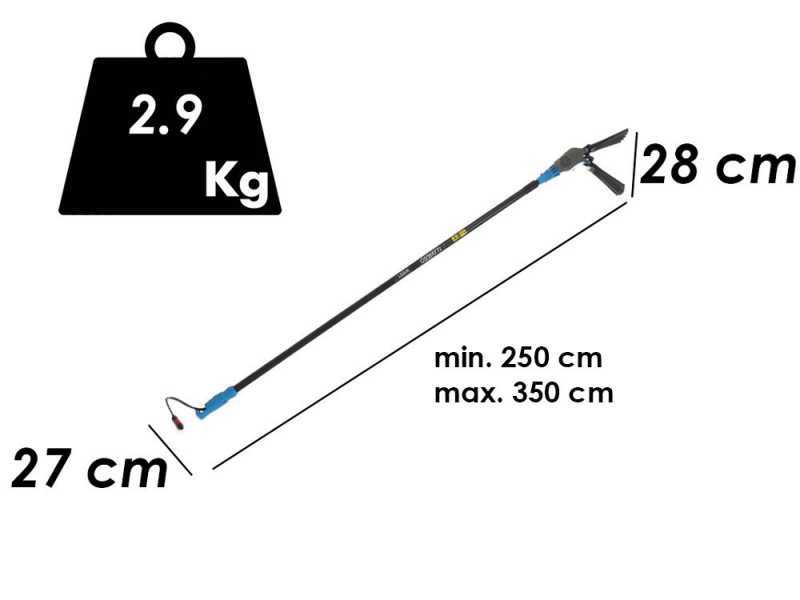

Dimensions and logistics
Product dimensions in cm (L x W x H):
250x26x28 cm
Net weight:
2.8 Kg
Original packaging/s dimensions in cm (L x W x H):
256x35x29 cm
Gross weight (packaging included) :
9.5 Kg
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 19/11/2024 - 21/11/2024
€ 908,03
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

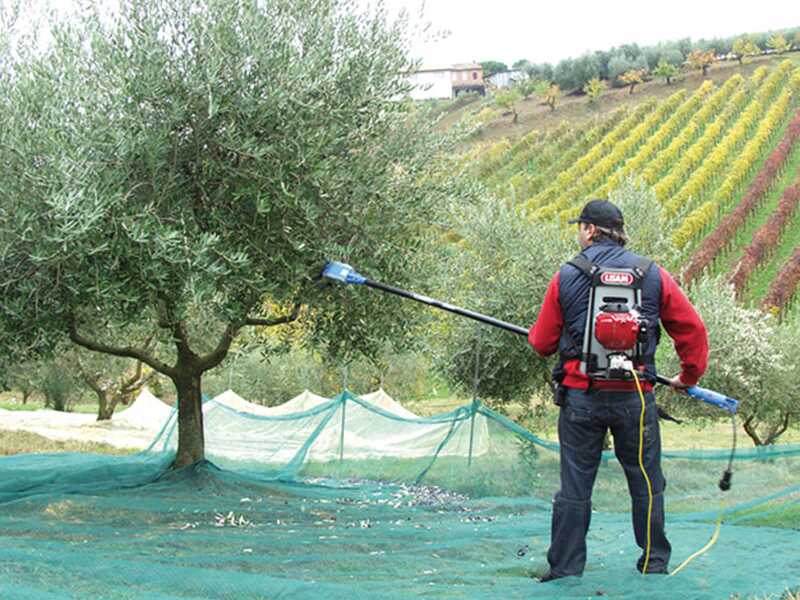

Lisam Oliwatt 2 Olive Shaker

The Lisam Oliwatt 2 olive harvester is the ideal choice for those who are looking for excellent performance and optimum results in the harvester. Thanks to its state-of-the-art design, this product delivers highly efficient processing, ensuring maximum respect for plants and fruit.

Oliwatt 2 is a battery-powered electric harvester with a powerful 12-volt motor, which significantly increases its performance. It has been designed to meet the needs of all those operators who require a durable and reliable product that is also suitable for working in difficult terrain.

This model is equipped with prongs with a fan shape, which reproduces the same movement of the hand, pushing the olives towards the base, allowing even the toughest fruits to be picked up.

The Lisam Oliwatt 2 harvester comes complete with a length-adjustable telescopic pole, allowing you to adapt it to your needs, with a length ranging from a minimum of 250 cm to a maximum of 350 cm. Furthermore, it is supplied with a 15-metre cable.

Despite its superior performance, the Lisam Oliwatt 2 is incredibly light, with a total weight of only 2,900 grams, thus ensuring unparalleled manoeuvrability.

BATTERY NOT INCLUDED

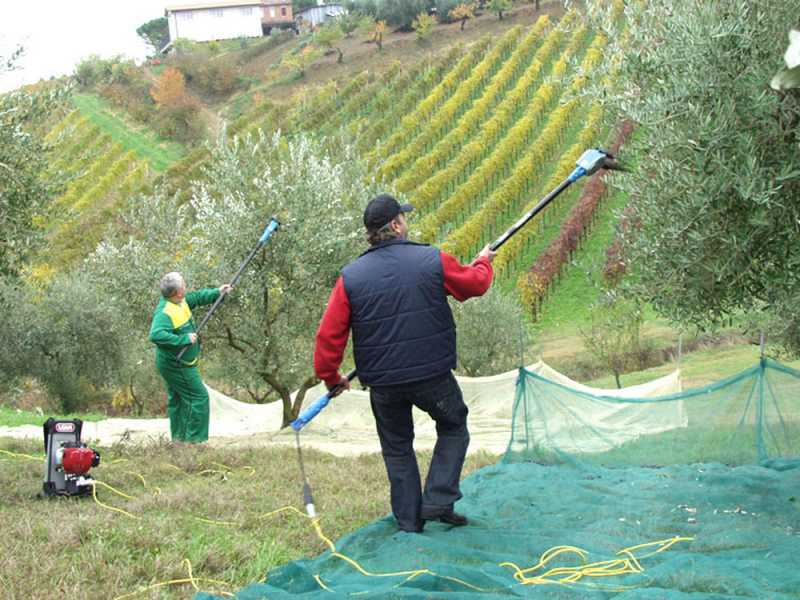

Main features

High penetration capacity in plant canopies: immediate function thanks to the minimal thickness and large distance of the sticks.

Particular fan shape to simulate the movement of the hands when harvesting olives.

  • Made in Italy Electric Motor
  • Telescopic aluminium pole 250 - 350 cm

Data sheet: SWING 8C SNACKE OLIVECO OLIWATT2 SWING 36 V THOR THOR 36 V
Supply voltage: 12Vdc 12Vdc 12Vdc 12Vdc 12Vdc 36Vdc 12Vdc 36Vdc
Average absorption at 12 V 9 A 3.5 A 3 A 3 A 8 A 4 A (at 36 V) 8 A 2.9 A (at 36 V)
Motor peak power 325 W 230 W 280 W 280 W 325 W 540 W 360 W 540 W
Frequency Beats 12 V 1300 1300 1100 1150 1300 1300 (at 36 V) 1300 1300 (at 36 V)
Recommended Battery 75A/h 75A/h 75A/h 75A/h 75A/h 80A/h 75A/h 80A/h
IP Grade 3 - 0 3 - 0 3 - 0 3 - 0 3 - 0 3 - 0 3 - 0 3 - 0

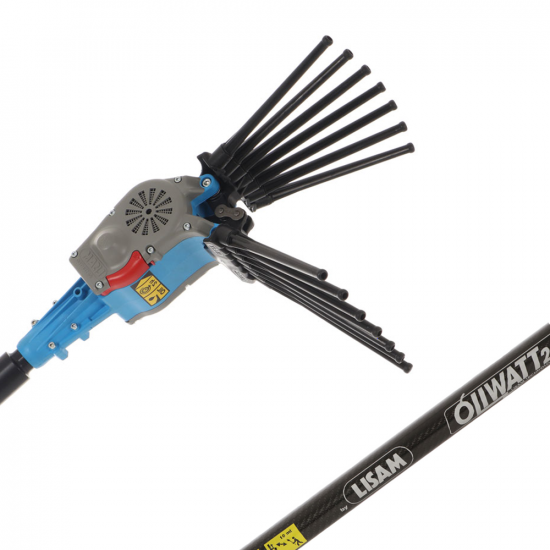

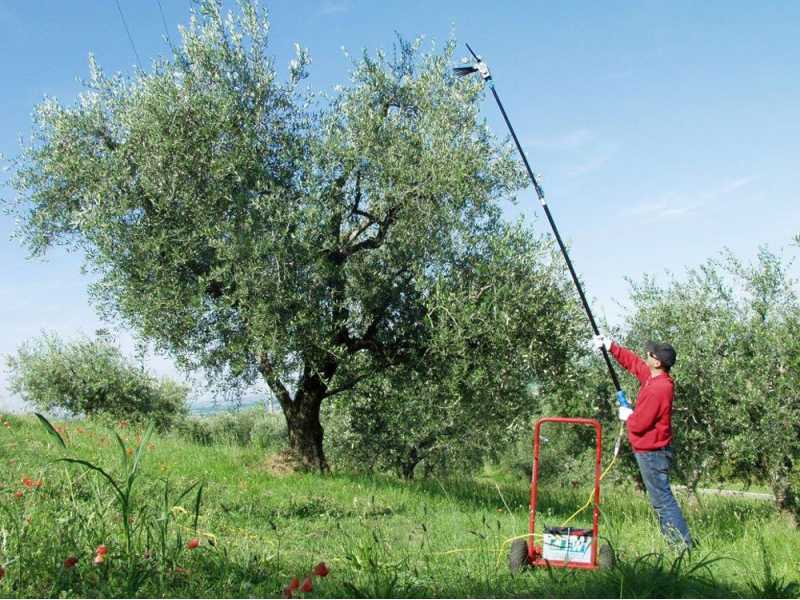

Head and Mechanics of the prong motion

The Lisam Oliwatt 2 olive harvester consists of 7+7 Technopolymer prongs that are easy to replace.

Therefore, the rakes can feature a maximum of 14 carbon fiber prongs of easy replacing. The whole entire propulsion and drive unit is hermetically sealed, with no possibility of external agents penetrating inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are more than 19 cm to allow you to enter deep into the plant.

Technical data about the head:

  • Working width: 43 cm
  • Hourly production: 80/120 kg/hour.
  • Shakes per minute: 1300.

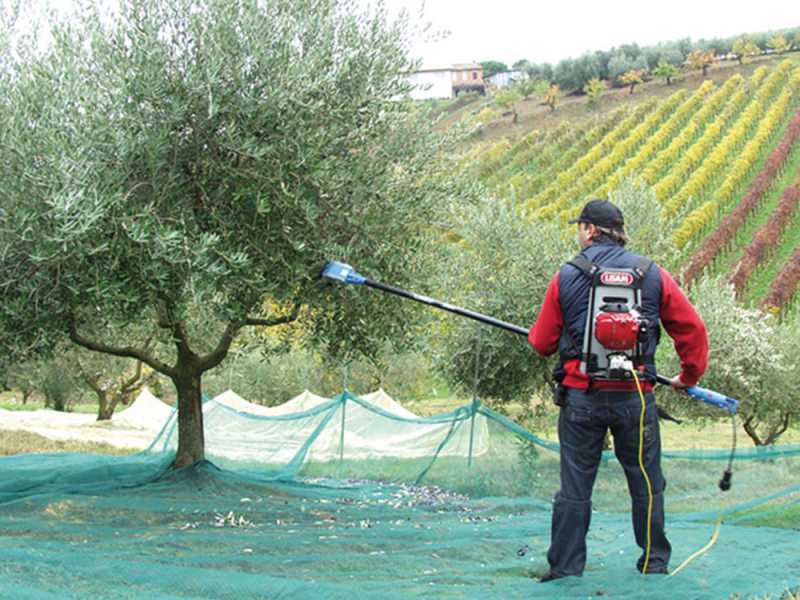

Harvester body

The body, which contains the electric motor made in Italy, is made of resin and nylon, ensuring strength and lightness.

There is a steel plate between the prong housing and the motor to ensure greater sturdiness. The 12 V motor ensures 1300 bpm and an absorption of 2.5 amp/h.

The battery must be at least 50 A.

Focus on the ignition switch.

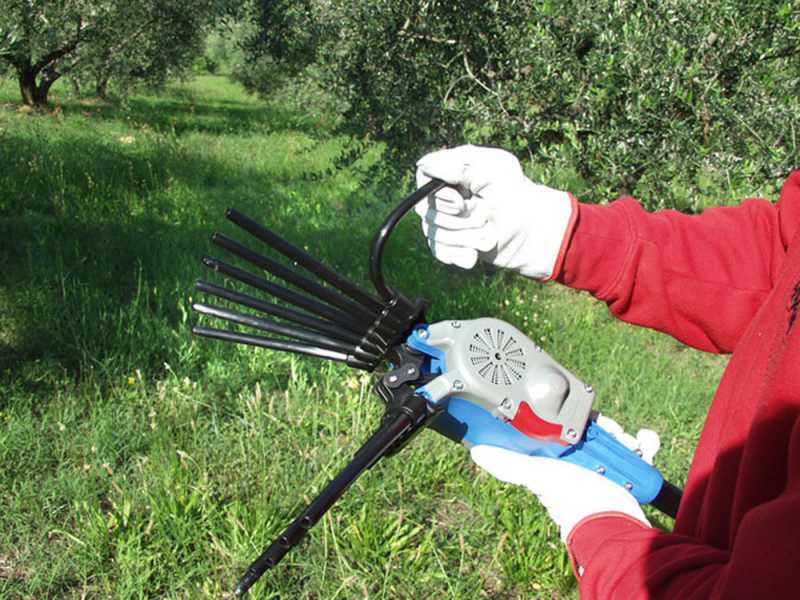

Extension pole

The aluminium extension pole has a length of 250 cm up to reach a maximum length of 350 cm. The pole extension can be done by means of the quick engagement and release system.

You will find at the bottom of the pole the specific device for connecting the olive harvester to the standard-supplied extension cable.

Free items & Standard equipment

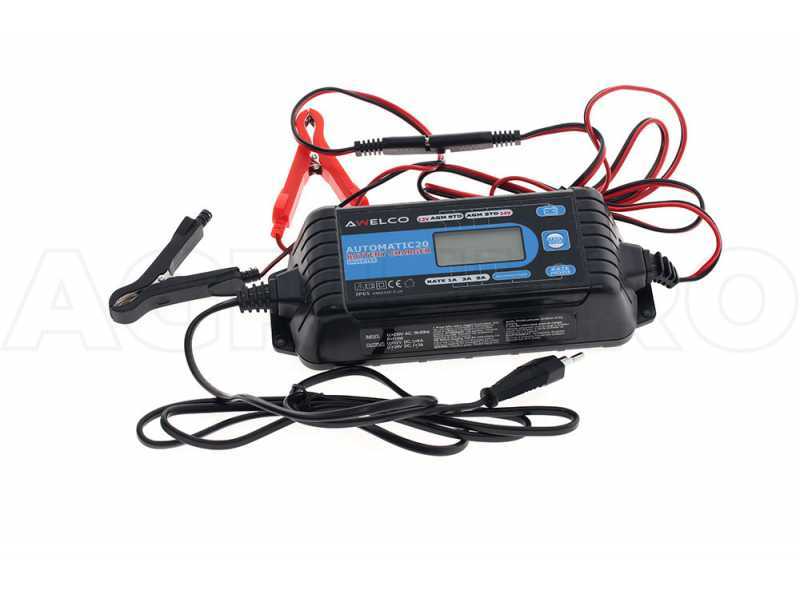

COMPLIMENTARY: Awelco Automatic20 Battery Charger

The Deca SM Automatic20 battery charger maintainer is an automatic charger with a charge maintenance program (Pulse charging). This type of charger is compact, efficient and easy to use. Suitable for motorcycles, cars, vans, campers and small displacement tractors.

Characterized by a special automatic charging cycle that allows you to never damage the battery, it is also possible to leave it connected to the battery because it has the MAINTENANCE function (maintenance function "Pulse Maintenance"). This way, the battery is always ready to use.

It is highly safe: it does not damage the electronics of the vehicle, it does not create sparks, it is equipped with protection against polarity reversals and short-circuits.

This product is innovative, versatile and low weight (only 0.60 kg).

This small car battery charger is suitable for outdoor use thanks to the IP65 protection level and its retractable hook.

5 ways of use:

  • Charging
  • Impulses
  • Maintenance
  • Sulphate batteries reconditioning
  • Operation testing

Technical features:

  • Power supply: 230V single-phase
  • Power: 65W
  • Nominal battery voltage 12V / 24V
  • Average charging current: 3A - 6A
  • Charging programs: 4 + TEST
  • Battery type: Pb, Gel, Pb/Ca, Agm
  • Battery capacity: 2 - 120 Ah min / max
  • Battery capacity in charge maintenance: 120Ah max
  • Protection rating: IP65
  • Charging process LED display, maintenance and testing
  • Equipped with cable pliers and cable with eyelets
  • With one 10-stage multi-stage charging process

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

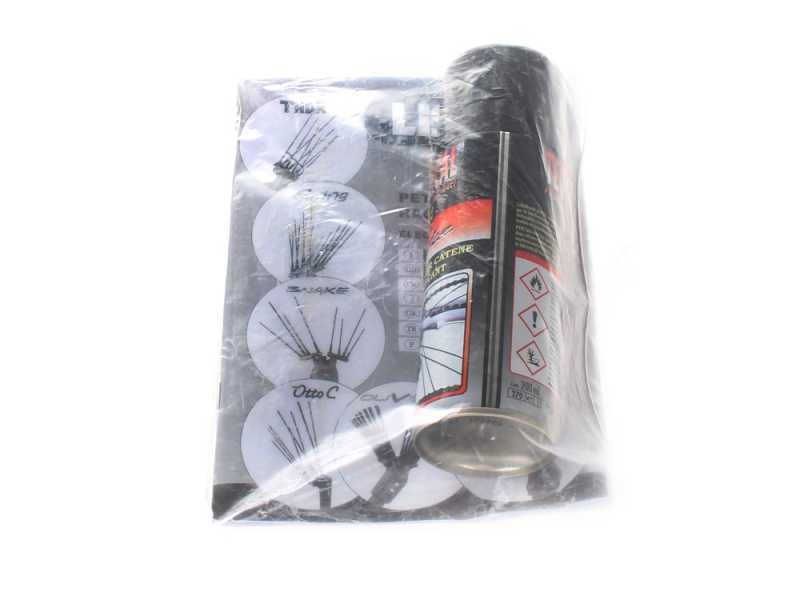

Free items included

The machine is shipped in its original packaging. It comes complete with:

  • Professional cable with terminals for connection to the battery
  • Instructions manual
  • Lubricant spray
