Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water

Hobby
Add a question
ID: 116000

EAN: 4039784873308

MPN: 1.645-421.0

Karcher
Catalogue Karcher
7,8/10
After-sales assistance & Spare parts
29Pictures
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
New products
Absorbed power
700 W
Max. flow rate per hour
4600 L/h
Submersible pump
Yes
Max immersion depth
12 m
Max. head lift
43 m
Use
For clear water
Stainless steel coating
Yes
Product Features
Model:
BP 4 Deep Well
Use:
For clear water
Power supply:
Single-phase electric
Absorbed power:
700 W
Stainless steel coating:
Yes
Submersible pump:
Yes
Manufacturing country:
China
Pump data
Max immersion depth:
12 m
Max. flow rate per hour:
4600 L/h
Max. head lift:
43 m
Max dirt particles size:
0.9 mm
Hose fitting diameter:
32 mm - 25 mm
Multilevel pump impeller :
Yes
Equipment
Built-in power cable:
15 mt
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
10,5 x 10,5 x 71 cm
Net weight:
7.14 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
76,5 x 23,5 x 10 cm
Weight including packaging:
11.5 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 12/06/2025 - 16/06/2025
Free returns (up to 30 days after receipt) *
€ 338,58
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

Submersible Pressure Pump Karcher BP 4 Deep Well

The Karcher BP 4 Deep Well submersible pump is designed for efficient water extraction from deep wells and springs, ideal for use in agriculture, gardening, and non-potable domestic water supply.

The stainless steel body provides robustness and corrosion resistance, allowing immersion up to 12 meters deep with a minimum well diameter of 15 cm. This multistage pump ensures constant pressure and adequate flow to irrigate green areas and gardens without wasting potable water.

The pump compartment and stainless steel threaded connections ensure long life and high resistance to mechanical shocks and wear. Installation is facilitated by a mounting spacer and a fastening system using a 15-meter-long rope, ensuring stable and secure positioning inside the well.

The integrated pre-filter and non-return valve protect the pump from impurities and backflow, increasing the device's lifespan.

The On/Off switch is conveniently located at the end of the cable for practical and safe use.

The combination with quick couplings of 3/4" and 1" facilitates connection with standard pipes, ensuring versatility of use.

The quiet operation and lack of frequent maintenance make this submersible pump an efficient and convenient solution for those who need water from deep wells for irrigation and non-potable use.

Distinctive features:

  • Pump compartment and stainless steel connections: ensure corrosion resistance and long life even in humid and aggressive environments.
  • Integrated pre-filter: protects the system from impurities, preventing damage and optimizing performance.
  • 15-metre cable with On/Off switch: ensures safety and practicality during installation and use.
  • Non-return valve included: prevents water backflow, keeping the pump always ready to start.
  • Spacer foot for mounting: facilitates installation by keeping the pump stable and clean during use.

This submersible pump Karcher BP 4 Deep Well represents a reliable and durable solution for water extraction from deep wells, ensuring high performance and operational safety for both agricultural and residential applications.

Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water

Technical Features

The pump is extremely robust and durable, having the filling shaft and threaded connections in stainless steel.

Integrated pre-filter: protects the pump from impurities, increasing its longevity and reliability.

Quick couplings: irrigation hose fittings with a diameter of 1“ and 3/4“, G1 adapter, hose clamp and integrated check valve.

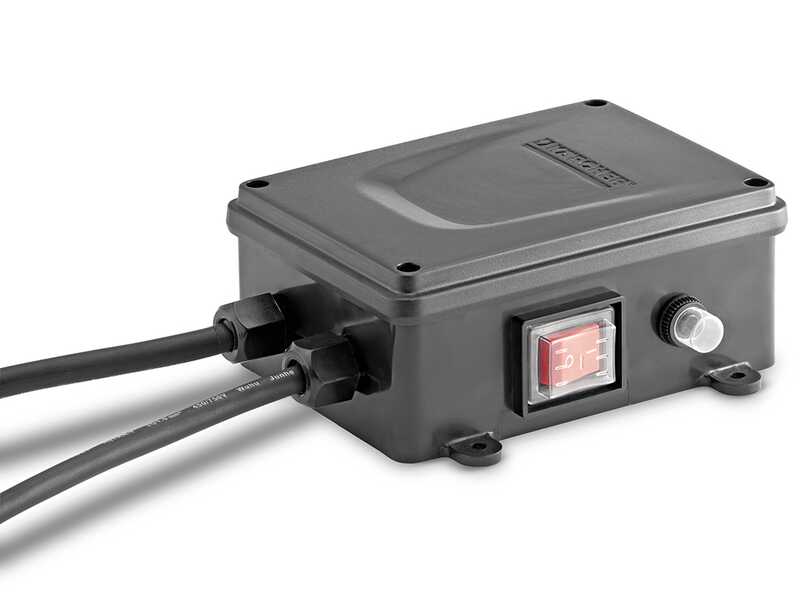

Control box at the end of the cable, with ON/OFF switch, fuse, and power cable.

Spacer foot to facilitate installation.

15 m rope included.

Brief technical sheet:

  • Maximum power consumption: 700 W
  • Maximum flow rate: 4600 l/h
  • Maximum head: 43 m
  • Maximum immersion depth: 12 m
  • Minimum well diameter: 150 mm
  • Minimum distance between pump and bottom of well: 50 cm
  • Maximum pressure: 4.3 bar
  • Maximum suction dirt size: 0.9 mm
  • Internal thread: G1 (33.3 mm)
  • Weight: 7.14 kg
  • Maximum supply temperature: 35°C
  • Power supply: 230V - 50Hz
  • Power cable length: 15 m
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water Karcher BP 4 Deep Well - Submersible Pressure Pump - 700 W - Clear Water
Free items & Standard equipment

Free items included

Product supplied in its original box, with maintenance booklet

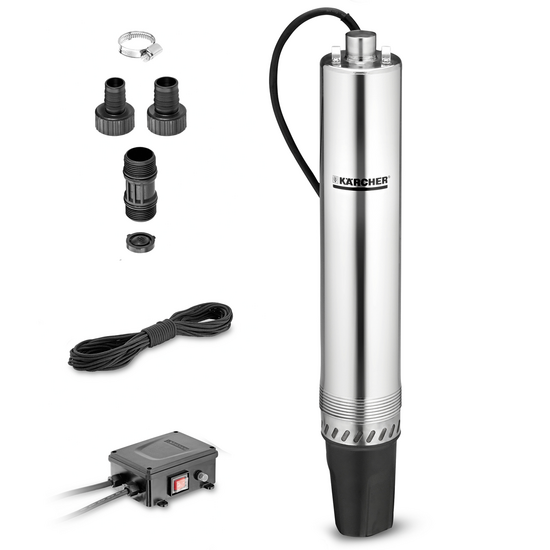

Included:

  • Electric control box
  • 15m fastening rope
  • Spacer foot for installation
  • G 1 connector, hose fittings for 1“ and 3/4“ with hose clamp + non-return valve
