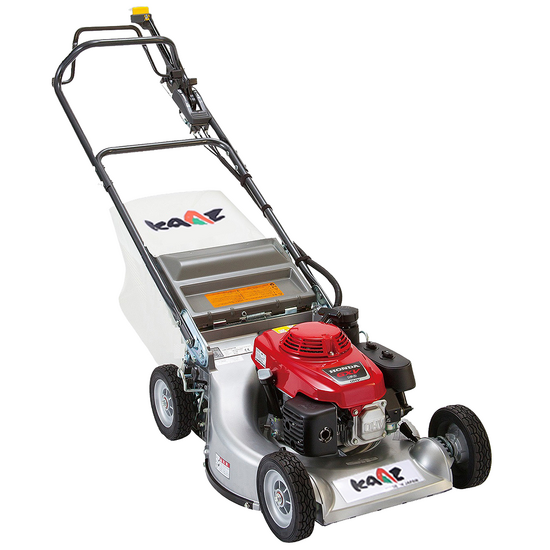

KAAZ LM 5360 HXA - Self-propelled Petrol Lawn Mower - Honda GXV 160 - 53 cm Cutting Width - 2 Speeds

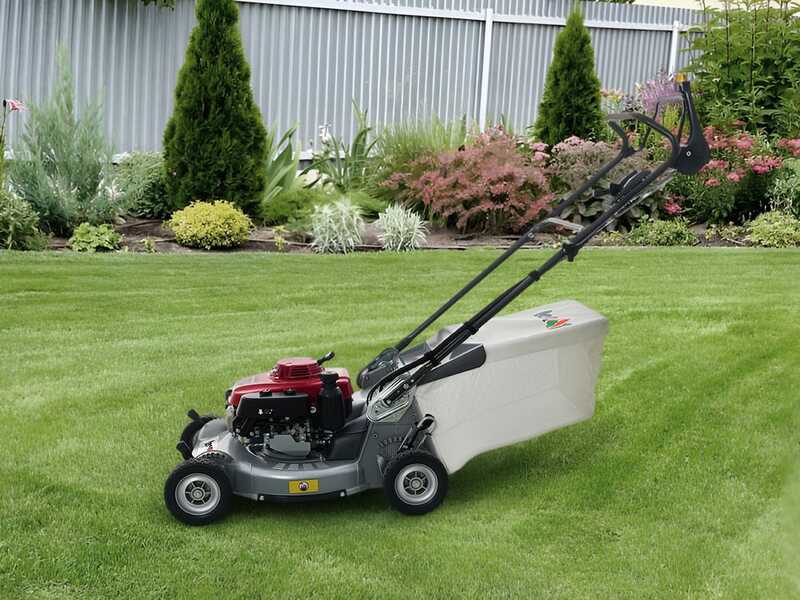

The KAAZ LM 5360 HXA petrol lawn mower is one of the most sturdy and efficient solutions for mowing large surfaces, even in a professional setting.

It delivers a precise and even cut even on tall, thick grass, thanks to its sturdy construction and advanced technical features. Ideal for gardeners, groundskeepers and landscaping professionals who need a reliable, efficient machine built with high-quality materials.

This petrol lawn mower is designed to withstand high stresses thanks to the use of reinforced components, such as the 53 cm aluminium cutting deck . This material, which is extremely resistant to corrosion, impact and wear, allows for continuous use of the machine even in challenging environmental conditions.

The powerful 163cc Honda GXV 160 OHV engine ensures quick starts and consistent performance even under load: it is a 4-stroke, air-cooled engine with an overhead camshaft.

One of the lawn mower’s key strengths is its 2-speed shaft drive, which ensures direct, sturdy and highly reliable power transmission between the engine and the cutting system:

1. First speed: 0.7 m/s
2. Second speed: 1.1 m/s

The system of this lawn mower allows the blades to be disengaged without switching off the engine, offering a significant advantage when emptying the grass collector, crossing paths or moving the lawn mower while the engine is running.

The 75-litre grass collector, made from highly breathable material, ensures efficient suction even with wet or tall grass. The cutting height adjustment on each wheel allows you to select up to 7 positions ranging from 15 to 77 mm.

The main distinguishing features of the product are:

• Professional Honda GXV 160 OHV engine: crankshaft with bearings, forced cooling and cast iron cylinder;
• Shaft driven transmission with gear drive: direct connection between the engine and the drive, eliminating the need for drive belts. The 2-speed forward drive system allows the speed to be adapted to the density of the grass and the surface.
• 53 cm aluminium deck: resistant to corrosion, dents and heavy-duty use;
• 7-position cutting height adjustment: a system with individual adjustment per wheel, allowing different working heights to be set. This configuration enables adaptation to the condition of the turf.
• 75-litre grass collector: ensures efficient grass collection and a professional finish

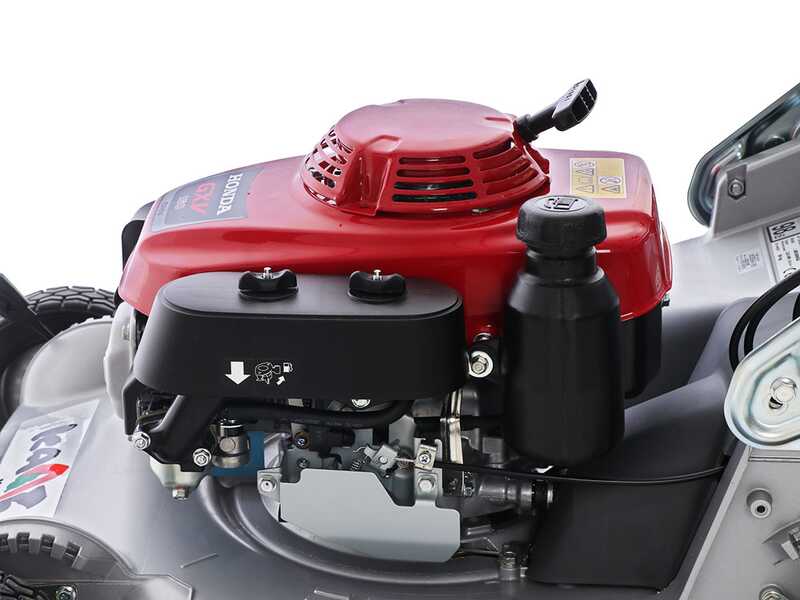

The Honda GXV 160 OHV engine is a lightweight, high-performance power unit, ideal for tasks requiring high power, guaranteed by its 163 cc displacement. Thanks to its compact design and advanced Honda technology, it offers an excellent combination of power, efficiency and manoeuvrability.

This latest-generation unit, part of the super-professional GXV series, incorporates overhead valve (OHV) technology, ensuring more efficient combustion and greater energy output. The engine stands out for its reduced vibration and noise levels, ensuring a more comfortable and less tiring experience even during prolonged work sessions.

The GXV range has been specifically designed for heavy-duty use in sectors such as construction and agriculture, and it stands out for its exceptional durability, reliability and consistent power over time, even under demanding operating conditions.

The main features of the engine are:

• High power-to-displacement ratio
• Easy and smooth starting, thanks in part to an efficient decompression system and an ergonomic starter handle
• High-quality materials, designed and built to last a very long time
• Compliant with the strictest European regulations
• Very low fuel consumption
• Low vibration and noise

Features:

Rated power: 6 HP
The more accurate term would be “Commercial Power”, referring to the classic standard for defining motor power officially used until a few years ago by all the leading engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual power: 3.75 HP
This corresponds to the real power delivered at the crankshaft. It is the figure stated as official in the manual or in the engine manufacturer’s technical data.

* This figure may vary for the same engine model depending on the rotational speed at which the equipment manufacturer has decided to operate the engine.

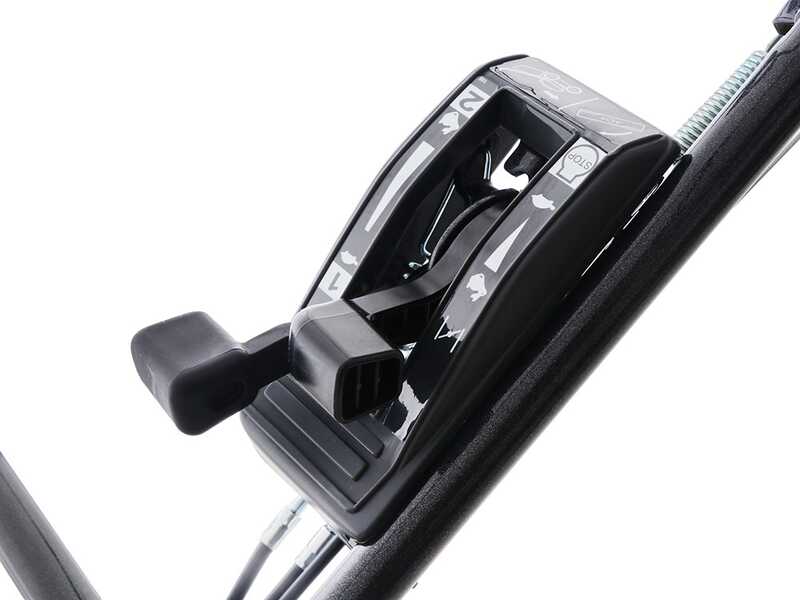

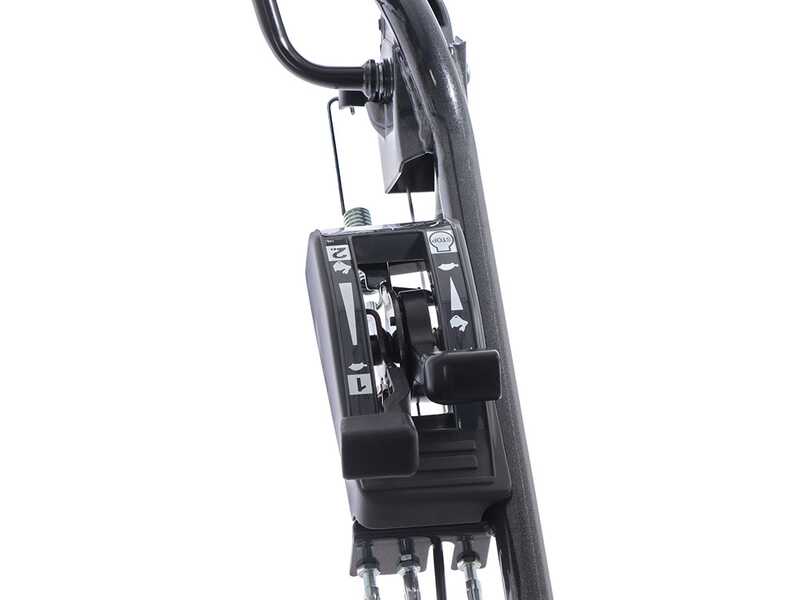

The KAAZ LM 5360 HXA lawn mower is equipped with a 2-speed gearbox selectable via a knob conveniently positioned on the handlebar.

This feature is essential as it allows you to quickly adapt the working speed to different ground conditions and specific cutting requirements, improving both efficiency and operating comfort.

The ability to change gears without interruptions is a major advantage in terms of convenience and control, especially during prolonged use or on uneven surfaces.

2 speeds available:

• 1st gear - 0.7 m/s
• 2nd gear - 1.1 m/s

The lawn mower’s shaft ensures direct, sturdy and highly reliable power transmission between the engine and the working unit.

Through the PTO shaft, movement is transferred mechanically and constantly, minimising energy loss and ensuring consistently efficient torque transmission.

This system is designed to withstand heavy workloads and prolonged use, maintaining stable performance even on challenging terrain or during intensive operations.

The result is a robust, efficient and durable machine, ideal for those seeking maximum reliability and consistent performance over time.

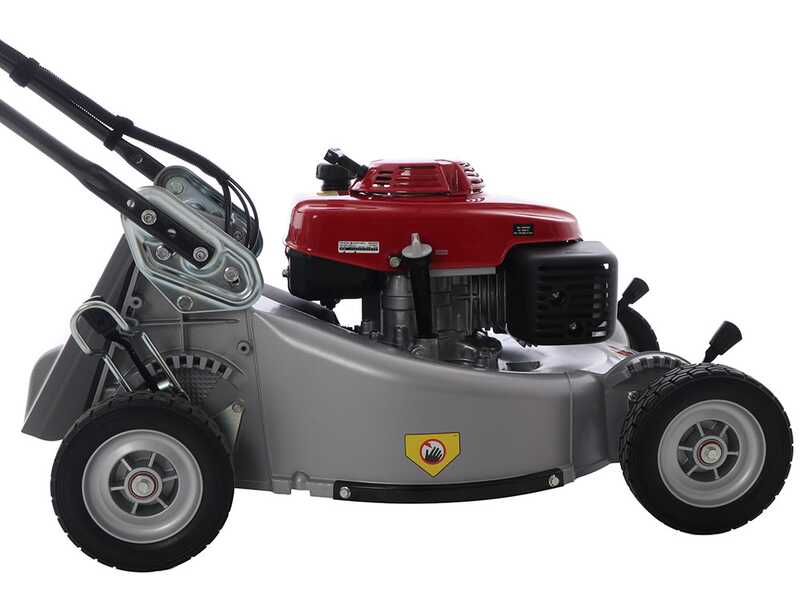

4-point cutting height adjustment system via levers located at each individual wheel.

Allows the cutting height to be adjusted precisely, adapting the lawn mower to ground conditions and the operator’s requirements.

Aluminium wheels for greater durability

There are 7 selectable cutting heights, adjustable from 15 mm to 77 mm: 15, 26, 37, 47, 57, 67, 77

Effective cutting width: 53 cm.

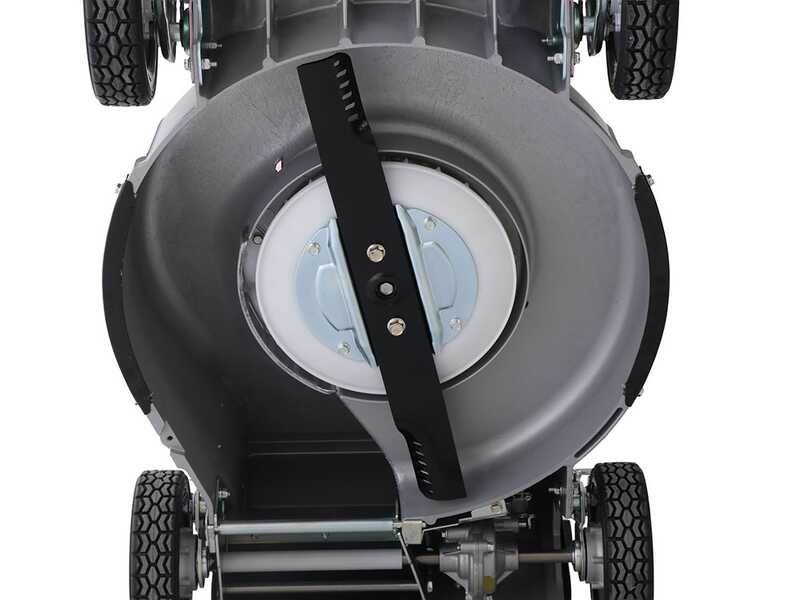

The housing of the KAAZ LM 5360 HXA lawn mower is made of high-strength cast aluminium, a material designed for daily professional use.

In particular, this lawn mower has a housing that is thicker and more durable than comparable models.

Reinforced aluminium housing, 2 cm thick at the edges.

This structure guarantees superior strength, excellent protection against impacts, corrosion and deformation, ensuring a long service life even on the most demanding surfaces.

The structure of the 55 cm cutting deck provides optimised airflow for effective collection and a uniform cut.

The cutting system uses a high-quality cutting blade with a special profile, designed to maintain a sharp edge over time and produce a fine, even cut.

Cutting system with grass collector:

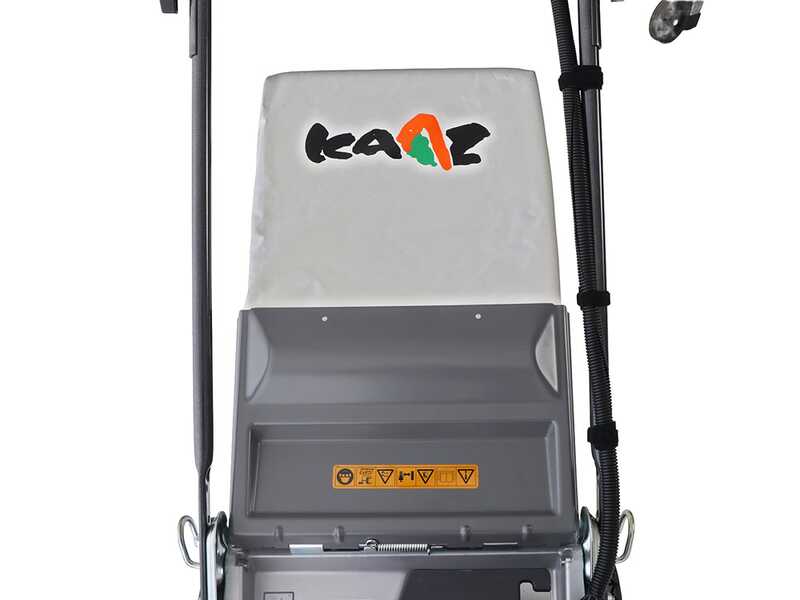

The lawn mower is equipped with a spacious 75-litre canvas collector, which is very easy to remove and empty.

The grass collector is made of durable canvas, ensuring strength and sturdiness.

A convenient handle is located at the top of the grass collector to facilitate removal and emptying when it is full.

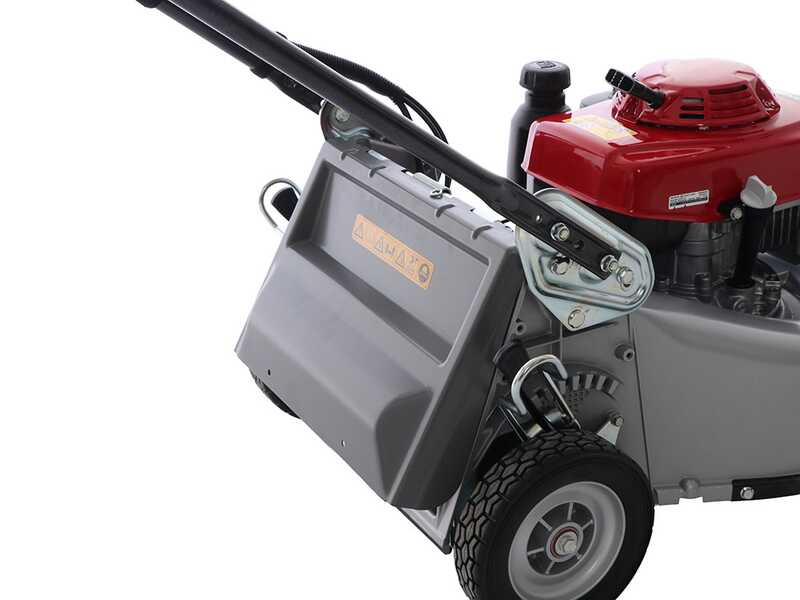

REAR DISCHARGE SYSTEM:

allows you to mow the grass without using the grass collector, depositing it directly at the rear of the lawn mower.

Simply remove the grass collector and the rear discharge system will automatically engage.

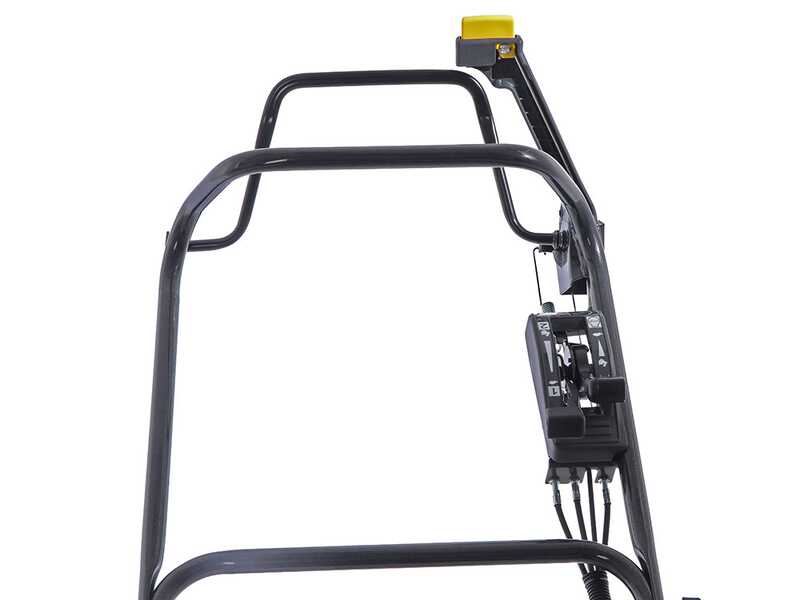

The lawn mower is equipped with a professional, ergonomic and durable handlebar.

The handlebar is height-adjustable to various positions: simply unscrew the nuts, adjust the height and screw them back in.

Simple and intuitive controls on the handlebar.

Blade engagement lever with yellow button: controls the movement and stopping of the blade. Pushing the lever forward while pressing the button engages the blade (if pushed forward without pressing the button, the blade will not rotate). This system allows the blade to be stopped while leaving the engine running and is ideal for moving the machine to areas without grass, such as paths.

Drive activation lever

On the left side of the handlebar:

• Gear lever that adjusts the cutting speed: first gear 0.7 m/s – second gear 1.1 m/s
• Throttle lever that adjusts engine speed

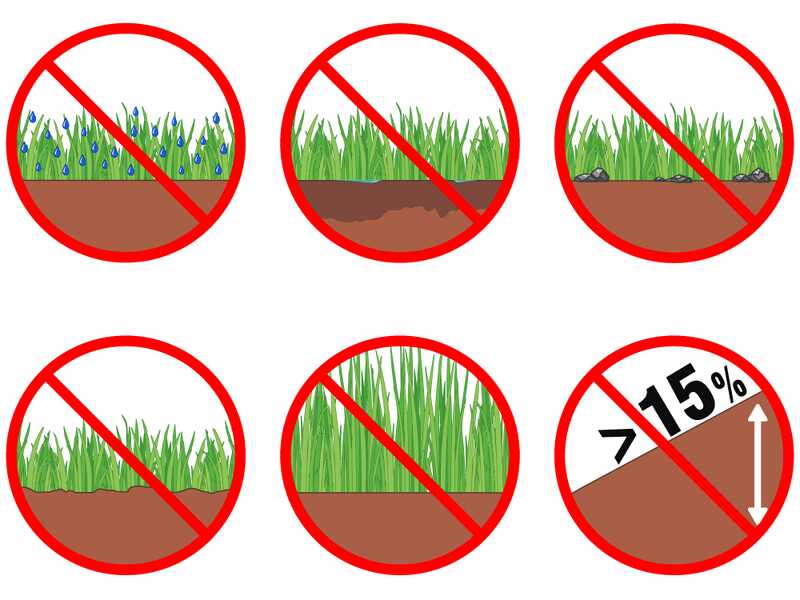

The LAWN MOWER is designed and intended exclusively for cutting grass in gardens (and not on other types of terrain), characterised by level surfaces without unevenness, the absence of stones or other solid objects, and grass maintained as a ‘lawn’ (i.e. no wild or unkempt grass), which should be cut regularly, ensuring it does not grow beyond 25–30 cm (as most lawn mowers cannot cut grass longer than this). Also avoid slopes steeper than 15% (≈9°), except for 4x4 models.

For more demanding jobs, involving wild grass or grass taller than specified, or surfaces rougher than a garden, consider the alternative product categories “Petrol rough cut mower” or “Brush Cutter”.

Please also note that grass should only be cut when both the lawn and the ground beneath are completely dry. Mow the grass only in dry weather, well away from periods of rain or watering, and preferably in the afternoon when it is not saturated with morning moisture. Wet grass tends to bend under the weight of the cutting blades, reducing cutting efficiency, increasing the risk of clogging in the cutting deck and placing excessive strain on the engine.
