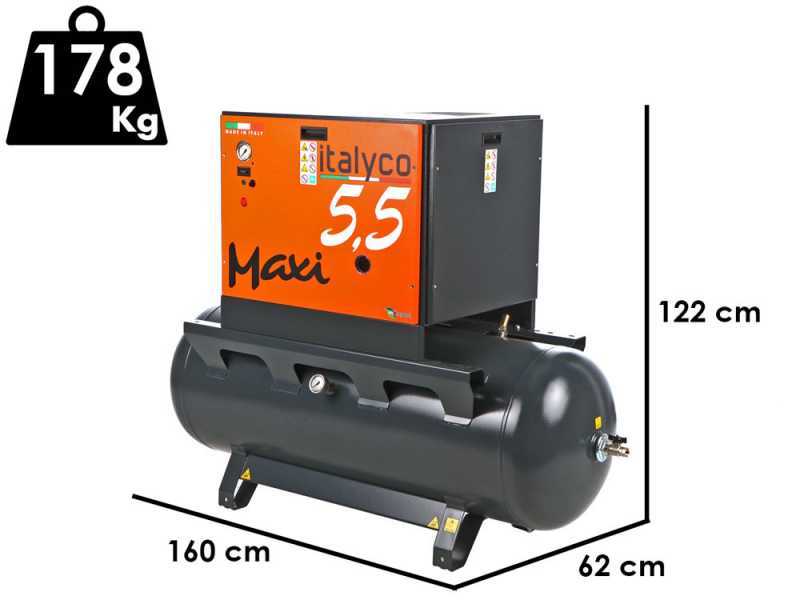

Name: Italyco Maxi 6/270 - Rotary screw compressor - Max. pressure 10 bar
Brand: Italyco
SKU: K608199
Price: 3806.78 EUR
Availability: InStock

Description

Italyco Maxi 6/270 - Rotary screw compressor - Max. pressure 10 bar

The Italyco Maxi 6/270 screw compressor stands out for its reliability and outstanding performance, making it a leading choice in the industrial compressor sector.

Equipped with an advanced rotary screw system, the Maxi 6/270 provides superior efficiency and quiet operation, keeping noise levels below 68 db(A). This makes it ideal for those seeking a quiet and productive working environment.

Designed to provide a constant and pure air flow, this compressor is the ideal solution for industrial applications where air quality is crucial. Its ability to generate high quality compressed air makes it indispensable in sectors requiring the highest air purity.

The Italyco Maxi 6/270 is equipped with a cutting edge suction and compression system, with cutting edge rotors that allow a progressive increase in pressure and a continuous supply of high quality air.

With a power output of 4 kW, a 270-litre tank and the capacity to suck in 460 litres of air per minute, it achieves a maximum pressure of 10 bar, making it particularly suitable for continuous use in industrial environments where operational consistency is essential.

The compressor's versatility allows it to adapt to various working environments, such as machine shops and different industries, ensuring continuous operation and reducing cooling downtime.

The intuitive design facilitates maintenance operations, allowing fast and efficient intervention, minimising downtime and optimising productivity.

Italyco Maxi 6/270 - Rotary screw compressor - Max. pressure 10 bar

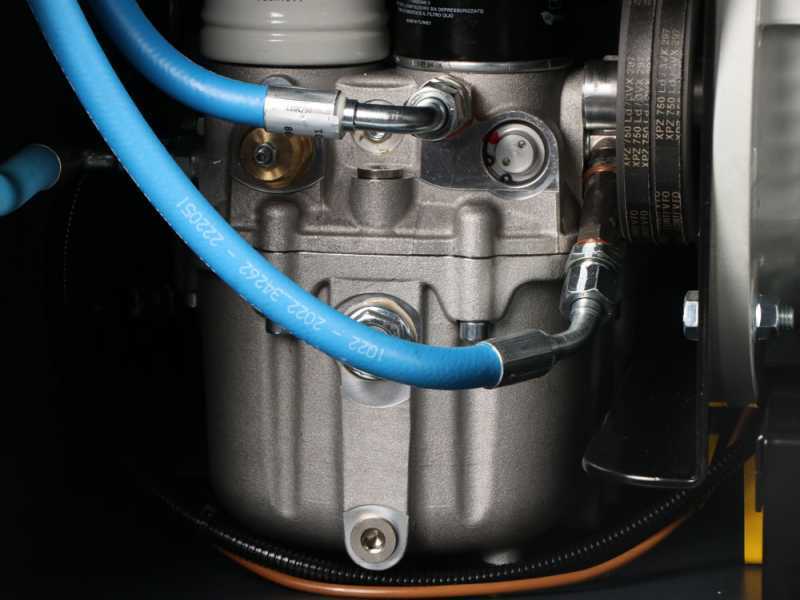

Main features of the screw unit

The rotary-screw air compressors are particularly suitable for those environments that require a greater air flow rate and longer operating times. Unlike piston models, they do not require a rest period, but only an initial phase during which the air compressor must reach a suitable temperature to be able to deliver the maximum pressure and flow rate.

The new screw unit in the range guarantees high efficiency and reliability. These models feature a single-stage compression unit cooled by fluid injection, designed to achieve a greater accessibility during maintenance operations.

The components subject to wear have been reduced to allow maintenance to be carried out in total autonomy and avoid unnecessary interventions that could damage the machine.

The screw group and the electric motor are fixed on an anti-vibration base which eliminates the transmission of vibrations to the air compressor, so as to greatly reduce noise and mechanical stress on the fixed parts of the machine.

Sound emission level: 68 dB

Motor technical features

The compressor has a three-phase electric motor. The induction motor is characterised by its very long service life (it is almost eternal) and low maintenance requirements.

This motor is in fact brushless, the main component subject to wear in electric motors. It is precisely the absence of this component that gives the engine its proverbial durability. It is to be considered the top in reliability, quietness, durability, energy efficiency and maintenance.

The compressor is connected via a geared motor to the pumping unit

Type: Three-phase electric
Voltage: 400 V
Power: 5 Hp
Frequency: 50 HZ

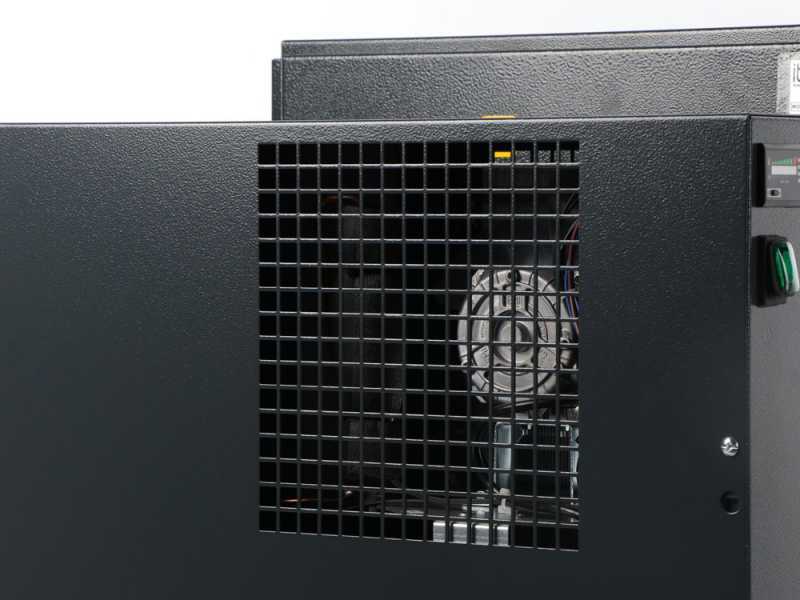

Controls and adjustments

The compressor is equipped with an electronic board that manages, optimises and monitors all phases of operation. Thanks to effective run/stop control, fuel consumption is also reduced.

Reading the data is simple and straightforward:

Pressure;
Hour meter by load and no-load running time;

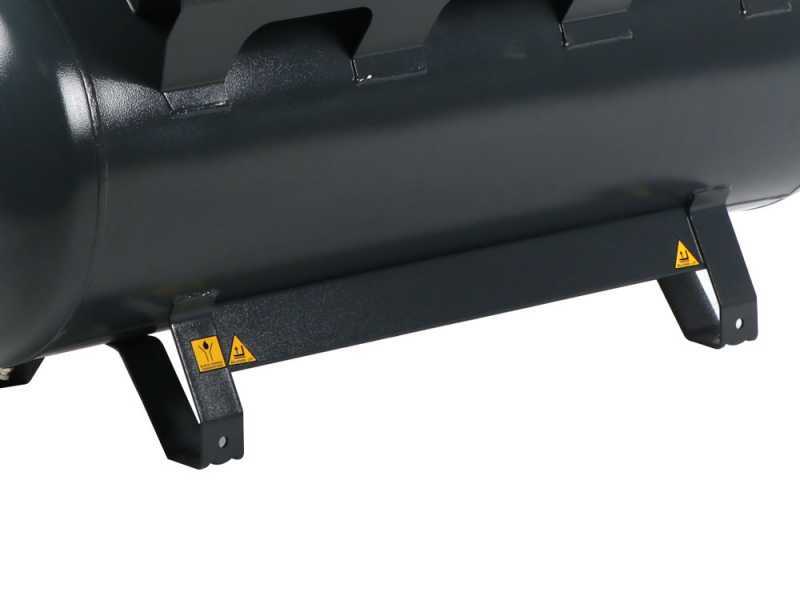

Additional features

Other features include:

Outlet valve

270 L tank

Cooling fan

Dashboard

Lifting point.

Free items & Standard equipment

COMPLIMENTARYProfessional cover and XXL storage

It is essential for protecting your riding-on mower when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

It is equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the riding-on mower.

It is provided with a ventilation system.

Easy to fold and store in its box, it is really space-saving!

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

Air compressor spare/replacing female output joint
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.
Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)
Repair/Junction fitting for Ø 8 hoses

Repair/Junction fitting for Ø 10 hoses

Lower tank discharge valve replacement air compressor

Teflon roll, ideal for the main maintenance operations

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).
