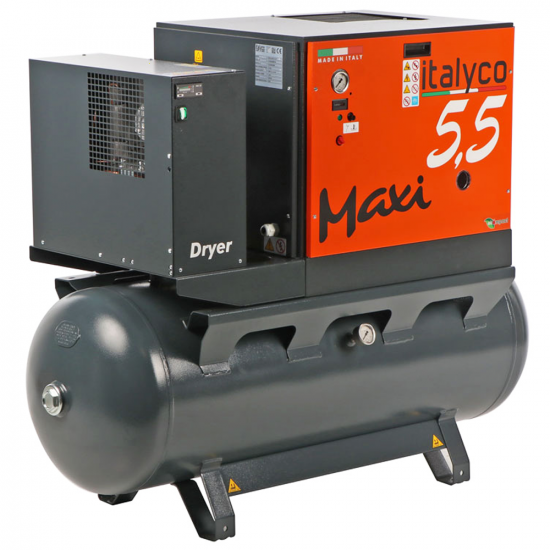

Italyco Maxi 6/270 D- Rotary screw compressor - Max. pressure 10 bar

The Italyco Maxi 6/270 D screw compressor stands out for its reliability and high performance, representing a major solution in the compressor sector.

Equipped with a rotary screw system, it ensures efficiency and quietness, keeping noise levels below 68 dB(A), ideal for those seeking a quiet working environment.

Designed to provide a constant, pure air flow, this model is the preferred option for industrial applications where air quality is critical. The ability to generate high quality compressed air makes it essential in sectors that require maximum purity.

Efficiency and reliability are central to the design of the Italyco Maxi 6/270 D compressor. An advanced suction and compression system, utilising cutting-edge rotors, allows a progressive increase in pressure and a continuous supply of high quality air.

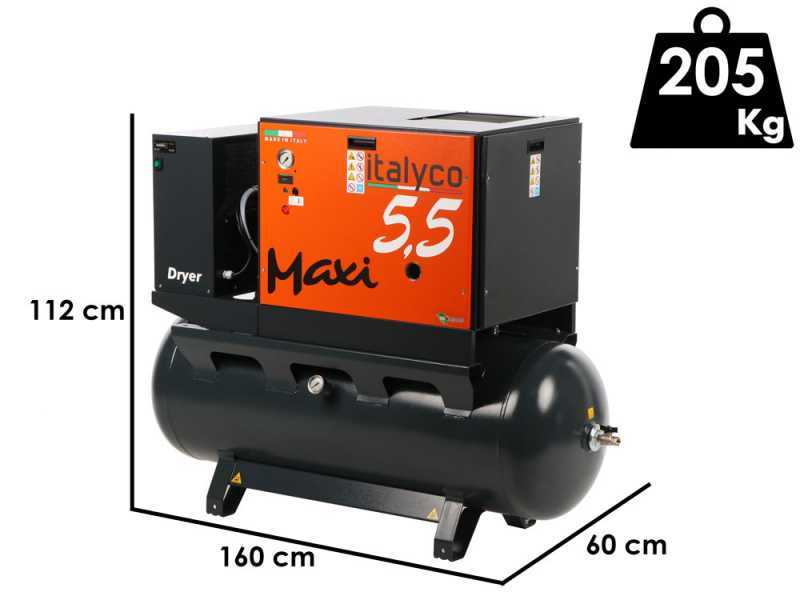

With an output of 4 kW and a tank capacity of 270 litres, sucking in 650 litres of air per minute and reaching a maximum pressure of 10 bar, the compressor is particularly suitable for continuous use in industrial environments, where operational constancy is critical.

The versatility of the compressor allows it to be adapted to different working contexts, such as machine shops and various industries, ensuring continuous operation and reducing downtime due to cooling.

The intuitive design facilitates maintenance operations, allowing users to perform fast and efficient interventions, minimising downtime and optimising productivity.

The rotary-screw air compressors are particularly suitable for those environments that require a greater air flow rate and longer operating times. Unlike piston models, they do not require a rest period, but only an initial phase during which the air compressor must reach a suitable temperature to be able to deliver the maximum pressure and flow rate.

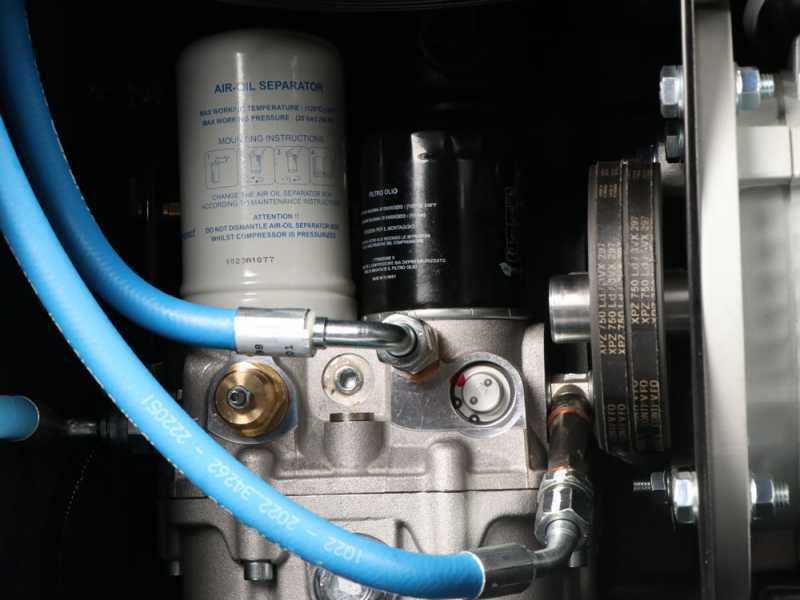

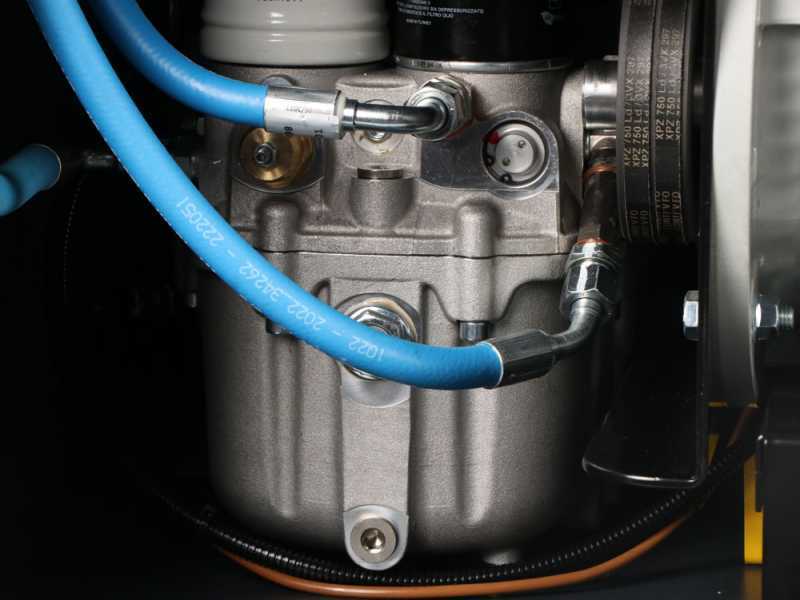

The new screw unit in the range guarantees high efficiency and reliability. These models feature a single-stage compression unit cooled by fluid injection, designed to achieve a greater accessibility during maintenance operations.

The components subject to wear have been reduced to allow maintenance to be carried out in total autonomy and avoid unnecessary interventions that could damage the machine.

The screw group and the electric motor are fixed on an anti-vibration base which eliminates the transmission of vibrations to the air compressor, to greatly reduce noise and mechanical stress on the fixed parts of the machine.

Sound emission level: 68 dB

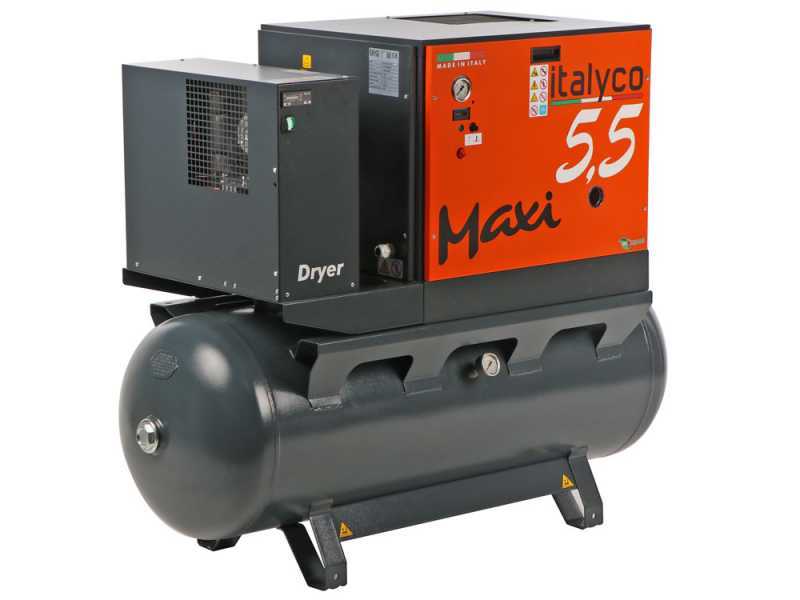

The cycling refrigeration dryer allows filtering and dry the compressed air produced by the compressor. This process allow the production of better quality compressed air without any residue, but above all it will prevent the formation of condensation inside the tank itself and the occurrence of any steam damage.

The atmospheric air sucked in by a compressor is a mixture of gases, water vapour and solid contaminants, and without the use of a treatment system these pollutants could reach the machines and cause damage. The air also contains a certain amount of moisture, in greater quantities at higher temperatures. This accumulation can create problems and disturbances to the compressor, and as mentioned above also to the connected equipment.

For example: a compressor with an operating pressure of 7 bar and a capacity of 200 l/s compressing air at 20 °C with a relative humidity of 80 per cent injects 10 litres of water per hour into the compressed air line.

To avoid this, it is necessary to dry and filter the compressed air, especially in machines that produce air over long periods of time. This process will allow the production of better quality compressed air without any kind of residue, but above all it will prevent the formation of condensation inside the tank itself and the occurrence of steam damage.

The process of drying, or cooling, compressed air allows large quantities of water to condense and subsequently separate. The air after this process is reheated, thus preventing condensation inside the tank. In addition, this heat exchange between the incoming and outgoing air also reduces the cooling capacity required by the circuit.

Using a compressor without a dryer can cause various problems to the system or connected equipment, such as:

Corrosion of the equipment and piping system;
Damage to the pneumatic controls, with the possibility of safety shutdowns;
Need for continuous and excessive maintenance.
Possibility of icing up when working at low temperatures;
Quality problems due to discolouration with regard to paint adhesion;

The compressor has a three-phase electric motor. The induction motor is characterised by its very long service life (it is almost eternal) and low maintenance requirements.

This motor is in fact brushless, the main component subject to wear in electric motors. It is precisely the absence of this component that gives the engine its proverbial durability. It is to be considered the top in reliability, quietness, durability, energy efficiency and maintenance.

The compressor is connected via a geared motor to the pumping unit

• Type: Three-phase electric
• Voltage: 400 V
• Power: 5 Hp
• Frequency: 50 HZ

The compressor is equipped with an electronic board that manages, optimises and monitors all phases of operation. Thanks to effective run/stop control, fuel consumption is also reduced.

Reading the data is simple and straightforward:

• Pressure;
• Hour meter by load and no-load running time;

Other features include:

Outlet valve

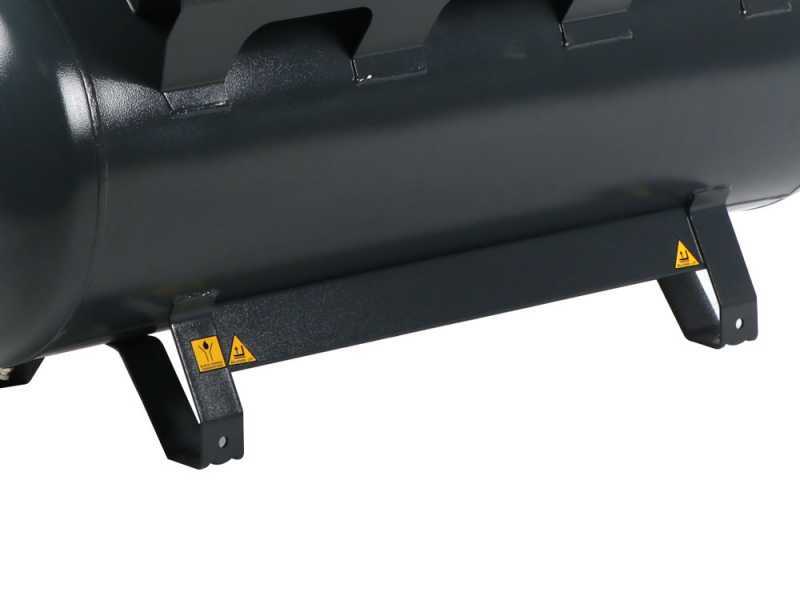

270 L tank

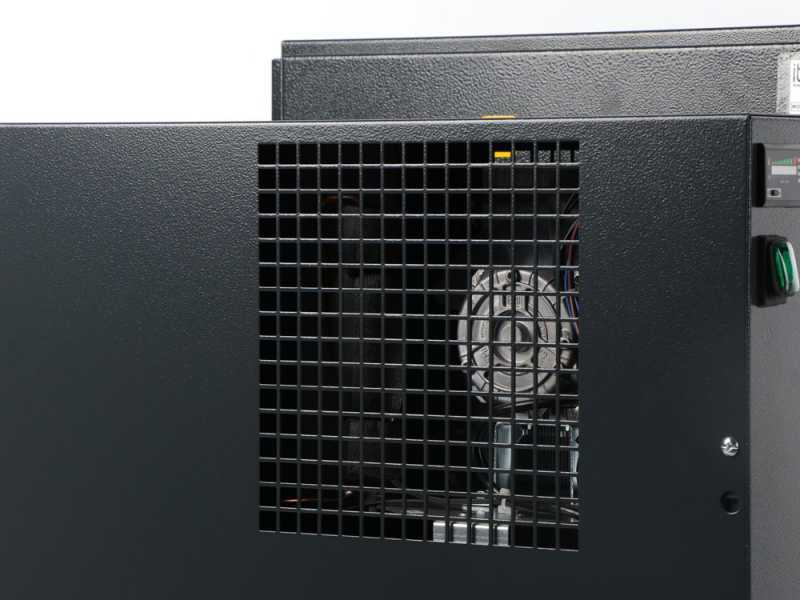

Cooling fan

Dashboard

Lifting point.

Recommendations for use

To ensure maximum durability and efficiency of the machine, the following instructions must be strictly observed. Failure to do so constitutes improper use, with a serious risk of damage to the product (such damage is not covered by the warranty).

• Tank maintenance and condensate drainage: Moisture contained in the intake air accumulates as condensate at the bottom of the tank, due to the thermal processes generated during compression. Drain the condensate after each use by operating the lower drain valve, turning it carefully to avoid sudden discharges of compressed air and liquid. Failure to carry out this maintenance task may lead to internal corrosion of the tank. Furthermore, condensate accumulation reduces the effective air volume, causing abnormal motor restart cycles and the transfer of impurities to connected tools, with the resulting risk of premature damage to the entire system.
• Suitability of extension leads: Do not use unsuitable extension leads. Given the  high motor power, it is essential to ensure a constant power supply. Undersized cabling causes voltage drops that prevent the motor from reaching the correct speed, leading to abnormal overheating and permanent damage to electrical components. Use only cables with a minimum cross-section of 2.5 mm². This cross-section is necessary to handle the high current absorption, especially during start-up.

Unwind the extension lead completely before use. Never use the machine if the power cable is partially coiled or bunched up. Heat build-up due to induction can melt the cable and cause serious electrical damage to the motor or a fire hazard.

• Operating position:  The air compressor must only be installed in environments free from humidity, preferably in dry locations that are fully protected from weather exposure and potential water splashes. Adequate ventilation must be ensured by maintaining a clearance of at least 50 cm between the machine and any wall or obstacle, in order to allow for proper air circulation and effective heat dissipation. The installation area must also guarantee a high level of air cleanliness and be free from dust, fumes, chemical vapours, or flammable gases. Failure to comply with these requirements exposes the product to the following risks:

1. Critical overheating: insufficient ventilation or installation in confined spaces impairs the cooling of the motor and pump assembly, resulting in reduced service life.
2. Safety risks: the presence of volatile or flammable substances may compromise the structural integrity of the machine or the safety of the operator.

• Obstruction of cooling and ventilation systems:  During machine operation, the air compressor must not be covered with sheets, boxes or makeshift casings, as such barriers prevent the air flow required for cooling the internal components. Blocking the ventilation slots causes a rapid rise in operating temperature, with the consequent risk of irreversible damage to the motor and the seals of the pumping unit. If protective covers are used during periods of inactivity, these must be completely removed before any start-up attempt to ensure the full efficiency of the heat dissipation system, thus preventing critical overheating.
• Power supply and connections suitability: The air compressor must be connected exclusively to an electrical socket rated for the motor’s nominal power. Avoid using unsuitable sockets or connections located too far from the main electrical system. Failure to comply with these requirements exposes the machine to insufficient voltage conditions, seriously compromising the start-up phase, causing start-up difficulties, abnormal stresses and the sudden tripping of protective devices (circuit breakers or residual-current devices).
• Shutdown procedure and static pressure management: It is recommended not to leave the tank pressurised during periods of inactivity. After switching off (OFF position), the residual pressure must be released and the drain valve opened, leaving the tank empty in order to promote the evaporation of internal moisture. Maintaining constant pressure, in fact, promotes condensation build-up and accelerates the deterioration of pneumatic components, such as diaphragms and valves, drastically reducing the overall reliability of the system and its operational life.

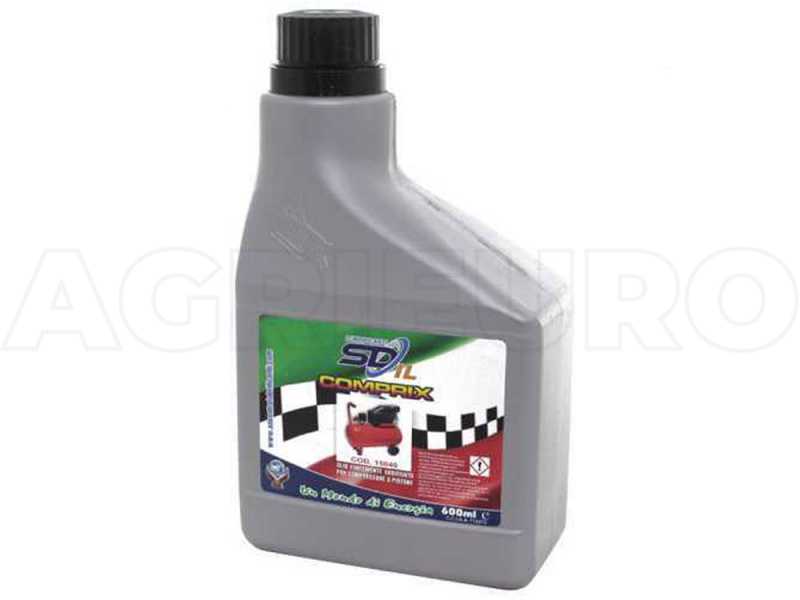

• Checking the oil level: Before each use, check the oil level in the pumping unit. The level must fall within the range indicated by the oil level indicator or the dipstick, if fitted. Do not operate the air compressor if the oil level is too low, too high or if the oil is contaminated. An insufficient oil level can cause overheating, accelerated wear, seizure of the pumping unit and damage not covered by the warranty. An excessive oil level can cause leaks, oil leakage and oil carry-over into the compressed air circuit.

Operating position: Use the air compressor exclusively in a vertical position, on a flat and stable surface. Use on sloping surfaces may compromise the correct lubrication of the pumping unit.
