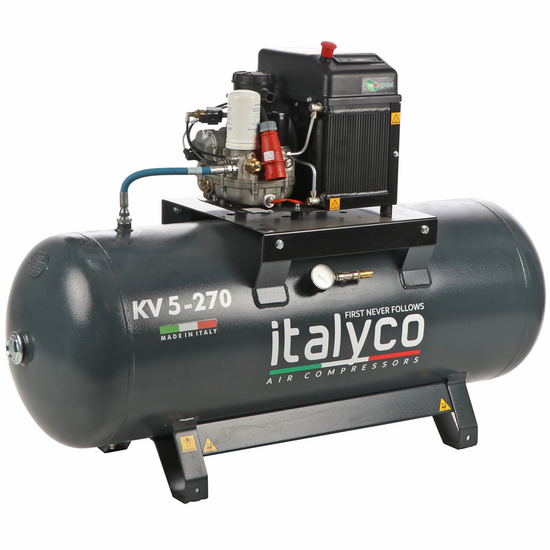

Italyco KV 5/270 - Rotary Screw Compressor - Max. pressure 10 bar

Add a question
ID: K607978

EAN: 8055773345010

MPN: V270SC507R001

Italyco KV 5/270 - Rotary Screw Compressor - Max. pressure 10 bar
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
Universal cover for storageUniversal cover for storage
Air compressor tank
270 L
Max. operating pressure
10 bar
Air intake flow
360 L/min
Pumping unit
Screw
Cylinder head rpm
2840 RPM
Silenced
Yes
Nominal power
4.7 HP
Operating mode
Three-phase 400 V
Manufacturing country
Italy
Product Features
Model:
KV 5/270
Air compressor type 2:
Screw
Air compressor type:
Horizontal
Operating mode:
Three-phase 400 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
270 L
Noise level:
69 dB(A)
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Nominal power:
4.7 HP
Silenced:
Yes
Power supply:
400 V electric
Pump data
Pump brand:
Italyco
Air intake flow:
360 L/min
Pumping unit:
Screw
Transmission data
Screw:
Cylinder head rpm:
2840 RPM
Equipment
No. of outlet couplings:
1
Free gifts/extra features
Wooden pallet (safe shipping):
Yes

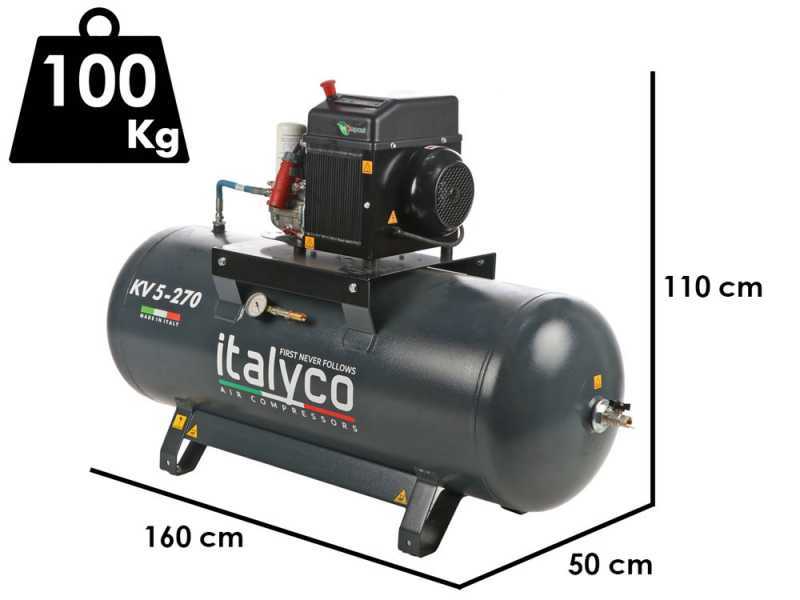

Dimensions and logistics
Product dimensions in cm (L x W x H):
160x50x110 cm
Net weight:
100 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
155x75x180 cm
Weight including packaging:
110 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 16/05/2025 - 20/05/2025
€ 3.489,73
Vat included
You're viewing:
Customers also viewed:
Description

Italyco KV 5/270 - Rotary Screw Compressor - Max. pressure 10 bar

The Italyco KV 5/270 screw compressor is an excellent product for professionals and companies looking for high-quality air compression solutions.

This model stands out for its outstanding performance. It offers efficiency with significant noise reduction, staying below 69 db(A), an essential parameter for working environments where peace and quiet is crucial.

Equipped with the ability to deliver constant, impurity-free compressed air, this compressor is indispensable in areas where air purity is critical.

Its cutting-edge design makes it suitable for a wide range of industrial applications, providing superior quality air, essential for processes requiring conditions of utmost purity.

The innovative design of this model ensures efficient and reliable operation. Through an optimised suction and compression mechanism, the result of meticulous rotor design, the compressor ensures a gradual increase in pressure.

This process enables the continuous supply of excellent quality compressed air, meeting the requirements of the most stringent industry standards.

With a 270-litre tank and a production capacity of 360 litres of air per minute, the KV 5/270 offers a power output of 3.5 kW and achieves a maximum pressure of 10 bar, making it ideal for heavy-duty industrial applications where operational continuity is essential.

This compressor is also characterised by its versatility and ease of maintenance, features that facilitate its integration in various working environments, including machine shops and diverse industries.

Designed for uninterrupted operation, it reduces the need for cooling pauses and, thanks to its intuitive design, simplifies maintenance operations, enabling fast and efficient servicing.

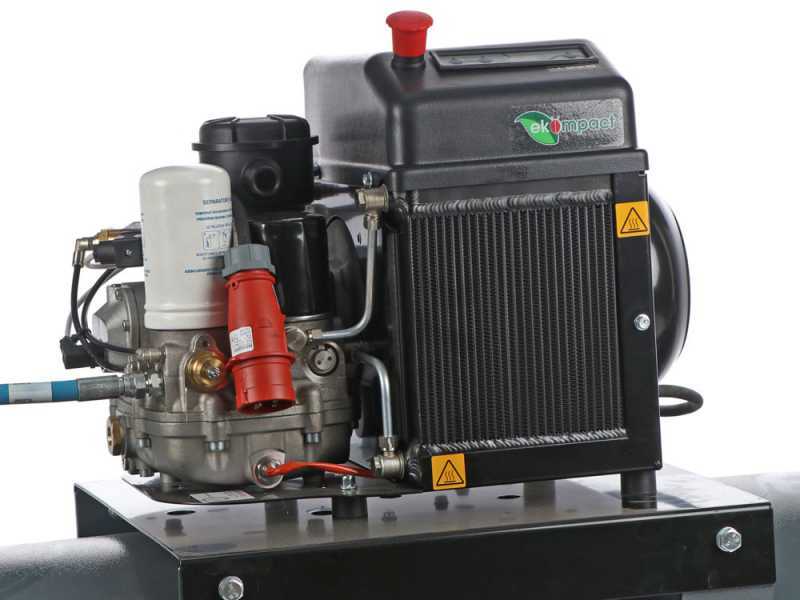

Main Features of the Screw Unit

The screw compressors are particularly suitable for those industries that require a greater air flow rate and longer operating times. Unlike piston models, they do not require a rest period, but only an initial phase during which the compressor must reach a suitable temperature to be able to deliver the maximum pressure and flow.

The new screw unit in the range ensures high efficiency and reliability. These models feature a single-stage, fluid-injected, cooled compressor unit, designed for greater accessibility during maintenance operations. The components subject to wear have been reduced to allow maintenance to be carried out in total autonomy and avoid interventions that could pointlessly damage the machine.

The screw unit and electric motor are fixed on an anti-vibration base that tends to eliminate the transmission of vibrations to the compressor structure, thus considerably reducing noise and mechanical stress on the fixed parts of the machine.

Sound emission level: 69 db

Motor Technical Features

The compressor features a three-phase electric motor. The induction motor is characterised by a very long service life (almost eternal) and low maintenance requirements.

This motor is in fact brushless, the main component subject to wear in electric motors. It is exactly the absence of this component that gives the engine its proverbial durability. It’s a top product for reliability, low noise, durability, energy efficiency and maintenance.

The compressor is connected to the pumping unit via a gear motor

  • Type: Three-phase electric
  • Voltage: 400 V
  • Power: 4.7 Hp
  • Frequency: 50 HZ

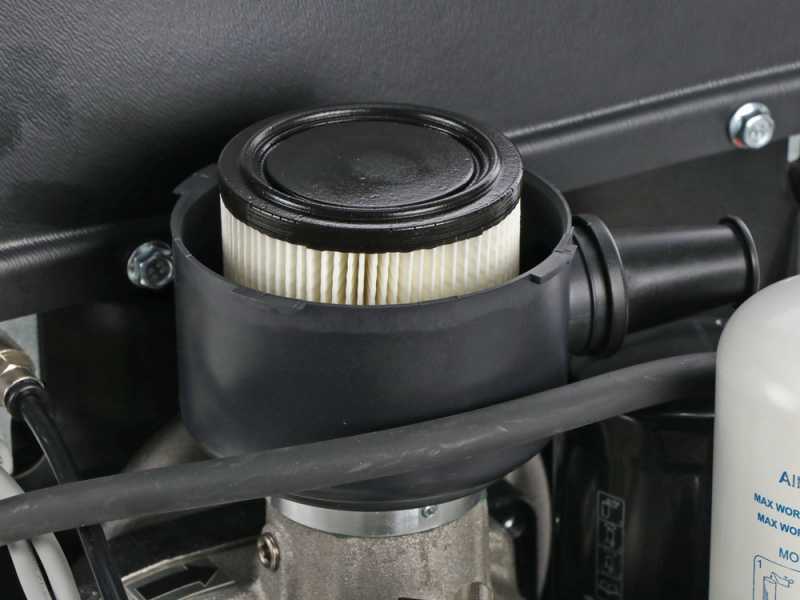

Focus on the air filter.

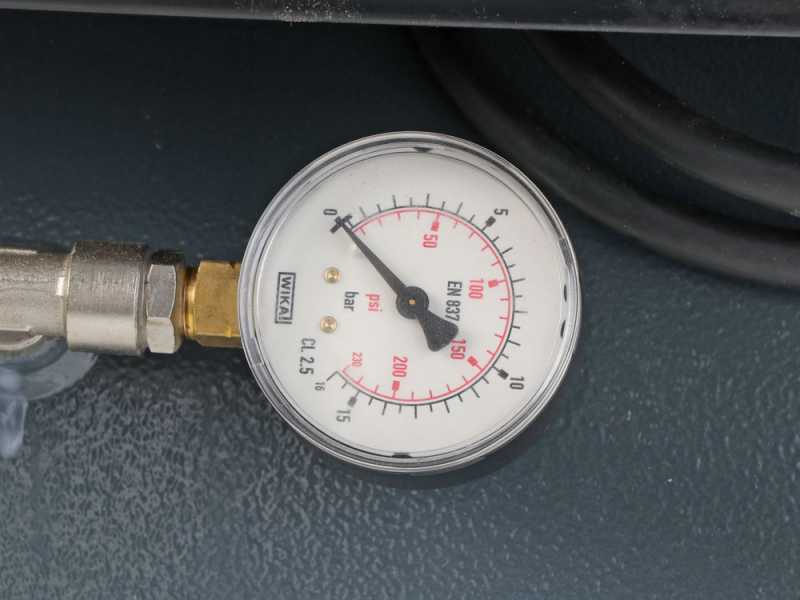

Controls and Adjustments

The compressor controls are simple and intuitive:

- Outlet connection;

- Main switch;

- Emergency switch;

- Pressure gauge;

- Pressure regulator.

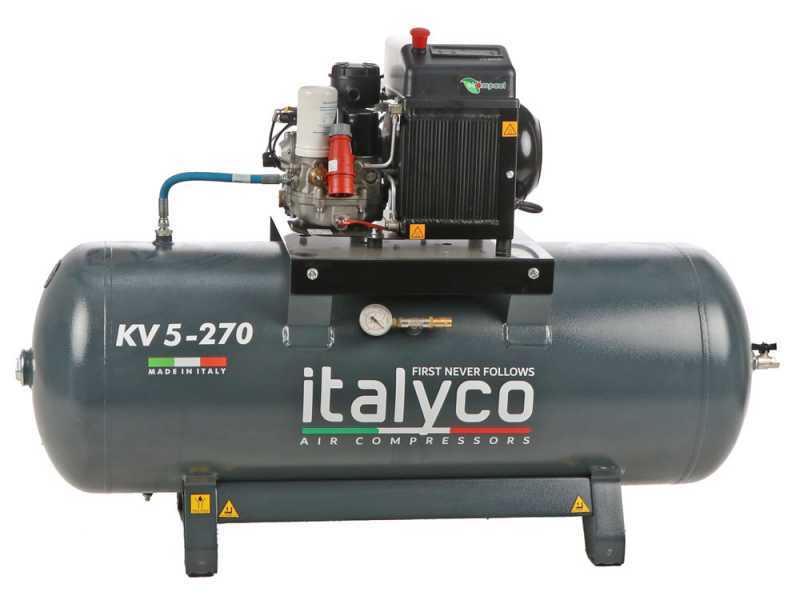

Other Features

Other features include:

Outlet valve;

270 L tank;

Dashboard;

Oil check;

Lifting point.

Free items & Standard equipment

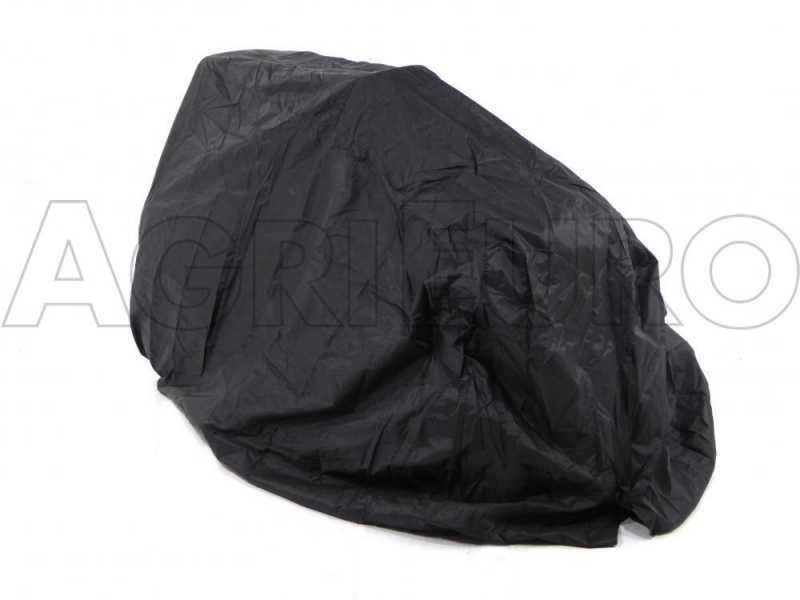

COMPLIMENTARYProfessional cover and XXL storage

It is essential for protecting your riding-on mower when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

It is equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the riding-on mower.

It is provided with a ventilation system.

Easy to fold and store in its box, it is really space-saving!

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

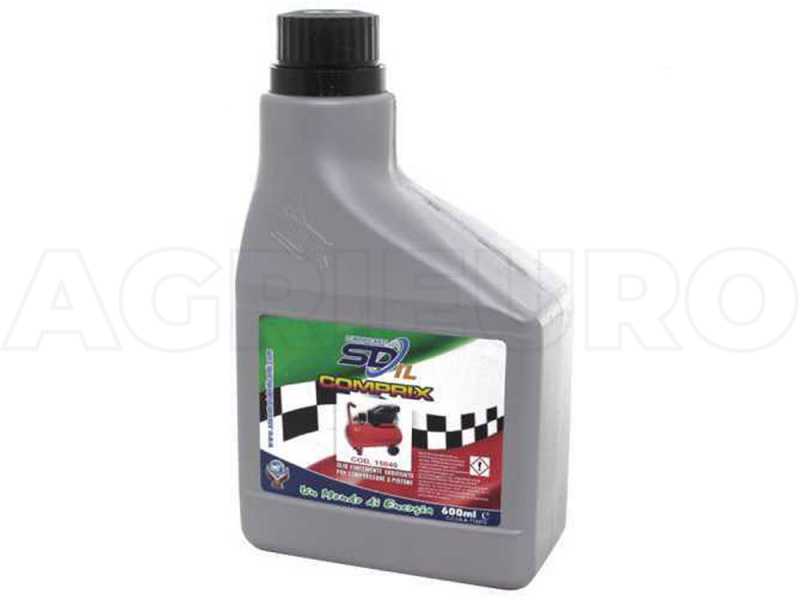

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

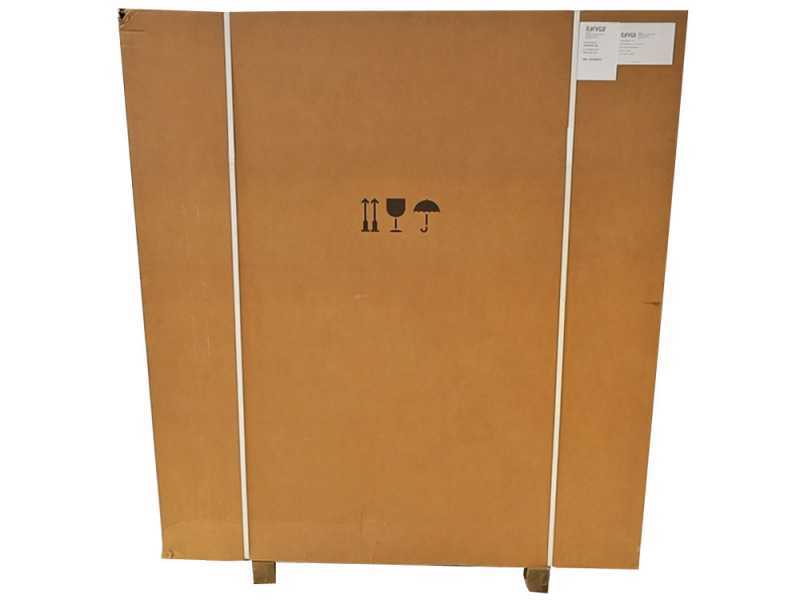

Standard Equipment

The air compressor is shipped in its original packaging on a pallet.

Instructions manual included in the package.
