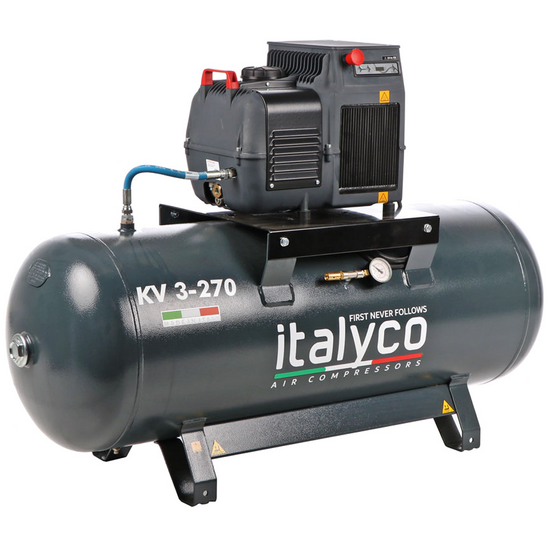

Italyco KV 3/270 - Rotary screw compressor - Max. pressure 10 bar

The Italyco KV 3/270 Screw Compressor is an excellent choice for those looking for high quality solutions in the compressor market. Part of the prestigious Italyco range, known for its rotary screw system, this model stands out for its superior performance, providing unrivalled efficiency and a significant reduction in noise levels, not exceeding 65 dB(A).

Exceptional Performance and Innovation: This compressor is designed to provide a constant, contamination-free flow of air, a key feature for applications requiring the highest air purity. This unit is perfectly suited to the needs of various industries, thanks to its ability to deliver the highest quality compressed air, ideal for processes that do not tolerate impurities.

Advanced Design for Efficient Operation: Thanks to its ingenious design, the compressor ensures efficient and reliable operation. The gas is sucked in and compressed in an optimal manner, the result of careful rotor design that allows a progressive increase in pressure.

This process ensures a constant supply of superior quality compressed air.

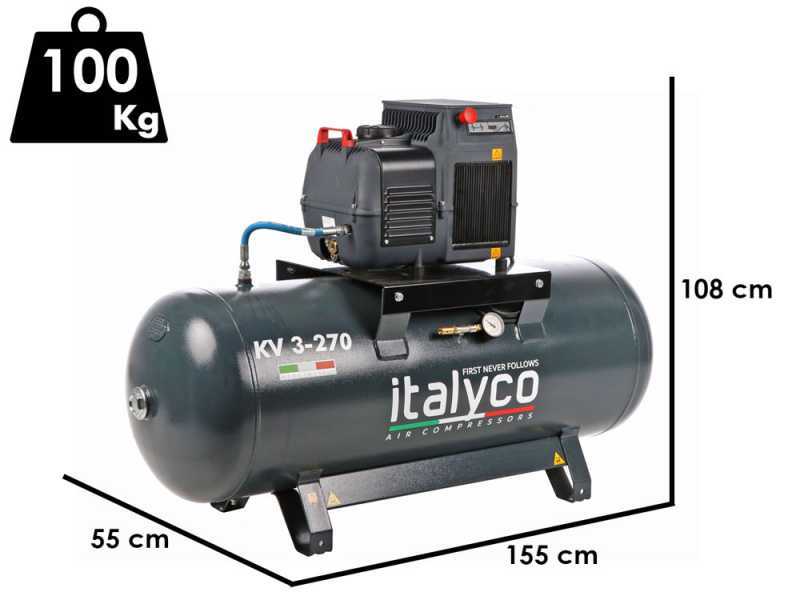

Capacity and Power for Industrial Needs: With a 270-litre tank and an output of 360 litres of air per minute, the KV 3/270 model offers an output of 2.7 kW and reaches a maximum pressure of 10 bar. These features make it ideal for intensive use in industrial settings, where business continuity is crucial.

Versatility and Ease of Maintenance: This compressor integrates perfectly into a variety of working environments, including machine shops and various industries, thanks to its ability to operate non-stop, eliminating the need for frequent breaks for cooling.

In addition, the intuitive design facilitates maintenance operations, allowing users to carry out quick and effective interventions, minimising downtime and maximising productivity.

The rotary-screw air compressors are particularly suitable for those environments that require a greater air flow rate and longer operating times. Unlike piston models, they do not require a rest period, but only an initial phase during which the air compressor must reach a suitable temperature to be able to deliver the maximum pressure and flow rate.

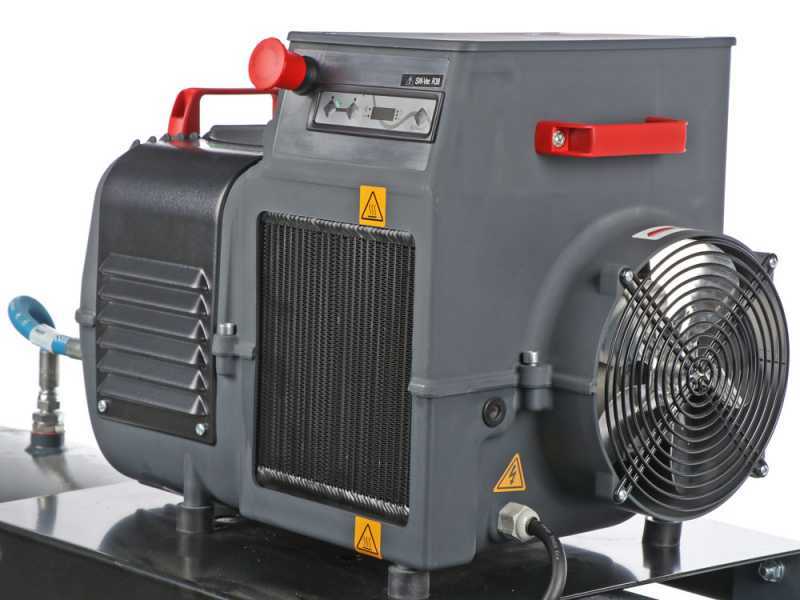

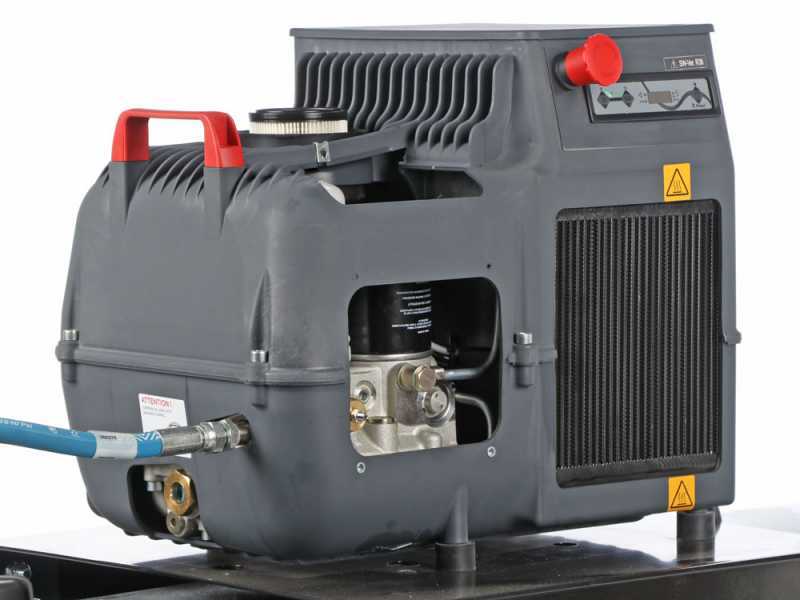

The new screw unit in the range guarantees high efficiency and reliability. These models feature a single-stage compression unit cooled by fluid injection, designed to achieve a greater accessibility during maintenance operations. The components subject to wear have been reduced to allow maintenance to be carried out in total autonomy and avoid unnecessary interventions that could damage the machine.

The screw unit and electric motor are fixed on an anti-vibration base that tends to eliminate the transmission of vibrations to the compressor structure, thus considerably reducing noise and mechanical stress on the fixed parts of the machine.

Sound emission level: 65 dB

The compressor has a single-phase electric motor. The induction motor is characterised by its very long service life (it is almost eternal) and low maintenance requirements.

This motor is in fact brushless, the main component subject to wear in electric motors. It is precisely the absence of this component that gives the engine its proverbial durability. It is to be considered the top in reliability, quietness, durability, energy efficiency and maintenance.

The compressor is connected via a geared motor to the pumping unit

• Type: Single-phase electric
• Voltage: 230 V
• Power: 3.6 Hp
• Frequency: 50 HZ

Air filter detail

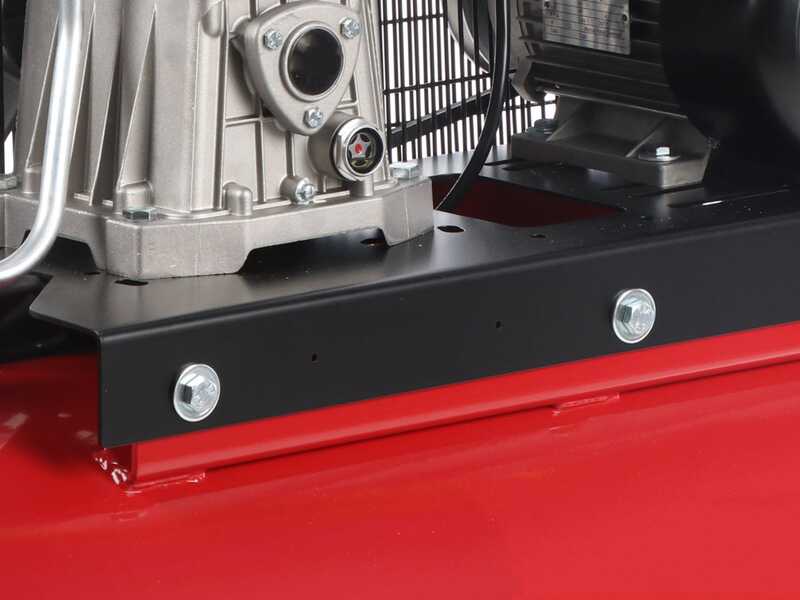

• Increased durability over time: the bolted mechanical joint helps prevent micro-cracks and structural failures that can affect welded joints when exposed to vibration or high pressures.
• Simplified maintenance: the connection can be disassembled swiftly, facilitating inspection, cleaning and replacement of parts.
• Improved operational stability: the bolted connection ensures a stronger and more durable coupling, particularly beneficial for compressors subjected to heavy-duty use.

The compressor controls are simple and intuitive:

- Outlet connection;

- Main switch;

- Emergency switch;

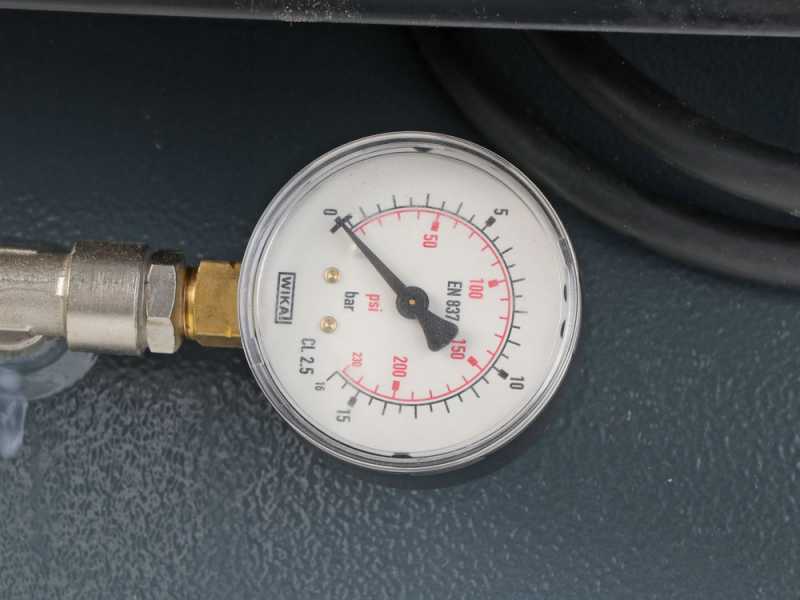

- Pressure gauge

- Pressure regulator.

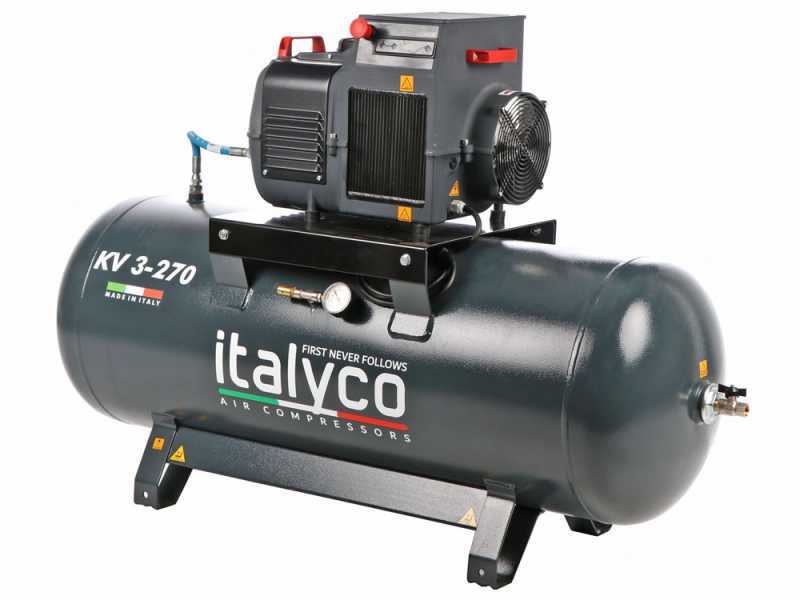

Other features include:

Outlet valve

270-litre tank

Cooling fan

Control panel.

Oil check.

Lifting point.

Recommendations for use

To ensure maximum durability and efficiency of the machine, the following instructions must be strictly observed. Failure to do so constitutes improper use, with a serious risk of damage to the product (such damage is not covered by the warranty).

• Tank maintenance and condensate drainage: Moisture contained in the intake air accumulates as condensate at the bottom of the tank, due to the thermal processes generated during compression. Drain the condensate after each use by operating the lower drain valve, turning it carefully to avoid sudden discharges of compressed air and liquid. Failure to carry out this maintenance task may lead to internal corrosion of the tank. Furthermore, condensate accumulation reduces the effective air volume, causing abnormal motor restart cycles and the transfer of impurities to connected tools, with the resulting risk of premature damage to the entire system.
• Suitability of extension leads: Do not use unsuitable extension leads. Given the  high motor power, it is essential to ensure a constant power supply. Undersized cabling causes voltage drops that prevent the motor from reaching the correct speed, leading to abnormal overheating and permanent damage to electrical components. Use only cables with a minimum cross-section of 2.5 mm². This cross-section is necessary to handle the high current absorption, especially during start-up.

Unwind the extension lead completely before use. Never use the machine if the power cable is partially coiled or bunched up. Heat build-up due to induction can melt the cable and cause serious electrical damage to the motor or a fire hazard.

• Operating position:  The air compressor must only be installed in environments free from humidity, preferably in dry locations that are fully protected from weather exposure and potential water splashes. Adequate ventilation must be ensured by maintaining a clearance of at least 50 cm between the machine and any wall or obstacle, in order to allow for proper air circulation and effective heat dissipation. The installation area must also guarantee a high level of air cleanliness and be free from dust, fumes, chemical vapours, or flammable gases. Failure to comply with these requirements exposes the product to the following risks:

1. Critical overheating: insufficient ventilation or installation in confined spaces impairs the cooling of the motor and pump assembly, resulting in reduced service life.
2. Safety risks: the presence of volatile or flammable substances may compromise the structural integrity of the machine or the safety of the operator.

• Obstruction of cooling and ventilation systems:  During machine operation, the air compressor must not be covered with sheets, boxes or makeshift casings, as such barriers prevent the air flow required for cooling the internal components. Blocking the ventilation slots causes a rapid rise in operating temperature, with the consequent risk of irreversible damage to the motor and the seals of the pumping unit. If protective covers are used during periods of inactivity, these must be completely removed before any start-up attempt to ensure the full efficiency of the heat dissipation system, thus preventing critical overheating.
• Power supply and connections suitability: The air compressor must be connected exclusively to an electrical socket rated for the motor’s nominal power. Avoid using unsuitable sockets or connections located too far from the main electrical system. Failure to comply with these requirements exposes the machine to insufficient voltage conditions, seriously compromising the start-up phase, causing start-up difficulties, abnormal stresses and the sudden tripping of protective devices (circuit breakers or residual-current devices).
• Shutdown procedure and static pressure management: It is recommended not to leave the tank pressurised during periods of inactivity. After switching off (OFF position), the residual pressure must be released and the drain valve opened, leaving the tank empty in order to promote the evaporation of internal moisture. Maintaining constant pressure, in fact, promotes condensation build-up and accelerates the deterioration of pneumatic components, such as diaphragms and valves, drastically reducing the overall reliability of the system and its operational life.

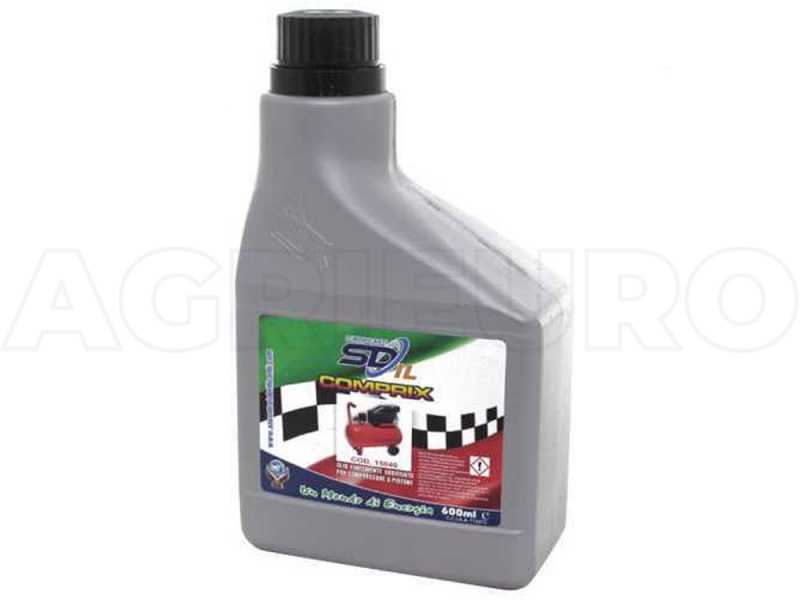

• Checking the oil level: Before each use, check the oil level in the pumping unit. The level must fall within the range indicated by the oil level indicator or the dipstick, if fitted. Do not operate the air compressor if the oil level is too low, too high or if the oil is contaminated. An insufficient oil level can cause overheating, accelerated wear, seizure of the pumping unit and damage not covered by the warranty. An excessive oil level can cause leaks, oil leakage and oil carry-over into the compressed air circuit.

Operating position: Use the air compressor exclusively in a vertical position, on a flat and stable surface. Use on sloping surfaces may compromise the correct lubrication of the pumping unit.
