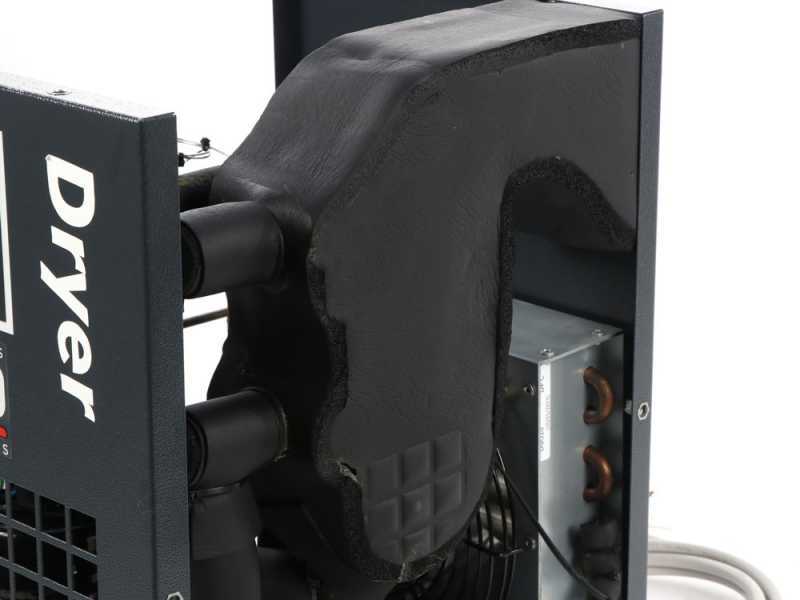

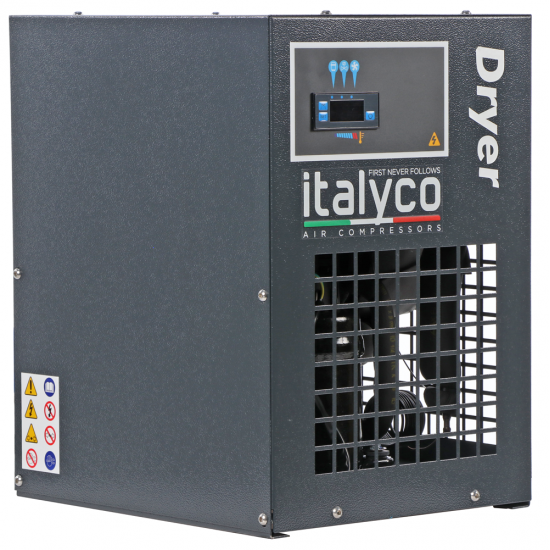

The Italyco K500 refrigeration cycle dryer is an advanced solution for filtering and drying the compressed air produced by compressors.
This dryer is an excellent choice in the field of air treatment systems, being one of the best devices available on the market. With an outstanding drying capacity of 500 litres per minute, this model stands out for its efficiency and reliability, making it ideal for industrial applications requiring high performance.
This process is essential to ensure that the compressed air is of high quality, free of residue, and to prevent the formation of condensation inside the tank, thus protecting the machines from damage caused by steam.
Compressed air that is sucked in by compressors contains gases, water vapour and solid contaminants. Without a proper treatment system, these contaminants can damage machines. Moisture, which increases with temperature, can accumulate and cause problems for both the compressor and the connected equipment. For example, a compressor operating at 7 bar and with a capacity of 200 l/s, at 20 °C with 80% relative humidity, can introduce up to 10 litres of water per hour into the compressed air line.
The drying process of the Italyco K500 allows large quantities of water to be condensed and separated from the air. After this treatment, the air is heated, preventing condensation in the tank. This heat exchange between the incoming and outgoing air also reduces the energy requirements for cooling the system.
Using a compressor without a proper drying system can lead to various problems, including:
- Corrosion of equipment and piping system;
- Damage to pneumatic controls, with risk of safety shutdowns;
- Need for continuos and excessive maintenance;
- Ice formation in cold conditions;
- Quality problems, such as discolouration in paint adhesion.
Technical characteristics of the Italyco K500:
- Drying capacity: 500 litres per minute;
- Power supply: Single-phase, 230V;
- Maximum supported ambient temperature: 50°C.
