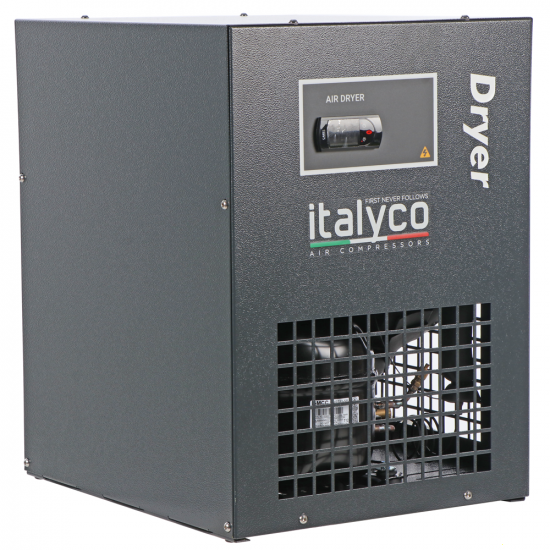

The Italyco K2500 dryer offers an advanced solution for the treatment of compressed air produced by compressors. This model is characterised by its drying capacity of 2500 litres per minute, combining efficiency and reliability. It is ideal for industrial applications requiring high performance.
The Italyco K2500 dryer is designed to ensure that the compressed air is of high quality and free of impurities, thus preventing the formation of condensation inside the tanks and protecting the machines from potential damage caused by moisture and steam.
The air sucked in by the compressors contains gases, water vapour and solid contaminants; without an effective treatment system, these can compromise the functionality of the machines. Moisture in the air, which tends to increase with temperature, can condense, causing damage to both the compressor and connected equipment. For example, a compressor operating at 7 bar and a capacity of 200 l/s, under conditions of 20 °C and 80% relative humidity, can introduce up to 10 litres of water per hour into the system.
The drying process of the Italyco K2500 allows large quantities of water to be effectively condensed and separated, thus reducing the risk of condensation in the tanks. In addition, the post-treatment air heating prevents further condensation, while the heat exchange between incoming and outgoing air optimises the system's energy consumption.
Using a compressor without a proper drying system can lead to various problems, including:
- Corrosion of the equipment and piping system;
- Damage to pneumatic controls, with the risk of safety shutdowns;
- need for continuos and excessive maintenance;
- Ice formation in cold conditions;
- Quality problems, such as discolouration in paint adhesion.
Technical characteristics of the Italyco K2500:
- Drying capacity: 2500 litres per minute;
- Power supply: Single-phase, 230V;
- Maximum supported ambient temperature: 50°C
