Inverter Electrode Welding Machine in direct current DC GREENBAY GB-WM 200J - 200A - with MMA Kit

Inverter Electrode Welding Machine in direct current DC GREENBAY GB-WM 200J - 200A - with MMA Kit
Special offer
type
Inverter MMA
MMA usable electrodes
40°C service
60 %
Welding current range (A)
20 - 200
Liquid crystals display
Yes
FREE:
Pack of 160 Soges Electrodes 2.0 mm Included!
Pack of 50 Soges ELctrodes 2.5 mm Included!
GeoTech Welding gloves provided on standard equipment!
FREE:
Pack of 160 Soges Electrodes 2.0 mm Included!
Pack of 50 Soges ELctrodes 2.5 mm Included!
GeoTech Welding gloves provided on standard equipment!
€ 171,19
-20 %
€ 136,95
VAT Included
Prompt Delivery
196 items in stock
|
Free Shipping
You should receive it by 03/11/2021
ID: K603015

EAN: 8054141542693

MPN: 107463

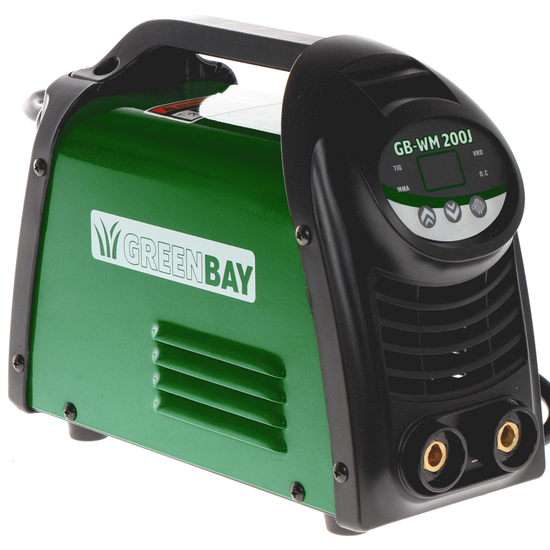

GREENBAY GB-WM 200J welding equipment

The GREENBAY GB-WM 200J is an excellent, compact and powerful welder. Full of options and functionalities, this welding equipment represents a valid alternative for anyone who needs to get high performance with a great value for money. Exceptional welder for any demanding hobbyist.

The GREENBAY GB-WM 200J welder guarantees high stability of the welding current in case of variations in the power voltage.
Hot Start and Arc Force: improved performance of arc welding and welding seam.
Anti-Stick: system that eliminates the problem of the electrode sticking.

Exceptional welder for any hobbyist. The exclusive requirement of a standard domestic plug (230V) and handle make it one of the most versatile and user-friendly welders on the market.

In addition to the high technical performance, this product is also characterized by a modern and sophisticated design. Extremely helpful voltage regulator and digital display.

The Inverter technology of the GREENBAY GB-WM 200J welder allows the Operator to use this welding machine with ease and high safely, thanks to its absorption stability. In addition, the VRD mode, also known as the "ANTI-SHOCK" function, reduces the open-circuit voltage to a safe level (not exceeding 20V), which is very useful when welding in damp environments,. This option reduces the risk to the Operator. If the VRD function is disabled, the no-load voltage of the welder reaches 60V.

The lift tig allows you to use this welding machine as a tig welder having the required accessories. It certainly cannot replace a dedicated tig welder, as it does not have specifications, but it can however satisfy the hobby user for some DIY activities. In addition, the lift tig function is certainly a greater value for money compared to a dedicated machine.

The GREENBAY GB-WM 200J welding machine requires electrodes with a diameter of 2.5 - 4.0 mm and guarantees a high duty or service cycle at 60% 200 A (this data is tested at 40° in compliance with current legislation). The technical specification of the duty cycle rated at 60% makes this welder a truly high-performance unit.
Usable electrodes: rutile, basic, stainless steel, cast iron, and many others.

Technical features

Certified quality

Power supply: 230 Volts

Maximum power absorption: 6.2 KW

Usable electrodes 2.5 - 4.0 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 60 Volts

Power: 20 - 180 A

Duty cycle at 40°: 60% at 180A

Functions:

Lift Tig

VRD (or Anti shock)

Hot start

Arc force

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time.

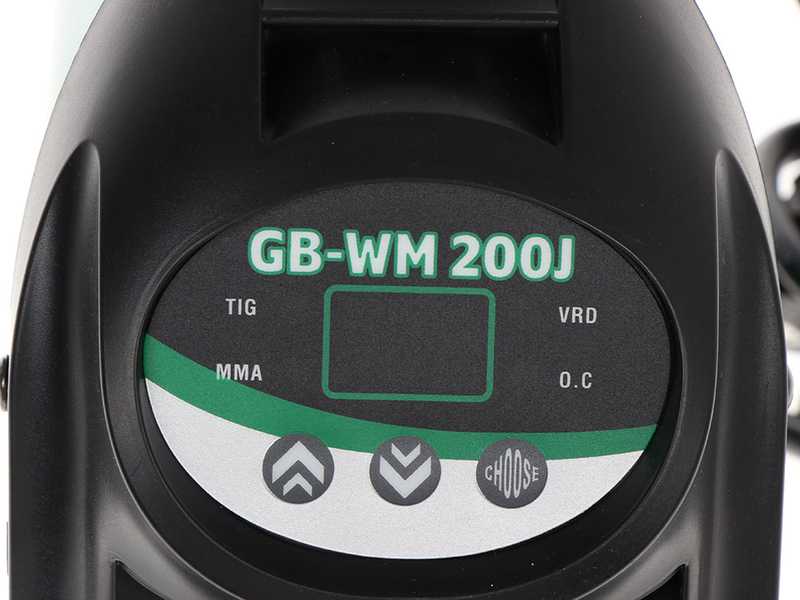

Digital display to show the working voltage

Power switch

Carrying handle

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

Product Features
Model:
GB-WM 200J
type:
Inverter MMA
Power:
electric, single-phase
MMA usable electrodes:
Open circuit voltage:
60 Volt
Installation power 220V:
7.1 KW
Max. required generator power:
10.7 KW
40°C service:
60 %
Duty Cycle 40°C:
60%@200A
Welding current range (A):
20 - 200
Motogenerator +/-30%:
no
Aluminium welding (optional):
No
Synergy function:
No
Manufacturing Country:
China
Equipment
Liquid crystals display:
Yes
Free gifts/extra features
Welding equipment:
With standard supplied accessories
Instructions manual:
yes
Dimensions and logistics

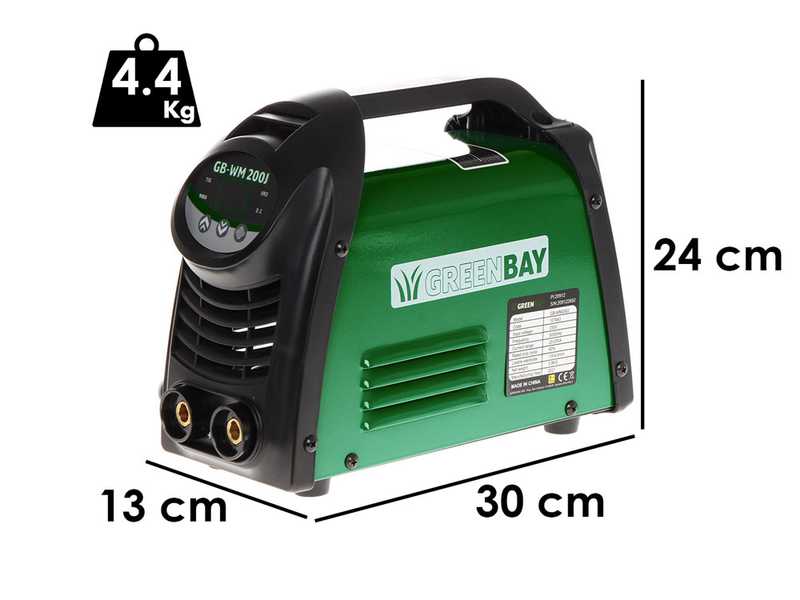

Product dimensions cm (LxWxH):
13x30x24 cm
Net weight:
4.4 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
22x34x28 cm
Gross weight (packaging incuded) :
4.9 Kg
Assembly time:
5 minutes

COMPLIMENTARY: 160 2.0 SOGES Electrodes + 50 2.5 SOGES Electrodes + Welding Gloves

Included in the price:

No. 210 SOGES ELECTRODES:

- Package of 160 SOGES rutile electrodes 2.0 mm

- Package of 50SOGES rutile electrodes 2.5mm

The best electrodes available on the market for quality and reliability, MADE IN ITALY.
SOGES is renowned as the best ITALIAN manufacturer of welding accessories.

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free items included

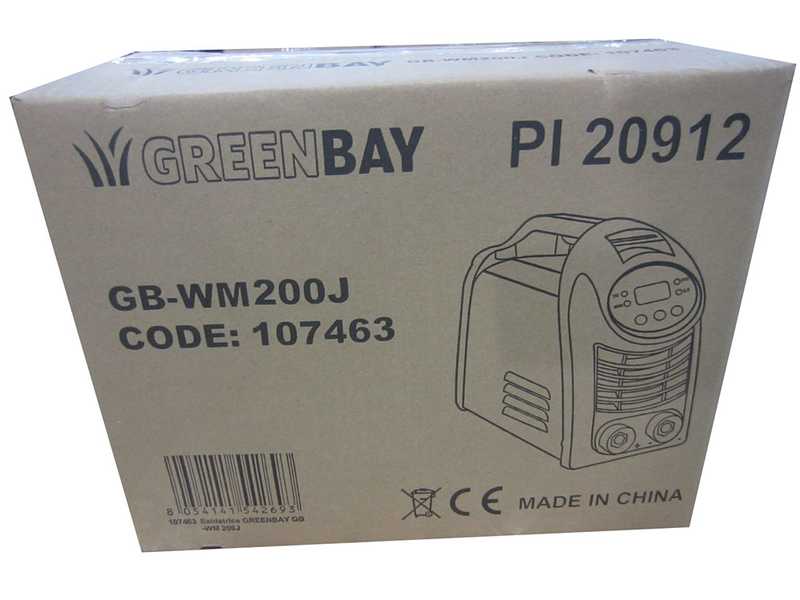

The product is shipped in its original packaging along with the instructions manual.

Wide range of accessories provided on standard equipment:

Power cable with 2 m Schuko socket

Earth clamp with 1.4 m power cable

Electrode holder with 1.6 m cable

Brush/Hammer for debris removal
