Inverter Electrode Welding Machine in direct current DC GREENBAY GB-WM 180J - 180A - with MMA Kit

Add a question
ID: K603014

EAN: 8054141542686

MPN: 107462

Inverter Electrode Welding Machine in direct current DC GREENBAY GB-WM 180J - 180A - with MMA Kit
Special offer
FREE
Pack of 250 2.0 mm AWS electrodesPack of 250 2.0 mm AWS electrodes
Pack of 150 AWS 2.5 mm electrodesPack of 150 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA
MMA electrode
Welding current range (A)
20 - 180
Open circuit voltage
60 Volt
Suitable MMA electrodes
2 - 4
40°C duty cycle
60 %
Generator +/- 15%
LCD display
Yes
Product Features
Model:
GB-WM 180J
Type:
Inverter MMA
MMA electrode:
Power supply:
Single-phase electric
Suitable MMA electrodes:
2 - 4
IP:
21S
Open circuit voltage:
60 Volt
220 V max absorbed power:
6.2 KW
Min. required generator power:
9.3 KW
40°C duty cycle:
60 %
40°C duty cycle:
60%@180A
Welding current range (A):
20 - 180
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
China
Equipment
LCD display:
Yes
Free gifts/extra features
Welding equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics

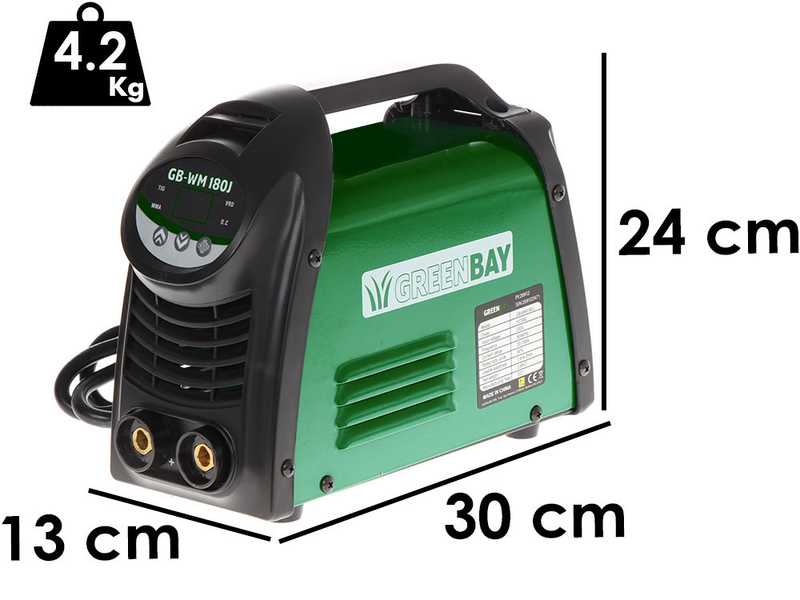

Product dimensions in cm (L x W x H):
13x30x24 cm
Net weight:
4.2 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
22x34x28 cm
Gross weight (packaging included) :
4.7 Kg
Assembly time:
5 minutes
Prompt Delivery
193 items in stock
Free Shipping
Estimated delivery: 08/04/2024 - 10/04/2024
Suggested price:
€ 189,22
-36 %
€ 121,10
VAT Included

You're viewing:
Customers also viewed:
Description

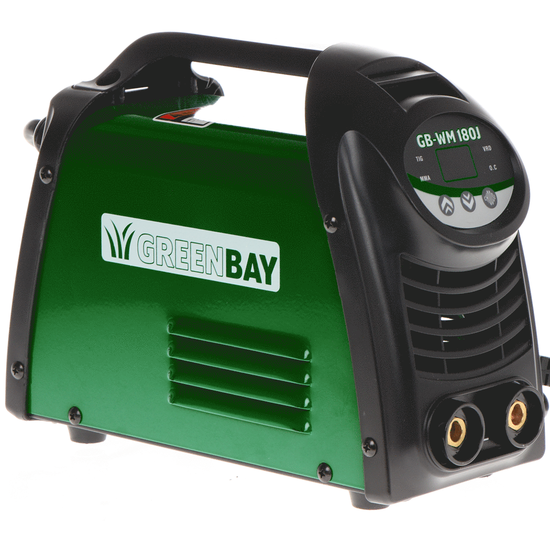

GREENBAY GB-WM 180J welding equipment

Exceptional welder for any hobbyist. The exclusive requirement of a standard domestic plug (230V) and handle make it one of the most versatile and user-friendly welders on the market.

In addition to the high technical performance, this product is also characterized by a modern and sophisticated design. Extremely helpful voltage regulator and digital display.

The GREENBAY GB-WM 180J welder guarantees high stability of the welding current in case of variations in the power voltage.
Hot Start and Arc Force: improved performance of arc welding and welding seam.
Anti-Stick: system that eliminates the problem of the electrode sticking.

The lift tig allows you to use this welding machine as a tig welder having the required accessories. It certainly cannot replace a dedicated tig welder, as it does not have specifications, but it can however satisfy the hobby user for some DIY activities. In addition, the lift tig function is certainly a greater value for money compared to a dedicated machine.

The Inverter technology of the GREENBAY GB-WM 180J welder allows the Operator to use this welding machine with ease and high safely, thanks to its absorption stability. In addition, the VRD mode, also known as the "ANTI-SHOCK" function, reduces the open-circuit voltage to a safe level (not exceeding 20V), which is very useful when welding in damp environments,. This option reduces the risk to the Operator. If the VRD function is disabled, the no-load voltage of the welder reaches 60V.

The GREENBAY GB-WM 180J welding machine requires electrodes with a diameter of 1.6 - 3.2 mm and guarantees a high duty or service cycle at 60% 180 A (this data is tested at 40° in compliance with current legislation). The technical specification of the duty cycle rated at 60% makes this welder a truly high-performance unit.
Usable electrodes: rutile, basic, stainless steel, cast iron, and many others.

The GREENBAY GB-WM 180J is an excellent, compact and powerful welder. Full of options and functionalities, this welding equipment represents a valid alternative for anyone who needs to get high performance with a great value for money. Exceptional welder for any demanding hobbyist.

Technical features

Certified quality

Power supply: 230 Volts

Maximum power absorption: 6.2 KW

Usable electrodes 2.5 - 4.0 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 60 Volts

Power: 20 - 180 A

Duty cycle at 40°: 60% at 180A

Functions:

Lift Tig

VRD (or Anti shock)

Hot start

Arc force

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time.


Digital display to show the working voltage

Power switch

Carrying handle

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

Free items & Standard equipment

COMPLIMENTARY: 250 2.0 AWS Electrodes + 150 2.5 AWS Electrodes + Welding Gloves

Free items included:

400 AWS ELECTRODES:

- Package of 250 AWS rutile electrodes, 2.0 mm

- Package of 150 AWS rutile electrodes, 2.5mm

Excellent electrodes, perfect for many types of welding.

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free items included

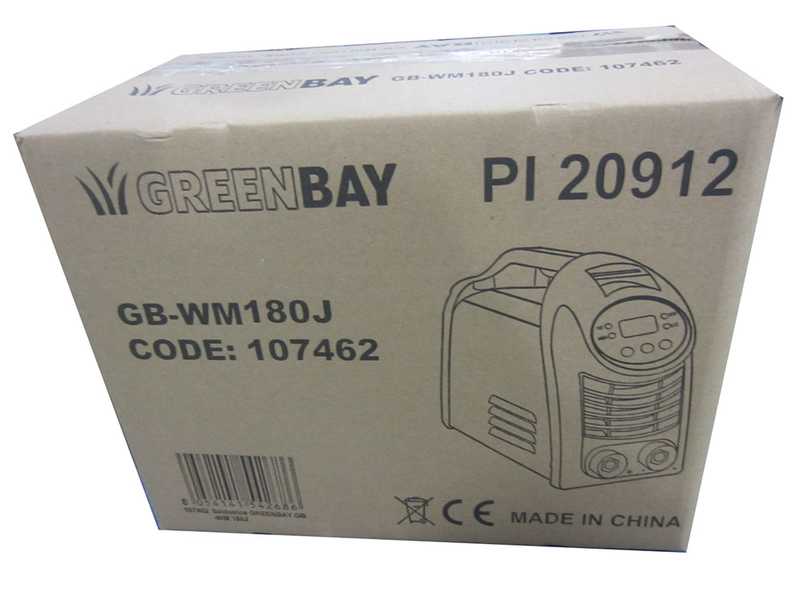

The product is shipped in its original packaging along with the instructions manual.

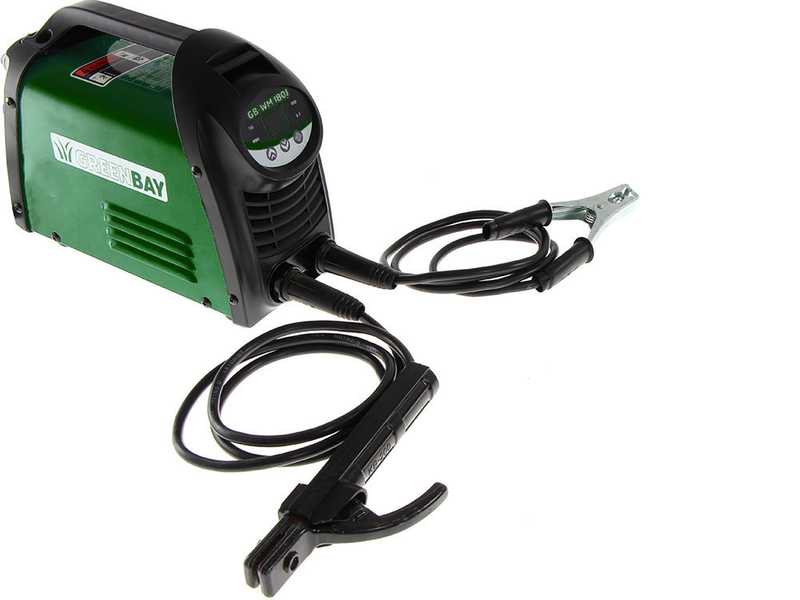

Wide range of accessories provided on standard equipment:

Power cable with 2 m Schuko socket

Earth clamp with 1.4 m power cable

Electrode holder with 1.6 m cable

Brush/Hammer for debris removal
