Inverter Electrode Welding Machine in direct current DC GeoTech WM-200 F - 200A - with MMA Kit

Inverter Electrode Welding Machine in direct current DC GeoTech WM-200 F - 200A - with MMA Kit
Special offer
type
Inverter MMA
MMA usable electrodes
1.6 - 4
40°C service
60 %
Welding current range (A)
20 - 200
Liquid crystals display
Yes
FREE:
Pack of 160 Soges Electrodes 2.0 mm Included!
Pack of 50 Soges ELctrodes 2.5 mm Included!
GeoTech Welding gloves provided on standard equipment!
FREE:
Pack of 160 Soges Electrodes 2.0 mm Included!
Pack of 50 Soges ELctrodes 2.5 mm Included!
GeoTech Welding gloves provided on standard equipment!
€ 202,82
-20 %
€ 162,26
VAT Included
Prompt Delivery
241 items in stock
|
Free Shipping
You should receive it by 27/10/2021
ID: K602987

EAN: 8054141542556

MPN: 107429

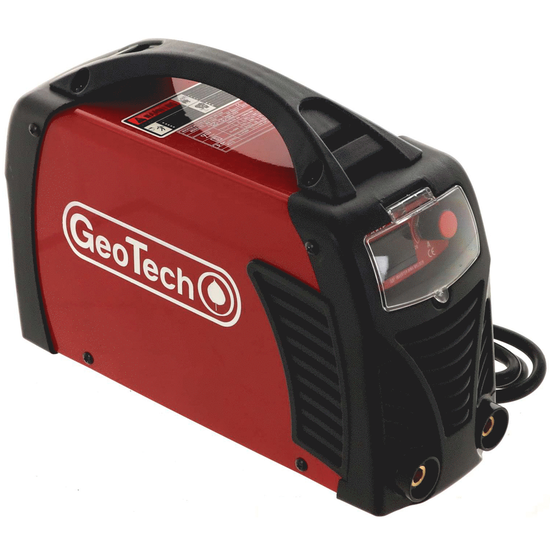

GeoTech WM-200 F welding equipment

The GeoTech WM-200 F welding machine is an excellent welder, intended for all hobbyists, who are looking for high-quality quality performance on DIY activities at a great value for money. Indeed, it stands out to be a practical, powerful and reliable inverter welding machine like all the others of this Series.

The ease of use of this welding machine also comes due to its overall size low weight that give it an exceptional manageability and handling. This welder mower works easily with the household electricity and mains, and it is equipped with a Schuko socket (German)

Practical and user-friendly machine with high quality-price ratio and a great value for money. Indeed, it has no rivals in terms of performance and price, which make it suitable for all DIY hobbyists. The inverter technology allows you to use this welder easily and safety thanks to its stability of absorption. Thus, the inverter technology also makes it safer with domestic power supply and very lightweight, weighing only 4.5 Kg.

This welder is equipped with carrying handle, which makes it very practical for transport. In addition to the high technical performance, this product is also characterized by a modern and sophisticated design, focusing the attention to each detail. Attention to details. Particularly, the aesthetical design of the clear panel that protects the digital display and the ammeter.

The GeoTech WM-200 F welding machine is equipped with important features like:
Hot Start and Arc Force: improved performance of arc welding and welding seam.
Anti-Stick: system that eliminates the problem of electrode sticking.

The GeoTech welding machine requires electrodes with a diameter of 1.6-4.0 mm and guarantees a high duty or service cycle at 60% 200 A (this data is tested at 40° in compliance with current legislation). The technical specification of the duty cycle rated at 60% makes this welder a truly high-performance unit.

Technical features

Certified quality

Power supply: 230 Volts

Maximum power absorption: 7.1 KW

Usable electrodes 1.6 - 4.0 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 60 Volts

Power: 20 - 200 A

Duty cycle at 40°: 60% at 200A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time.


Clear panel to protect the digital display and the voltage regulator.

Digital display to show the working voltage

Power switch

Carrying handle for easy transport

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

Product Features
Model:
WM-200 F
type:
Inverter MMA
Power:
electric, single-phase
MMA usable electrodes:
1.6 - 4
Open circuit voltage:
60 Volt
Installation power 220V:
7.1 KW
Max. required generator power:
10.7 KW
40°C service:
60 %
Duty Cycle 40°C:
60%@200A
Welding current range (A):
20 - 200
Motogenerator +/-30%:
no
Aluminium welding (optional):
No
Synergy function:
No
Manufacturing Country:
China
Equipment
Liquid crystals display:
Yes
Free gifts/extra features
Welding equipment:
With standard supplied accessories
Instructions manual:
yes
Dimensions and logistics

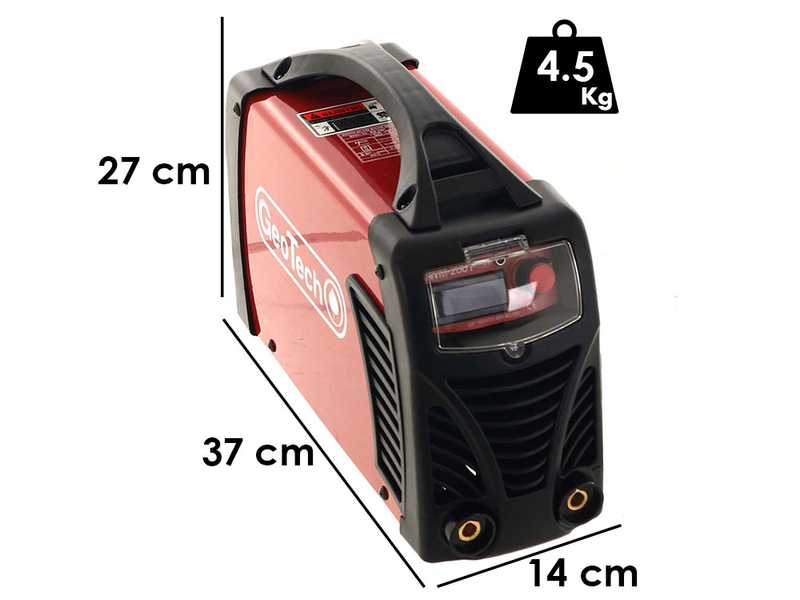

Product dimensions cm (LxWxH):
37x14x27 cm
Net weight:
4.5 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
41x29x23 cm
Gross weight (packaging incuded) :
6.2 Kg
Assembly time:
assembled

COMPLIMENTARY: 160 2.0 SOGES Electrodes + 50 2.5 SOGES Electrodes + Welding Gloves

Included in the price:

No. 210 SOGES ELECTRODES:

- Package of 160 SOGES rutile electrodes 2.0 mm

- Package of 50SOGES rutile electrodes 2.5mm

The best electrodes available on the market for quality and reliability, MADE IN ITALY.
SOGES is renowned as the best ITALIAN manufacturer of welding accessories.

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free items included

The product is shipped in its original packaging along with the instructions manual.

Wide range of accessories provided on standard equipment:

Earth clamp with 1.4 m power cable

Electrode holder with 1.6 m cable

Welding brush / hammer for debris removal
