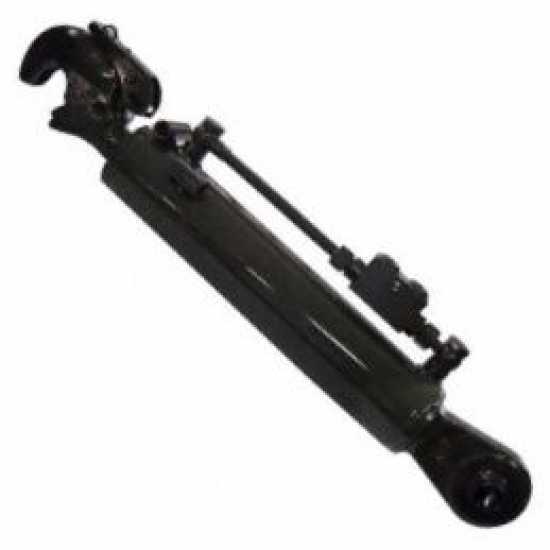

Hydraulic 3-point hitch for farm tractors with 25 mm rod ball joint hole diameter.
Axle spacing between the two ball joint holes when closed: 590 mm
3-point hitch with 3° category linkage
To use on tractors provided with a 25 mm diameter 3-point hitch
This is the fixed piston side, to be connected to the tractor side.
Outer piston diameter: 80 mm
This is the stroke side of the piston (to be connected on side of the machinery linked to the tractor)
Heavy-duty quick coupling with lever (for balls with 50 mm standard outer diameter)
Piston rod diameter: 40 mm
STROKE: 220 mm
Axle spacing between the two ball joint holes when opened: 810 mm
Focus on the hydraulic piston lock out valve
When piston is extended at the desired length and tractor controls are released, this valve blocks the piston giving it a high resistance to the particularly high traction.
