HELVI Puma 191 - Multiprocessing Inverter Welding Machine (MIG-MAG/MMA/TIG), Direct Current (DC)

Add a question
ID: K609281

EAN: 8056326742287

MPN: 99820065K

8,0/10
After-sales assistance & Spare parts
HELVI Puma 191 - Multiprocessing Inverter Welding Machine (MIG-MAG/MMA/TIG), Direct Current (DC)
Type
Multifunction inverter
MMA electrode
Sì
TIG
Sì
Gas / no gas wire (MIG-MAG)
Sì
Open circuit voltage
70 Volt
Suitable MMA electrodes
1.6 - 3.25
40°C duty cycle
20 %
Aluminium Welding (optional)
Standard
MMA Welding current range (A)
20 - 180
TIG Welding current range (A)
5 - 180
MIG welding current range
25 - 180
Generator +/- 15%
Sì
Synergic welding
Yes
Manufacturing country
Italy
Product Features
Model:
Puma 191
Type:
Multifunction inverter
MMA electrode:
Sì
TIG:
Sì
Gas / no gas wire (MIG-MAG):
Sì
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 3.25
IP:
22S
Open circuit voltage:
70 Volt
220 V max absorbed power:
3 KW
Min. required generator power:
5.5 KW
40°C duty cycle:
20 %
40°C duty cycle:
20%@180A(MIG/MMA/TIG)
MMA Welding current range (A):
20 - 180
TIG Welding current range (A):
5 - 180
MIG welding current range:
25 - 180
Suitable cored wire:
0.8
Suitable steel wire:
0.6 - 1.0
Suitable stainless steel wire:
0.6 - 1.0
Suitable aluminium wire:
0.8 - 1.0
Suitable CuSi 3- CuAI wire:
0.8 - 1.0
Wire welding type:
MIG - MAG
Generator +/- 15%:
Sì
Aluminium Welding (optional):
Standard
Synergic welding:
Yes
Manufacturing country:
Italy
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
77x46X66 cm
Net weight:
37 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
80x36x53 cm
Weight including packaging:
33 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 14/07/2025 - 16/07/2025
€ 1.012,84
Vat included

You're viewing:
Customers also viewed:
Description

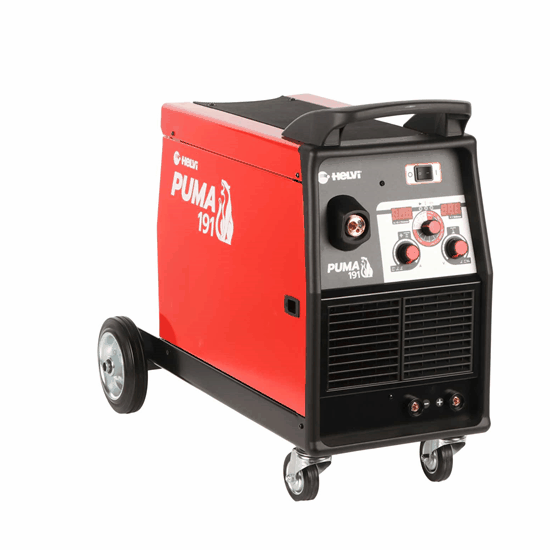

HELVI Puma 191 - Multiprocessing Inverter Welding Machine

The Helvi Puma 191 welding machine is a versatile and powerful machine designed to meet the needs of demanding professionals and hobbyists alike. This is a multiprocess inverter model that supports different welding modes including MIG/MAG, TIG and STICK, offering excellent performance in all situations. Thanks to the microprocessor control, it ensures exceptional arc stability and splash-free welding, ideal for high-precision work.

Featuring an intuitive front panel, it allows easy selection of functions and parameters via digital displays that display welding voltage and current. MIG mode allows for both manual welding and total synergy, providing a smooth and uninterrupted working experience. Distinctive features of this model include the adjustment of the motor ramp-up and the automatic wire pull, which ensure a soft arc ignition.

The Helvi Puma 191 welding machine is ideal for use in body shops, small carpentry and general maintenance work thanks to its simplicity, versatility and ability to adapt to different applications. The machine can use wire reels up to 300 mm in diameter and has an integrated cylinder holder, making it practical and functional.

Main features of Helvi Puma 191 welding machine :

  • Inverter technology: provides greater energy efficiency and welding stability.
  • MIG/MAG/TIG/STICK mode: versatility for all types of welding.
  • Microprocessor control: arc stability and precise, splash-free welding.
  • Digital displays: real-time monitoring of voltage, current and welding parameters.
  • Automatic wire pull: soft arc triggering.
  • Integrated cylinder holder: convenience and functionality for use with gas cylinders.
  • Compatibility with reels up to 300 mm: greater working autonomy.

Technical Specifications

General Data

  • Input voltage: 230V- 50 Hz/ 60 Hz
  • Insulation H
  • Protection rating: IP22S
  • Weight: 33 Kg

MIG:

  • Open circuit voltage: 70V
  • Min-max Amperes: 25 ÷ 180 A
  • Working cycle at 40°:
    • 180A at 20%
    • 105A at 60%
    • 75A at 100%
  • Steel 0.9 mm
  • Stainless Steel. 0.6÷ 0.8 mm
  • Aluminium 0.8÷ 1.0 mm
  • Animated wire: 0.8 mm

MMA:

  • Open circuit voltage: 70V
  • Min-max Amperes: 20 ÷ 180 A
  • Working cycle at 40°:
    • 180A at 20%
    • 105A at 60%
    • 75A at 100%
  • Electrode: Ø1,6 ÷ 3.25 mm
  • Electrode type: 6013–7018 - CrNi

TIG

  • Open circuit voltage: 70V
  • Min-max Amperes: 5 ÷ 180 A
  • Working cycle at 40°:
    • 18A at 20%
    • 105A at 60%
    • 75A at 100%

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a temperature of 40°C and when the source is at temperature, i.e. after working for a certain time. At lower temperatures or when the machine is cold, the welding cycle naturally increases.

Detail of the control panel, which contains 3 knobs for:

  • Weld type:
  • Weld arc width;
  • Amperage

It is also equipped with indicator lights that illuminate both the working status of the welder and the maximum temperature reached. In the latter case, the welder will run as a block thanks to the thermal protection until it cools down to become active again.

2 large wheels and 2 pivoting wheels for easy transport.

Detail of the handle.

Free items & Standard equipment

Standard Equipment

The product is shipped in its original packaging on a pallet.
