Helvi Galileo 219 - MMA and TIG inverter welding machine - 200A - MACHINE ONLY

Add a question
ID: K607451

EAN: 8056326741471

MPN: 99806009

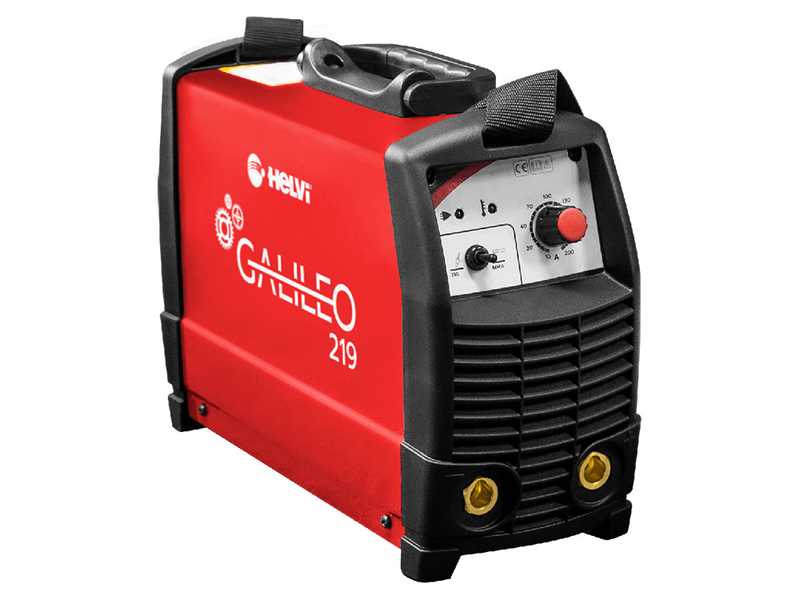

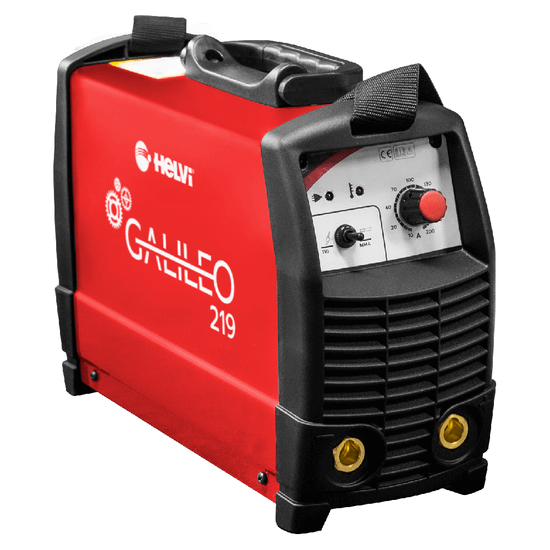

Helvi Galileo 219 - MMA and TIG inverter welding machine - 200A - MACHINE ONLY
Type
Inverter MMA + TIG
MMA electrode
TIG
Open circuit voltage
48 Volt
Suitable MMA electrodes
1.6 - 5
40°C duty cycle
60 %
MMA Welding current range (A)
10-200
Generator +/- 15%
TIG lift
Manufacturing country
Italy
Product Features
Model:
Galileo 219
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 5
IP:
23S
Open circuit voltage:
48 Volt
220 V max absorbed power:
6.71 KW
Min. required generator power:
8.2 KW
40°C duty cycle:
60 %
40°C duty cycle:
60%@200A
MMA Welding current range (A):
10-200
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Machine only + free items
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
140x36x25 cm
Net weight:
6.7 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
175x51x29 cm
Gross weight (packaging included) :
7.2 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
€ 457,69
VAT Included

You're viewing:
Customers also viewed:
Description

Helvi Galielo 219 - MMA and TIG inverter welding machine - 200A - MACHINE ONLY

Innovation and Performance with the HELVI Galileo 219

The HELVI Galileo 219 is an excellent machine in the world of MMA and TIG welding, proudly produced in Italy.

This inverter welder is a reliable partner for both professionals and trainees in the welding field.

Its design aims to meet the needs of various areas, distinguished by its extraordinary compactness and high-level capabilities. The Galileo 219 adapts perfectly to different types of work, proving to be an indispensable tool in various situations.

This machine offers unparalleled flexibility. Its safety and control features, such as over-voltage protection and electrode anti-attachment system, raise the quality standard of welding.

The Galileo 219 is designed to meet the challenges of the most demanding construction sites and intense maintenance tasks. Its ability to operate with generators and through extended connections makes it ideal for any work environment.

Technical Specifications:

  • Input voltage: 230V- 50 Hz/ 60 Hz
  • 60% power: 6 KW
  • No-load voltage: 48 V
  • Amperage range: 10 ÷ 200 A
  • Working cycle at 40 ° C: 200A at 60%, 155A at 100%
  • Electrode diameter: 1.6 to 5 mm
  • Insulation class: H
  • Protection level: IP23S
  • Size: 140x360x255 mm (machine), 175x510x290 mm (packaging)
  • Weight: 7.2 kg (with packaging), 6.7 kg (net)

The Galileo 219 is a striking example of how practical design and excellent performance can come together in a single product, ensuring portability and ease of use in different environments.

NOTE: The kit supplied includes only the welding machine, without clamp and electrode holder.

Technical features

Technical Specifications of the HELVI Galileo 219

  • Input voltage: 230V- 50 Hz/ 60 Hz
  • 60% power: 6 KW
  • No-load voltage: 48 V
  • Amperage range: 10 ÷ 200 A
  • Working cycle at 40 ° C: 200A at 60%, 155A at 100%
  • Electrode diameter: 1.6 to 5 mm
  • Compatible electrode types: 6013–7018
  • Insulation class: H
  • Protection level: IP23S

The HELVI Galileo 219 is an inverter welding machine designed for professional use in the field of MMA and TIG welding, offering high performance and great versatility in different work contexts.

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

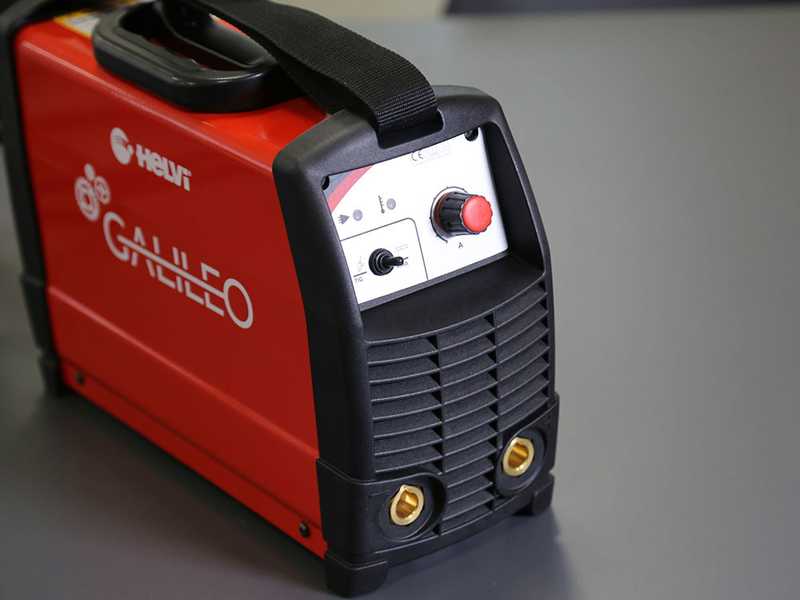

Power switch

Control panel with adjustable settings

Brass sockets

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding helmet

Heavy-duty welding helmet, new and innovative product. It is one of the most efficient welding helmets in this category. GeoTech CHARM-380S auto darkening welding helmet features unparalleled value for money. There are no other helmets with such technical features at this price on the whole market.

Light and comfortable, equipped with adjustment system to be comfortably worn via a knob on the back. Suitable for MMA, TIG and MIG-MAG welding. Its shape allows you to operate with your hands free, ensuring maximum safety and ease of use.

SAFETY The auto darkening welding helmet is suitable for most welding operations. This helmet automatically darkens in 1/25,000 seconds the very moment you start welding. No matter what shade the filter is set to, the UV/IR protection is always present.

SHADE ADJUSTMENT You can select the 9-13 shade according to the welding process. The helmet can also be used to protect yourself during grinding (DIN 4). Grinding mode prevents filter from auto darkening.


Viewing area: 92x42 mm
Filter cartridge size: 110x90 mm
Arc sensor: 2
UV/R protection: up to DIN 16 at all times
Clearer filter: DIN 4 (grinding)
Darker filter: Variable external shadow, DIN 9-13
Darkening (from light to dark): 1/25,000 S
Delay (dark to light): 0.1-1-0
Power supply: Solar cell and 2 CR2032 lithium batteries
TIG AMP: DC>10, AC>10

Free Items Included

The product is shipped in its original packaging

Included with the product, the customer will receive:

  • instruction manual
