Helvi Galileo 179 - MMA and TIG inverter welding machine - 160A - MACHINE ONLY

Add a question
ID: K607449

EAN: 8056326741464

MPN: 99806009

Helvi Galileo 179 - MMA and TIG inverter welding machine - 160A - MACHINE ONLY
FREE
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA + TIG
MMA electrode
TIG
Open circuit voltage
52 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
60 %
MMA Welding current range (A)
10-160
Generator +/- 15%
TIG lift
Manufacturing country
Italy
Product Features
Model:
Galileo 179
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 4
IP:
23S
Open circuit voltage:
52 Volt
220 V max absorbed power:
3.33 KW
Min. required generator power:
4.8 KW
40°C duty cycle:
60 %
40°C duty cycle:
60%@160A
MMA Welding current range (A):
10-160
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Machine only + free items
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
140x36x25 cm
Net weight:
6.2 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
175x51x29 cm
Gross weight (packaging included) :
6.7 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 386,99
VAT Included

You're viewing:
Customers also viewed:
Description

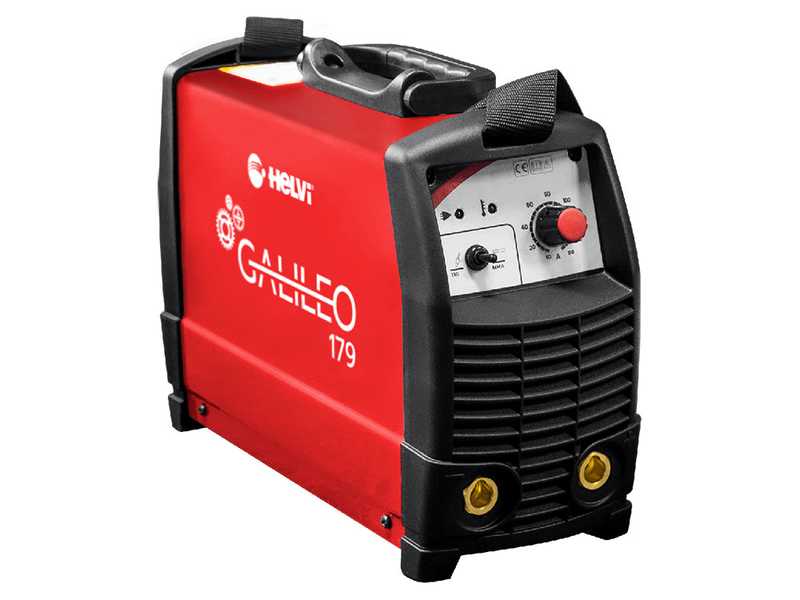

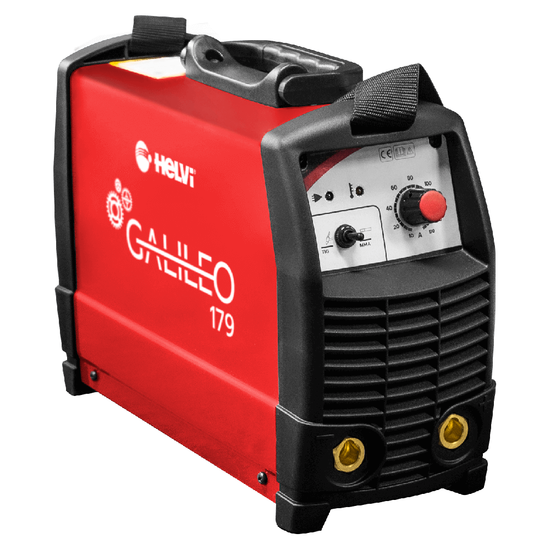

Helvi Galileo 179 - MMA and TIG inverter welding machine - 160A - MACHINE ONLY

The HELVI Galileo 179 inverter welding machine is an excellence in the field of MMA and TIG welding, proudly made in Italy.

This model is ideal for those looking for high-level performance, both for experienced users and beginners. Thanks to its compactness and efficiency, the HELVI Galileo 179 proves to be an optimal choice for a wide range of applications.

Featuring exceptional versatility, this inverter welder is compatible with all types of commercial electrodes (rutile, basic, stainless steel).

Its advanced functions include overvoltage, over-temperature and electrode anti-attachment control, ensuring superior welding quality. In addition, it is equipped with a STICK/TIG (lift arc) selector, further expanding its flexibility.

Designed for versatile use in demanding environments such as construction sites or for maintenance work, the Galileo 179 can be powered by generator sets or long connection lines, making it perfect for different work situations.

Its technical specifications are:

  • Input voltage: 230V- 50 Hz/ 60 Hz
  • 60% power: 4.8 KW
  • No-load voltage: 52 V
  • Min-max Amperes: 10 ÷ 160 A
  • Working cycle at 40°: 160A at 60%, 130A at 100%
  • Electrode Diameter 1.6÷ 4 mm
  • Insulation Class H
  • Protection rating: IP23S
  • Machine dimension: 140x360x255 mm
  • Packaging dimension: 175x510x290 mm
  • Weight with/without packaging: 6.7/ 6.2 Kg

Ideal for light carpentry and maintenance work, the Galileo 179 combines high quality performance with a practical and manageable design, weighing just 6.2 kg for easy portability and use in various work environments.

THE KIT PROVIDED INCLUDES ONLY THE WELDING MACHINE, GRIPPER AND ELECTRODE HOLDER WILL NOT BE PROVIDED.

Technical features

Power supply: 230 Volts

TIG welding:

  • Open circuit voltage: 52 V
  • Adjustment range: 10–160 A
  • Duty cycle at 40°: 160A at 60%, 130A at 100%
  • The welding machine is equipped with high frequency for lighting the torch

MMA welding:

  • Open circuit voltage: 52 V
  • Adjustment range: 10–160 A
  • Duty cycle at 40°: 160A at 60%, 130A at 100%

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Power switch

Control panel with adjustable parameters

Brass sockets

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

The product is shipped in its original packaging

Included with the product, the customer will recieve:

  • instruction manual
