Helvi Galileo 179 - MMA and TIG Inverter Welding Machine - 160A - Kit bag

Add a question
ID: K607452

EAN: 8056326741488

MPN: 99806010

8,0/10
After-sales assistance & Spare parts
Helvi Galileo 179 - MMA and TIG Inverter Welding Machine - 160A - Kit bag
FREE
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA + TIG
MMA electrode
TIG
Open circuit voltage
52 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
60 %
MMA Welding current range (A)
10-160
Generator +/- 15%
TIG lift
Welding equipment
Suitcase + accessories
Manufacturing country
Italy
Product Features
Model:
Galileo 179 Kit Borsa
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 4
IP:
23S
Open circuit voltage:
52 Volt
220 V max absorbed power:
3.33 KW
Min. required generator power:
4.8 KW
40°C duty cycle:
60 %
40°C duty cycle:
60%@160A
MMA Welding current range (A):
10-160
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Suitcase + accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
140x36x25 cm
Net weight:
8.8 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
175x51x29 cm
Gross weight (packaging included) :
11.5 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 518,46
VAT Included

You're viewing:
Customers also viewed:
Description

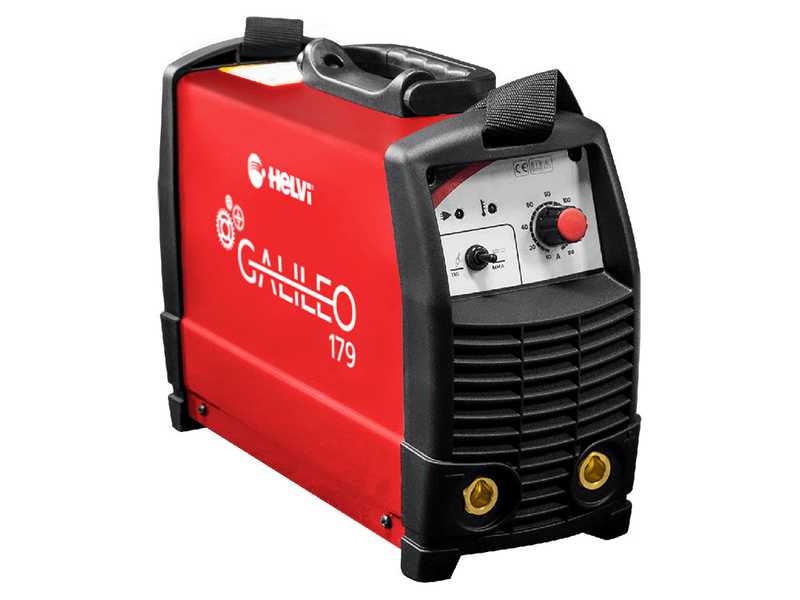

Helvi Galileo 179 - MMA and TIG inverter welding machine - 160A - Kit bag

The HELVI Galileo 179 model represents a benchmark in the MMA and TIG welding sector, with production boasting Italian-made quality.

This inverter is the perfect choice for those who want high performance, suitable for both professionals and beginners. Its compact size and high efficiency make the Galileo 179 an ideal solution for a variety of needs.

Its ability to adapt to different situations makes it exceptionally versatile, compatible with every type of electrode available on the market (rutile, basics, stainless steel).

The Galileo 179's advanced features include over-voltage and over-temperature management, as well as an anti-stick system for the electrodes, ensuring superior welding results. It also features a STICK/TIG (lift arc) switch for greater adaptability.

Designed to be used in demanding working conditions, such as on construction sites or for maintenance, the Galileo 179 can be powered by both generators sets and extended connection lines, adapting to different work needs.

Ideal for use in light carpentry and maintenance activities, the Galileo 179 offers high performance in a practical and easily transportable design, weighing only 6.2 kg.

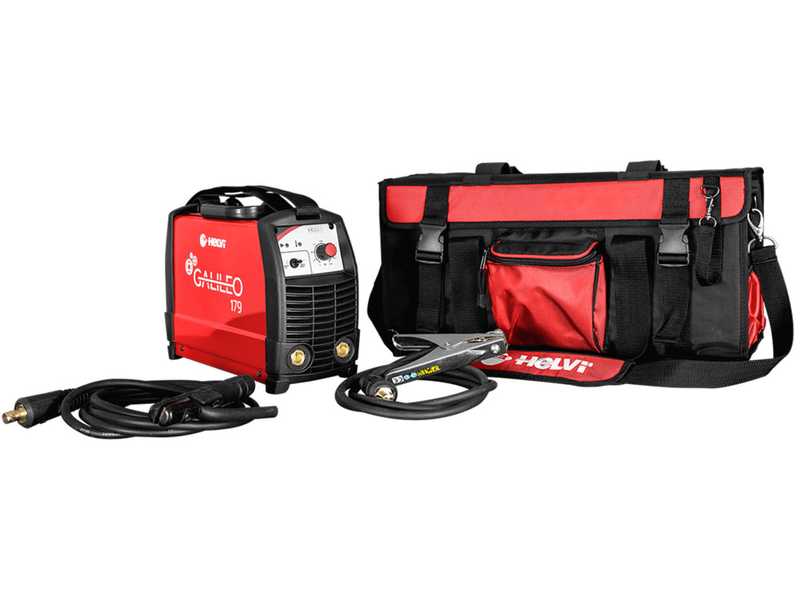

The kit provided includes:

  • Helvi bag size 45x22x27 cm
  • Cable with electrode holder clamp 3m/25mm
  • Cable with ground clamp 2m/25mm 300amp

Technical features

Technical features include:

  • Supply voltage: 230V- 50 Hz/ 60 Hz
  • 60% power: 4.8 KW
  • No-load voltage: 52 V
  • Ampere Range: 10 ÷ 160 A
  • Working cycle at 40 ° C: 160A at 60%, 130A at 100%
  • Usable electrode diameter: 1.6÷ 4 mm
  • Insulation class: H
  • Protection rating: IP23S
  • Machine dimension: 140x360x255 mm
  • Packaging dimensions: 175x510x290 mm
  • Net/gross weight 6.2/ 6.7 Kg
  • Duty cycle at 40°: 160A at 60%, 130A at 100%

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Power switch

Control panel with adjustable settings

Brass sockets

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

The product is shipped in its original packaging

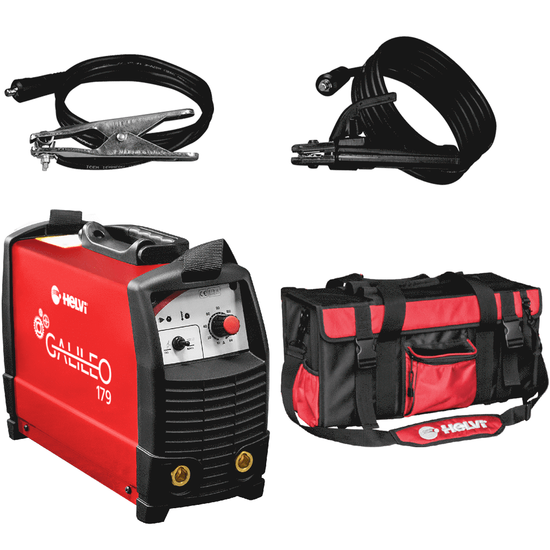

Included with the product, the customer will receive:

  • instruction manual
  • Earth clamp with 2 metre cable, 25 mm cross-section, and 300 amp
  • electrode holder pliers with 3 meter cable and 25mm section
  • Helvi welding bag 45x22x27 cm
