Helvi Galielo 219 - MMA and TIG Inverter Welding Machine - 200A - Kit bag

Add a question
ID: K607453

EAN: 8056326741495

MPN: 99806011

8,0/10
After-sales assistance & Spare parts
Helvi Galielo 219 - MMA and TIG Inverter Welding Machine - 200A - Kit bag
Type
Inverter MMA + TIG
MMA electrode
TIG
Open circuit voltage
48 Volt
Suitable MMA electrodes
1.6 - 5
40°C duty cycle
60 %
MMA Welding current range (A)
10-200
Generator +/- 15%
TIG lift
Welding equipment
Suitcase + accessories
Manufacturing country
Italy
Product Features
Model:
Galileo 219 Kit Borsa
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 5
IP:
23S
Open circuit voltage:
48 Volt
220 V max absorbed power:
6.71 KW
Min. required generator power:
8.2 KW
40°C duty cycle:
60 %
40°C duty cycle:
60%@200A
MMA Welding current range (A):
10-200
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Suitcase + accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
140x36x25 cm
Net weight:
8.8 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
175x51x29 cm
Gross weight (packaging included) :
11.5 Kg
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 586,65
VAT Included

You're viewing:
Customers also viewed:
Description

Helvi Galileo 219 - MMA and TIG Inverter Welding Machine - 200A - Kit bag

The HELVI Galileo 219 model stands out as an excellence in the field of MMA and TIG welding, proudly produced with the quality of Made in Italy.

This inverter is an excellent choice for those looking for high-level performance, being ideal for both professionals and beginners. With its compact size and high efficiency, the Galileo 219 presents itself as an optimal solution for a wide range of applications.

The Galileo 219 inverter shines for its ability to adapt to multiple contexts, thanks to its compatibility with all types of electrodes available on the market (rutile, basics, stainless steel).

Its advanced features include over-voltage and over-temperature control, as well as an innovative anti-stick system for the electrodes, ensuring high-quality welding results.

It is also equipped with a convenient STICK/TIG (lift arc) switch, further increasing its versatility.

Designed to withstand the most demanding working conditions, such as on construction sites or for maintenance, the Galileo 219 can be powered by both generators and extended connection lines, adapting without problems to different work situations.

Perfect for use in light carpentry and maintenance, this machine offers excellent performance, enclosed in a practical and easily transportable design, with a weight of only 8.8 kg.

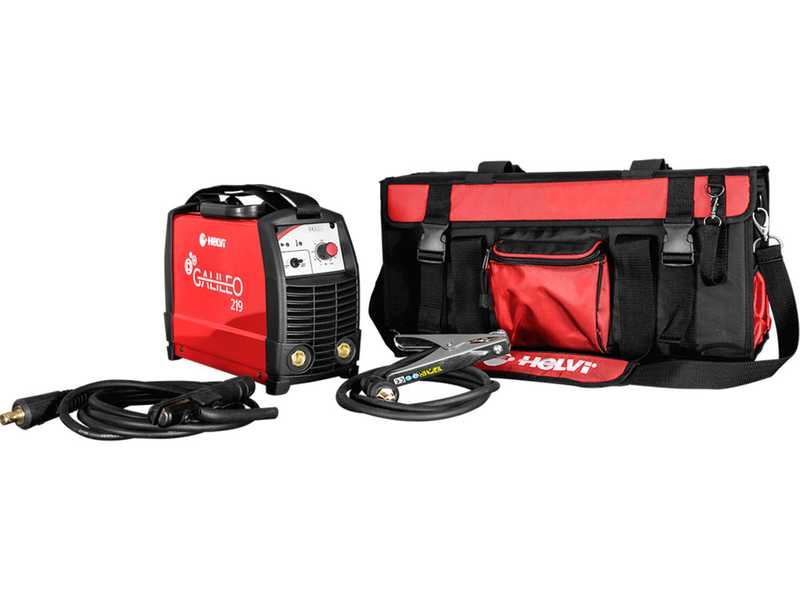

The kit supplied with the Galileo 219 includes:

  • HELVI bag size 45x22x27 cm
  • Cable with electrode holder clamp 3m/25mm
  • Cable with ground clamp 2m/25mm 300amp

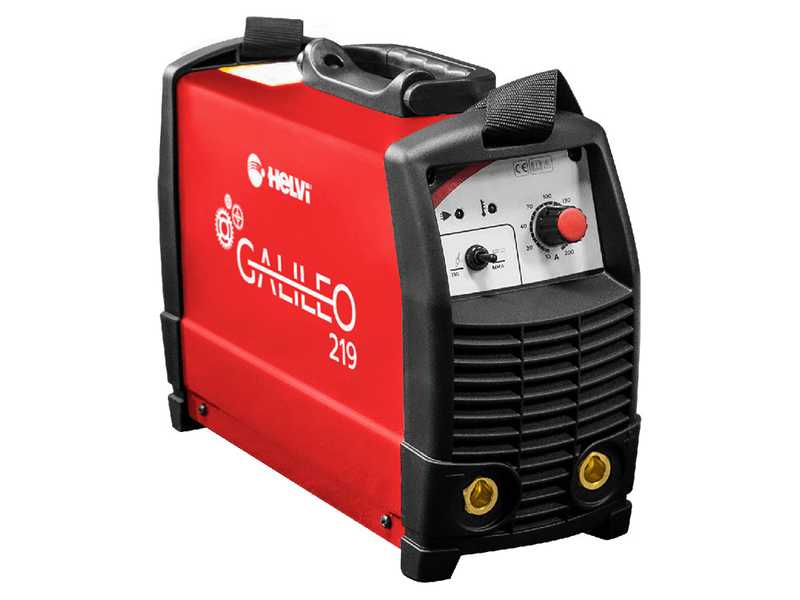

Technical features

The technical specifications of the Galileo 219 model are:

  • Input voltage (1 pH): 230V- 50 Hz/ 60 Hz
  • 60% power: 6 KW
  • Open circuit voltage: 48 V
  • Min-max Amperes: 10 ÷ 200 A
  • Working cycle at 40°: 200A at 60%, 155A at 100%
  • Ø ELECTRODE 1.6÷ 45 mm
  • Electrode type: 6013–7018
  • Isolation: H
  • Protection rating: IP23S
  • Machine dimension (LxWxH): 140x360x255 mm
  • Package net weight: 11.5/ 8.8 Kg
  • Code: 99806011

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Power switch

Control panel with adjustable settings

Brass sockets

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding helmet

Heavy-duty welding helmet, new and innovative product. It is one of the most efficient welding helmets in this category. GeoTech CHARM-380S auto darkening welding helmet features unparalleled value for money. There are no other helmets with such technical features at this price on the whole market.

Light and comfortable, equipped with adjustment system to be comfortably worn via a knob on the back. Suitable for MMA, TIG and MIG-MAG welding. Its shape allows you to operate with your hands free, ensuring maximum safety and ease of use.

SAFETY The auto darkening welding helmet is suitable for most welding operations. This helmet automatically darkens in 1/25,000 seconds the very moment you start welding. No matter what shade the filter is set to, the UV/IR protection is always present.

SHADE ADJUSTMENT You can select the 9-13 shade according to the welding process. The helmet can also be used to protect yourself during grinding (DIN 4). Grinding mode prevents filter from auto darkening.


Viewing area: 92x42 mm
Filter cartridge size: 110x90 mm
Arc sensor: 2
UV/R protection: up to DIN 16 at all times
Clearer filter: DIN 4 (grinding)
Darker filter: Variable external shadow, DIN 9-13
Darkening (from light to dark): 1/25,000 S
Delay (dark to light): 0.1-1-0
Power supply: Solar cell and 2 CR2032 lithium batteries
TIG AMP: DC>10, AC>10

Free Items Included

The product is shipped in its original packaging

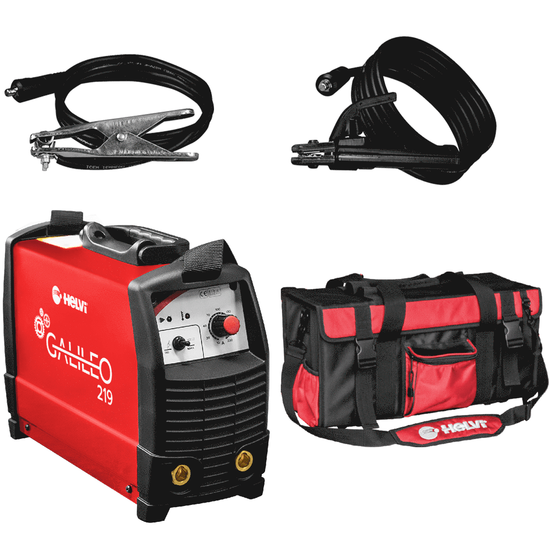

Included with the product, the customer will receive:

  • instruction manual
  • Earth clamp with 2 metre cable, 25 mm cross-section, and 300 amp
  • electrode holder pliers with 3 meter cable and 25mm section
  • Helvi welding bag 45x22x27 cm
