HELVI Fox 191 - Multi-Process Inverter Welding Machine (MIG-MAG/MMA/TIG), direct current (DC)

Questions & Answers (1)
ID: K609200

EAN: 8056326742225

MPN: 99820052

8,0/10
After-sales assistance & Spare parts
HELVI Fox 191 - Multi-Process Inverter Welding Machine (MIG-MAG/MMA/TIG), direct current (DC)
Type
Multifunction inverter
MMA electrode
TIG
Welding current range (A)
5 - 200
Open circuit voltage
70 Volt
Suitable MMA electrodes
1.6 - 5
40°C duty cycle
35 %
Aluminium Welding (optional)
Standard
MMA Welding current range (A)
20 - 180
TIG Welding current range (A)
5 - 180
Generator +/- 15%
Synergic welding
Yes
Manufacturing country
Italy
Product Features
Model:
Fox 191
Type:
Multifunction inverter
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 5
IP:
22S
Open circuit voltage:
70 Volt
220 V max absorbed power:
4.67 KW
Min. required generator power:
7 KW
40°C duty cycle:
35 %
40°C duty cycle:
35%@200A(MIG/MMA/TIG)
Welding current range (A):
5 - 200
MMA Welding current range (A):
20 - 180
TIG Welding current range (A):
5 - 180
Suitable cored wire:
0.9
Suitable steel wire:
0.6 - 1.0
Suitable stainless steel wire:
0.8
Suitable aluminium wire:
0.8 - 1.0
Suitable CuSi 3- CuAI wire:
0.8 - 1.0
Wire welding type:
MIG - MAG
Generator +/- 15%:
Aluminium Welding (optional):
Standard
Synergic welding:
Yes
Manufacturing country:
Italy
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics

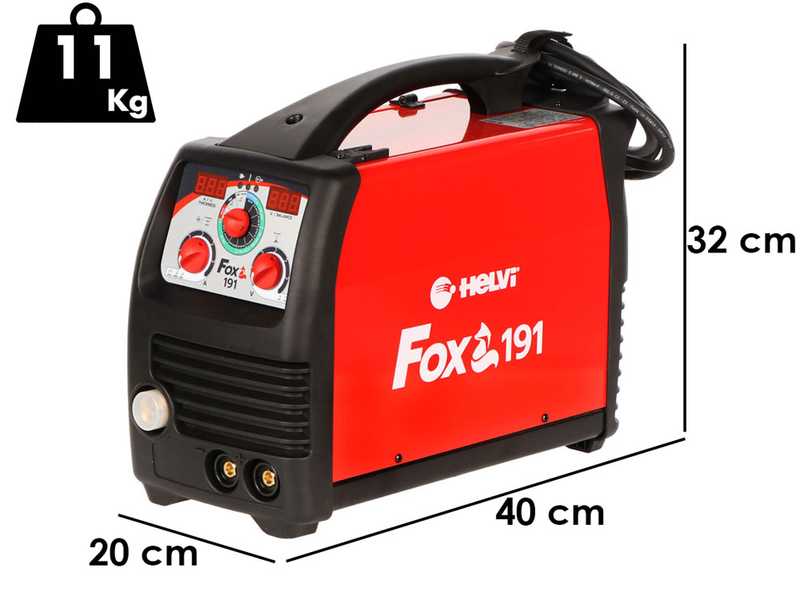

Product dimensions in cm (L x W x H):
40x20X32 cm
Net weight:
11 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
64x26x45cm
Weight including packaging:
17 Kg
Assembly time:
Assembled
Arriving on 13/06/25
Free Shipping
Estimated delivery: 23/06/2025 - 25/06/2025
€ 733,92
Vat included

You're viewing:
Customers also viewed:
Description

HELVI Fox 191 - Multiprocess Inverter Welding Machine

The Helvi Fox 191 Welder is an innovative multipurpose MIG/MAG, TIG and MMA welding machine, designed for high performance thanks to inverter technology and microprocessor control. This model is ideal for bodywork, small carpentry and maintenance work, as it combines ease of use and versatility with stable, spatter-free welding. The integrated microprocessor handles a number of advanced functions, such as Hotstart, Arc Force and anti-collision in MMA mode, arc lift for TIG, and manual and synergic welding adjustment for MIG, improving accuracy and quality of work.

The Fox 191 is distinguished by its soft arc initiation, achieved by the automatic wire feed system and the motor's ramp-up adjustment, which ensure smooth, jolt-free welding.

The front interface allows for easy selection of different settings, while digital displays provide clear visualisation of voltage, current and selected parameters, simplifying operation. It has a wide range of current amplitude adjustment, adapting to materials such as steel, stainless steel and aluminium, as well as cored wire.

Main features:

  • Inverter technology and microprocessor control for stability and arc quality without splashing.
  • Multi-purpose: MIG/MAG welding support, TIG (lift arc) and MMA (stick) with manual and synergic mode.
  • Advanced MMA functions : Hotstart, Arc Force and Anti-Bonding.
  • Intuitive control panel with digital displays for voltage and current.
  • Material compatibility: Steel (0.6-1.0 mm), stainless steel (0.8-1.0 mm), aluminium (0.8-1.0 mm), cored wire (0.9 mm).
  • IP22S and H-insulation, ideal for demanding work environments.

Technical Features

General Data

  • Input voltage: 230V- 50 Hz/ 60 Hz
  • Insulation H
  • Protection rating: IP22S
  • Weight: 11 Kg

MIG:

  • Open circuit voltage: 70V
  • Min-max Amperes: 25 ÷ 180 A
  • Working cycle at 40°:
    • 180A at 20%
    • 105A at 60%
    • 75A at 100%
  • Steel 0.6÷ 1.0 mm
  • Stainless Steel. 0.8÷ 1 mm
  • Aluminium 0.8÷ 1.0 mm
  • Animated wire: 0.9 mm

MMA:

  • Open circuit voltage: 70V
  • Min-max Amperes: 20 ÷ 180 A
  • Working cycle at 40°:
    • 180A at 20%
    • 105A at 60%
    • 75A at 100%
  • Electrode: Ø1,6 ÷ 5 mm
  • Electrode type: 6013 - 7018 - CrNi

TIG

  • Open circuit voltage: 70V
  • Min-max Amperes: 5 ÷ 180 A
  • Working cycle at 40°:
    • 18A at 20%
    • 105A at 60%
    • 75A at 100%

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a temperature of 40°C and when the source is at temperature, i.e. after working for a certain time. At lower temperatures or when the machine is cold, the welding cycle naturally increases.

Detail of the control panel, which contains 3 knobs for:

  • Weld type:
  • Weld arc width;
  • Amperage

It is also equipped with indicator lights that illuminate both the working status of the welder and the maximum temperature reached. In the latter case, the welder will run as a block thanks to the thermal protection until it cools down to become active again.

Focus on the power switch

Handle for easy transport

Free items & Standard equipment

Free Items Included

The product on pallet is shipped in its original packaging

Included with the product, the customer will receive:

    • ground clamp
    • instruction manual

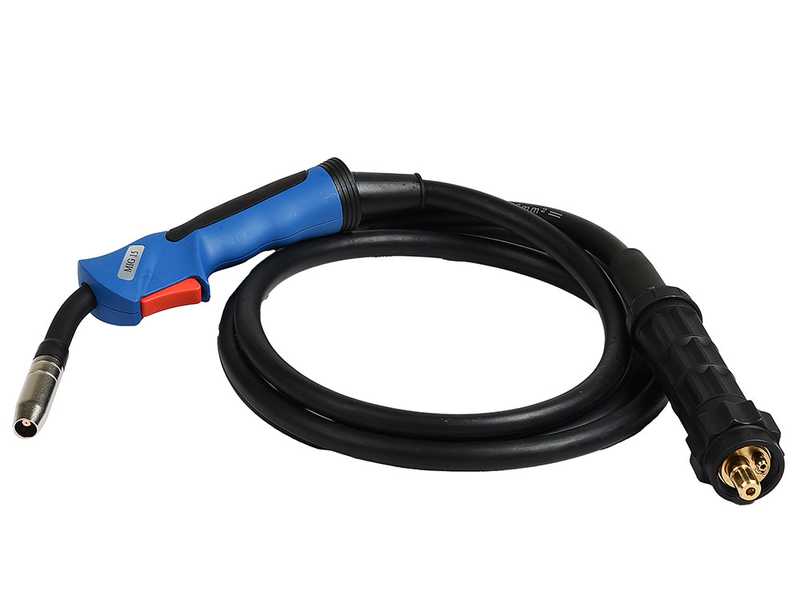

  • welding torch
  • gas hose
