Helvi Discovery 120 Plus - 12/24V automatic charger and battery maintainer

Add a question
ID: 112337

EAN: 8056326740863

MPN: 99000083

Helvi Discovery 120 Plus - 12/24V automatic charger and battery maintainer
Power supply
Electric
Battery charger
Maintainer
Nominal battery voltage
12 V - 24 V
Absorbed power
120 W
Min Ah/max Ah battery capacity (12 V)
120
Low temperature charging and maintaining
Yes
Product Features
Model:
Discovery 120 Plus
Product Type:
Battery charger maintainers
Battery charger:
Maintainer:
Structure:
Mini
Power supply:
Electric
230 V Electric:
Nominal battery voltage:
12 V - 24 V
Effective charging current (12 V):
7.6 Max Ah
Average charging current (12 V):
3.8 A
Absorbed power:
120 W
Battery type:
AGM, al GEL, piombo, LiFePO4, Start/Stop
Min Ah/max Ah battery capacity (12 V):
120
Maintenance charge battery capacity:
120 Max Ah
Low temperature charging and maintaining:
Yes
Suitable for Lithium-ion batteries:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
235x100x60 mm
Net weight:
0.85 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
280x175x75 mm
Gross weight (packaging included) :
0.9 Kg
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 24/05/2024 - 28/05/2024
€ 132,51
VAT Included

You're viewing:
Customers also viewed:
Description

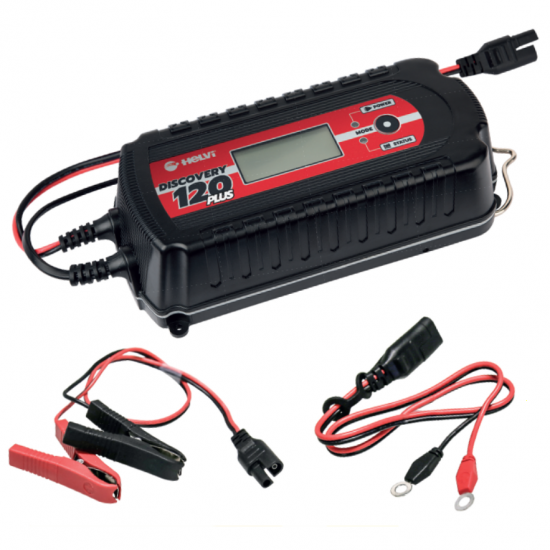

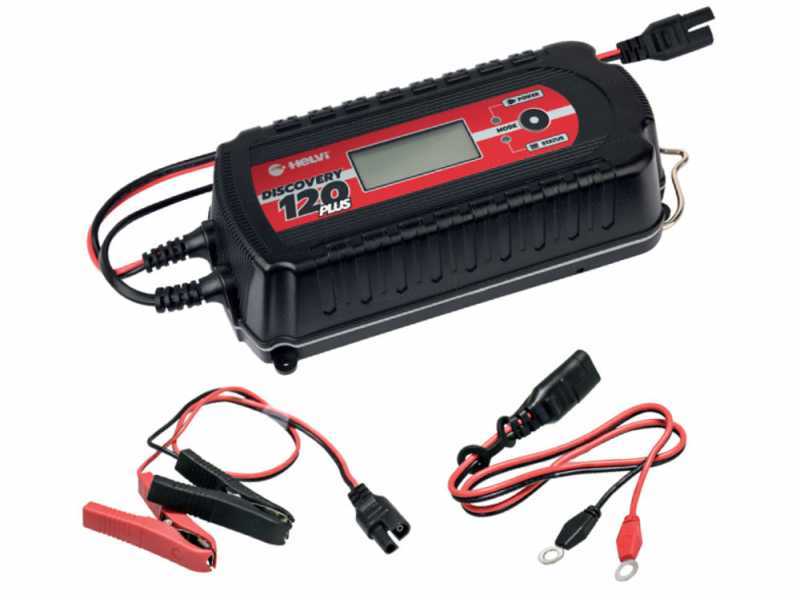

Helvi Discovery 120 Plus - Automatic charger and battery maintainer

Helvi Discovery 120 Plus is designed for maximum safety and efficiency when charging the battery.

It is particularly appreciated because it has no output voltage peaks, a detail that prevents damage to electronic boards in vehicles.

The versatility of this device is remarkable: it is ideal for charging different types of batteries, such as AGM, GEL, lead-acid, LiFePO4 and Start/Stop batteries.

A distinctive aspect of this battery charger is its ability to adapt to different needs, thanks to the selection of various types of charge and battery types.

You can choose between a voltage of 12 or 24 V and set the charging current to nine different levels, making it suitable for both motorbikes and cars.

In addition, it offers a SUPPLY and maintenance function to prolong battery life.

IP65 protection makes it weatherproof, increasing its durability and reliability.

In terms of technical specifications, the input voltage is 230 V (1ph) at 50/60 Hz, with a power output of 135 W.

The supported battery voltage is 12, with a charging current of 7.6 A, or 3.8 at 24 V

The nominal reference capacity is 120 Ah 15h, and the device offers nine charging positions.

The dimensions of the battery charger are 225x100x60 mm and the net weight is 0.85 kg.

Technical specifications

Features:

  • Input voltage: 230V- 50 Hz/ 60 Hz
  • Power: 135 W
  • Battery voltage: 12/ 24 V
  • Charging current: 7.8/ 3.8 A
  • Reference rated capacity 120 ah 15h
  • Charging positions 9
  • Machine dimension: 235x100x60 mm
  • Packaging dimension: 280x175x75 mm
  • Packaging net weight 0.9/ 0.85 Kg

Equipped with overload and reverse polarity protection.

For batteries: AGM, GEL, lead, LiFePO4, Start/Stop

Charging current on nine levels, ideal for cars, vans, small boats.

Free items & Standard equipment

Free items / Extra features

The battery charger is shipped in its original packaging along with the Instructions manual.
