Description

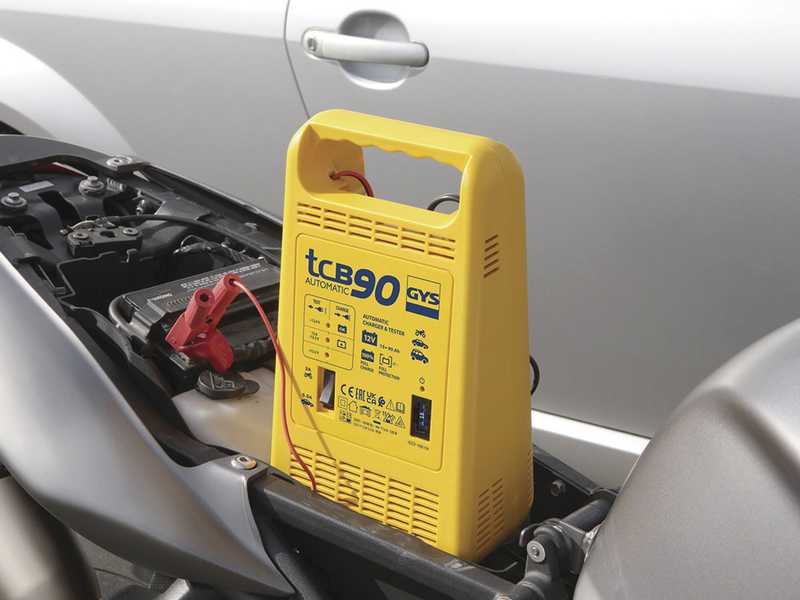

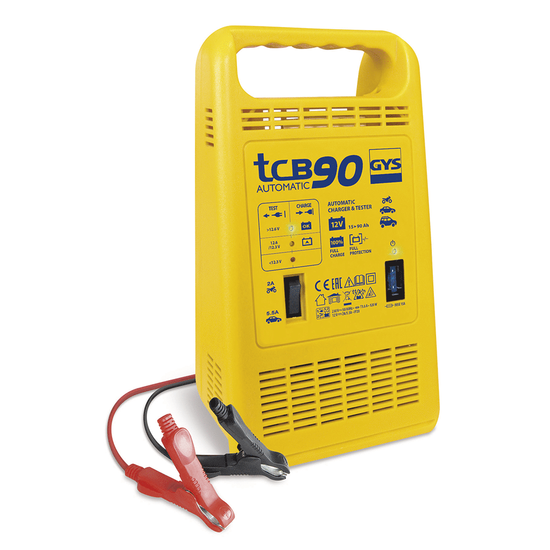

GYS TCB 90 - Charger - 12V Batteries 15 to 90Ah

The GYS TCB 90 AUTOMATIC charger is an efficient and safe device designed for charging 12V batteries with a capacity between 15 and 90 Ah.

It is ideal for lighter vehicle and motorcycle batteries, offering automatic charging that does not require monitoring.

Thanks to the Floating Process system, the charger keeps the battery at 100% charge, extending battery life and ensuring optimal performance.

This charger features two charging speeds, adjustable between 2A and 5.5A, to suit the different charge levels required.

The three indicator lights allow constant monitoring of the charging state, while the automatic surge limiter protects the vehicle’s on-board electronics.

This allows the battery to be recharged without having to unplug it from the vehicle, making the operation simple and safe.

The GYS TCB 90 AUTOMATIC charger is equipped with multiple protections, including overload, short-circuit and reverse polarity protection.

These advanced features, combined with a compact and solid design, make it an ideal tool for those looking for reliability and user-friendliness in charging operations.

Distinctive features:

Floating process: ensures automatic 100% charge retention.
Adjustable charging speed: choice between 2A and 5.5A, for fast or standard charging.
Easy monitoring: three indicator lights to check the battery status in real time.
Universal compatibility: it supports batteries from 15 to 90 Ah, without the need to unplug the battery from the vehicle.
Electronic protection: automatic surge limiter and protection against reverse polarity and short circuits.

GYS TCB 90 - Automatic Charger - 12V Batteries 15 to 90Ah

Technical Features

The GYS TCB 90 AUTOMATIC charger offers an advanced, automatic solution for charging 12V batteries with a capacity ranging from 15 to 90 Ah.

Ideal for motorcycles and lighter vehicles, this charger is designed for high performance and safe use, without the need for monitoring.

Here are the main technical specifications of the device:

Power supply: the charger operates at 230V with a frequency of 50-60Hz and a power consumption of 120W, making it suitable for domestic or industrial use.
Compatibility: designed for batteries ranging from 15 to 90 Ah, it is suitable for both maintenance-free and liquid batteries.
Output voltage: the charger delivers a voltage of 12V, suitable for most light vehicles.
Charging current: the GYS TCB 90 AUTOMATIC features two charging modes, with an adjustable current between 2A and 5.5A, to adapt to the specific needs of the battery.
Protection: it is equipped with a 15A fuse and includes overload, short-circuit and reverse polarity protection, as well as an automatic surge limiter to protect the on-board electronics.
IP20 protection rating: the charger is protected against dust and moisture, ensuring greater durability.
Size and weight: compact and handy, measuring 12 x 17 x 29 cm and weighing 3.4 kg, ideal for easy transport and use.
