GYS SMARTMIG 110 - Traditional transformer welding machine (MOG: NO GAS) - direct current (DC)

Add a question
ID: K608865

EAN: 3154020033993

MPN: 033993

GYS SMARTMIG 110 - Traditional transformer welding machine (MOG: NO GAS) - direct current (DC)
Type
Wire transformer
Gas-free wire (MOG)
Welding current range (A)
40-110 A
Open circuit voltage
30 Volt
40°C duty cycle
6 %
Wire welding type
NO GAS
Generator +/- 15%
Product Features
Model:
Smartmig 110
Type:
Wire transformer
Gas-free wire (MOG):
Power supply:
Single-phase electric
Fuse:
13 Amp
Open circuit voltage:
30 Volt
220 V max absorbed power:
2.4 KW
Min. required generator power:
3.9 KW
40°C duty cycle:
6 %
40°C duty cycle:
6%@85 A
Welding current range (A):
40-110 A
Suitable cored wire:
0.8 - 1.0
Wire welding type:
NO GAS
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
China
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
34x17x34 cm
Net weight:
13 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
40x18x40 cm
Gross weight (packaging included) :
14 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Suggested price:
€ 322,42
€ 280,51
Vat included
You're viewing:
Customers also viewed:
Description

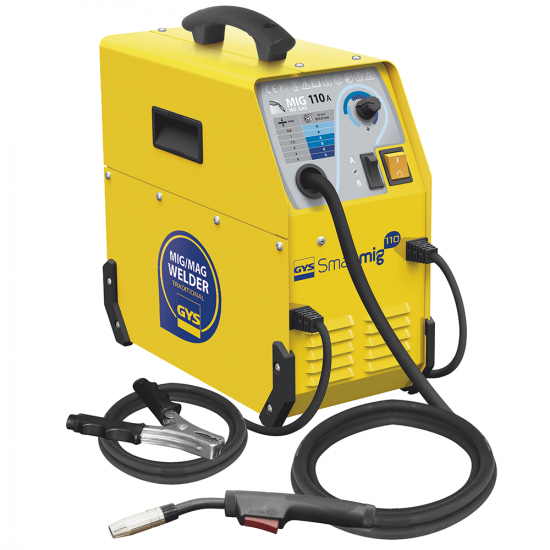

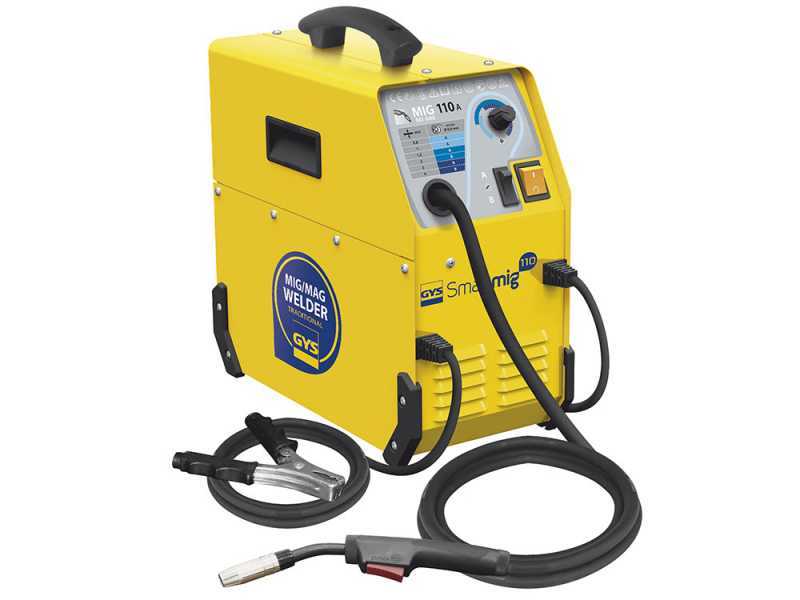

GYS Smartmig 110 gas-free wire welding machine

The GYS SMARTMIG 110 gas-free wire welding machine is a semi-automatic welding machine , ideal for craftsmen and individuals who need a practical and easy-to-use device.

This model is designed to weld steel using NON-GAS technology, which uses a 0.9 mm cored wire, eliminating the need for external gas.

The SMARTMIG 110 stands out for its portability and ease of use.

Weighing only 14 kg, it is extremely handy and can be easily transported for maintenance work in different locations.

The 230V - 13A single phase power supply allows the soldering machine to be used on a common domestic socket, ensuring low power consumption without compromising on performance.

The device is compatible with 100 mm diameter wire coil, offering a compact yet effective solution for soldering operations.

Power Regulation , which has two positions, and wire speed are made easily made thanks to the integrated SMART table.

This feature allows you to easily set ideal parameters based on the thickness of the material being welded, eliminating complex adjustments and optimizing the welding process.

Key features of the GYS SMARTMIG 110:

  • Semi-automatic welding machine with 110A of power.
  • NO GAS technology with 0.9 mm cored wire .
  • Power supply 230V – 13A for low power consumption .
  • Portable and lightweight, it weighs only 14 kg.
  • Compatible with 100 mm reels .
  • Easy adjustment with the SMART Table.

Technical Features and Details

Focus on the data sheet:

  • Single-phase mains voltage: 230 V
  • Mains frequency: 50 / 60Hz
  • Current setting range: 40 - 110 A
  • Max DC current (EN 60974-1): 85A @ 8%
  • Maximum open circuit voltage: 30V
  • Maximum absorbed current: 3A
  • Maximum power consumption: 2.37 kW
  • Hourly output: 66%
  • Diameter of Cored Welding wire : 0.6 - 1 mm
  • Size: 34x17x34 cm
  • Weight: 14 kg

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. At lower temperatures or when the machine is cold, the welding cycle naturally increases.

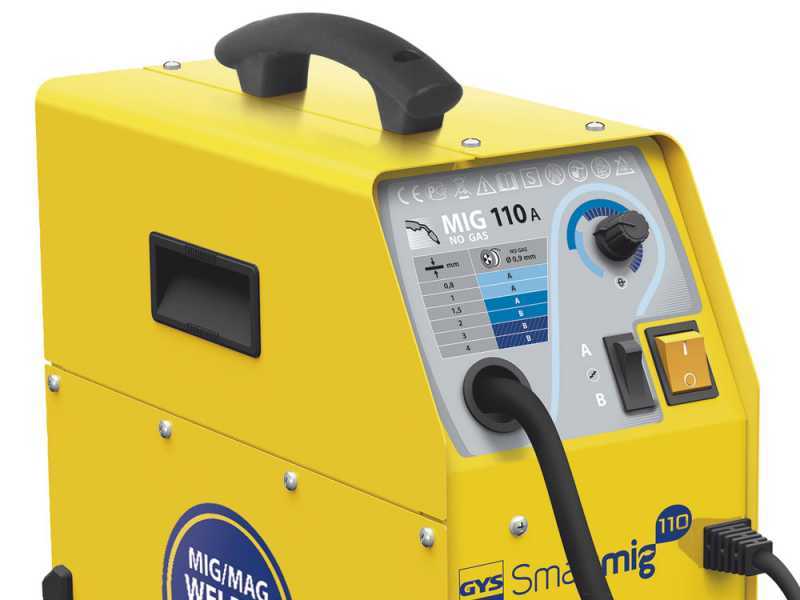

Detail of the control panel.

Belt for easy transfer from one place to another.

Free items & Standard equipment

COMPLIMENTARY: wire feeder roller

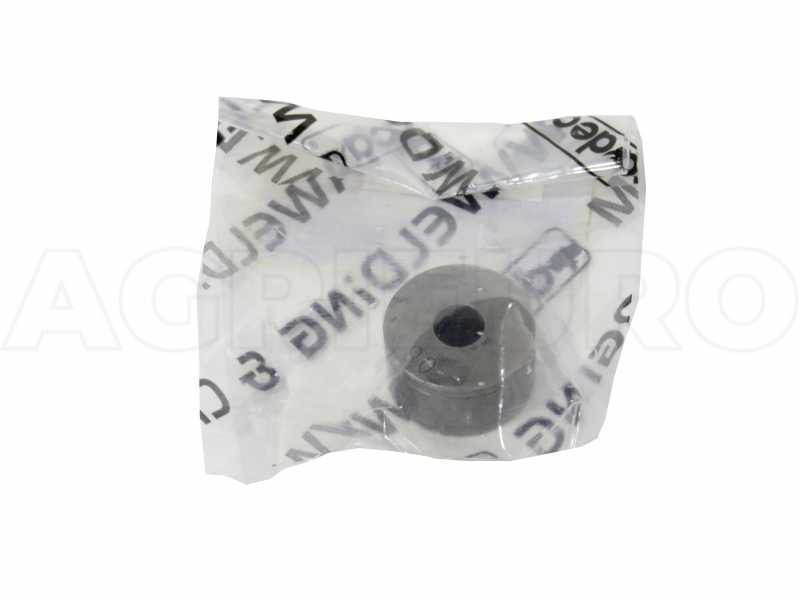

Wire feeder roller

Iron - aluminium, diameter 0.8/1.0

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Standard Equipment

The product is shipped in its original packaging along with the instruction manual.

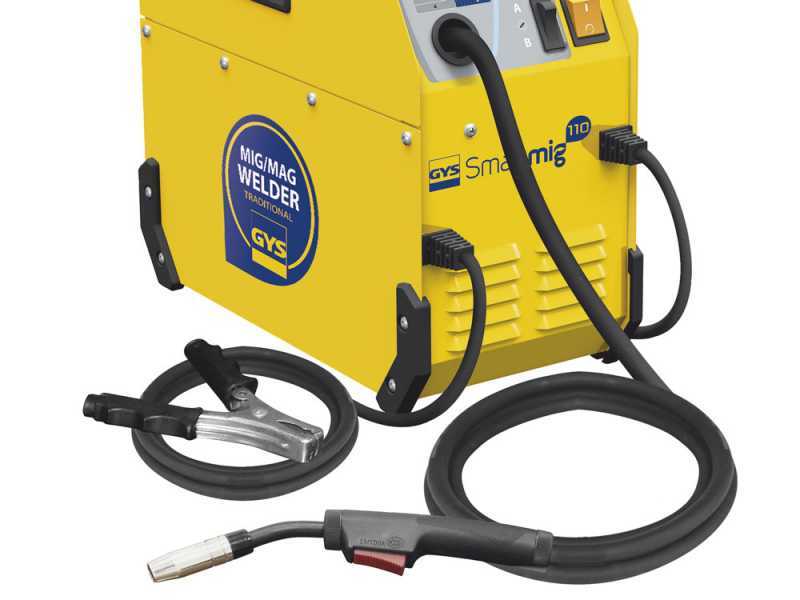

Standard equipment:

    • Torch
    • ground clamp with cable
